Cradlepoint R920 Ruggedized LTE Cat 7 Router with Wi-Fi 6 and 1-Year NetCloud Mobile Essentials (North America)

4G LTEMPN MA01-0920-C7A-NA
  • Wi-Fi 6
  • Dual SIM
  • 2–4 × 1 Gb Ethernet
  • GPS/GNSS
  • Rugged
  • FirstNet Ready
$869.30$950.00Save $80.70

In stockShips from the US

Included subscription · 1 year
1 year3 years+$194.914 years+$375.705 years+$388.916 years+$682.70
Compliance · Standard
StandardTAA compliant+$309.70
Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans
Compare all 25 configurations

Datasheets & documents

Overview

The Cradlepoint R920 (MA01-0920-C7A-NA) is a ruggedized, metal-housed LTE router for vehicles and mobile operations in the U.S. and Canada. It pairs an embedded Cat 7 LTE modem (300 Mbps down, 150 Mbps up) and dual 4FF SIM slots with dual-band Wi-Fi 6, two Gigabit Ethernet ports, Bluetooth LE 5.1 and multi-constellation GNSS. It runs on 9–36 VDC with ignition sensing and carries an IP64 rating. This SKU bundles a 1-year NetCloud Mobile Essentials plan. The AC power supply and antennas are not included.

  • Embedded Cat 7 LTE modem: 300 Mbps downlink and 150 Mbps uplink with 2x2 MIMO, dual 4FF SIM slots and SIM-based auto-carrier selection
  • Dual-band concurrent 2x2 MU-MIMO Wi-Fi 6 (802.11ax), up to 1.2 Gbps on 5 GHz, supporting AP, client and Wi-Fi-as-WAN modes
  • 2 x Gigabit Ethernet (LAN/WAN switchable), USB 2.0 with screw lock, Bluetooth LE 5.1 and active multi-constellation GNSS
  • IP64 ruggedized metal housing, -30 °C to 75 °C operation, E-Mark, EN 61373 rail, MIL-STD-810G and Class I Div 2 certifications
  • 9–36 VDC power input with ignition sensing (automatic on, time-delay off)
  • Second LTE or 5G modem and a serial port available through the RX20 Managed Accessory
  • 1-year NetCloud Mobile Essentials plan with NetCloud Manager, software updates and support for the term
  • Keeps crews and on-board systems connected with Cat 7 LTE speeds up to 300 Mbps and 150 Mbps uplink for video and data

The Ericsson Cradlepoint R920 is a ruggedized LTE networking platform for fleets, public safety vehicles, transit and field operations that need dependable in-vehicle connectivity and one standard router across the fleet. This North America (U.S. & Canada) SKU, MA01-0920-C7A-NA, combines the R920 hardware with a 1-year NetCloud Mobile Essentials plan. It includes cloud management through NetCloud Manager, software updates and support for the full term, and a limited lifetime hardware warranty for as long as an active NetCloud subscription is maintained.

The embedded Cat 7 LTE modem uses 2x2 MIMO and 2-carrier aggregation to reach 300 Mbps downlink and 150 Mbps uplink. It has dual 4FF SIM slots with SIM-based auto-carrier selection and holds network operator certifications for AT&T, T-Mobile and Verizon. It supports FirstNet Trusted, T-Mobile Connecting Heroes and Verizon Frontline public safety networks, and private cellular networks on CBRS Band 48. Adding the RX20 Managed Accessory provides a second LTE or 5G modem plus a serial port.

Inside the vehicle, dual-band concurrent 2x2 MU-MIMO Wi-Fi 6 delivers up to 1.2 Gbps on 5 GHz and works as an access point, a wireless client or Wi-Fi as WAN. Two switchable Gigabit Ethernet ports, a screw-lock USB 2.0 port and embedded Bluetooth LE 5.1 cover wired and IoT devices. An active GNSS receiver tracks GPS, Galileo, GLONASS, BeiDou and QZSS, which feeds NetCloud location and coverage maps. The router is rated for 940 Mbps stateful firewall throughput, 20 concurrent VPN tunnels and up to 64 VLANs. A dual-core ARMv8 processor runs Docker containerized applications at the edge.

The R920 is built for harsh conditions. It operates from -30 °C to 75 °C, carries an IP64 rating and holds E-Mark, SAE J1455, EN 61373 rail, MIL-STD-810G shock and vibration, and Class I Div 2 certifications. Power comes from a 9–36 VDC input with ignition sensing. The Cradlepoint R920 datasheet covers full details.

Ideal for

  • Police, fire and EMS vehicles connecting to FirstNet, T-Mobile Connecting Heroes or Verizon Frontline networks
  • Transit buses and rail rolling stock that need rugged, certified on-board Wi-Fi and data
  • Utility, field service and construction fleets that need GNSS tracking and ignition-aware power
  • Mobile command units and remote IoT deployments running containerized edge applications
  • Private LTE deployments on CBRS Band 48

Specifications

Power

Fusing
Use a 3 A fuse for 9–12 VDC and a 2 A fuse for > 24 VDC installations
Features
Ignition sensing (automatic on, time-delay off)
Input Voltage
9–36 VDC steady-state input
Consumption Idle
9 W (idle)
Consumption Heavy
15.2 W (heavy)
Consumption Sleep
15 mW (sleep)
Consumption Typical
14.5 W (typical)

General

MPN
MA01-0920-C7A-NA
UPC
840292703575
Brand
Cradlepoint (Ericsson Enterprise Wireless)
Model
Cradlepoint R920
Region
North America (U.S. & Canada)
Package Plan
1-Year NetCloud Mobile Essentials Plan
Product Status
Active
Shipping Weight
2.20 lb
Subscription Term
1 year
Essentials Support
24x7 support (phone 24-hour weekdays with weekend emergency response, web 24x7, chat 24x5)
Hardware Configuration
Cat 7 with Wi-Fi (300 Mbps); AC power supply and antennas not included

Cellular

3g
WCDMA/UMTS/HSPA+
SMS
Yes
MIMO
2x2 MIMO
3g Bands
WCDMA bands 2, 4, 5
Antennas
SMA female connectors; 2 x 600 MHz–6 GHz paddle antennas included only with IoT packages (not included with this Mobile SKU)
GNSS GPS
Active GNSS
TX Power
LTE 22.5 dBm ±1; DC-HSPA+ 23 dBm ±1
Modulation
Up to 64 QAM DL and UL
Regulatory
FCC (U.S.), IC (Canada), CE (EU)
Technology
Cat 7 LTE, dual 4FF SIM slots, SIM-based auto-carrier selection, 3GPP Release 11
Peak Uplink
LTE 150 Mbps; WCDMA 5.76 Mbps
LTE Fdd Bands
B2 (1900), B4 (1700), B5 (850), B7 (2600), B12 (700), B13 (700), B14 (700), B25 (1900), B26 (850), B66 (1700), B71 (600)
LTE Tdd Bands
B41 (2500), B42 (3500), B43 (3700), B48 (3500)
Peak Downlink
LTE 300 Mbps; WCDMA 42.2 Mbps
Carrier Aggregation
DL Cat 7, 2CA 64 QAM = 300 Mbps; UL Cat 13, 2CA 64 QAM = 150 Mbps
Public Safety Networks
FirstNet Trusted, T-Mobile Connecting Heroes, Verizon Frontline
Private Cellular Network
Yes, FCC Part 96 (CBRS Band 48)
Network Operator Standards
PTCRB (U.S., Canada); GCF (worldwide)
Network Operator Certifications
AT&T, T-Mobile, Verizon

GNSS GPS

Accuracy
Horizontal < 5 m (50%), < 9 m (95%)
Protocols
NMEA 0183
Frequencies
L1
Sensitivity
Acquisition -145 dBm; tracking -160 dBm
Update Rate
1 Hz (once per second)
Antenna Power
3.05–3.25 VDC supply, 100 mA max current
Constellations
GPS, Galileo, GLONASS, BeiDou, QZSS (simultaneous tracking)
Time TO First Fix
32 seconds (cold start)

Physical

Weight
595 g (1 lb 5 oz)

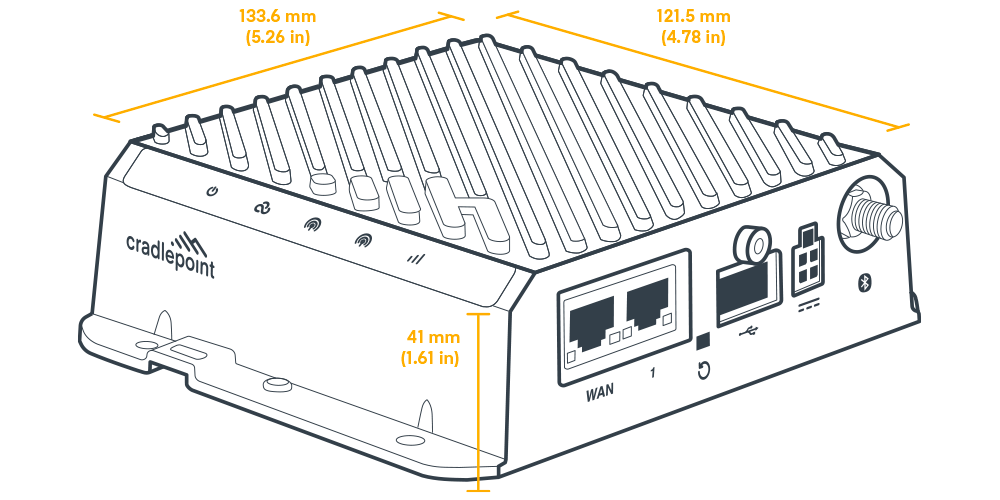

Dimensions
133.6 x 121.5 x 41 mm (5.26 x 4.78 x 1.61 in)

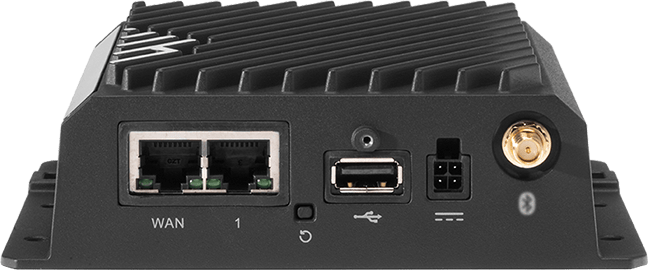

Interfaces

Wi-Fi
Dual-radio, dual-band concurrent (2.4 GHz and 5 GHz); 2x2 MU-MIMO 802.11ax Wi-Fi 6 with DFS
Modem
Embedded Cat 7 LTE modem; 2 x SMA cellular antenna connectors
Ethernet
2 x Gigabit Ethernet (LAN/WAN switchable)
Bluetooth
Embedded Bluetooth LE 5.1, 10 dBm max TX power, 1 x RP-SMA antenna connector
Wi-Fi Modes
AP, Wireless Client and Wi-Fi as WAN
Expansion USB
1 x USB 2.0 Type A (5 V, 500 mA, 2.5 W) with screw lock for secure connections
Wi-Fi Security
WPA/WPA2/WPA3 Personal, WPA2/WPA3 Enterprise, Open
Expansion Gpio
1 x 2-pin GPIO (shared with DC power connector)
GNSS Connector
1 x SMA GNSS antenna connector
Power Connector
2x2 Molex Micro-Fit (3 mm locking type)
Wi-Fi Data Rates
574 Mbps (2.4 GHz) and 1.2 Gbps (5 GHz)
Wi-Fi Certification
Wi-Fi Alliance Certified
Wi-Fi Roaming Standards
802.11k (AP mode only), 802.11v
Wi-Fi Antenna Connectors
2 x RP-SMA Wi-Fi antenna connectors

Wi-Fi Power

IC
2.4 GHz 23.18; 5150–5250 MHz 22.7; 5250–5350 MHz 17.16; 5470–5725 MHz 20.9; 5725–5850 MHz 22.17 dBm conducted
Fcc
2.4 GHz 23.18; 5150–5250 MHz 21.73; 5250–5350 MHz 22.17; 5470–5725 MHz 20.79; 5725–5850 MHz 20.97 dBm conducted
Europe
2.4 GHz 14.23; 5150–5250 MHz 17.03; 5250–5350 MHz 17.12; 5500–5700 MHz 22.05 dBm conducted
Australia New Zealand
AU/NZ: 2.4 GHz 14.23; 5150–5250 MHz 17.03; 5250–5350 MHz 17.12; 5500–5700 MHz 22.05; 5475–5825 MHz 22.18 dBm conducted

Performance

Vlans
Up to 64 Layer 2 / Layer 3 VLANs
Stateful Firewall
940 Mbps
Ipsec VPN Throughput
200 Mbps point-to-point IPsec VPN
Typical Client Count
30
Concurrent VPN Tunnels
20
Concurrent Tcp Sessions
130,000
Ips App Aware Client Analytics
940 Mbps (IPS / application-aware services / client analytics)

Reliability

MTBF
637,911 hours (Telcordia SR332 at 25 °C)

Environmental

Storage Humidity
5% to 95%
Ingress Protection
IP64 (dust tight and splashing water)
Operating Humidity
10% to 90%
Storage Temperature
-40 °C to 85 °C (-40 °F to 185 °F)
Operating Temperature
-30 °C to 75 °C (-22 °F to 167 °F)

Certifications

Rail
EN 61373 Category 1, Class B (railway rolling stock)
Safety
UL/cUL, CB Scheme, EN 62368-1
Vehicle
E-Mark; SAE J1455 Operating Sinusoidal Vibe, Category 2
Security
FIPS 140-3 Level 1 module in process (R920 FIPS models only)
Shock Vibration
MIL-STD-810G Method 514.6 Annex C-2.1 Cat. 4 (vibration); MIL-STD-810G Sec. 2.2.2 Procedure 1 (shock, vibration)
Hazardous Locations
Class I Div 2
Substance Compliance
WEEE, RoHS, RoHS-2, California Prop 65

Cloud Services

Support
Support for the full subscription term
Warranty
Limited lifetime warranty with an active NetCloud subscription
Service Plans
NetCloud Service for Mobile or Ruggedized IoT
Service Add Ons
NetCloud Exchange, NetCloud Advanced
Software Updates
Via NetCloud Manager for the full subscription term
Device Management
NetCloud Manager for the full subscription term

Edge Computing

CPU
Dual-core ARMv8 64-bit
Memory
Up to 921 MB
Applications
Docker containerized applications
Flash Storage
Up to 8 GB

Product Summary

PoE
No
Wi-Fi
Dual-band, dual-concurrent 802.11ax (Wi-Fi 6)
GPS GNSS
Active
5G Status
5G Ready with RX20
Bluetooth
Yes, embedded
USB Ports
1
Throughput
940 Mbps (firewall)
Form Factor
Ruggedized metal
VPN Tunnels
20
Serial Ports
0
Ethernet Ports
2 x GbE (LAN/WAN switchable)
Cloud Management
Yes
Special Features
Add second modem and serial port with RX20 Managed Accessory
Dual Modem Support
Yes, with RX20
Subscription Terms
1, 3 & 5 years
Operating Temperature
-30 °C to 75 °C (-22 °F to 167 °F)
Wireless Connectivity
LTE
Private Cellular Network
Yes: CBRS, 4G LTE
Network Operator Standards
PTCRB (U.S.), GCF (global)

Questions buyers ask

Is the Cradlepoint R920 a 5G router?

No. The R920 has an embedded Cat 7 LTE modem rated to 300 Mbps down and 150 Mbps up. Cradlepoint lists it as 5G Ready with the RX20 Managed Accessory, which adds a second LTE or 5G modem and a serial port.

Are antennas and a power supply included with MA01-0920-C7A-NA?

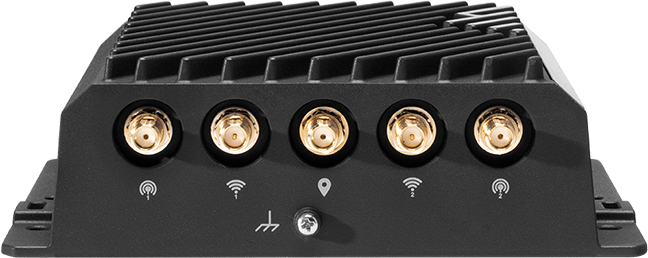

No. This configuration ships without an AC power supply or antennas. The router runs from a 9–36 VDC input with ignition sensing. It has 2 SMA cellular, 2 RP-SMA Wi-Fi, 1 RP-SMA Bluetooth and 1 SMA GNSS antenna connectors.

What does the 1-Year NetCloud Mobile Essentials plan include?

It includes NetCloud Manager cloud management, software updates and support for the 1-year term: phone support 24 hours on weekdays with weekend emergency response, web 24x7 and chat 24x5. Cradlepoint hardware carries a limited lifetime warranty while an active NetCloud subscription is maintained. A NetCloud Mobile Advanced plan can be added at any time.

Which carriers and networks does this North America model support?

The modem holds network operator certifications for AT&T, T-Mobile and Verizon. It supports FirstNet Trusted, T-Mobile Connecting Heroes and Verizon Frontline public safety networks, as well as private cellular on CBRS Band 48. Dual 4FF SIM slots allow two carriers with SIM-based auto-carrier selection.

Can the R920 handle rugged vehicle and rail installations?

Yes. It operates from -30 °C to 75 °C, is rated IP64 and holds E-Mark, SAE J1455, EN 61373 rail, MIL-STD-810G shock and vibration, and Class I Div 2 hazardous-location certifications.
