Cradlepoint R920 Ruggedized Cat 7 LTE Router with Wi-Fi 6 and 5-Year NetCloud Mobile Essentials (TAA)

4G LTEMPN TAA-MA05-0920-C7A-NA
  • Wi-Fi 6
  • Dual SIM
  • 2–4 × 1 Gb Ethernet
  • GPS/GNSS
  • Rugged
  • FirstNet Ready
$1,420.17$1,552.00Save $131.83

In stockShips from the US

Included subscription · 5 years
1 year−$79.213 years−$1944 years−$13.215 years6 years+$293.79
Compliance · TAA compliant
StandardTAA compliant
Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans
Compare all 25 configurations

Datasheets & documents

Overview

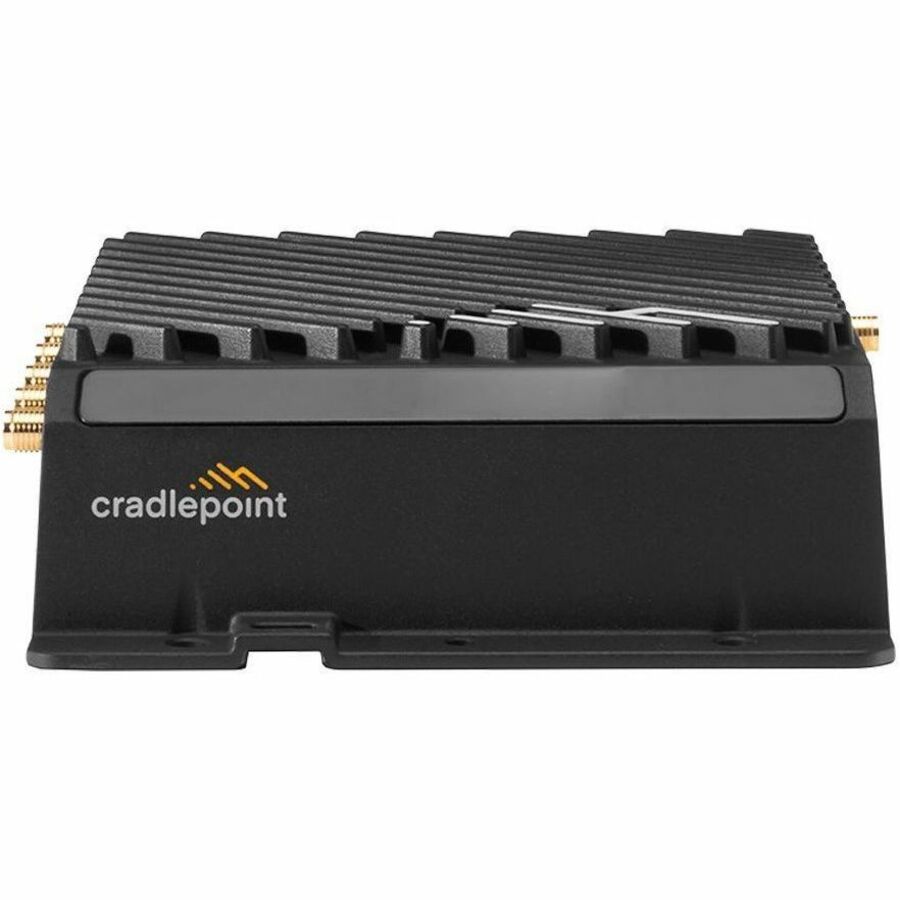

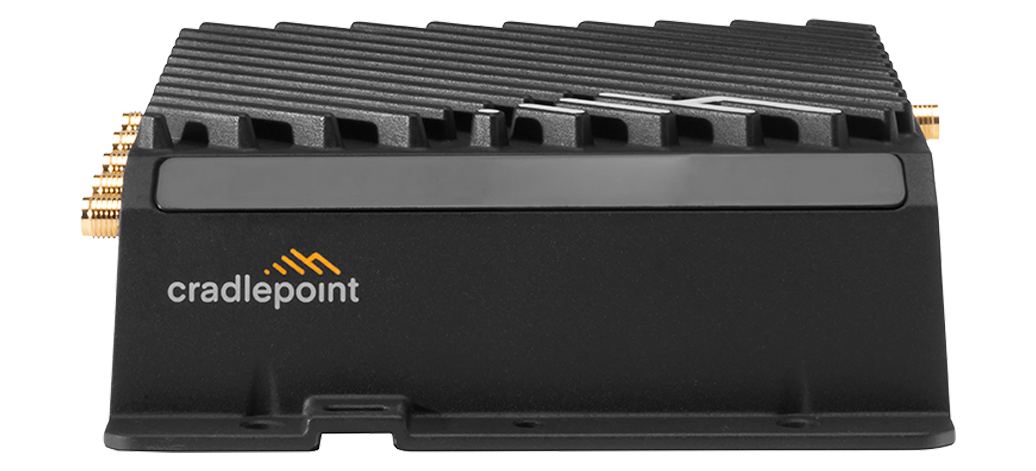

The Cradlepoint R920 (TAA-MA05-0920-C7A-NA) is a ruggedized metal LTE router for vehicles and mobile operations. It is bundled with a 5-year Ericsson NetCloud Mobile Essentials plan and is the TAA-compliant ordering option for US Federal Government buyers. It pairs a Cat 7 LTE modem (300 Mbps down, 150 Mbps up) and dual 4FF SIM slots with dual-band Wi-Fi 6, two switchable GbE ports, active GNSS and Bluetooth LE 5.1. The IP64 enclosure runs on 9–36 VDC with ignition sensing, and the 5-year term suits long fleet lifecycles.

  • Embedded Cat 7 LTE modem with 2CA: up to 300 Mbps downlink and 150 Mbps uplink, dual 4FF SIM slots
  • Dual-band, dual-concurrent 2x2 MU-MIMO Wi-Fi 6 (802.11ax) with AP, client and Wi-Fi-as-WAN modes
  • 2 x GbE LAN/WAN switchable ports, USB 2.0 Type A with screw lock, GPIO, and embedded Bluetooth LE 5.1
  • Active GNSS (GPS, Galileo, GLONASS, BeiDou, QZSS) for NetCloud location and coverage mapping
  • IP64 ruggedized metal enclosure, -30 °C to 75 °C operation, 9–36 VDC input with ignition sensing
  • Second LTE or 5G modem and serial port can be added with the RX20 Managed Accessory
  • 5-year NetCloud Mobile Essentials plan in a TAA-compliant SKU for US Federal Government ordering
  • Covers five years of cloud management, software updates and support in one purchase

The Ericsson Cradlepoint R920 is a ruggedized LTE networking platform for vehicles and IoT, built for organizations that want flexible connectivity and one standard platform across a fleet. This SKU, TAA-MA05-0920-C7A-NA, combines the R920 Cat 7 hardware with a 5-year NetCloud Mobile Essentials plan. It is the TAA-compliant configuration for US Federal Government ordering. The hardware ships without an AC power supply or antennas.

The embedded Cat 7 LTE modem uses 2-carrier aggregation to reach up to 300 Mbps downlink and 150 Mbps uplink. It has dual SIM slots with SIM-based auto-carrier selection and network operator certifications for AT&T, T-Mobile and Verizon. Public safety certifications cover FirstNet Trusted, T-Mobile Connecting Heroes and Verizon Frontline, and private LTE is supported on CBRS Band 48. Dual-band concurrent 2x2 MU-MIMO Wi-Fi 6 covers in-vehicle devices, and two GbE ports switch between LAN and WAN. Active GNSS tracks GPS, Galileo, GLONASS, BeiDou and QZSS for NetCloud coverage maps and vehicle location history. The RX20 Managed Accessory adds a second LTE or 5G modem and a serial port when needed.

The IP64 enclosure operates from -30 °C to 75 °C. It is certified to E-Mark, SAE J1455, EN 61373 rail, MIL-STD-810G shock and vibration, and Class I Div 2. Ignition sensing handles automatic power-on and time-delayed shutdown on 9–36 VDC. Security and routing performance reaches 940 Mbps for firewall and IPS traffic and 200 Mbps for IPsec VPN, with up to 20 tunnels and 64 VLANs. A dual-core ARMv8 CPU runs Docker containers at the edge.

Over the full 5-year term, the Essentials plan provides NetCloud Manager device management and software updates, plus 24x7 support. It also provides a limited lifetime hardware warranty while an active NetCloud subscription is maintained. You can add a NetCloud Mobile Advanced plan at any time.

Ideal for

  • Federal agency and public safety fleets planning a five-year vehicle networking lifecycle
  • First-responder vehicles using FirstNet, Verizon Frontline or T-Mobile Connecting Heroes
  • Transit, rail rolling stock and utility service vehicles needing rugged in-vehicle Wi-Fi 6
  • Mobile command and field operations running containerized edge applications
  • Private LTE deployments on CBRS Band 48

Specifications

Power

Features
Ignition sensing (automatic ON and time-delay OFF)
Required
9–36 VDC; 3 A fuse for 9–12 VDC, 2 A fuse for > 24 VDC
Consumption
Sleep 15 mW; Idle 9 W; Typical 14.5 W; Heavy 15.2 W

General

MPN
TAA-MA05-0920-C7A-NA
UPC
840292703742
Brand
Cradlepoint (Ericsson Cradlepoint)
Model
Cradlepoint R920
FIPS Model
Non-FIPS model
Package Plan
5-Year NetCloud Mobile Essentials Plan
Region Market
United States: Federal Government
TAA Compliant
TAA-compliant SKU (U.S. Federal Government ordering option)
Shipping Weight
2.20 lb (shipping)
Subscription Term
5 years
Package Inclusions
24x7 support and limited lifetime warranty
Hardware Configuration
Cat 7 with Wi-Fi (300 Mbps), no AC power supply or antennas

GNSS GPS

Power
3.05–3.25 VDC supply; 100 mA max current
Accuracy
Horizontal < 5 m (50%), < 9 m (95%)
Protocols
NMEA 0183
Frequencies
L1
Sensitivity
Acquisition -145 dBm; Tracking -160 dBm
Update Rate
1 Hz (once per second)
Constellations
GPS, Galileo, GLONASS, BeiDou, QZSS (simultaneous tracking)
Time TO First Fix
32 seconds (cold start)

Physical

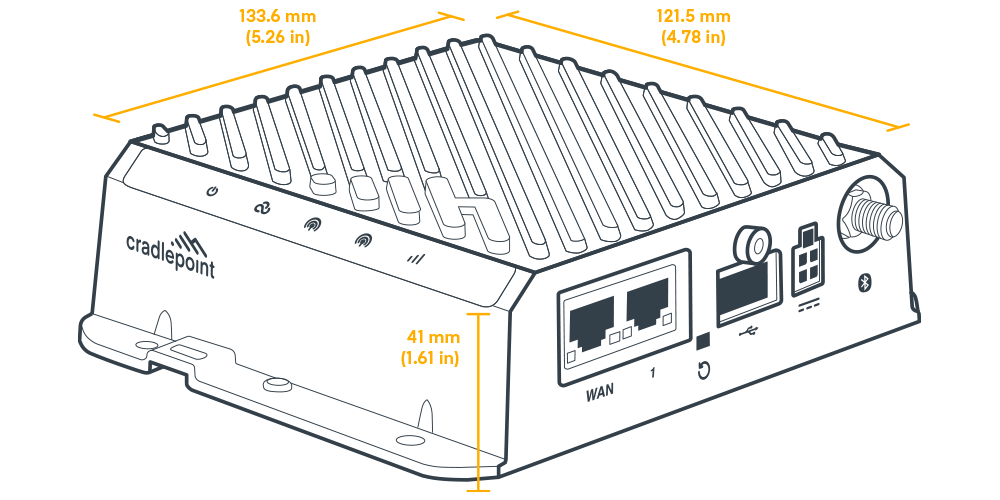

Size
133.6 x 121.5 x 41 mm (5.26 x 4.78 x 1.61 in)
Weight
595 g (1 lb 5 oz)

Interfaces

Wi-Fi
Dual-band concurrent 2x2 MU-MIMO Wi-Fi 6 with DFS; AP, client, Wi-Fi as WAN; 574 Mbps (2.4 GHz) / 1.2 Gbps (5 GHz); 2 x RP-SMA; WPA/WPA2/WPA3 Personal, WPA2/WPA3 Enterprise, Open; 802.11k (AP mode only), 802.11v; Wi-Fi Alliance Certified
Modem

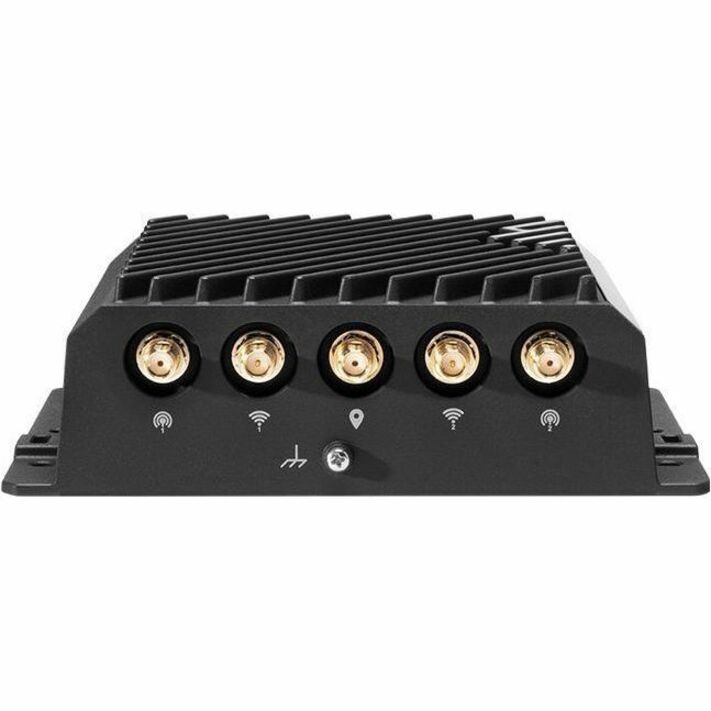

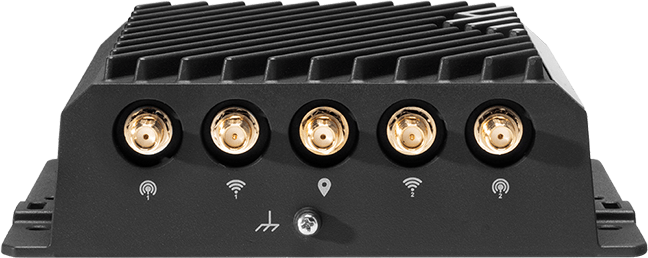

Embedded Cat 7 LTE modem; 2 x SMA cellular antenna connectors

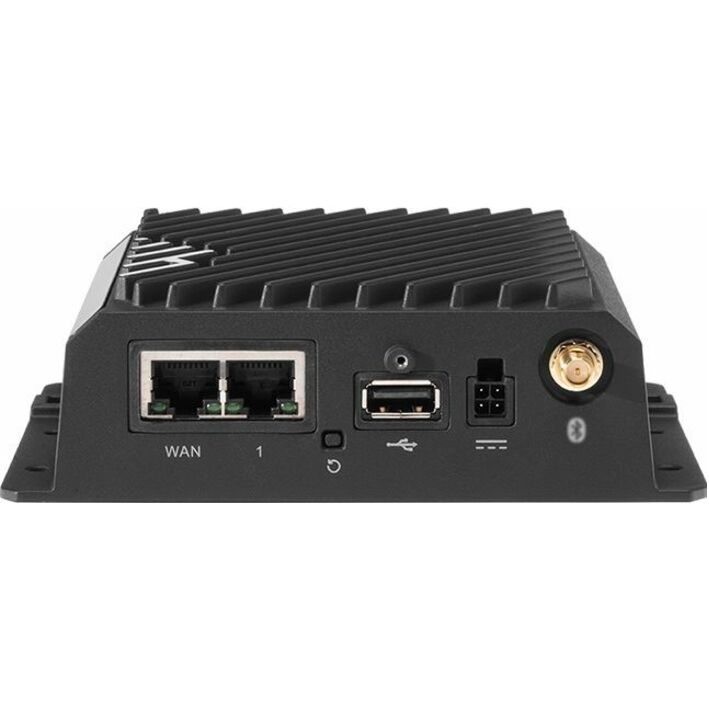

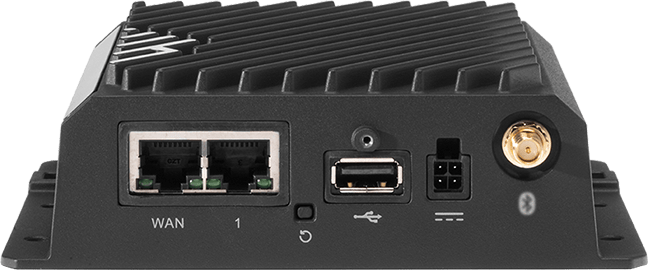

Ethernet
2 x GbE (LAN/WAN switchable)
GNSS GPS
1 x SMA GNSS antenna connector
Bluetooth
Embedded Bluetooth LE 5.1; max TX 10 dBm; 1 x RP-SMA connector
Expansion
1 x USB 2.0 Type A (5 V, 500 mA, 2.5 W) with screw lock; 1 x 2-pin GPIO (shared with DC power connector); 2x2 Molex micro-fit (3 mm locking)

Wi-Fi Power

IC
2.4 GHz 23.18 dBm; 5150–5250 MHz 22.7 dBm; 5250–5350 MHz 17.16 dBm; 5470–5725 MHz 20.9 dBm; 5725–5850 MHz 22.17 dBm (conducted)
Fcc
2.4 GHz 23.18 dBm; 5150–5250 MHz 21.73 dBm; 5250–5350 MHz 22.17 dBm; 5470–5725 MHz 20.79 dBm; 5725–5850 MHz 20.97 dBm (conducted)
Europe
2.4 GHz 14.23 dBm; 5150–5250 MHz 17.03 dBm; 5250–5350 MHz 17.12 dBm; 5500–5700 MHz 22.05 dBm (conducted)
Australia New Zealand
2.4 GHz 14.23 dBm; 5150–5250 MHz 17.03 dBm; 5250–5350 MHz 17.12 dBm; 5500–5700 MHz 22.05 dBm; 5475–5825 MHz 22.18 dBm (conducted)

Performance

Stateful Firewall
940 Mbps
Layer2 Layer3 Vlans
Up to 64
Typical Client Count
30
Concurrent VPN Tunnels
20
Concurrent Sessions Tcp
130,000
Point TO Point Ipsec VPN
200 Mbps
Ips Application Aware Client Analytics
940 Mbps (IPS/Application Aware Services/Client Analytics)

Reliability

Calculated MTBF
637,911 hours (Telcordia SR332 at 25 °C)

Environmental

Humidity
Operating 10%–90%; Storage 5%–95%
Temperature
Operating -30 °C to 75 °C (-22 °F to 167 °F); Storage -40 °C to 85 °C (-40 °F to 185 °F)
Ingress Protection
IP64 (dust tight and splashing water)

Cellular Modem

3g
WCDMA/UMTS/HSPA+
SMS
Yes
MIMO
2x2 MIMO
Power
LTE 22.5 dBm ± 1; DC-HSPA+ 23 dBm ± 1
3g Bands
Bands 2, 4, 5
Antennas
SMA female connectors; external 2x2 MIMO multi-band LTE antenna system (paddle antennas included only with IoT packages)
GNSS GPS
Active GNSS
LTE Bands
FDD B2, B4, B5, B7, B12, B13, B14, B25, B26, B66, B71; TDD B41, B42, B43, B48
Modulation
Up to 64 QAM DL / 64 QAM UL
Regulatory
FCC (U.S.), IC (Canada), CE (EU)
Technology
Cat 7 LTE; dual 4FF SIM slots; SIM-based auto-carrier selection; 3GPP Release 11
Peak Uplink Rates
LTE 150 Mbps; WCDMA 5.76 Mbps
Carrier Aggregation
DL Cat 7, 2CA, 64 QAM = 300 Mbps; UL Cat 13, 2CA, 64 QAM = 150 Mbps
Peak Downlink Rates
LTE 300 Mbps; WCDMA 42.2 Mbps
Gcf Global Operators
GCF member operators
Private Cellular Network
Yes, FCC Part 96 (CBRS Band 48)
Network Operator Standards
PTCRB (U.S., Canada); GCF (Worldwide)
Ptcrb North America Operators
PTCRB North America operators
Network Operator Certifications
AT&T, T-Mobile, Verizon
Public Safety Network Certifications
FirstNet Trusted, T-Mobile Connecting Heroes, Verizon Frontline

Certifications

Rail
EN 61373 Category 1, Class B (railway rolling stock)
Safety
UL/cUL, CB Scheme, EN 62368-1
Vehicle
E-Mark; SAE J1455 Operating Sinusoidal Vibe, Category 2
Security
FIPS 140-3 Level 1 module in process (R920 FIPS models only)
Hazardous Locations
Class I Div 2
Substance Compliance
WEEE, RoHS, RoHS-2, California Prop 65
Shock Vibration Humidity
MIL-STD-810G Method 514.6, Annex C-2.1, Category 4 (vibration); MIL-STD-810G Section 2.2.2 Procedure 1 (shock, vibration)

Cloud Services

Support
Support for the full subscription term
Warranty
Limited lifetime warranty with active NetCloud subscription
Service Plans
NetCloud Service for Mobile, NetCloud Service for Ruggedized IoT
Service Add Ons
NetCloud Exchange, NetCloud Advanced
Software Updates
NetCloud Manager for the full subscription term
Device Management
NetCloud Manager for the full subscription term

Edge Computing

CPU
Dual-core ARMv8 64-bit
Memory
Up to 921 MB
Applications
Docker containerized applications
Flash Storage
Up to 8 GB

Product Summary

PoE
No
Wi-Fi
Dual-band, dual-concurrent 802.11ax (Wi-Fi 6)
GPS GNSS
Active
5G Status
5G Ready with RX20
Bluetooth
Yes, embedded
USB Ports
1
Throughput
940 Mbps (Firewall)
Form Factor
Ruggedized Metal
VPN Tunnels
20
Serial Ports
0
Ethernet Ports
2 GbE (LAN/WAN switchable)
Cloud Management
Yes
Special Features
Add second modem and serial port with RX20 Managed Accessory
Dual Modem Support
Yes, with RX20
Subscription Terms
1, 3 & 5 years
Operating Temperature
-30 °C to 75 °C (-22 °F to 167 °F)
Wireless Connectivity
LTE
Private Cellular Network
Yes, CBRS, 4G LTE
Network Operator Standards
PTCRB (U.S.), GCF (global)

Questions buyers ask

Is the Cradlepoint R920 a 5G router?

No. The R920 has an embedded Cat 7 LTE modem. Cradlepoint lists it as 5G Ready with the RX20 Managed Accessory, which adds a second LTE or 5G modem and a serial port.

What does the 5-year NetCloud Mobile Essentials plan include?

It includes NetCloud Manager device management and software updates for the full 5-year term, 24x7 support, and a limited lifetime hardware warranty while an active NetCloud subscription is maintained. You can add a NetCloud Mobile Advanced plan at any time.

Are antennas and a power supply included?

No. This configuration ships without an AC power supply or antennas. The router runs on 9–36 VDC vehicle power with ignition sensing. It provides SMA cellular and GNSS connectors and RP-SMA Wi-Fi and Bluetooth connectors for external antennas.

Who is this SKU intended for?

TAA-MA05-0920-C7A-NA is the TAA-compliant ordering option for the United States Federal Government market. This is not a FIPS model.

Can the R920 run applications at the edge?

Yes. The R920 has a dual-core ARMv8 64-bit CPU with up to 921 MB of memory and up to 8 GB of flash available for Docker containerized applications.
