Cradlepoint R920 Ruggedized Cat 7 LTE Router with Wi-Fi 6 and 3-Year NetCloud Mobile Essentials (TAA)

4G LTEMPN TAA-MA03-0920-C7A-NA
  • Wi-Fi 6
  • Dual SIM
  • 2–4 × 1 Gb Ethernet
  • GPS/GNSS
  • Rugged
  • FirstNet Ready
$1,139.24$1,245.00Save $105.76

In stockShips from the US

Included subscription · 3 years
1 year+$114.793 years4 years+$180.795 years+$1946 years+$487.79
Compliance · TAA compliant
StandardTAA compliant
Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans
Compare all 25 configurations

Datasheets & documents

Overview

The Cradlepoint R920 (TAA-MA03-0920-C7A-NA) is a ruggedized metal LTE router for vehicles and mobile operations. It is bundled with a 3-year Ericsson NetCloud Mobile Essentials plan and is the TAA-compliant ordering option for US Federal Government buyers. It combines a Cat 7 LTE modem (300 Mbps down, 150 Mbps up), dual 4FF SIM slots, dual-band Wi-Fi 6, two switchable GbE ports, active GNSS and Bluetooth LE 5.1 in an IP64 enclosure that runs on 9–36 VDC with ignition sensing.

  • Embedded Cat 7 LTE modem with 2CA: up to 300 Mbps downlink and 150 Mbps uplink, dual 4FF SIM slots
  • Dual-band, dual-concurrent 2x2 MU-MIMO Wi-Fi 6 (802.11ax) with AP, client and Wi-Fi-as-WAN modes
  • 2 x GbE LAN/WAN switchable ports, USB 2.0 Type A with screw lock, GPIO, and embedded Bluetooth LE 5.1
  • Active GNSS (GPS, Galileo, GLONASS, BeiDou, QZSS) for NetCloud location and coverage mapping
  • IP64 ruggedized metal enclosure, -30 °C to 75 °C operation, 9–36 VDC input with ignition sensing
  • Second LTE or 5G modem and serial port can be added with the RX20 Managed Accessory
  • 3-year NetCloud Mobile Essentials plan in a TAA-compliant SKU for US Federal Government ordering
  • Keeps vehicles and field teams online with Cat 7 LTE uplink up to 150 Mbps for video and data

The Ericsson Cradlepoint R920 is a ruggedized LTE networking platform built for vehicles and IoT deployments where connectivity and product standardization matter. This SKU, TAA-MA03-0920-C7A-NA, pairs the R920 Cat 7 hardware with a 3-year NetCloud Mobile Essentials plan. It is the TAA-compliant configuration intended for US Federal Government procurement. The hardware ships without an AC power supply or antennas.

The embedded Cat 7 LTE modem uses 2-carrier aggregation for up to 300 Mbps downlink and 150 Mbps uplink, with dual SIM slots and SIM-based auto-carrier selection. The modem carries AT&T, T-Mobile and Verizon network certifications and public safety certifications for FirstNet Trusted, T-Mobile Connecting Heroes and Verizon Frontline. It also supports private LTE on CBRS Band 48. Onboard, dual-band concurrent 2x2 MU-MIMO Wi-Fi 6 serves in-vehicle clients. Two GbE ports are LAN/WAN switchable, and active multi-constellation GNSS feeds NetCloud coverage maps and location history. You can add a second LTE or 5G modem and a serial port later with the RX20 Managed Accessory.

The R920 is designed for harsh mounting locations. It carries an IP64 rating, operates from -30 °C to 75 °C, and holds E-Mark, SAE J1455, EN 61373 rail, MIL-STD-810G shock and vibration, and Class I Div 2 certifications. Power runs from 9–36 VDC with ignition sensing for automatic on and time-delayed off. Performance reaches 940 Mbps for stateful firewall and IPS traffic and 200 Mbps for IPsec VPN, with up to 20 tunnels. A dual-core ARMv8 processor runs Docker containerized applications at the edge.

The Essentials plan covers NetCloud Manager device management and software updates for the full 3-year term. It also includes 24x7 support and a limited lifetime hardware warranty while an active NetCloud subscription is maintained. You can add a NetCloud Mobile Advanced plan at any time.

Ideal for

  • Public safety and first-responder vehicles using FirstNet, Verizon Frontline or T-Mobile Connecting Heroes
  • Federal agency fleets that require TAA-compliant networking hardware
  • Transit, rail rolling stock and utility service vehicles needing rugged in-vehicle Wi-Fi
  • Mobile command, field survey and inspection teams running edge applications in containers
  • Private LTE deployments on CBRS Band 48

Specifications

Power

Features
Ignition sensing (automatic ON and time-delay OFF)
Required
9–36 VDC; 3 A fuse for 9–12 VDC, 2 A fuse for > 24 VDC
Consumption
Sleep 15 mW; Idle 9 W; Typical 14.5 W; Heavy 15.2 W

General

MPN
TAA-MA03-0920-C7A-NA
UPC
840292703735
Brand
Cradlepoint (Ericsson Cradlepoint)
Model
Cradlepoint R920
FIPS Model
Non-FIPS model
Package Plan
3-Year NetCloud Mobile Essentials Plan
Region Market
United States: Federal Government
TAA Compliant
TAA-compliant SKU (U.S. Federal Government ordering option)
Shipping Weight
2.20 lb (shipping)
Subscription Term
3 years
Package Inclusions
24x7 support and limited lifetime warranty
Hardware Configuration
Cat 7 with Wi-Fi (300 Mbps), no AC power supply or antennas

GNSS GPS

Power
3.05–3.25 VDC supply; 100 mA max current
Accuracy
Horizontal < 5 m (50%), < 9 m (95%)
Protocols
NMEA 0183
Frequencies
L1
Sensitivity
Acquisition -145 dBm; Tracking -160 dBm
Update Rate
1 Hz (once per second)
Constellations
GPS, Galileo, GLONASS, BeiDou, QZSS (simultaneous tracking)
Time TO First Fix
32 seconds (cold start)

Physical

Size

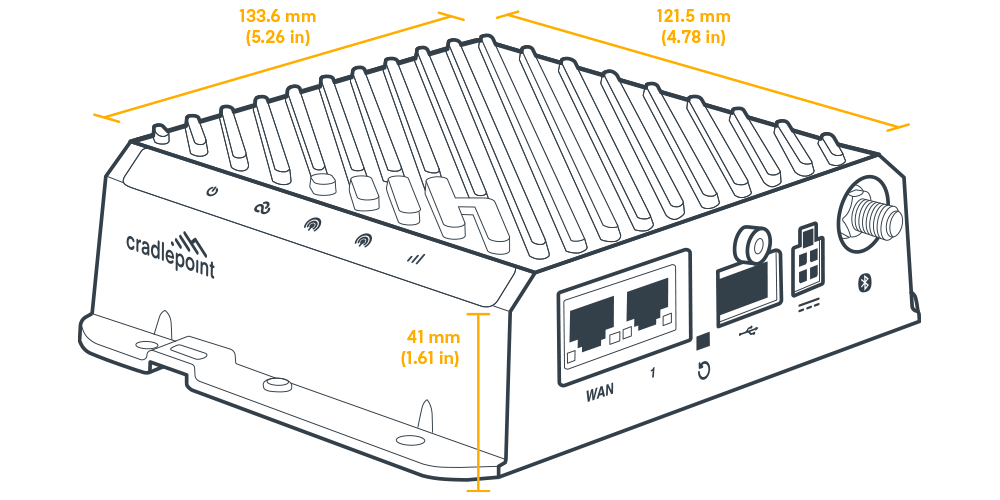

133.6 x 121.5 x 41 mm (5.26 x 4.78 x 1.61 in)
Weight
595 g (1 lb 5 oz)

Interfaces

Wi-Fi
Dual-band concurrent 2x2 MU-MIMO Wi-Fi 6 with DFS; AP, client, Wi-Fi as WAN; 574 Mbps (2.4 GHz) / 1.2 Gbps (5 GHz); 2 x RP-SMA; WPA/WPA2/WPA3 Personal, WPA2/WPA3 Enterprise, Open; 802.11k (AP mode only), 802.11v; Wi-Fi Alliance Certified
Modem
Embedded Cat 7 LTE modem; 2 x SMA cellular antenna connectors
Ethernet
2 x GbE (LAN/WAN switchable)
GNSS GPS
1 x SMA GNSS antenna connector
Bluetooth
Embedded Bluetooth LE 5.1; max TX 10 dBm; 1 x RP-SMA connector
Expansion
1 x USB 2.0 Type A (5 V, 500 mA, 2.5 W) with screw lock; 1 x 2-pin GPIO (shared with DC power connector); 2x2 Molex micro-fit (3 mm locking)

Wi-Fi Power

IC
2.4 GHz 23.18 dBm; 5150–5250 MHz 22.7 dBm; 5250–5350 MHz 17.16 dBm; 5470–5725 MHz 20.9 dBm; 5725–5850 MHz 22.17 dBm (conducted)
Fcc
2.4 GHz 23.18 dBm; 5150–5250 MHz 21.73 dBm; 5250–5350 MHz 22.17 dBm; 5470–5725 MHz 20.79 dBm; 5725–5850 MHz 20.97 dBm (conducted)
Europe
2.4 GHz 14.23 dBm; 5150–5250 MHz 17.03 dBm; 5250–5350 MHz 17.12 dBm; 5500–5700 MHz 22.05 dBm (conducted)
Australia New Zealand
2.4 GHz 14.23 dBm; 5150–5250 MHz 17.03 dBm; 5250–5350 MHz 17.12 dBm; 5500–5700 MHz 22.05 dBm; 5475–5825 MHz 22.18 dBm (conducted)

Performance

Stateful Firewall
940 Mbps
Layer2 Layer3 Vlans
Up to 64
Typical Client Count
30
Concurrent VPN Tunnels
20
Concurrent Sessions Tcp
130,000
Point TO Point Ipsec VPN
200 Mbps
Ips Application Aware Client Analytics
940 Mbps (IPS/Application Aware Services/Client Analytics)

Reliability

Calculated MTBF
637,911 hours (Telcordia SR332 at 25 °C)

Environmental

Humidity
Operating 10%–90%; Storage 5%–95%
Temperature
Operating -30 °C to 75 °C (-22 °F to 167 °F); Storage -40 °C to 85 °C (-40 °F to 185 °F)
Ingress Protection
IP64 (dust tight and splashing water)

Cellular Modem

3g
WCDMA/UMTS/HSPA+
SMS
Yes
MIMO
2x2 MIMO
Power
LTE 22.5 dBm ± 1; DC-HSPA+ 23 dBm ± 1
3g Bands
Bands 2, 4, 5
Antennas
SMA female connectors; external 2x2 MIMO multi-band LTE antenna system (paddle antennas included only with IoT packages)
GNSS GPS
Active GNSS
LTE Bands
FDD B2, B4, B5, B7, B12, B13, B14, B25, B26, B66, B71; TDD B41, B42, B43, B48
Modulation
Up to 64 QAM DL / 64 QAM UL
Regulatory
FCC (U.S.), IC (Canada), CE (EU)
Technology
Cat 7 LTE; dual 4FF SIM slots; SIM-based auto-carrier selection; 3GPP Release 11
Peak Uplink Rates
LTE 150 Mbps; WCDMA 5.76 Mbps
Carrier Aggregation
DL Cat 7, 2CA, 64 QAM = 300 Mbps; UL Cat 13, 2CA, 64 QAM = 150 Mbps
Peak Downlink Rates
LTE 300 Mbps; WCDMA 42.2 Mbps
Gcf Global Operators
GCF member operators
Private Cellular Network
Yes, FCC Part 96 (CBRS Band 48)
Network Operator Standards
PTCRB (U.S., Canada); GCF (Worldwide)
Ptcrb North America Operators
PTCRB North America operators
Network Operator Certifications
AT&T, T-Mobile, Verizon
Public Safety Network Certifications
FirstNet Trusted, T-Mobile Connecting Heroes, Verizon Frontline

Certifications

Rail
EN 61373 Category 1, Class B (railway rolling stock)
Safety
UL/cUL, CB Scheme, EN 62368-1
Vehicle
E-Mark; SAE J1455 Operating Sinusoidal Vibe, Category 2
Security
FIPS 140-3 Level 1 module in process (R920 FIPS models only)
Hazardous Locations
Class I Div 2
Substance Compliance
WEEE, RoHS, RoHS-2, California Prop 65
Shock Vibration Humidity
MIL-STD-810G Method 514.6, Annex C-2.1, Category 4 (vibration); MIL-STD-810G Section 2.2.2 Procedure 1 (shock, vibration)

Cloud Services

Support
Support for the full subscription term
Warranty
Limited lifetime warranty with active NetCloud subscription
Service Plans
NetCloud Service for Mobile, NetCloud Service for Ruggedized IoT
Service Add Ons
NetCloud Exchange, NetCloud Advanced
Software Updates
NetCloud Manager for the full subscription term
Device Management
NetCloud Manager for the full subscription term

Edge Computing

CPU
Dual-core ARMv8 64-bit
Memory
Up to 921 MB
Applications
Docker containerized applications
Flash Storage
Up to 8 GB

Product Summary

PoE
No
Wi-Fi
Dual-band, dual-concurrent 802.11ax (Wi-Fi 6)
GPS GNSS
Active
5G Status
5G Ready with RX20
Bluetooth
Yes, embedded
USB Ports
1
Throughput
940 Mbps (Firewall)
Form Factor
Ruggedized Metal
VPN Tunnels
20
Serial Ports
0
Ethernet Ports
2 GbE (LAN/WAN switchable)
Cloud Management
Yes
Special Features
Add second modem and serial port with RX20 Managed Accessory
Dual Modem Support
Yes, with RX20
Subscription Terms
1, 3 & 5 years
Operating Temperature
-30 °C to 75 °C (-22 °F to 167 °F)
Wireless Connectivity
LTE
Private Cellular Network
Yes, CBRS, 4G LTE
Network Operator Standards
PTCRB (U.S.), GCF (global)

Questions buyers ask

Is the Cradlepoint R920 a 5G router?

No. The R920 has an embedded Cat 7 LTE modem. Cradlepoint lists it as 5G Ready with the RX20 Managed Accessory, which adds a second LTE or 5G modem and a serial port.

What does the 3-year NetCloud Mobile Essentials plan include?

It includes NetCloud Manager device management and software updates for the full term, 24x7 support, and a limited lifetime hardware warranty for as long as an active NetCloud subscription is maintained. You can add a NetCloud Mobile Advanced plan at any time.

Are antennas and a power supply included?

No. This configuration ships without an AC power supply or antennas. The router runs on 9–36 VDC vehicle power and uses SMA cellular and GNSS connectors and RP-SMA Wi-Fi and Bluetooth connectors for external antennas.

Who is this SKU intended for?

TAA-MA03-0920-C7A-NA is the TAA-compliant ordering option for the United States Federal Government market. This is not a FIPS model.

Which carriers and public safety networks is it certified on?

The modem lists network operator certifications for AT&T, T-Mobile and Verizon. It also carries public safety certifications for FirstNet Trusted, T-Mobile Connecting Heroes and Verizon Frontline, and supports private networks on CBRS Band 48.
