Cradlepoint5G & LTE Routers

Cradlepoint R920 Cat 7 LTE Vehicle Router with Wi-Fi 6 and 3-Year NetCloud Mobile Essentials + Advanced

4G LTEMPN MAA3-0920-C7A-NA
  • Wi-Fi 6
  • Dual SIM
  • 2–4 × 1 Gb Ethernet
  • GPS/GNSS
  • Rugged
  • FirstNet Ready
$1,528.15$1,670.00Save $141.85

In stockShips from the US

Included subscription · 3 years
1 year−$194.913 years4 years+$180.795 years+$1946 years+$487.79
Compliance · Standard
StandardTAA compliant
Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans
Compare all 25 configurations

Datasheets & documents

Overview

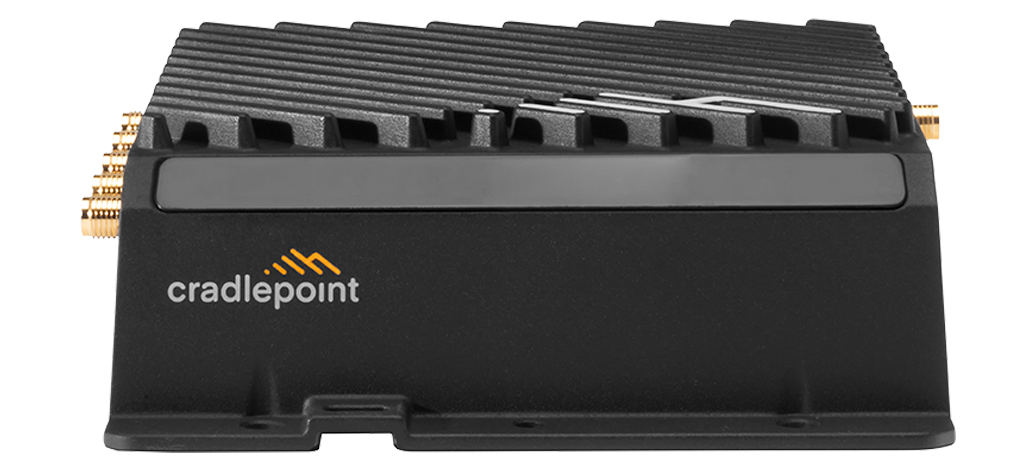

The Ericsson Cradlepoint R920 (MAA3-0920-C7A-NA) is a ruggedized, metal-bodied Cat 7 LTE router for vehicles and mobile deployments. It is bundled with a 3-year NetCloud Mobile Essentials + Advanced plan for the U.S. and Canada. The router has dual 4FF SIM slots, 2x2 Wi-Fi 6, two switchable Gigabit Ethernet ports, embedded Bluetooth LE 5.1 and active multi-constellation GNSS. It is IP64 rated and runs on 9–36 VDC with ignition sensing. This hardware configuration ships without an AC power supply or antennas.

  • Embedded Cat 7 LTE modem: 300 Mbps downlink, 150 Mbps uplink, 2x2 MIMO, dual 4FF SIM slots
  • Dual-band concurrent 2x2 MU-MIMO Wi-Fi 6 (802.11ax) with WPA3
  • 2 x Gigabit Ethernet (LAN/WAN switchable), USB 2.0 with screw lock, GPIO and embedded Bluetooth LE 5.1
  • Active GNSS: GPS, Galileo, GLONASS, BeiDou and QZSS
  • IP64 ruggedized metal chassis, -30 °C to 75 °C, E-Mark, SAE J1455, EN 61373 and Class I Div 2
  • Second LTE or 5G modem and serial port available with the RX20 Managed Accessory
  • 3-year NetCloud Mobile Essentials + Advanced subscription for the U.S. and Canada
  • Keep vehicles connected across AT&T, T-Mobile and Verizon with dual SIMs and SIM-based carrier selection

The Cradlepoint R920 is Ericsson's compact ruggedized LTE platform for fleets, public safety vehicles and mobile field teams. This North American SKU (U.S. and Canada) pairs the R920 hardware with a 3-year NetCloud Mobile Essentials + Advanced subscription. The subscription covers NetCloud Manager device management, software updates and support for the full term. Essentials support runs 24-hour on weekdays with weekend emergency response by phone, 24x7 on the web and 24x5 by chat. The hardware carries a limited lifetime warranty for as long as an active NetCloud plan is in place.

The embedded Cat 7 LTE modem delivers up to 300 Mbps downlink and 150 Mbps uplink with 2x2 MIMO. It covers North American bands including B12, B13, B14, B66 and B71, plus CBRS Band 48 for private cellular networks. Carrier certifications include AT&T, T-Mobile and Verizon. The modem also supports FirstNet Trusted, T-Mobile Connecting Heroes and Verizon Frontline public safety networks. Dual SIM slots with SIM-based auto-carrier selection let one unit work across carriers. Adding the RX20 Managed Accessory provides a second LTE or 5G modem and a serial port.

Inside the vehicle, dual-band concurrent 2x2 MU-MIMO Wi-Fi 6 reaches 1.2 Gbps on 5 GHz and supports AP, client and Wi-Fi-as-WAN modes. The router rates 940 Mbps for stateful firewall and IPS. It handles 200 Mbps IPsec VPN throughput, 20 concurrent tunnels and up to 64 VLANs. A dual-core ARMv8 processor runs Docker containers at the edge. Active GNSS tracks GPS, Galileo, GLONASS, BeiDou and QZSS, which feeds NetCloud location history and cellular coverage maps.

The 595 g chassis is IP64 rated and operates from -30 °C to 75 °C. It carries E-Mark, SAE J1455, EN 61373 rail, MIL-STD-810G and Class I Div 2 certifications. Power comes from 9–36 VDC with ignition sensing. Plan for antennas and power cabling suited to the installation, because this configuration does not include them.

Ideal for

  • Police, fire and EMS vehicles using FirstNet, Verizon Frontline or T-Mobile Connecting Heroes
  • Transit buses and rail rolling stock needing in-vehicle Wi-Fi 6 and GNSS tracking
  • Utility and field-service fleets requiring cloud-managed connectivity with dual SIMs
  • Private LTE deployments on CBRS Band 48
  • Mobile edge applications running Docker containers in vehicles

Specifications

Power

Features
Ignition sensing (automatic ON and time-delay OFF)
Required
9–36 VDC input; use a 3 A fuse for 9–12 VDC and a 2 A fuse for > 24 VDC installations
Consumption
Sleep: 15 mW; Idle: 9 W; Typical: 14.5 W; Heavy: 15.2 W

General

MPN
MAA3-0920-C7A-NA
UPC
840292700383
Brand
Cradlepoint (Ericsson)
Model
Cradlepoint R920
Region
North America (U.S. & Canada)
Subscription
3-Year NetCloud Mobile Essentials + Advanced
Subscription Term
3 years
Hardware Configuration
Cat 7 with Wi-Fi (300 Mbps), no AC power supply or antennas

Package

Included
R920 router with 3-year NetCloud Mobile Essentials + Advanced
Not Included
No AC power supply or antennas

Cellular

3g
WCDMA/UMTS/HSPA+
SMS
Yes
GNSS
Active GNSS
MIMO
2x2 MIMO
3g Bands
Bands 2, 4, 5
Antennas
SMA female connectors; 600 MHz–6 GHz paddle antennas included only with IoT packages (not included with this Mobile SKU)
LTE Bands
FDD: B2, B4, B5, B7, B12, B13, B14, B25, B26, B66, B71; TDD: B41, B42, B43, B48
Modulation
Up to 64 QAM DL / UL
Regulatory
FCC (U.S.), IC (Canada), CE (EU)
Technology
Cat 7 LTE; dual 4FF SIM slots; SIM-based auto-carrier selection; 3GPP Release 11
Peak Uplink
LTE: 150 Mbps; WCDMA: 5.76 Mbps
Peak Downlink
LTE: 300 Mbps; WCDMA: 42.2 Mbps
Transmit Power
LTE 22.5 dBm ± 1; DC-HSPA+ 23 dBm ± 1
Carrier Aggregation
DL: Cat 7, 2 CA, 64 QAM = 300 Mbps; UL: Cat 13, 2 CA, 64 QAM = 150 Mbps
Gcf Global Operators
GCF member operators list
Private Cellular Network
Yes, FCC Part 96 (CBRS Band 48)
Network Operator Standards
PTCRB (U.S., Canada); GCF (Worldwide)
Public Safety Certifications
FirstNet Trusted, T-Mobile Connecting Heroes, Verizon Frontline
Ptcrb North America Operators
PTCRB operators list
Network Operator Certifications
AT&T, T-Mobile, Verizon

GNSS GPS

Power
3.05–3.25 VDC; max 100 mA
Accuracy
Horizontal: < 5 m (50%), < 9 m (95%)
Protocols
NMEA 0183
Frequencies
L1
Sensitivity
Acquisition: -145 dBm; Tracking: -160 dBm
Update Rate
1 Hz (once per second)
Constellations
GPS, Galileo, GLONASS, BeiDou, QZSS (simultaneous tracking)
Time TO First Fix
32 seconds (cold start)

Physical

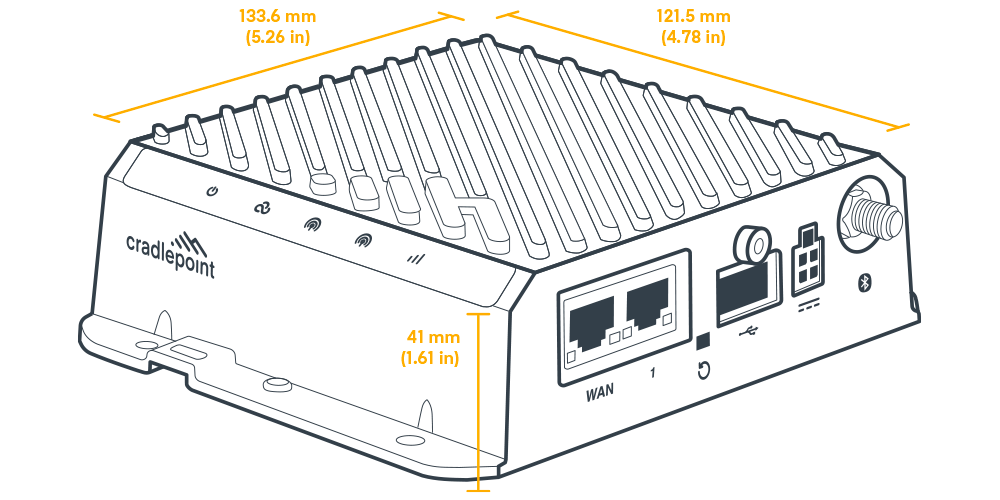

Size
133.6 x 121.5 x 41 mm (5.26 x 4.78 x 1.61 in)
Weight
595 g (1 lb 5 oz)
Shipping Weight
2.20 lb

Interfaces

Wi-Fi
Dual-radio, dual-band concurrent 2x2 MU-MIMO Wi-Fi 6 with DFS; AP, Wireless Client, Wi-Fi as WAN; 574 Mbps (2.4 GHz) / 1.2 Gbps (5 GHz); 2 x RP-SMA; WPA/WPA2/WPA3 Personal, WPA2/WPA3 Enterprise, Open; 802.11k (AP mode only), 802.11v; Wi-Fi Alliance Certified
Modem

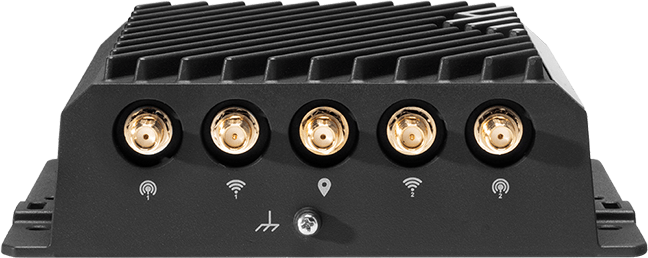

Embedded Cat 7 LTE modem; 2 x SMA cellular antenna connectors
Ethernet

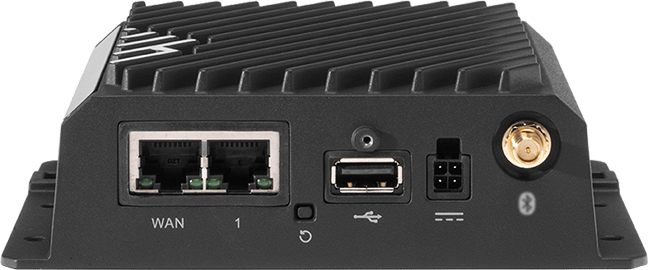

2 x GbE (LAN/WAN switchable)
GNSS GPS
1 x SMA GNSS antenna connector
Bluetooth
Embedded Bluetooth LE 5.1; 10 dBm max TX; 1 x RP-SMA antenna connector
Expansion
1 x USB 2.0 Type A (5 V, 500 mA, 2.5 W) with screw lock; 1 x 2-pin GPIO (shared with DC power connector); 2x2 Molex micro-fit (3 mm locking)

Wi-Fi Power

IC
2.4 GHz: 23.18 dBm; 5150–5250 MHz: 22.7 dBm; 5250–5350 MHz: 17.16 dBm; 5470–5725 MHz: 20.9 dBm; 5725–5850 MHz: 22.17 dBm conducted
Fcc
2.4 GHz: 23.18 dBm; 5150–5250 MHz: 21.73 dBm; 5250–5350 MHz: 22.17 dBm; 5470–5725 MHz: 20.79 dBm; 5725–5850 MHz: 20.97 dBm conducted
Europe
2.4 GHz: 14.23 dBm; 5150–5250 MHz: 17.03 dBm; 5250–5350 MHz: 17.12 dBm; 5500–5700 MHz: 22.05 dBm conducted
Australia New Zealand
2.4 GHz: 14.23 dBm; 5150–5250 MHz: 17.03 dBm; 5250–5350 MHz: 17.12 dBm; 5500–5700 MHz: 22.05 dBm; 5475–5825 MHz: 22.18 dBm conducted

Performance

L2 L3 Vlans
Up to 64
Stateful Firewall
940 Mbps
Typical Client Count
30
Concurrent VPN Tunnels
20
Concurrent Sessions Tcp
130,000
Point TO Point Ipsec VPN
200 Mbps
Ips Application Aware Client Analytics
940 Mbps

Reliability

Calculated MTBF
637,911 hours (Telcordia SR332 at 25 °C)

Environmental

Humidity
Operating: 10% to 90%; Storage: 5% to 95%
Temperature
Operating: -30 °C to 75 °C (-22 °F to 167 °F); Storage: -40 °C to 85 °C (-40 °F to 185 °F)
Ingress Protection
IP64 (dust tight and splashing water)

Certifications

Rail
EN 61373 Category 1, Class B (railway rolling stock)
Safety
UL/cUL, CB Scheme, EN 62368-1
Vehicle
E-Mark; SAE J1455 Operating Sinusoidal Vibe, Category 2
Security
FIPS 140-3 Level 1 module in process (R920 FIPS models only; this SKU is not a FIPS model)
Hazardous Locations
Class I Div 2
Substance Compliance
WEEE, RoHS, RoHS-2, California Prop 65
Shock Vibration Humidity
MIL-STD-810G Method 514.6, Annex C-2.1, Cat 4 (vibration); MIL-STD-810G Section 2.2.2 Procedure 1 (shock, vibration)

Cloud Services

Support
Included for the full subscription term (phone 24-hour weekdays with weekend emergency response, web 24x7, chat 24x5)
Warranty
Limited lifetime warranty with an active NetCloud Service plan
Service Plans
NetCloud Service for Mobile; NetCloud Service for Ruggedized IoT
Service Add Ons
NetCloud Exchange, NetCloud Advanced
Software Updates
Via NetCloud Manager for the full subscription term
Device Management
NetCloud Manager for the full subscription term

Edge Computing

CPU
Dual-core ARMv8 64-bit
Memory
Up to 921 MB
Applications
Docker containerized applications
Flash Storage
Up to 8 GB

Product Summary

PoE
No
Wi-Fi
Dual-band, dual-concurrent 802.11ax (Wi-Fi 6)
GPS GNSS
Active
5G Status
5G Ready with RX20
Bluetooth
Yes, embedded
USB Ports
1
Throughput
940 Mbps (Firewall)
Form Factor
Ruggedized metal
VPN Tunnels
20
Serial Ports
0
Ethernet Ports
2 x GbE (LAN/WAN switchable)
Cloud Management
Yes
Special Features
Add second modem and serial port with RX20 Managed Accessory
Dual Modem Support
Yes, with RX20
Subscription Terms
1, 3 & 5 years
Operating Temperature
-30 °C to 75 °C (-22 °F to 167 °F)
Wireless Connectivity
LTE
Private Cellular Network
Yes, CBRS, 4G LTE
Network Operator Standards
PTCRB (U.S.), GCF (global)

Questions buyers ask

Is the Cradlepoint R920 a 5G router?

No. The R920 has an embedded Cat 7 LTE modem. Cradlepoint lists it as 5G Ready with the RX20 Managed Accessory, which adds a second LTE or 5G modem and a serial port.

What subscription is included with MAA3-0920-C7A-NA?

This SKU includes 3-year NetCloud Mobile Essentials + Advanced Plans for North America (U.S. and Canada). It covers NetCloud Manager device management, software updates and support for the full term.

Does this package include antennas or a power supply?

No. This hardware configuration ships without an AC power supply or antennas. The R920 uses SMA cellular and GNSS connectors and RP-SMA Wi-Fi and Bluetooth connectors, and it runs on 9–36 VDC power.

Which carriers and public safety networks does the R920 support?

The modem is certified with AT&T, T-Mobile and Verizon. It also supports FirstNet Trusted, T-Mobile Connecting Heroes and Verizon Frontline public safety networks.

Can the R920 run edge applications?

Yes. It has a dual-core ARMv8 64-bit processor with up to 921 MB of memory and 8 GB of flash for Docker containerized applications.
