Cradlepoint5G & LTE Routers

Cradlepoint R920 Ruggedized Cat 7 LTE Router with Wi-Fi 6 and 1-Year NetCloud Mobile Essentials + Advanced (TAA)

4G LTEMPN TAA-MAA1-0920-C7A-NA
  • Wi-Fi 6
  • Dual SIM
  • 2–4 × 1 Gb Ethernet
  • GPS/GNSS
  • Rugged
  • FirstNet Ready
$1,345.00

In stockShips from the US

Included subscription · 1 year
1 year3 years−$114.794 years+$665 years+$79.216 years+$373
Compliance · TAA compliant
Standard−$309.70TAA compliant
Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans
Compare all 25 configurations

Datasheets & documents

Overview

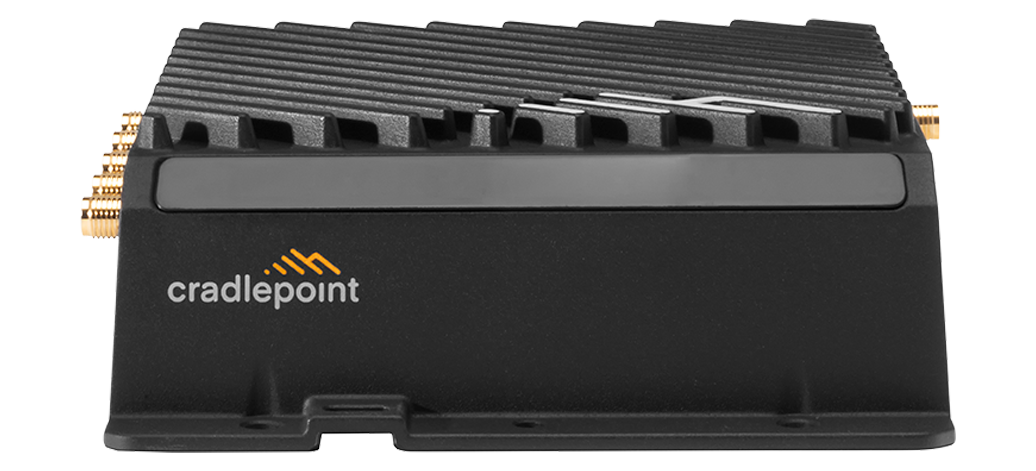

The Cradlepoint R920 (TAA-MAA1-0920-C7A-NA) is a ruggedized, metal-housed LTE router for vehicles and mobile operations. It pairs an embedded Cat 7 LTE modem (300 Mbps down, 150 Mbps up) and dual SIM slots with dual-band Wi-Fi 6, two Gigabit Ethernet ports, Bluetooth LE 5.1 and active multi-constellation GNSS. The router is rated IP64, operates from -30 °C to 75 °C and has ignition sensing. This TAA-compliant U.S. Federal Government SKU includes a 1-year NetCloud Mobile Essentials + Advanced plan. It ships without an AC power supply or antennas.

  • Embedded Cat 7 LTE modem with 2-carrier aggregation: 300 Mbps downlink and 150 Mbps uplink, dual 4FF SIM slots
  • Dual-band, dual-concurrent 2x2 MU-MIMO Wi-Fi 6 (574 Mbps at 2.4 GHz, 1.2 Gbps at 5 GHz) with WPA3

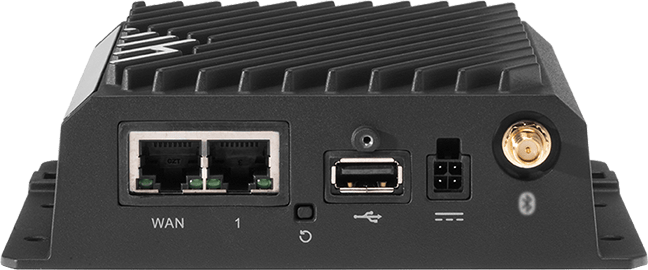

  • 2 x Gigabit Ethernet (LAN/WAN switchable), locking USB 2.0 Type A, GPIO and embedded Bluetooth LE 5.1
  • Active GNSS tracking GPS, Galileo, GLONASS, BeiDou and QZSS simultaneously
  • Ruggedized metal housing: IP64, -30 °C to 75 °C operation, 9-36 VDC input with ignition sensing, E-Mark and Class I Div 2
  • FirstNet Trusted, T-Mobile Connecting Heroes and Verizon Frontline support, plus CBRS Band 48 private LTE
  • TAA-compliant SKU with a 1-year NetCloud Mobile Essentials + Advanced plan
  • Keeps vehicles connected on the road, with dual SIM slots and automatic carrier selection for coverage diversity

The Ericsson Cradlepoint R920 is a ruggedized LTE networking platform for public safety fleets, government vehicles, transit and field operations teams that need dependable connectivity on the move. This part number, TAA-MAA1-0920-C7A-NA, is the TAA-compliant U.S. Federal Government ordering option. It bundles the R920 Cat 7 hardware with a 1-year NetCloud Mobile Essentials + Advanced plan.

The embedded Cat 7 LTE modem uses 2-carrier aggregation to reach 300 Mbps downlink and 150 Mbps uplink. It has dual 4FF SIM slots with SIM-based auto-carrier selection and 2x2 MIMO. The North American band set covers B2, B4, B5, B7, B12, B13, B14, B25, B26, B66, B71, B41, B42, B43 and B48 (CBRS). The modem is certified on AT&T, T-Mobile and Verizon and supports FirstNet Trusted, T-Mobile Connecting Heroes and Verizon Frontline. Inside the vehicle, 2x2 MU-MIMO Wi-Fi 6 runs concurrently on 2.4 GHz and 5 GHz and supports WPA3. The router also provides two switchable Gigabit Ethernet ports, a locking USB 2.0 port, GPIO and embedded Bluetooth LE 5.1.

The R920 is built for vehicle duty. It accepts 9-36 VDC with ignition sensing and carries IP64, E-Mark, SAE J1455, EN 61373 rail, MIL-STD-810G shock and vibration, and Class I Div 2 hazardous-location ratings. Active GNSS tracks GPS, Galileo, GLONASS, BeiDou and QZSS, which supports NetCloud coverage maps and location history. Rated performance includes 940 Mbps stateful firewall throughput, 200 Mbps IPsec VPN, 20 VPN tunnels and up to 64 VLANs. A dual-core ARMv8 processor can run Docker containers at the edge.

The NetCloud plan provides NetCloud Manager cloud management and software updates for the full term. Essentials packages include 24x7 support and a limited lifetime hardware warranty while the subscription is active. The RX20 Managed Accessory can add a second LTE or 5G modem and a serial port. Antennas and an AC power supply are sold separately. Full specifications are in the Cradlepoint R920 datasheet.

Ideal for

  • Public safety and first-responder vehicles using FirstNet, Verizon Frontline or T-Mobile Connecting Heroes
  • Federal and government fleets that require TAA-compliant networking equipment
  • Transit buses and rail rolling stock providing Wi-Fi 6 to onboard systems and passengers
  • Utility, field service and hazardous-location work vehicles with GNSS tracking
  • Private CBRS Band 48 LTE deployments for campuses and industrial sites

Specifications

Power

Fusing
3 A fuse (9-12 VDC); 2 A fuse (> 24 VDC)
Features
Ignition sensing (auto ON, time-delay OFF)
Consumption
Sleep 15 mW; Idle 9 W; Typical 14.5 W; Heavy 15.2 W
Input Voltage
9-36 VDC steady state

General

MPN
TAA-MAA1-0920-C7A-NA
UPC
840292705067
Brand
Ericsson Cradlepoint
Model
Cradlepoint R920
Region
United States (Federal Government)
FIPS Model
Non-FIPS model
Service Plan
1-Year NetCloud Mobile Essentials + Advanced
TAA Compliant
TAA compliant
Subscription Term
1 year
Hardware Configuration
Cat 7 LTE with Wi-Fi; no AC power supply or antennas

Package

Documentation
Cradlepoint R920 Datasheet
Included Antennas
No antennas included
Included Power Supply
No AC power supply included

GNSS GPS

Power
3.05-3.25 VDC supply; 100 mA max
Accuracy
Horizontal < 5 m (50%), < 9 m (95%)
Protocols
NMEA 0183
Frequencies
L1
Sensitivity
Acquisition -145 dBm; Tracking -160 dBm
Update Rate
1 Hz (once per second)
Constellations
GPS, Galileo, GLONASS, BeiDou, QZSS (simultaneous)
Time TO First Fix
32 seconds (cold start)

Physical

Weight
595 g (1 lb 5 oz)
Dimensions

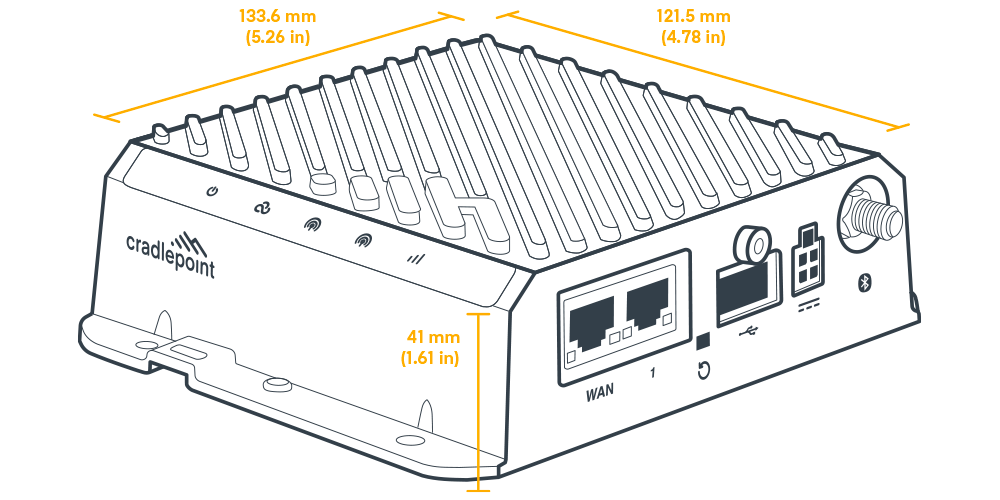

133.6 x 121.5 x 41 mm (5.26 x 4.78 x 1.61 in)
Shipping Weight
2.20 lb

Interfaces

Wi-Fi
Dual-radio, dual-band concurrent 2x2 MU-MIMO Wi-Fi 6 with DFS
Modem
Embedded Cat 7 LTE modem; 2 x SMA cellular antenna connectors
Ethernet
2 x GbE (LAN/WAN switchable)
Bluetooth
Bluetooth LE 5.1, 10 dBm max TX, 1 x RP-SMA connector
Expansion
1 x USB 2.0 Type A (5 V, 500 mA, 2.5 W, screw lock); 1 x 2-pin GPIO (shared with DC power); 2x2 Molex micro-fit (3 mm locking)
Wi-Fi Modes
AP, Wireless Client, Wi-Fi as WAN
Wi-Fi Speed
574 Mbps (2.4 GHz) and 1.2 Gbps (5 GHz)
Wi-Fi Roaming
802.11k (AP mode only), 802.11v
Wi-Fi Security
WPA/WPA2/WPA3 Personal, WPA2/WPA3 Enterprise, Open
GNSS Connector
1 x SMA GNSS antenna connector
Wi-Fi Certification
Wi-Fi Alliance Certified
Wi-Fi Antenna Connectors
2 x RP-SMA Wi-Fi antenna connectors

Wi-Fi Power

IC
2.4 GHz 23.18; 5150–5250 22.7; 5250–5350 17.16; 5470–5725 20.9; 5725–5850 22.17 dBm
Fcc
2.4 GHz 23.18; 5150–5250 21.73; 5250–5350 22.17; 5470–5725 20.79; 5725–5850 20.97 dBm
Europe
2.4 GHz 14.23; 5150-5250 17.03; 5250-5350 17.12; 5500-5700 22.05 dBm
Australia New Zealand
AU/NZ conducted: 2.4 GHz 14.23; 5150-5250 17.03; 5250-5350 17.12; 5500-5700 22.05; 5475-5825 22.18 dBm

Performance

L2 L3 Vlans
Up to 64
Stateful Firewall
940 Mbps
Typical Client Count
30
Concurrent VPN Tunnels
20
Concurrent Tcp Sessions
130,000
Ipsec VPN Point TO Point
200 Mbps
Ips Application Aware Client Analytics
940 Mbps

Reliability

Calculated MTBF
637,911 hours (Telcordia SR332 at 25 °C)

Environmental

Storage Humidity
5% to 95%
Ingress Protection
IP64 (dust tight and splashing water)
Operating Humidity
10% to 90%
Storage Temperature
-40 °C to 85 °C (-40 °F to 185 °F)
Operating Temperature
-30 °C to 75 °C (-22 °F to 167 °F)

Cellular Modem

3g
WCDMA/UMTS/HSPA+
SMS
Yes
GNSS
Active GNSS
MIMO
2x2 MIMO
3g Bands
2, 4, 5
Antennas
SMA female connectors; antennas not included with this Mobile package
TX Power
LTE 22.5 dBm ± 1; DC-HSPA+ 23 dBm ± 1
Modulation
Up to 64 QAM DL / UL
Regulatory
FCC, IC, CE
Technology
Cat 7 LTE; dual 4FF SIM; SIM-based auto-carrier selection; 3GPP Release 11
Peak Uplink
LTE 150 Mbps; WCDMA 5.76 Mbps
LTE Bands Fdd
LTE FDD: B2, B4, B5, B7, B12, B13, B14, B25, B26, B66, B71
LTE Bands Tdd
LTE TDD: B41, B42, B43, B48
Peak Downlink
LTE 300 Mbps; WCDMA 42.2 Mbps
Carrier Aggregation
DL Cat 7, 2 CA, 64 QAM = 300 Mbps; UL Cat 13, 2 CA, 64 QAM = 150 Mbps
Private Cellular Network
Yes, FCC Part 96 CBRS Band 48
Network Operator Standards
PTCRB (U.S., Canada); GCF (worldwide)
Network Operator Certifications
AT&T, T-Mobile, Verizon
Public Safety Network Certifications
FirstNet Trusted, T-Mobile Connecting Heroes, Verizon Frontline

Certifications

Rail
EN 61373 Cat 1, Class B
Safety
UL/cUL, CB Scheme, EN 62368-1
Vehicle
E-Mark; SAE J1455 Category 2
Security
FIPS 140-3 Level 1 in process (FIPS models only; not this SKU)
Shock Vibration
MIL-STD-810G 514.6 Cat 4 vibration; 2.2.2 Proc 1 shock/vibration
Hazardous Locations
Class I Div 2
Substance Compliance
WEEE, RoHS, RoHS-2, California Prop 65

Cloud Services

Support
Full-term support (phone 24h weekdays + weekend emergency, web 24x7, chat 24x5)
Warranty
Limited lifetime warranty with active NetCloud subscription
Service Plans
NetCloud Mobile, NetCloud Ruggedized IoT
Service Add Ons
NetCloud Exchange, NetCloud Advanced
Software Updates
Via NetCloud Manager (full term)
Device Management
NetCloud Manager (full term)

Edge Computing

CPU
Dual-core ARMv8 64-bit
Memory
Up to 921 MB
Applications
Docker containerized applications
Flash Storage
Up to 8 GB

Product Summary

PoE
No
Wi-Fi
Dual-band, dual-concurrent Wi-Fi 6
GPS GNSS
Active
5G Status
5G Ready with RX20 accessory
Bluetooth
Yes, embedded
USB Ports
1
Throughput
940 Mbps (firewall)
Form Factor
Ruggedized metal
VPN Tunnels
20
Serial Ports
0
Ethernet Ports
2 x GbE (LAN/WAN switchable)
Cloud Management
Yes
Special Features
Second modem and serial port via RX20 Managed Accessory
Dual Modem Support
Yes, with RX20
Operating Temperature
-30 °C to 75 °C (-22 °F to 167 °F)
Wireless Connectivity
LTE
Private Cellular Network
Yes, CBRS 4G LTE
Network Operator Standards
PTCRB (U.S.), GCF (global)
Subscription Terms Available
1, 3 & 5 years

Questions buyers ask

Does this R920 include antennas or a power supply?

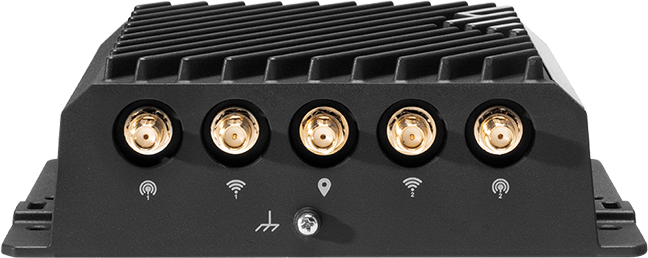

No. This hardware configuration ships without an AC power supply or antennas. The R920 has 2 SMA cellular, 2 RP-SMA Wi-Fi, 1 RP-SMA Bluetooth and 1 SMA GNSS antenna connectors, and it runs on 9-36 VDC vehicle power.

Is the Cradlepoint R920 a 5G router?

No. The R920 has an embedded Cat 7 LTE modem rated at 300 Mbps downlink and 150 Mbps uplink. It is 5G ready through the RX20 Managed Accessory, which adds a second LTE or 5G modem and a serial port.

What does the 1-year NetCloud Mobile Essentials + Advanced plan include?

It covers NetCloud Manager cloud management and software updates for the term. Essentials packages include 24x7 support and a limited lifetime hardware warranty that applies while the subscription is active. The Advanced plan adds further capabilities on top of Essentials.

Which public safety networks does the R920 support?

The R920 supports FirstNet Trusted, T-Mobile Connecting Heroes and Verizon Frontline. It is also certified on AT&T, T-Mobile and Verizon.

Is this model FIPS certified?

No. This SKU is TAA compliant but is not a FIPS model. FIPS 140-3 Level 1 applies only to the separate R920 FIPS models.
