Cradlepoint IBR1700 Cat 18 LTE Rugged Vehicle Router with Wi-Fi and 1-Year NetCloud Mobile Essentials Plan

4G LTEMPN MA1-1700120B-NNA
  • Wi-Fi 5
  • Dual SIM
  • 5+ × 1 Gb Ethernet
  • GPS/GNSS
  • Rugged
  • FirstNet Ready
$1,349.71$1,475.00Save $125.29

In stockShips from the US

Included subscription · 1 year
1 year3 years+$387.985 years+$777.806 years+$2,278.50
Compliance · Standard
StandardTAA compliant+$549.29
Region · North America
North AmericaAPAC+$690.29
Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans
Compare all 15 configurations

Datasheets & documents

Overview

The Cradlepoint IBR1700 (MA1-1700120B-NNA) is a ruggedized in-vehicle router for field fleets and public safety. This North America (U.S. and Canada) package pairs the Cat 18 LTE Advanced Pro model (up to 1.2 Gbps downlink) with tri-radio Wi-Fi, five Gigabit Ethernet ports, and discrete GNSS with dead reckoning. It also includes a 1-year NetCloud Mobile Essentials plan covering cloud management, software updates, 24x7 support and a limited lifetime warranty while the plan is active.

  • Embedded Cat 18 LTE Advanced Pro modem: up to 1.2 Gbps down / 150 Mbps up, 4x4 MIMO, dual 2FF SIM slots
  • Tri-radio, dual-band 802.11ac Wave 2 Wi-Fi with AP, Wireless Client and Wi-Fi as WAN modes
  • 5 x GbE (LAN/WAN switchable), USB 2.0, GPIO and RS-232 serial port with OBD-II functionality
  • Discrete active GNSS with dead reckoning (GPS, Galileo, GLONASS, BeiDou)
  • MC400 modular modem slot for a second modem; 5G-enabled via a Cradlepoint 5G adapter
  • IP64 metal chassis, MIL-STD-810G and SAE J1455, -30 °C to 70 °C, 9-36 VDC with ignition sensing
  • 1-year NetCloud Mobile Essentials plan: NetCloud Manager, software updates, 24x7 support, limited lifetime warranty while active
  • Keep vehicles online with Gigabit-class LTE, 4x4 MIMO and dual SIMs for carrier choice

The Ericsson Cradlepoint IBR1700 is a Gigabit-class LTE router built for vehicles. It gives field forces, transit and public safety fleets persistent connectivity for everything on board, and it lets IT manage the router remotely. This part number, MA1-1700120B-NNA, is the North America (U.S. and Canada) Cat 18 configuration with Wi-Fi. It is bundled with a 1-year Ericsson NetCloud Mobile Essentials plan.

The embedded 1200M-B modem is Cat 18 LTE Advanced Pro. It uses 4x4 MIMO, 5-carrier downlink aggregation, dual 2FF SIM slots with SIM-based carrier selection, and CBRS Band 48 for private cellular. Peak rates are 1.2 Gbps down and 150 Mbps up. Inside the vehicle, the tri-radio, dual-band 802.11ac Wave 2 Wi-Fi supports AP, client and Wi-Fi-as-WAN modes. Five LAN/WAN-switchable GbE ports, USB 2.0, GPIO and an RS-232 serial port with OBD-II functionality connect cameras, laptops, MDTs and sensors. The discrete active GNSS receiver with dead reckoning tracks GPS, Galileo, GLONASS and BeiDou for automatic vehicle location.

The IBR1700 is an LTE router. An MC400 modular modem slot adds a second modem for multi-carrier connectivity, and the router can act as controller for a Cradlepoint 5G adapter when 5G is needed. The metal chassis is rated IP64 and tested to MIL-STD-810G and SAE J1455. It operates from -30 °C to 70 °C on 9-36 VDC, with ignition sensing and reverse-polarity protection.

NetCloud Mobile Essentials provides NetCloud Manager, continuous router and modem software updates, and 24x7 support for the full term. The router is covered by a limited lifetime warranty while an active NetCloud plan is in place. You can add NetCloud Mobile Advanced at any time for threat management, web filtering and coverage maps.

Ideal for

  • Police, fire and EMS vehicles on public safety LTE networks
  • Transit buses providing passenger Wi-Fi and onboard video offload
  • Utility and field-service trucks connecting laptops, tablets and sensors
  • Fleet tracking and automatic vehicle location with dead-reckoning GNSS
  • Vehicle health and diagnostics reporting via the serial port's OBD-II functionality

Specifications

Power

Input
9-36 VDC (3 A inline fuse for 9-24 VDC; 2.5 A fuse above 24 VDC)
Protection
Reverse polarity and transient voltage protection (ISO 7637-2)
Consumption
Idle 8 W; Typical 14 W; Heavy 24 W
Ignition Sensing
Ignition sensing (automatic ON, time-delay OFF)
Optional Power Supply
Optional external supply: 100-240 VAC in, 12 VDC 3 A out

General

MPN
MA1-1700120B-NNA
UPC
810007800790
Brand
Cradlepoint (Ericsson Enterprise Wireless)
Model
Cradlepoint IBR1700
Region
North America (U.S. & Canada)
FIPS Model
Standard (non-FIPS) model
Included Plan
1-Year NetCloud Mobile Essentials Plan
Subscription Term
1 year
Manufacturer Status
Discontinued by manufacturer
Hardware Configuration
Cat 18 (1200 Mbps) with Wi-Fi

Cellular

3g
WCDMA/DC-HSPA+
SIM
Dual 2FF SIM slots with SIM-based auto-carrier selection
SMS
Yes
GNSS
Discrete active GPS with dead reckoning
MIMO
4x4 MIMO
3g Bands
3G bands 1, 2, 4, 5, 8, 9, 19
Antennas
SMA male connectors, external 600 MHz–6 GHz cellular paddle antennas
Modulation
Up to 256
Regulatory
FCC (U.S.), IC (Canada), CE (EU), RCM (AU/NZ)
Technology
Cat 18 LTE Advanced Pro, 3GPP Release 12
Peak Uplink
LTE 150 Mbps; DC-HSPA+ 5.76 Mbps
LTE Fdd Bands
B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71
LTE Tdd Bands
B38, B39, B40, B41, B42, B43, B46, B48
Peak Downlink
LTE 1.2 Gbps; DC-HSPA+ 42.2 Mbps
Transmit Power
LTE 23 dBm ± 1, DC-HSPA+ 23 dBm ± 1 (typical conducted)
Carrier Aggregation
Up to 5 CA downlink, 2 CA uplink
Private Cellular Network
Yes, includes FCC Part 96 (CBRS Band 48)
Network Operator Standards
PTCRB (U.S., Canada), GCF (Worldwide)
Network Operator Certifications
AT&T, Verizon
Public Safety Network Certifications
IBR1700 series: Verizon Frontline, ESN, FirstNet Trusted™ (varies by modem)

GNSS GPS

Accuracy
Horizontal: < 2 m (50%), < 5 m (95%)
Protocols
NMEA 0183
Frequencies
L5
Max Current
20 mA (1200M-B)
Sensitivity
Tracking: -159 dBm (1200M-B)
Constellations
GPS, Galileo, GLONASS, BeiDou
Supply Voltage
3.1 V (1200M-B)
Time TO First Fix
32 seconds (cold start)

Physical

Weight
1.7 kg (3 lb 7 oz)

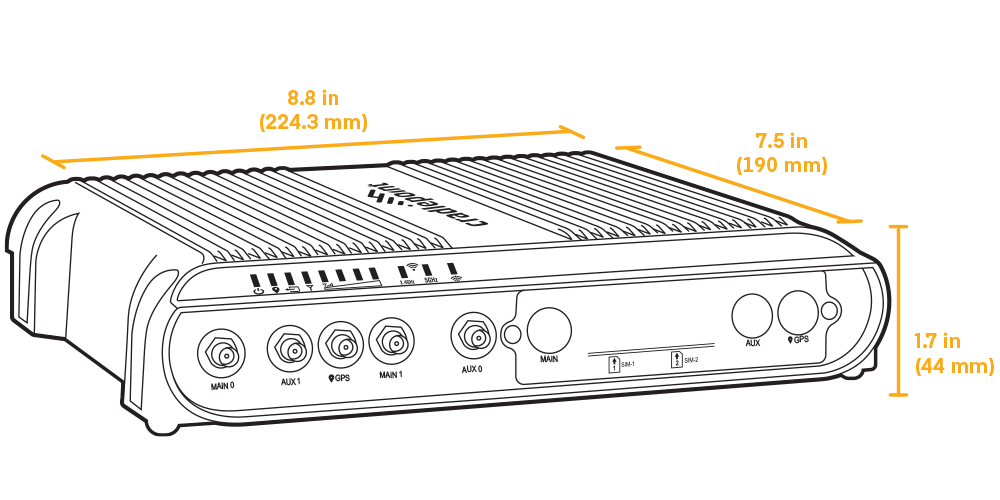

Dimensions
224.3 × 190 × 44 mm (8.8 × 7.5 × 1.7 in)

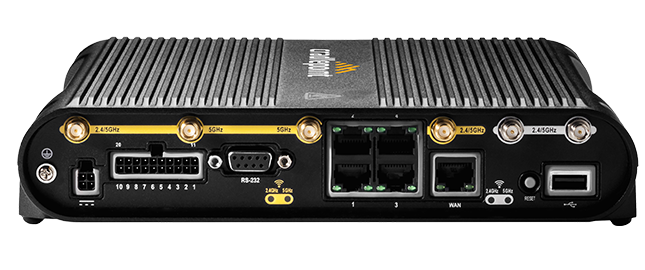

Interfaces

USB
1 x USB 2.0 Type A (5 V, 500 mA, 2.5 W output)
Gpio
1 x GPIO connector
Modem
Embedded 1200M-B modem, 4 x SMA cellular connectors; optional MC400 modular modem
Ssids
Multiple SSIDs
Serial
1 x RS-232 serial port
Ethernet
5 x GbE (LAN/WAN switchable)
Wi-Fi Modes
AP, Wireless Client, and Wi-Fi as WAN
Wi-Fi Radios
Tri-radio, dual-band concurrent: two 2x2 MU-MIMO 802.11n + one 4x4 MU-MIMO 802.11ac Wave 2
Wi-Fi Security
WPA/WPA2/WPA3 Personal, WPA2/WPA3 Enterprise, WEP Auto, Open
GNSS Connector
1 x SMA GPS antenna connector
Modular Modem Slot
1 x MC400 modular modem slot (peak 300 Mbps)
Wi-Fi Certification
Wi-Fi Alliance Certified
Wi-Fi Rates Gold Sma
Gold SMAs 2x2: 574 Mbps (2.4 GHz); Gold SMAs 4x4: 1.733 Gbps (5 GHz)
Wi-Fi Rates Silver Sma
Silver SMAs: 574 Mbps (2.4 GHz) and 1.2 Gbps (5 GHz)
Wi-Fi Antenna Connectors
6 x RP-SMA Wi-Fi antenna connectors

Wi-Fi Power

Fcc
2.4 GHz 29.2 dBm; 5150–5250 MHz 29.0 dBm; 5725–5850 MHz 30.0 dBm conducted
EU Rest OF World
2.4 GHz 17.3 dBm; 5180-5240 MHz 17.8 dBm conducted
Australia New Zealand Radio 1
AU/NZ Radio 1 (2x2): 2.4 GHz 30.9; 5180-5240 MHz 19.5; 5260-5320 MHz 19.5; 5500-5700 MHz 26.3; 5745-5825 MHz 29.1 dBm conducted
Australia New Zealand Radio 2
AU/NZ Radio 2 (4x4): 5180-5240 MHz 18.0; 5260-5320 MHz 18.0; 5500-5700 MHz 25.0; 5745-5825 MHz 30.5 dBm conducted

Performance

Vlans
Up to 64 Layer 2 / Layer 3 VLANs
Stateful Firewall
940 Mbps
Typical Client Count
30
Concurrent VPN Tunnels
10
Concurrent Tcp Sessions
32,000
Ipsec VPN Point TO Point
20 Mbps

Reliability

MTBF
286,853 hours (Telcordia SR332 at 25 °C)

Environmental

Storage Humidity
5% to 95%
Ingress Protection
IP64 (dust tight and splashing water)
Operating Humidity
5% to 95%
Storage Temperature
-40 °C to 85 °C (-40 °F to 185 °F)
Operating Temperature
-30 °C to 70 °C (-22 °F to 158 °F)

Certifications

Safety
UL/cUL, CB Scheme, EN 62368-1, e-Mark
Security
FIPS 140-2 Inside (IBR1700-FIPS models only)
Substance Compliance
WEEE, RoHS, RoHS-2, California Prop 65
Shock Vibration Humidity
MIL-STD-810G, SAE J1455

Cloud Services

Support
24x7 support for the full subscription term
Warranty
Limited lifetime warranty with an active NetCloud plan
Service Plans
NetCloud Service for Mobile
Service Add Ons
NetCloud Exchange, NetCloud Advanced
Software Updates
Software updates via NetCloud Manager for the full subscription term
Device Management
NetCloud Manager for the full subscription term

Product Summary

PoE
No
Wi-Fi
Dual-band, tri-radio; 802.11ac Wave 2 (Wi-Fi 5)
Category
Mobile
GPS GNSS
Active
USB Ports
1
Throughput
940 Mbps (Firewall)
Form Factor
Ruggedized Metal
VPN Tunnels
10
Serial Ports
1
Five G Status
5G-enabled with Cradlepoint 5G Adapter
Ethernet Ports
5 GbE (LAN/WAN switchable)
Cloud Management
Yes
Special Features
Discrete GPS with Dead Reckoning and Serial Port with OBD-II functionality
Dual Modem Support
Yes
Operating Temperature
-30 °C to 70 °C (-22 °F to 158 °F)
Wireless Connectivity
Gigabit-Class LTE
Private Cellular Network
Yes — CBRS, 4G LTE
Network Operator Standards
PTCRB (U.S.), GCF (global)
Subscription Terms Available
1, 3 & 5 years

Questions buyers ask

Is the Cradlepoint IBR1700 a 5G router?

No. The IBR1700 uses an embedded Cat 18 LTE Advanced Pro modem. Cradlepoint describes it as 5G-ready: it accepts a future modular modem and can act as controller for a Cradlepoint 5G adapter.

Which region is this part number for?

MA1-1700120B-NNA is the North America (U.S. and Canada) version of the IBR1700 in the Cat 18 (1200 Mbps) with Wi-Fi configuration.

What does the 1-year NetCloud Mobile Essentials plan include?

It includes NetCloud Manager cloud management, continuous router and modem software updates, and 24x7 support for the full term. The router is covered by a limited lifetime warranty while an active NetCloud plan is in place.

How is the IBR1700 powered in a vehicle?

It accepts 9-36 VDC steady-state input, with a 3 A inline fuse for 9-24 VDC installations and a 2.5 A fuse above 24 VDC. Ignition sensing turns it on automatically and shuts it down on a time delay. An optional 12 VDC AC supply is available for bench use.

Can I add a second carrier?

Yes. The MC400 modular modem slot accepts a second modem for simultaneous multi-carrier connectivity. The dual 2FF SIM slots also support SIM-based carrier selection.
