Cradlepoint5G & LTE Routers

Cradlepoint IBR1700 Rugged In-Vehicle LTE Router (Cat 18) with 1-Year TAA NetCloud Mobile Essentials + Advanced

4G LTEMPN TAA-MAA1-1700120B-NA
  • Wi-Fi 5
  • Dual SIM
  • 5+ × 1 Gb Ethernet
  • GPS/GNSS
  • Rugged
  • FirstNet Ready
$2,040.00

In stockShips from the US

Included subscription · 1 year
1 year3 years+$3065 years+$6496 years+$1,729.21
Compliance · TAA compliant
Standard−$549.29TAA compliant
Region · North America
North AmericaAPAC+$141
Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans
Compare all 15 configurations

Datasheets & documents

Overview

The Cradlepoint TAA-MAA1-1700120B-NA pairs the ruggedized IBR1700 in-vehicle router, with its embedded Cat 18 LTE Advanced Pro modem (1200M-B), with a 1-year Ericsson NetCloud Mobile Essentials + Advanced subscription. It is a TAA-compliant ordering option for U.S. Federal Government buyers. The IBR1700 delivers up to 1.2 Gbps LTE downlink, tri-radio dual-band Wi-Fi, five Gigabit Ethernet ports, and discrete GPS with dead reckoning in an IP64 metal chassis. It ships without an AC power supply or antennas.

  • Embedded Cat 18 LTE Advanced Pro modem (1200M-B): up to 1.2 Gbps downlink and 150 Mbps uplink, 4x4 MIMO, dual 2FF SIM slots
  • Tri-radio, dual-band Wi-Fi: two 2x2 802.11n radios and one 4x4 802.11ac Wave 2 radio with WPA3

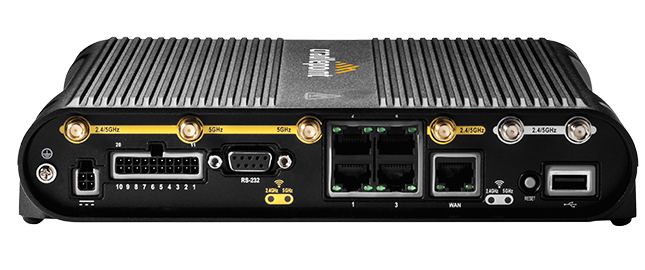

  • 5 x Gigabit Ethernet (LAN/WAN switchable), USB 2.0, GPIO and RS-232 serial with OBD-II functionality
  • Discrete active GPS with dead reckoning for Automatic Vehicle Location integration
  • MC400 modular modem slot for a second modem; controller for a Cradlepoint 5G adapter
  • IP64, MIL-STD-810G and SAE J1455 rated; 9-36 VDC input with ignition sensing
  • TAA-compliant SKU with 1-year NetCloud Mobile Essentials + Advanced subscription
  • Keeps crews, cameras and onboard systems connected on the move with Gigabit-class LTE and automatic carrier selection across two SIMs

The Cradlepoint IBR1700 is a Gigabit-class LTE networking platform built for persistent connectivity in vehicles. This SKU (TAA-MAA1-1700120B-NA) is the TAA-compliant U.S. Federal Government configuration. It combines the IBR1700 with the embedded 1200M-B modem and a 1-year Ericsson NetCloud Mobile Essentials + Advanced subscription. The hardware is configured without an AC power supply or antennas. The manufacturer lists this product as discontinued.

The 1200M-B modem is Cat 18 LTE Advanced Pro with 4x4 MIMO, up to 5-carrier downlink aggregation, dual 2FF SIM slots with SIM-based auto-carrier selection, and peak rates of 1.2 Gbps down and 150 Mbps up. It supports CBRS Band 48 for private cellular networks and is certified on AT&T and Verizon. Inside the vehicle, three Wi-Fi radios (two 2x2 802.11n and one 4x4 802.11ac Wave 2) serve clients, and five LAN/WAN-switchable Gigabit Ethernet ports connect cameras, laptops and other onboard equipment. An MC400 modular modem slot adds a second modem, and the router can act as a controller for a Cradlepoint 5G adapter.

The design targets fleet use: 9-36 VDC input with ignition sensing, ISO 7637-2 transient protection, IP64 sealing, MIL-STD-810G and SAE J1455 ratings, and an operating range of -30 °C to 70 °C. Discrete active GPS with dead reckoning feeds Automatic Vehicle Location systems. An RS-232 serial port supports OBD-II diagnostics, and a GPIO connector handles vehicle integration.

NetCloud Mobile Essentials provides cloud management through NetCloud Manager, software updates, and 24x7 support for the full term. The router carries a limited lifetime warranty while the subscription is active. The Advanced plan adds threat management, web filtering, application visibility, analytics, location tracking and cellular coverage maps.

Ideal for

  • Police, fire and EMS vehicles that need connectivity on public safety networks
  • Federal agency fleets procuring through TAA-compliant channels
  • Field service and utility trucks running laptops, cameras and telematics from one router
  • Automatic Vehicle Location and fleet tracking using dead-reckoning GPS and OBD-II data
  • Mobile command units that need several Wi-Fi networks and VLAN segmentation

Specifications

Power

DC Input
9-36 VDC steady state input
Protection
Reverse polarity and transient voltage protection (ISO 7637-2)
Consumption
Idle 8 W; typical 14 W; heavy 24 W
Ignition Sensing
Ignition sensing (automatic ON and time-delay OFF)
Fuse Requirements
Vehicle installs: 3 A inline fuse at 9-24 VDC; 2.5 A fuse above 24 VDC
Optional AC Power Supply
Optional external power supply: 100-240 VAC input, 12 VDC 3 A output (not included with this SKU)

General

MPN
TAA-MAA1-1700120B-NA
UPC
840292705036
Brand
Ericsson Cradlepoint
Model
Cradlepoint IBR1700
Hardware Model
IBR1700-1200M-B (embedded 1200M-B modem)
Product Status
Manufacturer status: Discontinued

Package

Market
U.S. Federal Government ordering option
Documentation
Cradlepoint IBR1700 Datasheet
TAA Compliant
TAA compliant
Shipping Weight
4.60 lb shipping weight
Subscription Plan
1-Year NetCloud Mobile Essentials + Advanced Plans
Subscription Term
1-year subscription term
Essentials Support
Phone: 24-hour weekdays with weekend emergency response; web: 24x7; chat: 24x5
Hardware Configuration
Cat 18 (1200 Mbps) with Wi-Fi; no AC power supply or antennas

GNSS GPS

Power
1200M-B: 3.1 V supply; 20 mA max current
Accuracy
Horizontal: < 2 m (50%), < 5 m (95%)
Protocols
NMEA 0183
Frequencies
L5
Sensitivity
1200M-B tracking: -159 dBm
Constellations
1200M-B: GPS, Galileo, GLONASS, BeiDou
Time TO First Fix
32 seconds (cold start)

Physical

Weight
1.7 kg (3 lb 7 oz)

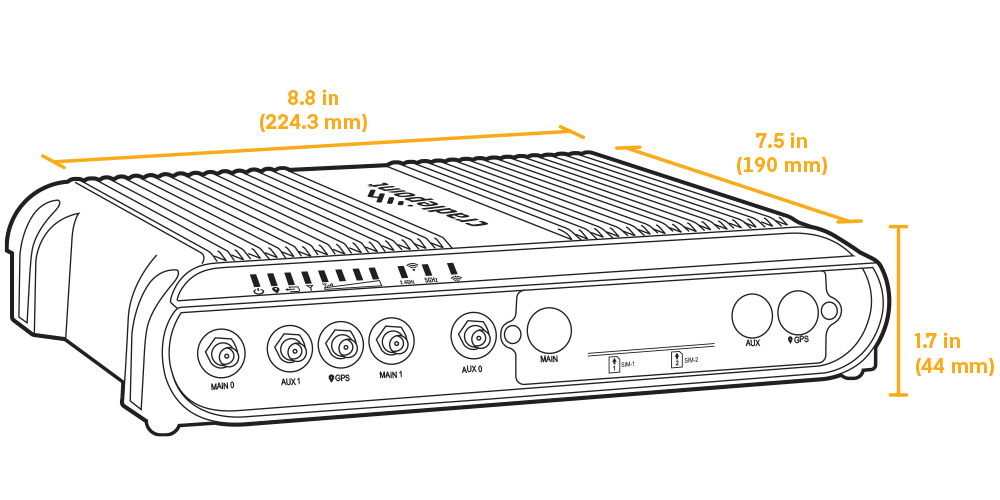

Dimensions
224.3 × 190 × 44 mm (8.8 × 7.5 × 1.7 in)

Interfaces

USB
5 V, 500 mA, 2.5 W)
Gpio
1 x GPIO connector
Modem

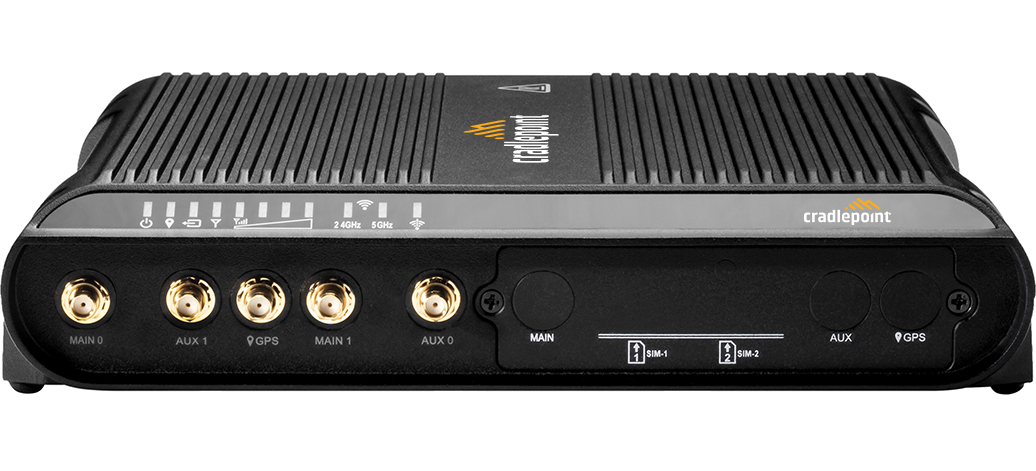

Embedded 1200M-B modem with 4 x SMA cellular antenna connectors (IBR1700 is also offered with a 600M modem with 2 x SMA)
Serial
1 x RS-232 serial port
Ethernet
5 x GbE (LAN/WAN switchable)
Wi-Fi MIMO
Two 2x2 MU-MIMO 802.11n; one 4x4 MU-MIMO 802.11ac Wave 2
Wi-Fi Modes
AP, Wireless Client and WiFi as WAN
Wi-Fi Ssids
Multiple SSIDs
Wi-Fi Radios
Tri-radio, dual-band, concurrent operation (2.4 GHz and 5 GHz)
Wi-Fi Security
WPA/WPA2/WPA3 Personal, WPA2/WPA3 Enterprise, WEP Auto, Open
Modular Modem Slot
1 x MC400 Modular Modem Slot (peak throughput 300 Mbps)
Wi-Fi Certification
Wi-Fi Alliance Certified
Wi-Fi Rates Gold Sma
Gold SMAs 2x2: 574 Mbps (2.4 GHz); Gold SMAs 4x4: 1.733 Gbps (5 GHz)
Optional Second Modem
Optional dual modem: MC400 Modular Modem
Wi-Fi Rates Silver Sma
Silver SMAs: 574 Mbps (2.4 GHz) and 1.2 Gbps (5 GHz)
GNSS Antenna Connector
1 x SMA GPS antenna connector
Wi-Fi Antenna Connectors
6 x RP-SMA Wi-Fi antenna connectors

Wi-Fi Power

Fcc
2.4 GHz 29.2 dBm; 5150–5250 MHz 29.0 dBm; 5725–5850 MHz 30.0 dBm (conducted)
EU Rest OF World
2.4 GHz 17.3 dBm; 5180-5240 MHz 17.8 dBm (conducted)
Australia New Zealand
AU/NZ Radio 1 (2x2): 2.4 GHz 30.9, 5180-5240 MHz 19.5, 5260-5320 MHz 19.5, 5500-5700 MHz 26.3, 5745-5825 MHz 29.1 dBm; Radio 2 (4x4): 5180-5240 MHz 18.0, 5260-5320 MHz 18.0, 5500-5700 MHz 25.0, 5745-5825 MHz 30.5 dBm (conducted)

Performance

Vlans
Up to 64 Layer 2 / Layer 3 VLANs
Ipsec VPN
20 Mbps point-to-point IPsec VPN
Stateful Firewall
940 Mbps stateful firewall
Typical Client Count
30 typical clients
Concurrent VPN Tunnels
10 concurrent VPN tunnels
Concurrent Tcp Sessions
32,000 concurrent TCP sessions

Reliability

Calculated MTBF
286,853 hours (Telcordia SR332 at 25 °C)

Environmental

Storage Humidity
5% to 95%
Ingress Protection
IP64 (dust tight and splashing water)
Operating Humidity
5% to 95%
Storage Temperature
-40 °C to 85 °C (-40 °F to 185 °F)
Operating Temperature
-30 °C to 70 °C (-22 °F to 158 °F)

Cellular Modem

3g
WCDMA/DC-HSPA+
SIM
Dual 2FF SIM slots with SIM-based auto-carrier selection
SMS
SMS supported
GNSS
Discrete active GPS with dead reckoning
MIMO
4x4 MIMO
3g Bands
3G bands 1, 2, 4, 5, 8, 9, 19
Antennas
SMA male connectors for external 600 MHz - 6 GHz cellular paddle antennas (antennas not included with this SKU)
Modulation
Up to 256
Regulatory
FCC (U.S.), IC (Canada), CE (EU), RCM (AU/NZ)
Technology
Cat 18 LTE Advanced Pro, 3GPP Release 12
Peak Uplink
LTE 150 Mbps; DC-HSPA+ 5.76 Mbps
LTE Fdd Bands
B1 (2100), B2 (1900), B3 (1800), B4 (1700), B5 (850), B7 (2600), B8 (900), B12 (700), B13 (700), B14 (700), B17 (700), B18 (850), B19 (850), B20 (800), B25 (1900), B26 (850), B28 (700), B29 (700), B30 (2300), B32 (1500), B66 (1700), B71 (600)
LTE Tdd Bands
B38 (2600), B39 (1900), B40 (2300), B41 (2500), B42 (3500), B43 (3700), B46 (5200), B48 (3500)
Peak Downlink
LTE 1.2 Gbps; DC-HSPA+ 42.2 Mbps
Transmit Power
LTE 23 dBm ± 1, DC-HSPA+ 23 dBm ± 1 (typical conducted)
Carrier Aggregation
Up to 5 CA downlink, 2 CA uplink
Private Cellular Network
Yes, includes FCC Part 96 (CBRS Band 48)
Network Operator Standards
PTCRB (U.S., Canada); GCF (Worldwide)
Network Operator Certifications
AT&T, Verizon
Public Safety Network Certifications
IBR1700 modem family: Verizon Frontline, ESN, FirstNet Trusted™

Certifications

Safety
UL/cUL, CB Scheme, EN 62368-1, e-Mark
Security
FIPS 140-2 Inside on IBR1700-FIPS models only (this SKU is a non-FIPS model)
Substance Compliance
WEEE, RoHS, RoHS-2, California Prop 65
Shock Vibration Humidity
MIL-STD-810G; SAE J1455

Cloud Services

Support
NetCloud packages include support for the full subscription term
Warranty
Limited lifetime hardware warranty for as long as an active NetCloud Service plan is licensed
Service Plans
NetCloud Service for Mobile
Service Add Ons
NetCloud Exchange, NetCloud Advanced
Software Updates
Software updates via NetCloud Manager for the full subscription term
Device Management
NetCloud Manager for the full subscription term

Product Summary

PoE
No
Wi-Fi
Dual-band, tri-radio; 802.11ac Wave 2 (Wi-Fi 5)
Category
Mobile
GPS GNSS
Active
USB Ports
1
Throughput
940 Mbps (Firewall)
Form Factor
Ruggedized Metal
VPN Tunnels
10
Serial Ports
1
Five G Status
5G-enabled with Cradlepoint 5G Adapter
Ethernet Ports
5 GbE (LAN/WAN switchable)
Cloud Management
Yes
Special Features
Discrete GPS with Dead Reckoning and Serial Port with OBD-II functionality
Dual Modem Support
Yes
Subscription Terms
1, 3 & 5 years
Operating Temperature
-30 °C to 70 °C (-22 °F to 158 °F)
Wireless Connectivity
Gigabit-Class LTE
Private Cellular Network
Yes — CBRS, 4G LTE
Network Operator Standards
PTCRB (U.S.), GCF (global)

Questions buyers ask

Is the Cradlepoint IBR1700 in this package a 5G router?

No. It has an embedded Cat 18 LTE Advanced Pro modem with up to 1.2 Gbps downlink. The manufacturer describes the IBR1700 as 5G-ready: it accepts a modular modem in its expansion slot and can act as a controller for a Cradlepoint 5G adapter.

Are an AC power supply and antennas included?

No. This hardware configuration ships without an AC power supply or antennas. The router runs on 9-36 VDC vehicle power with ignition sensing. It has 4 SMA cellular connectors, 6 RP-SMA Wi-Fi connectors and 1 SMA GPS connector for external antennas.

What does the 1-year NetCloud Mobile Essentials + Advanced subscription include?

Essentials includes NetCloud Manager cloud management, software updates, and 24x7 support (phone 24 hours on weekdays with weekend emergency response, web 24x7, chat 24x5). It also covers the limited lifetime hardware warranty while the subscription is active. Advanced adds threat management, web filtering, application visibility, analytics, location tracking and cellular coverage maps.

Who is this TAA SKU intended for?

TAA-MAA1-1700120B-NA is the TAA-compliant ordering option for U.S. Federal Government buyers, such as agencies and contractors that must meet Trade Agreements Act requirements.

Can the IBR1700 connect to vehicle diagnostics and location systems?

Yes. It has discrete active GPS with dead reckoning for Automatic Vehicle Location systems. Its RS-232 serial port offers OBD-II functionality for vehicle health and diagnostics reporting using an accessory cable, and a GPIO connector supports custom integrations.
