Cradlepoint IBR1700 Rugged In-Vehicle Cat 18 LTE Router with Wi-Fi and 3-Year NetCloud Mobile Essentials (TAA)

4G LTEMPN TAA-MA3-1700120B-NNA
  • Wi-Fi 5
  • Dual SIM
  • 5+ × 1 Gb Ethernet
  • GPS/GNSS
  • Rugged
  • FirstNet Ready
$2,205.00

In stockShips from the US

Included subscription · 3 years
1 year−$3063 years5 years+$3436 years+$1,423.21
Compliance · TAA compliant
Standard−$467.31TAA compliant
Region · North America
North AmericaAPAC−$165
Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans
Compare all 15 configurations

Datasheets & documents

Overview

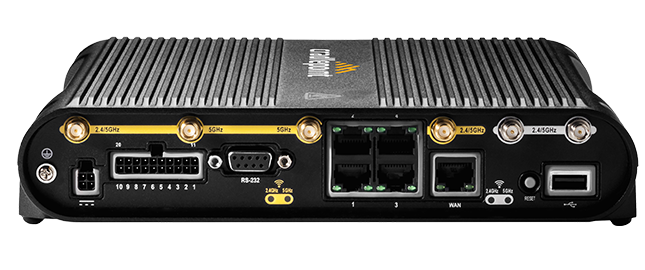

The Cradlepoint IBR1700 is a ruggedized, Gigabit-class LTE router for vehicles. This is TAA-compliant part TAA-MA3-1700120B-NNA, the U.S. Federal Government ordering option. It pairs the embedded Cat 18 (1200M-B) modem and tri-radio Wi-Fi with a 3-year NetCloud Mobile Essentials plan. The plan covers cloud management, software updates, 24x7 support and the limited lifetime hardware warranty for the full term. Antennas and an AC power supply are not included.

  • Embedded Cat 18 LTE Advanced Pro modem (1200M-B): up to 1.2 Gbps down / 150 Mbps up, 4x4 MIMO, dual 2FF SIM slots
  • Tri-radio, dual-band Wi-Fi: two 2x2 802.11n radios plus one 4x4 802.11ac Wave 2 radio, WPA3 support
  • 5 x Gigabit Ethernet (LAN/WAN switchable), USB 2.0, GPIO, RS-232 serial with OBD-II functionality
  • MC400 modular modem slot for a second carrier; controls an external Cradlepoint 5G adapter in captive mode
  • Discrete active GNSS with dead reckoning (GPS, Galileo, GLONASS, BeiDou) for AVL integration
  • Ruggedized IP64 metal chassis, MIL-STD-810G and SAE J1455, 9-36 VDC with ignition sensing
  • 3-year NetCloud Mobile Essentials plan: NetCloud Manager, software updates, 24x7 support, limited lifetime warranty during the term
  • Meets TAA requirements for U.S. Federal Government purchasing

The Ericsson Cradlepoint IBR1700 is a ruggedized metal router built for the in-vehicle networks that field forces, public safety agencies and fleet operations depend on. This SKU, TAA-MA3-1700120B-NNA, is the TAA-compliant U.S. Federal Government configuration. It combines an IBR1700 with Wi-Fi and the embedded Cat 18 LTE Advanced Pro modem with a 3-year NetCloud Mobile Essentials plan. The modem delivers up to 1.2 Gbps downlink and 150 Mbps uplink, with 4x4 MIMO and up to 5 CA downlink. The router ships without antennas or an AC power supply because it is designed to be wired into vehicle power and matched to your own antenna installation.

The hardware is built for connecting everything in the vehicle. It has five LAN/WAN-switchable Gigabit Ethernet ports and tri-radio, dual-band Wi-Fi: two 2x2 802.11n radios plus one 4x4 802.11ac Wave 2 radio. Dual 2FF SIM slots support SIM-based auto-carrier selection, and an MC400 modular modem slot adds a second carrier. You also get USB 2.0, a GPIO connector and an RS-232 serial port with OBD-II functionality. A discrete active GNSS receiver with dead reckoning (GPS, Galileo, GLONASS, BeiDou) feeds Automatic Vehicle Location systems. The chassis is IP64 rated and tested to MIL-STD-810G and SAE J1455. It operates from -30 °C to 70 °C and accepts 9-36 VDC input with ignition sensing and ISO 7637-2 transient protection.

NetCloud Mobile Essentials includes NetCloud Manager for centralized policy, deployment and troubleshooting, plus continuous router and modem software updates for the full term. Support runs 24 hours on weekdays by phone with emergency weekend response, 24x7 on the web and 24x5 by chat. The hardware carries a limited lifetime warranty while the subscription is active. A NetCloud Mobile Advanced plan can be added at any time for threat management, web filtering, application visibility and coverage maps. For 5G, the IBR1700 can act as controller for an external Cradlepoint 5G adapter in captive mode.

Ideal for

  • Federal and public safety patrol and response vehicles that need TAA-compliant in-vehicle connectivity
  • Utility, field service and inspection fleets that connect laptops, tablets and sensors on the move
  • Automatic Vehicle Location and dispatch integration using GNSS with dead reckoning
  • Transit and specialty vehicles requiring Wi-Fi, onboard Ethernet devices and OBD-II diagnostics
  • Private LTE and CBRS deployments on campuses, ports and industrial sites

Specifications

Modem

3g
WCDMA/DC-HSPA+
SMS
Yes
MIMO
4x4 MIMO
3g Bands
1, 2, 4, 5, 8, 9, 19
Antennas
SMA male connectors for external 600 MHz - 6 GHz paddle antennas (antennas not included in this SKU)
GNSS GPS
Discrete Active GPS with Dead Reckoning
LTE Bands
FDD B1/2/3/4/5/7/8/12/13/14/17/18/19/20/25/26/28/29/30/32/66/71; TDD B38/39/40/41/42/43/46/48
Modulation
Up to 256
Regulatory
FCC, IC, CE, RCM
Technology
Cat 18 LTE Advanced Pro, dual 2FF SIM, SIM-based auto-carrier selection, 3GPP Rel. 12
Peak Uplink
LTE 150 Mbps; DC-HSPA+ 5.76 Mbps
Peak Downlink
LTE 1.2 Gbps; DC-HSPA+ 42.2 Mbps
Transmit Power
LTE and DC-HSPA+: 23 dBm ± 1 typical conducted
Carrier Aggregation
Up to 5 CA downlink, 2 CA uplink
Private Cellular Network
Yes, FCC Part 96 (CBRS Band 48)
Network Operator Standards
PTCRB (U.S., Canada), GCF (Worldwide)
Network Operator Certifications
AT&T, Verizon
Public Safety Network Certifications
Verizon Frontline

Power

Features
Reverse polarity and transient protection (ISO 7637-2); ignition sensing
Required
9-36 VDC (3A fuse for 9-24 VDC, 2.5A fuse above 24 VDC) or optional 100-240 VAC to 12 VDC 3A supply
Consumption
Idle 8 W; typical 14 W; heavy 24 W

General

MPN
TAA-MA3-1700120B-NNA
UPC
810007809410
Brand
Cradlepoint (Ericsson Enterprise Wireless)
Model
Cradlepoint IBR1700
FIPS Model
Not an IBR1700-FIPS model
Package Plan
3-Year NetCloud Mobile Essentials Plan
Region Market
United States Federal Government
TAA Compliant
TAA compliant
Product Status
Manufacturer status: Discontinued
Subscription Term
3 years
Hardware Configuration
Cat 18 (1200 Mbps) with Wi-Fi, no AC power supply or antennas

GNSS GPS

Power
Voltage supply 3.1 V; max current 20 mA (1200M-B)
Accuracy
Horizontal: < 2 m (50%), < 5 m (95%)
Protocols
NMEA 0183
Frequencies
L5
Sensitivity
Tracking: -159 dBm (1200M-B)
Constellations
GPS, Galileo, GLONASS, BeiDou
Time TO First Fix
32 seconds (cold start)

Physical

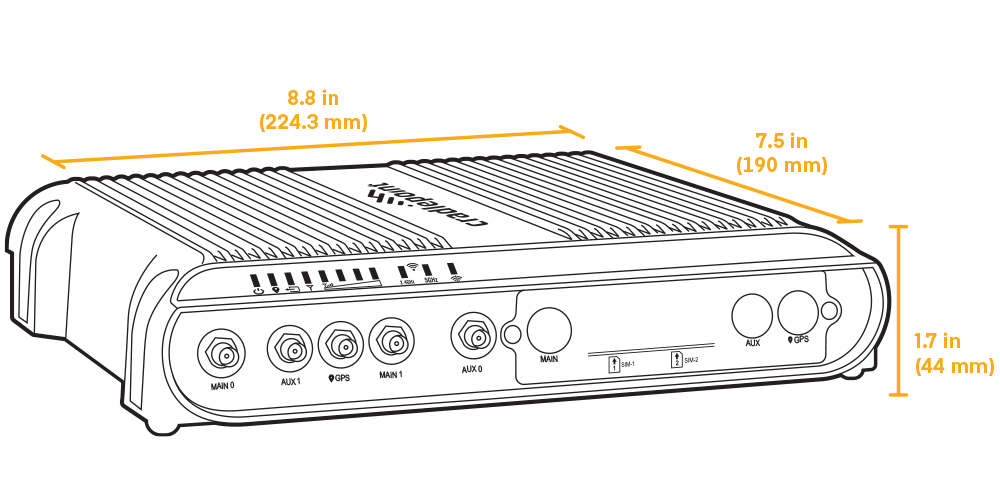

Size
224.3 × 190 × 44 mm (8.8 × 7.5 × 1.7 in)
Weight
1.7 kg (3 lb 7 oz)

Interfaces

Wi-Fi
Tri-radio, dual-band concurrent: 2 x 2x2 MU-MIMO 802.11n + 1 x 4x4 MU-MIMO 802.11ac Wave 2
Modem
Embedded 1200M-B modem, 4 x SMA cellular connectors; optional MC400 second modem
Ethernet
5 x GbE (LAN/WAN switchable)
Expansion
MC400 modem slot (300 Mbps peak), USB 2.0 Type A (5V/500mA/2.5W), GPIO, RS-232 serial
Wi-Fi Modes
AP, Wireless Client, and WiFi as WAN
Wi-Fi Rates
Silver SMAs: 574 Mbps (2.4 GHz) / 1.2 Gbps (5 GHz); Gold SMAs 2x2: 574 Mbps (2.4 GHz); Gold SMAs 4x4: 1.733 Gbps (5 GHz)
Wi-Fi Ssids
Multiple SSIDs
Wi-Fi Security
WPA/WPA2/WPA3 Personal, WPA2/WPA3 Enterprise, WEP Auto, Open
GNSS Connector
1 x SMA GPS antenna connector
Wi-Fi Certification
Wi-Fi Alliance Certified
Wi-Fi Antenna Connectors
6 x RP-SMA Wi-Fi antenna connectors

Wi-Fi Power

Fcc
2.4 GHz: 29.2 dBm; 5150–5250 MHz: 29.0 dBm; 5725–5850 MHz: 30.0 dBm conducted
EU Rest OF World
2.4 GHz: 17.3 dBm; 5180-5240 MHz: 17.8 dBm conducted
Australia New Zealand
Radio 1 (2x2) up to 30.9 dBm; Radio 2 (4x4) up to 30.5 dBm conducted, per band

Performance

Stateful Firewall
940 Mbps
Layer2 Layer3 Vlans
Up to 64
Typical Client Count
30
Concurrent VPN Tunnels
10
Concurrent Sessions Tcp
32,000
Point TO Point Ipsec VPN
20 Mbps

Reliability

Calculated MTBF
286,853 hours (Telcordia SR332 at 25 °C)

Environmental

Humidity
Operating: 5% to 95%; Storage: 5% to 95%
Temperature
Operating: -30 °C to 70 °C (-22 °F to 158 °F); Storage: -40 °C to 85 °C (-40 °F to 185 °F)
Ingress Protection
IP64 (dust tight and splashing water)

Certifications

Safety
UL/cUL, CB Scheme, EN 62368-1, e-Mark
Security
FIPS 140-2 Inside (IBR1700-FIPS models only; not this SKU)
Substance Compliance
WEEE, RoHS, RoHS-2, California Prop 65
Shock Vibration Humidity
MIL-STD-810G, SAE J1455

Cloud Services

Support
Support for the full subscription term (phone 24 hr weekdays with weekend emergency response, web 24x7, chat 24x5)
Warranty
Limited lifetime warranty with an active NetCloud subscription
Service Plans
NetCloud Service for Mobile
Service Add Ons
NetCloud Exchange, NetCloud Advanced
Software Updates
Software updates for the full subscription term
Device Management
NetCloud Manager for the full subscription term

Product Summary

PoE
No
Wi-Fi
Dual-band, tri-radio; 802.11ac Wave 2 (Wi-Fi 5)
Category
Mobile
GPS GNSS
Active
5G Status
5G-enabled with Cradlepoint 5G Adapter
USB Ports
1
Throughput
940 Mbps (Firewall)
Form Factor
Ruggedized Metal
VPN Tunnels
10
Serial Ports
1
Ethernet Ports
5 GbE (LAN/WAN switchable)
Cloud Management
Yes
Special Features
Discrete GPS with Dead Reckoning and Serial Port with OBD-II functionality
Dual Modem Support
Yes
Subscription Terms
1, 3 & 5 years
Operating Temperature
-30 °C to 70 °C (-22 °F to 158 °F)
Wireless Connectivity
Gigabit-Class LTE
Private Cellular Network
Yes — CBRS, 4G LTE
Network Operator Standards
PTCRB (U.S.), GCF (global)

Questions buyers ask

What is included with TAA-MA3-1700120B-NNA?

An IBR1700 router with the embedded Cat 18 (1200M-B) modem and Wi-Fi, plus a 3-year NetCloud Mobile Essentials plan. Antennas and an AC power supply are not included.

Is the IBR1700 a 5G router?

No. The embedded modem is Gigabit-class 4G LTE (Cat 18). The IBR1700 can act as controller for an external Cradlepoint 5G adapter, and its modular modem slot allows field upgrades.

What does the NetCloud Mobile Essentials plan cover?

NetCloud Manager cloud management and router and modem software updates for the full term. It also covers support by phone 24 hours on weekdays with weekend emergency response, 24x7 on the web and 24x5 by chat, plus a limited lifetime hardware warranty while the subscription is active.

How is the IBR1700 powered in a vehicle?

It accepts 9-36 VDC steady-state input with ignition sensing and reverse-polarity and ISO 7637-2 transient protection. Installations at 9-24 VDC require a 3A inline fuse, and installations above 24 VDC require a 2.5A fuse. An external 100-240 VAC to 12 VDC 3A supply is optional.

Is this SKU FIPS 140-2 certified?

No. This is the TAA-compliant configuration. FIPS 140-2 Inside applies only to IBR1700-FIPS models.
