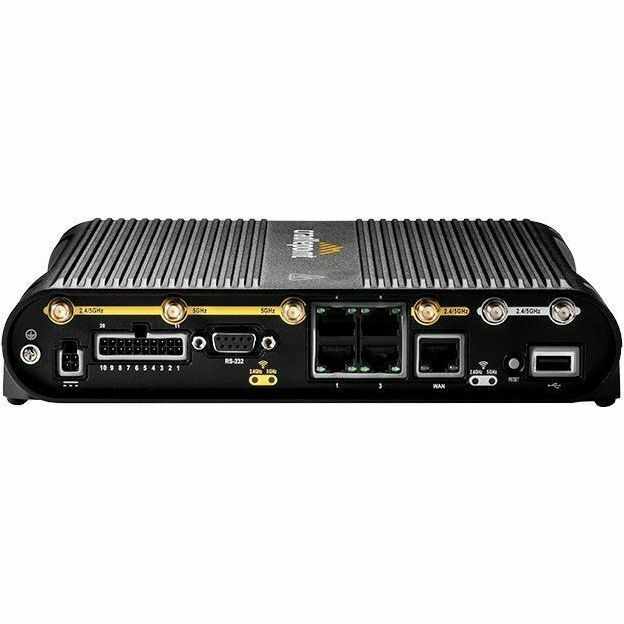

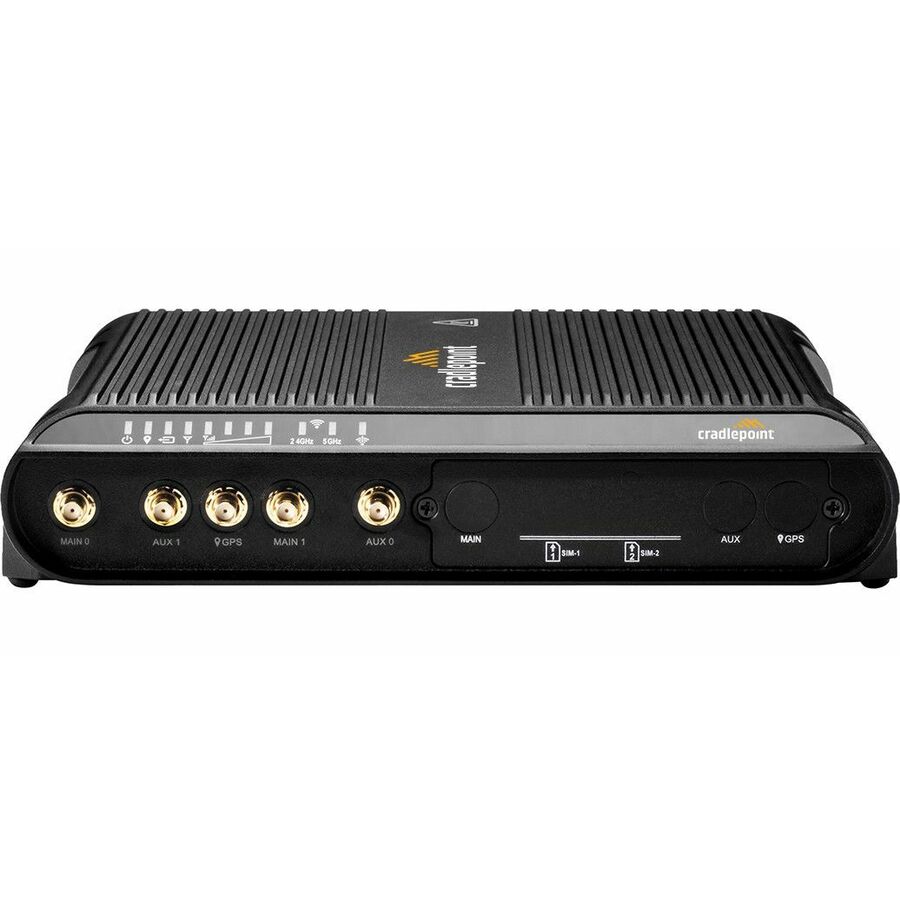

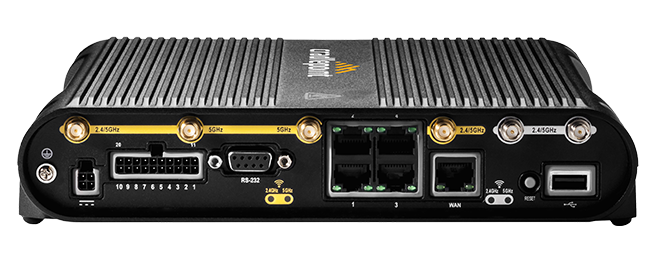

Cradlepoint IBR1700 Rugged In-Vehicle LTE Router (Cat 18) with 1-Year NetCloud Mobile Essentials, TAA Compliant

4G LTEMPN TAA-MA1-1700120B-NNA
  • Wi-Fi 5
  • Dual SIM
  • 5+ × 1 Gb Ethernet
  • GPS/GNSS
  • Rugged
  • FirstNet Ready
$1,899.00

In stockShips from the US

Included subscription · 1 year
1 year3 years+$3065 years+$6496 years+$1,729.21
Compliance · TAA compliant
Standard−$549.29TAA compliant
Region · North America
North AmericaAPAC+$141
Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans
Compare all 15 configurations

Datasheets & documents

Overview

The Cradlepoint IBR1700 (TAA-MA1-1700120B-NNA) is a ruggedized, TAA-compliant in-vehicle router for U.S. Federal Government buyers and public-sector fleets. It pairs an embedded 1200M-B Cat 18 LTE Advanced Pro modem (up to 1.2 Gbps down) with dual SIM slots, tri-radio dual-band Wi-Fi 5, five switchable Gigabit Ethernet ports, and discrete GPS with dead reckoning. It is bundled with a 1-year NetCloud Mobile Essentials plan for cloud management, software updates and 24x7 support. AC power supply and antennas are not included.

  • Embedded 1200M-B modem: Cat 18 LTE Advanced Pro, 4x4 MIMO, up to 1.2 Gbps downlink and 150 Mbps uplink, dual 2FF SIM slots
  • Second MC400 modular modem slot for simultaneous multi-carrier connectivity; 5G-enabled with a Cradlepoint 5G adapter
  • Tri-radio, dual-band Wi-Fi 5: two 2x2 802.11n radios plus one 4x4 802.11ac Wave 2 radio
  • 5 x Gigabit Ethernet (LAN/WAN switchable), USB 2.0, GPIO and RS-232 serial with OBD-II functionality
  • Discrete active GPS with dead reckoning for Automatic Vehicle Location integration
  • Ruggedized metal chassis: IP64, MIL-STD-810G, SAE J1455, 9–36 VDC input with ignition sensing
  • 1-year NetCloud Mobile Essentials plan with cloud management, software updates, 24x7 support and a limited lifetime warranty while subscribed
  • Keep patrol cars, ambulances and service trucks online with Gigabit-class LTE and dual SIMs that select a carrier from the inserted SIM

The Cradlepoint IBR1700 is a Gigabit-class LTE networking platform built for persistent connectivity in vehicles. This TAA-compliant SKU is the U.S. Federal Government ordering option. It combines the IBR1700 hardware with a 1-year Ericsson NetCloud Mobile Essentials plan, making it a fit for police, fire and EMS fleets, utility trucks, and other field-force vehicles that need one managed connection for users, laptops and in-vehicle IoT.

This configuration uses the embedded 1200M-B modem. It supports Cat 18 LTE Advanced Pro with 4x4 MIMO, 256-QAM, up to 5 downlink carriers and 2 uplink carriers aggregated, and peak rates of 1.2 Gbps down and 150 Mbps up. Two 2FF SIM slots offer SIM-based auto-carrier selection. A second modular modem slot (MC400) adds simultaneous multi-carrier connectivity. The router is 5G-enabled with a Cradlepoint 5G adapter, which it can run in captive mode as a single managed unit. The modem also covers CBRS Band 48 for private cellular networks and holds AT&T and Verizon network operator certifications.

In the cab, tri-radio Wi-Fi uses two 2x2 802.11n radios and one 4x4 802.11ac Wave 2 radio, so traffic such as video offload can run on dedicated radios. Five Gigabit Ethernet ports, USB 2.0, GPIO and an RS-232 serial port with OBD-II functionality connect cameras, MDTs and sensors. Discrete active GPS with dead reckoning feeds Automatic Vehicle Location systems. The router takes 9–36 VDC vehicle power with ignition sensing and reverse-polarity protection. It is rated IP64, MIL-STD-810G and SAE J1455, and operates from -30 °C to 70 °C.

NetCloud Mobile Essentials adds centralized cloud management, group policies, reporting and continuous software updates for router and modem. It also includes 24x7 support and a limited lifetime hardware warranty for as long as an active NetCloud plan is maintained. NetCloud Advanced can be added at any time for threat management, web filtering and coverage mapping.

Ideal for

  • Police, fire and EMS vehicles that need a connected mobile office for laptops, cameras and dispatch terminals
  • Federal and public-sector fleets that require TAA-compliant procurement
  • Utility, transit and field-service trucks that report location through Automatic Vehicle Location systems
  • Multi-carrier in-vehicle deployments that use a second modular modem for continuous connectivity
  • Private LTE (CBRS Band 48) connectivity for vehicles on campuses, ports or industrial sites

Specifications

GNSS

Power
3.1 V supply, 20 mA max current (1200M-B)
Accuracy
Horizontal < 2 m (50%), < 5 m (95%)
GPS Type
Active
Protocols
NMEA 0183
Frequencies
L5
Sensitivity
Tracking: -159 dBm (1200M-B)
Constellations
GPS, Galileo, GLONASS, BeiDou
Time TO First Fix
32 seconds (cold start)

Wi-Fi

Bands
Concurrent 2.4 GHz and 5 GHz
Modes
AP, Wireless Client, Wi-Fi as WAN
Ssids
Multiple SSIDs
Radios
Two 2x2 MU-MIMO 802.11n + one 4x4 MU-MIMO 802.11ac Wave 2
Security
WPA/WPA2/WPA3 Personal, WPA2/WPA3 Enterprise, WEP Auto, Open
Standard
Dual-band, tri-radio 802.11ac Wave 2 (Wi-Fi 5)
Certification
Wi-Fi Alliance Certified
Rates Silver Smas
574 Mbps (2.4 GHz), 1.2 Gbps (5 GHz)
Antenna Connectors
6 x RP-SMA Wi-Fi antenna connectors
Rates Gold Smas 2x2
574 Mbps (2.4 GHz)
Rates Gold Smas 4x4
1.733 Gbps (5 GHz)

Power

Input
9–36 VDC (3 A inline fuse for 9–24 VDC; 2.5 A fuse above 24 VDC)
Features
Reverse polarity and transient protection (ISO 7637-2); ignition sensing with auto-on and time-delay off
Consumption
Idle 8 W / Typical 14 W / Heavy 24 W
Optional Power Supply
Optional external supply: 100–240 VAC in, 12 VDC 3 A out (not included)

General

MPN
TAA-MA1-1700120B-NNA
UPC
840292705111
Brand
Cradlepoint (Ericsson Cradlepoint)
Model
Cradlepoint IBR1700
Region
United States Federal Government ordering option
Category
Mobile (in-vehicle) router
Form Factor
Ruggedized metal
TAA Compliant
TAA compliant
Manufacturer Status
Discontinued

Package

Plan
1-Year NetCloud Mobile Essentials Plan
Available Terms
1, 3 & 5 years
Shipping Weight
4.60 lb
Subscription Term
1 year
Hardware Configuration
Cat 18 (1200 Mbps) with Wi-Fi; no AC power supply or antennas

Cellular

3g
WCDMA/DC-HSPA+
SMS
Yes
GNSS
Discrete active GPS with dead reckoning
MIMO
4x4 MIMO
Modem
Embedded 1200M-B modem with 4 x SMA cellular antenna connectors
3g Bands
1, 2, 4, 5, 8, 9, 19
Antennas
SMA male connectors for external 600 MHz–6 GHz paddle antennas (antennas not included with this SKU)
5G Status
5G-enabled with Cradlepoint 5G Adapter
SIM Slots
Dual SIM slots, 2FF, SIM-based auto-carrier selection
Modulation
Up to 256-QAM
Regulatory
FCC (U.S.), IC (Canada), CE (EU), RCM (AU/NZ)
Technology
Cat 18 LTE Advanced Pro, 3GPP Release 12
Peak Uplink
LTE 150 Mbps; DC-HSPA+ 5.76 Mbps
LTE Fdd Bands
B1 (2100), B2 (1900), B3 (1800), B4 (1700), B5 (850), B7 (2600), B8 (900), B12 (700), B13 (700), B14 (700), B17 (700), B18 (850), B19 (850), B20 (800), B25 (1900), B26 (850), B28 (700), B29 (700), B30 (2300), B32 (1500), B66 (1700), B71 (600)
LTE Tdd Bands
B38 (2600), B39 (1900), B40 (2300), B41 (2500), B42 (3500), B43 (3700), B46 (5200), B48 (3500)
Peak Downlink
LTE 1.2 Gbps; DC-HSPA+ 42.2 Mbps
Transmit Power
LTE 23 dBm ± 1; DC-HSPA+ 23 dBm ± 1 (typical conducted)
Carrier Aggregation
Up to 5CA downlink, 2CA uplink
Optional Second Modem
Optional MC400 modular modem (dual-modem support)
Wireless Connectivity
Gigabit-Class LTE
Private Cellular Network
Yes, FCC Part 96 (CBRS Band 48)
Network Operator Standards
PTCRB (U.S., Canada), GCF (Worldwide)
Network Operator Certifications
AT&T, Verizon
Public Safety Network Certifications
IBR1700 series: Verizon Frontline, ESN, FirstNet Trusted

Physical

Weight
1.7 kg (3 lb 7 oz)

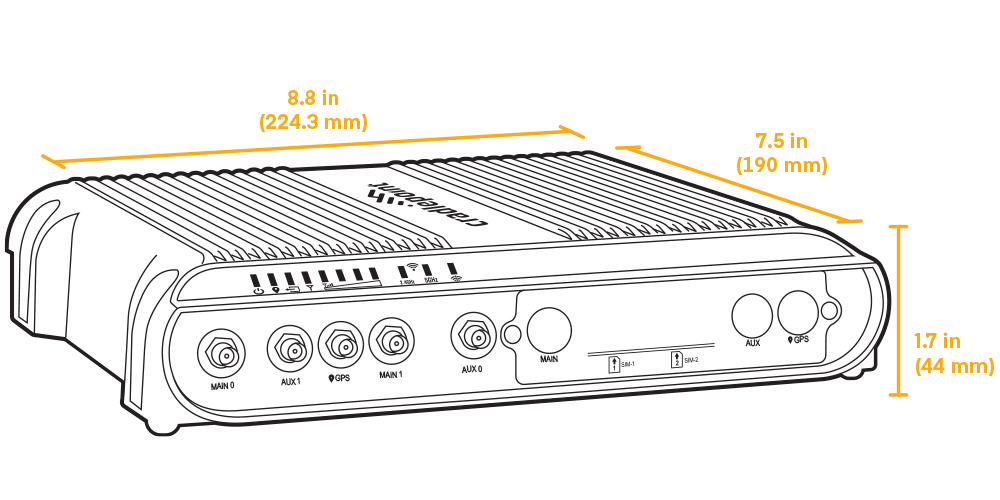

Dimensions
224.3 × 190 × 44 mm (8.8 × 7.5 × 1.7 in)

Interfaces

PoE
No
USB
1 x USB 2.0 Type-A (5 V, 500 mA, 2.5 W)
Gpio
1 x GPIO connector
Serial
1 x RS-232 serial port (OBD-II functionality)
Ethernet
5 x Gigabit Ethernet (LAN/WAN switchable)
GNSS Connector
1 x SMA GPS antenna connector
Expansion Modem Slot
1 x MC400 modular modem slot (300 Mbps peak)
Cellular Antenna Connectors
4 x SMA cellular antenna connectors

Wi-Fi Power

Fcc
2.4 GHz 29.2 dBm; 5150–5250 MHz 29.0 dBm; 5725–5850 MHz 30.0 dBm conducted
EU Rest OF World
2.4 GHz 17.3 dBm; 5180–5240 MHz 17.8 dBm conducted
Australia New Zealand
AU/NZ Radio 1 (2x2): 2.4 GHz 30.9 dBm, 5180–5240 MHz 19.5 dBm, 5260–5320 MHz 19.5 dBm, 5500–5700 MHz 26.3 dBm, 5745–5825 MHz 29.1 dBm; Radio 2 (4x4): 5180–5240 MHz 18.0 dBm, 5260–5320 MHz 18.0 dBm, 5500–5700 MHz 25.0 dBm, 5745–5825 MHz 30.5 dBm conducted

Performance

Vlans
Up to 64 Layer 2 / Layer 3 VLANs
Ipsec VPN
20 Mbps point-to-point IPsec VPN
Stateful Firewall
940 Mbps
Typical Client Count
30
Concurrent VPN Tunnels
10
Concurrent Tcp Sessions
32,000

Reliability

MTBF
286,853 hours (Telcordia SR332 at 25 °C)

Environmental

Humidity
5%–95% operating and storage
Ingress Protection
IP64 (dust tight and splashing water)
Storage Temperature
-40 °C to 85 °C (-40 °F to 185 °F)
Operating Temperature
-30 °C to 70 °C (-22 °F to 158 °F)

Certifications

Safety
UL/cUL, CB Scheme, EN 62368-1, e-Mark
Security
FIPS 140-2 Inside on IBR1700-FIPS models only (not this SKU)
Substance Compliance
WEEE, RoHS, RoHS-2, California Prop 65
Shock Vibration Humidity
MIL-STD-810G, SAE J1455

Cloud Services

Support
24x7 support for the full subscription term
Warranty
Limited lifetime warranty with active NetCloud plan
Service Plans
NetCloud Service for Mobile
Service Add Ons
NetCloud Exchange, NetCloud Advanced
Cloud Management
Yes
Software Updates
Router and modem updates for the full subscription term
Device Management
NetCloud Manager for the full subscription term

Product Summary

USB Ports
1
Throughput
940 Mbps (firewall)
Serial Ports
1
Special Features
Discrete GPS with dead reckoning; serial port with OBD-II functionality
Dual Modem Support
Yes
Private Cellular Network
Yes — CBRS, 4G LTE

Questions buyers ask

What is included with TAA-MA1-1700120B-NNA?

This part number includes the IBR1700 router with the embedded Cat 18 1200M-B modem and Wi-Fi, plus a 1-year NetCloud Mobile Essentials plan. It does not include an AC power supply or antennas.

Does the IBR1700 support 5G?

The embedded modem is Cat 18 LTE Advanced Pro. The router is 5G-enabled with a Cradlepoint 5G adapter, which it can control in captive mode, and it can be field upgraded with a modular modem through its expansion slot.

How is the router powered in a vehicle?

It accepts 9–36 VDC steady-state input. Use a 3 A inline fuse for 9–24 VDC installations and a 2.5 A fuse above 24 VDC. Ignition sensing switches it on automatically and shuts it down after a time delay. An optional 12 VDC 3 A external supply is available for AC use.

What does NetCloud Mobile Essentials provide?

Essentials provides NetCloud Manager cloud management, software updates for the router and modem, and support for the full subscription term. Support covers phone 24 hours on weekdays with weekend emergency response, web 24x7 and chat 24x5. The router also carries a limited lifetime warranty while an active NetCloud plan is maintained.

Which carriers and networks is the modem certified for?

The modem holds AT&T and Verizon network operator certifications and meets PTCRB and GCF standards. The IBR1700 is also certified on multiple public safety networks and supports CBRS Band 48 private cellular networks.
