Cradlepoint W1855 Outdoor 5G Wideband Adapter with 1-Year NetCloud Branch 5G Adapter Essentials Plan (TAA)

5GMPN TAA-BE01-1855-5GC-GN
  • Dual SIM
  • 2–4 × 2.5 Gb+ Ethernet
  • GPS/GNSS
  • PoE powered
  • FirstNet Ready
  • 1 year included
$1,948.16$2,129.00Save $180.84

In stockShips from the US

Included subscription · 1 year
1 year3 years+$274.515 years+$549.03
Compliance · TAA compliant
Standard+$0.84TAA compliant
Region · North America
North AmericaEMEA+$549.03APAC+$91.51
Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans
Compare all 15 configurations

Datasheets & documents

Overview

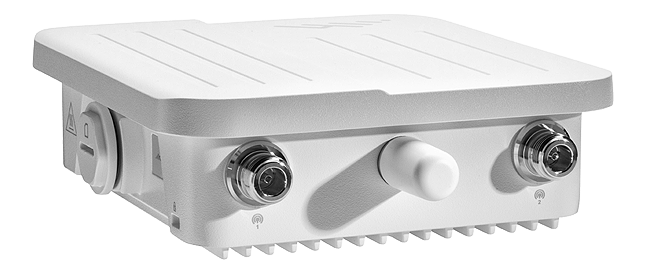

The Ericsson Cradlepoint W1855 is an outdoor, IP67-rated 5G wideband adapter for fixed sites that need primary or failover wireless WAN. This TAA-compliant package (TAA-BE01-1855-5GC-GN) is the U.S. Federal Government ordering option, with North American (U.S. and Canada) hardware configuration. It pairs the adapter with a 1-year NetCloud Branch 5G Adapter Essentials plan. A 3GPP Release 16 modem supports 5G NSA/SA and Cat 19 LTE. The adapter connects over two 2.5 GbE ports, runs on 802.3at PoE+ with an injector included, and ships with four external antennas.

  • Outdoor 5G wideband adapter with a 3GPP Release 16 modem: 5G FR1 NSA/SA plus LTE Advanced Pro Cat 19 fallback
  • Dual connectivity for simultaneous 5G and LTE links, with dual 4FF SIM slots and 4x4 MIMO
  • 2 x 2.5 GbE RJ45 ports (LAN/WAN switchable) and 2.0 Gbps throughput in passthrough, NAT and captive modem modes
  • IP67 metal enclosure with 135 MPH wind rating, ITU-T K.21 lightning protection and -30 °C to 70 °C operation
  • 802.3at PoE+ powered, with PoE injector and four N-type 600 MHz-6 GHz antennas included
  • Certified for AT&T, T-Mobile and Verizon networks, plus FirstNet Trusted, T-Mobile Connecting Heroes and Verizon Frontline Verified
  • TAA-compliant package with a 1-year NetCloud Branch 5G Adapter Essentials plan, NetCloud Manager and 24x7 support
  • Add 5G primary or failover WAN at sites where fiber is not available or where link diversity is required

The Cradlepoint W1855 is an outdoor 5G wideband adapter from Ericsson Enterprise Wireless. It is built for buildings and temporary sites that need high-bandwidth wireless WAN when fiber is not an option or when link diversity is required. Mounted outside, it places the modem where the signal is strongest. It connects back to your router or SD-WAN appliance over two 2.5 GbE RJ45 ports that switch between LAN and WAN roles. A single 802.3at PoE+ cable carries both power and data, and a PoE injector is included.

The embedded 3GPP Release 16 modem covers low- and mid-band 5G FR1 in NSA and SA modes. It falls back to Category 19 LTE and supports dual connectivity, meaning simultaneous 5G and LTE links. Rated peak rates reach 3.4 Gbps downlink in NSA mode, with 4x4 MIMO, 256 QAM and dual 4FF SIM slots. Throughput is rated at 2.0 Gbps in IP passthrough, standard NAT and captive modem modes. The modem holds AT&T, T-Mobile and Verizon network operator certifications and FirstNet Trusted, T-Mobile Connecting Heroes and Verizon Frontline Verified public safety certifications. It also supports private LTE, including CBRS Band 48.

The enclosure is metal and rated IP67, with salt-mist corrosion resistance, a 135 MPH sustained wind rating and ITU-T K.21 lightning protection. It operates from -30 °C to 70 °C. Four N-type external antennas covering 600 MHz to 6 GHz are included.

This SKU includes a 1-year NetCloud Branch 5G Adapter Essentials plan, and the W1855 is sold only as part of these packages. The plan provides NetCloud Manager device management and software updates for the full term. It also includes 24x7 support: 24-hour phone support on weekdays with emergency response on weekends, 24x7 web support and 24x5 chat. The hardware carries a limited lifetime warranty for as long as it holds an active NetCloud subscription. Captive modem mode lets you manage a Cradlepoint router and the W1855 as a single entity. A datasheet is available.

Ideal for

  • Primary 5G WAN for buildings and temporary sites where fiber is not an option
  • High-performance 5G failover for medium-sized branch locations
  • Link diversity alongside wired circuits in SD-WAN deployments
  • Video broadcast and other bandwidth-intensive temporary connections
  • Federal and public safety sites requiring TAA-compliant, FirstNet Trusted connectivity

Specifications

Modem

SMS
Yes
GNSS
GPS, GLONASS, BeiDou, Galileo
MIMO
4x4 MIMO
Three G
WCDMA/HSPA+
Antennas
N-type female connectors; 4 external 600 MHz-6 GHz cellular antennas included
LTE Bands
FDD: B1 †, B2, B3 †, B4, B5, B7 †, B8 †, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28 †, B29, B30, B32, B66, B71; TDD: B34, B38 †, B39, B40, B41 †, B42, B43, B46, B48
Modulation
5GC FR1: up to 256 QAM downlink and uplink
Peak Rates
5G NSA: 3.4 Gbps DL / 550 Mbps UL; 5G SA: 2.4 Gbps DL / 450 Mbps UL; LTE: 1.6 Gbps DL / 200 Mbps UL
Regulatory
FCC (U.S.); IC (Canada); UKCA (UK); RCM (AU/NZ)
Technology
5G FR1 NSA/SA; LTE Advanced Pro Cat 19 fallback; dual 4FF SIM slots; 3GPP Release 16
Private LTE
Yes, includes FCC Part 96 (CBRS Band 48)
Three G Bands
1, 2, 4, 5, 8, 19 ††
Transmit Power
5G NR and LTE: 23 dBm ± 2; HPUE bands: 26 dBm ± 2 (typical conducted)
Five G NR Bands
NSA and SA: n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78 †, n79 †
Carrier Aggregation
5G NR only: DL 2 CA / UL 1 CA; EN-DC: DL 4 CA LTE + 1 CA NR, UL 2 CA LTE + 2 CA NR; LTE only: DL 5 CA / UL 2 CA
Gcf Global Operators
See GCF members directory †††
Network Operator Standards
PTCRB (U.S., Canada); GCF (Worldwide)
Ptcrb North America Operators
See PTCRB
Network Operator Certifications
AT&T; T-Mobile; Verizon †††
Public Safety Network Certifications
FirstNet Trusted™; T-Mobile Connecting Heroes; Verizon Frontline Verified

Power

Required
PoE+; PoE power injector included; 802.3at PSE Type 2 (30 W); output 30 W, 56 VDC, 0.536 A
Consumption
802.3at Class 4 PD (30 W)

General

MPN
TAA-BE01-1855-5GC-GN
UPC
840292710122
Brand
Cradlepoint (Ericsson Cradlepoint)
Model
Cradlepoint W1855 (W1855-5GC)
Plan Tier
Essentials
Capabilities
5G Built In, eSIM
Manufacturer
Ericsson Enterprise Wireless
Package Plan
1-Year NetCloud Branch 5G Adapter Essentials Plan
Endpoint Type
Adapters
Region Market
United States Federal Government (TAA-compliant)
TAA Compliant
Yes
Product Status
Active
Subscription Term
1 year
Hardware Configuration
North America: U.S. & Canada

Physical

Size

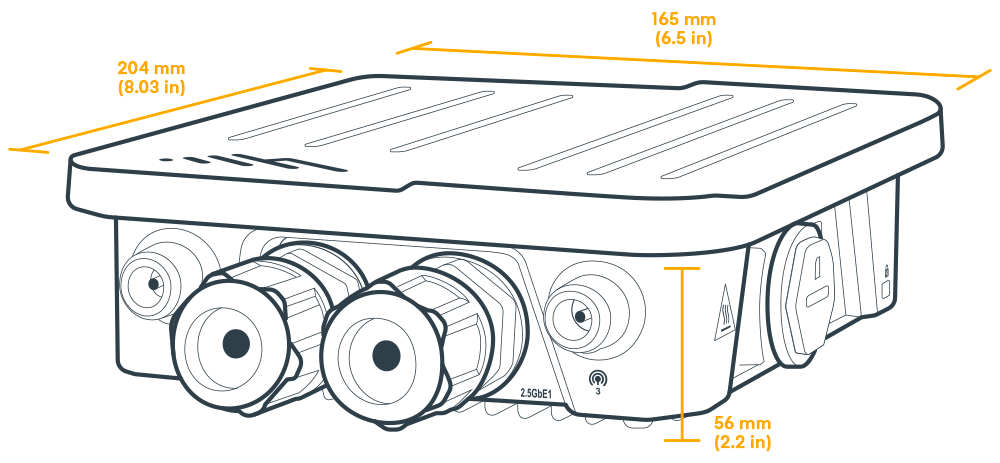

204 x 165 x 56 mm (8.03 x 6.5 x 2.2 in)
Weight
1.3 kg (2 lb 13.8 oz)

Interfaces

Modem
Embedded 5G FR1 NSA/SA 3GPP Release 16 and 4G LTE Category 19 modem
Ethernet
2 x 2.5 GbE RJ45 (LAN/WAN switchable)

Performance

Standard Nat Mode
2.0 Gbps
Captive Modem Mode
2.0 Gbps
IP Passthrough Mode
2.0 Gbps

Reliability

Calculated MTBF
376,671 hours (Telcordia SR332 at 25 °C)

Environmental

Humidity
Operating: 10% to 90%; Storage: 5% to 95%
Temperature
Operating: -30 °C to 70 °C (-22 °F to 158 °F); Storage: -40 °C to 85 °C (-40 °F to 185 °F)
Wind Lightning
135 MPH sustained wind rating; ITU-T K.21 lightning protection
Ingress Protection Corrosion
IP67 (dust tight and water immersion up to 1 m); IEC60068-2-11 corrosion resistance (salt mist); IEC60068-2-32 free fall rating
Electromagnetic Compatibility
EN 61000-4-2 level 2 contact / level 3 air discharge; EN 61000-4-3 level 2; EN 61000-4-4 level 2; EN 61000-4-5 level 4; EN 61000-4-6 level 2; Radiated/Conducted Emissions Class B

Certifications

Safety
UL/cUL; CB Scheme; EN 60950-22; EN 62368-1
Substance Compliance
WEEE; RoHS; REACH; California Prop 65

Cloud Services

Support
Support for the full subscription term
Warranty
Limited lifetime warranty while subscribed to an active NetCloud Service plan
Service Plans
Ericsson NetCloud Service for Branch 5G Adapter
Service Add Ons
NetCloud Exchange, Ericsson NetCloud Advanced
Software Updates
NetCloud Manager for the full subscription term
Device Management
NetCloud Manager for the full subscription term

Product Summary

PoE
802.3at
Category
Branch
GPS GNSS
Passive
USB Ports
0
Throughput
2 Gbps (Passthrough)
Form Factor
Metal
Serial Ports
0
Five G Status
5G Embedded
Ethernet Ports
2 x 2.5 GbE (LAN/WAN switchable)
Cloud Management
Yes
Special Features
Outdoor form factor, low- and mid-band, 802.3at PoE
Dual Modem Support
No
Subscription Terms
1, 3, or 5 years
Operating Temperature
-30 °C to 70 °C (-22 °F to 158 °F)
Wireless Connectivity
Dual Connectivity, 5G Low/Mid-Band & Cat 19 LTE
Private Cellular Network
Yes — CBRS, 4G LTE, 5G
Network Operator Standards
PTCRB (U.S.), GCF (global)

Questions buyers ask

Is the Cradlepoint W1855 an indoor or outdoor adapter?

It is an outdoor adapter. The metal enclosure is rated IP67, resists salt-mist corrosion, carries a 135 MPH sustained wind rating and includes ITU-T K.21 lightning protection. It operates from -30 °C to 70 °C.

What is included with TAA-BE01-1855-5GC-GN?

The package contains the W1855 adapter with a 1-year NetCloud Branch 5G Adapter Essentials plan. It also includes a PoE power injector and four external 600 MHz-6 GHz cellular antennas with N-type connectors.

Does the W1855 provide Wi-Fi?

No. The W1855 has no Wi-Fi. It connects to your router or SD-WAN appliance over two 2.5 GbE RJ45 ports that switch between LAN and WAN roles. In captive modem mode, a Cradlepoint router and the W1855 are managed as one device.

Which carriers and public safety networks is it certified on?

The modem lists AT&T, T-Mobile and Verizon network operator certifications. Its public safety certifications are FirstNet Trusted, T-Mobile Connecting Heroes and Verizon Frontline Verified. It also supports private LTE, including CBRS Band 48.

What does the Essentials plan cover?

The plan includes NetCloud Manager device management and software updates for the full term. Support is 24x7: 24-hour phone support on weekdays with emergency response on weekends, 24x7 web and 24x5 chat. The hardware has a limited lifetime warranty while it holds an active NetCloud subscription.
