Cradlepoint5G & LTE Routers

Cradlepoint E300 5G Branch Router with Wi-Fi 6 and 3-Year NetCloud Enterprise Branch Essentials (US/Canada)

5GMPN BF03-03005GB-GN
  • Wi-Fi 6
  • Dual SIM
  • 5+ × 2.5 Gb+ Ethernet
  • GPS/GNSS
  • FirstNet Ready
  • 3 years included
$2,359.93$2,579.00Save $219.07

In stockShips from the US

Included subscription · 3 years
1 year−$530.733 years5 years+$530.73
Compliance · Standard
StandardTAA compliant+$658.84
Region · North America
North AmericaEMEA + APAC
Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans
Compare all 17 configurations

Datasheets & documents

Overview

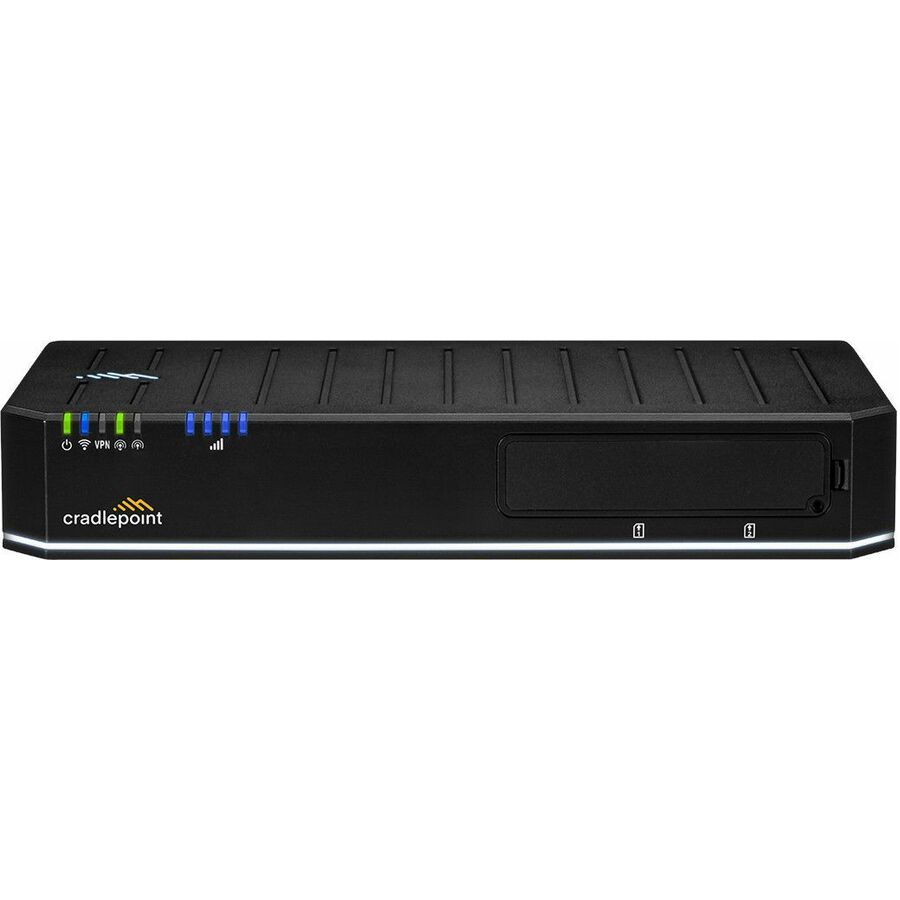

The Cradlepoint E300 (BF03-03005GB-GN) is a compact all-in-one 5G router for pop-up sites, small branches, stores and clinics. It combines an embedded 5G FR1 NSA/SA modem with LTE Cat 20 fallback with dual-band 2x2 Wi-Fi 6 and five GbE ports plus a 10GbE SFP+. Rated firewall throughput is 940 Mbps. This package includes a 3-year NetCloud Enterprise Branch Essentials plan for the U.S. and Canada.

  • Embedded 5G FR1 NSA/SA modem with LTE Advanced Pro Cat 20, dual 2FF SIM slots and 4 included paddle antennas
  • 5 x GbE RJ45 plus 1 x 10GbE SFP+, all LAN/WAN switchable
  • Dual-band 2x2 MU-MIMO 802.11ax Wi-Fi 6 with WPA3, up to 1,200 Mbps on 5 GHz
  • 940 Mbps stateful firewall and IPS throughput, 400 Mbps IPsec VPN, 20 VPN tunnels
  • MC400 modular modem slot for dual-cellular WAN and 5G Wideband Adapter controller support
  • 3-year NetCloud Enterprise Branch Essentials plan with NetCloud Manager and 24x7 support
  • Open temporary or pop-up sites on 5G without waiting for a wired connection
  • Keep stores and clinics online with 5G or LTE failover behind wired broadband

The Cradlepoint E300 is built for sites that need enterprise networking in a small footprint: pop-up and temporary locations, branches, stores and clinics. This SKU, BF03-03005GB-GN, pairs the E300 with the embedded 5G modem and Wi-Fi with a 3-year NetCloud Enterprise Branch Essentials plan for the U.S. and Canada. Routing, security and Wi-Fi are built in, so a site can go live on 5G from day one or run 5G as failover behind wired broadband.

The 5GB modem supports 5G FR1 in NSA and SA modes and LTE Advanced Pro Category 20, with dual 2FF SIM slots. It delivers peak rates of up to 4.14 Gbps downlink and 660 Mbps uplink, and four external 600 MHz to 6 GHz paddle antennas are included. The modem holds AT&T, T-Mobile and Verizon operator certifications, plus FirstNet Trusted, T-Mobile Connecting Heroes and Verizon Frontline. It also supports private cellular on CBRS Band 48. An MC400 modular modem slot adds a second cellular link, and the E300 can act as the controller for Ericsson Cradlepoint 5G Wideband Adapters.

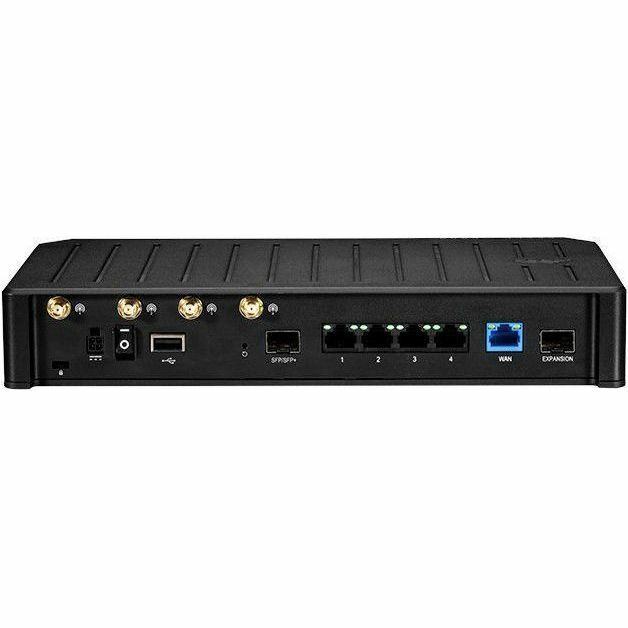

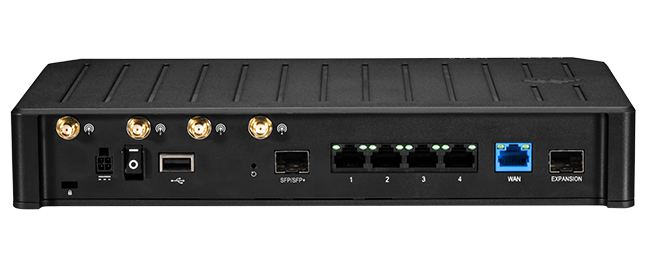

Wired connectivity includes 5 x GbE RJ45 and 1 x 10GbE SFP+, all LAN/WAN switchable. Dual-band 2x2 MU-MIMO Wi-Fi 6 reaches 1,200 Mbps on 5 GHz with WPA3 support. Rated performance is 940 Mbps for both stateful firewall and IPS, 400 Mbps IPsec VPN, 20 concurrent tunnels and 130,000 TCP sessions, sized for about 50 typical clients. The router measures 135 x 270 x 44 mm and weighs 0.86 kg.

For the full three-year term, the Essentials plan covers NetCloud Manager for zero-touch deployment, policy and analytics, plus software updates and 24x7 support. The hardware carries a limited lifetime warranty while the subscription is active. NetCloud Advanced can be added at any time.

Ideal for

  • Pop-up and temporary locations that need secure 5G connectivity on day one
  • Small branches, retail stores and clinics running wired broadband with 5G/LTE failover
  • All-wireless sites using dual cellular through the MC400 modem slot
  • Sites pairing the router with Ericsson Cradlepoint 5G Wideband Adapters
  • Private cellular deployments on CBRS Band 48

Specifications

Power

Input
100–240 VAC, 1 A
Output
12 VDC, 3 A
Consumption
Idle 9 W, typical 13 W, heavy 17 W
Power Supply
External power supply included

General

MPN
BF03-03005GB-GN
UPC
UPC 810007806600
Brand
Cradlepoint (Ericsson Enterprise Wireless)
Model
Cradlepoint E300
Region
U.S. and Canada
Category
Enterprise branch router
Form Factor
Industrial plastic enclosure
Product Status
Active
Hardware Configuration
5GB modem with Wi-Fi

Cellular

3g
WCDMA/UMTS/HSPA+
SIM
Dual 2FF SIM slots
SMS
SMS supported
GNSS
Passive GNSS, multiplexed with DIV/MIMO2 antenna ports
MIMO
4x4 MIMO
Antennas
SMA female connectors; 4 external 600 MHz–6 GHz cellular paddle antennas included
Modulation
Up to 256 QAM downlink and uplink (uplink 256 QAM only on particular carrier equipment)
Regulatory
FCC, CE, RCM
Technology
5G FR1 NSA/SA, LTE Advanced Pro Cat 20, 3GPP Rel. 15
5G NR Bands
NSA and SA: n1 (2100), n2 (1900), n3 (1800), n5 (850), n7 (2600), n8 (900), n12 (700), n20 (800), n25 (1900), n28 (700), n38 (2600), n40 (2300), n41 (2500), n48 (3500), n66 (1700/2100), n71 (600), n77 (3700), n78 (3500), n79 (4900)
Peak Uplink
Up to 660 Mbps uplink
LTE Fdd Bands
B1 (2100), B2 (1900), B3 (1800), B4 (1700), B5 (850), B7 (2600), B8 (900), B12 (700), B13 (700), B14 (700), B17 (700), B18 (850), B19 (850), B20 (800), B25 (1900), B26 (850), B28 (700), B29 (700), B30 (2300), B32 (1500), B66 (1700), B71 (600)
LTE Tdd Bands
B34 (2000), B38 (2600), B39 (1900), B40 (2300), B41 (2500), B42 (3500), B43 (3700), B46 (5200), B48 (3500)
Peak Downlink
Up to 4.14 Gbps downlink
Transmit Power
5G NR 23 ± 1.5 dBm; ENDC 20 ± 1 dBm; LTE 23 ± 1 dBm; LTE HPUE 25 ± 1 dBm (B41 standalone only), typical conducted
Carrier Aggregation
LTE: up to 7 CA DL / 2 CA UL; ENDC: 1 CA DL / 1 CA UL
Private Cellular Network
Private cellular incl. FCC Part 96 CBRS Band 48
Network Operator Standards
PTCRB (U.S., Canada); GCF (worldwide)
Public Safety Certifications
FirstNet Trusted, T-Mobile Connecting Heroes, Verizon Frontline
Network Operator Certifications
AT&T, T-Mobile, Verizon

Physical

Weight
0.86 kg (1 lb 14 oz)

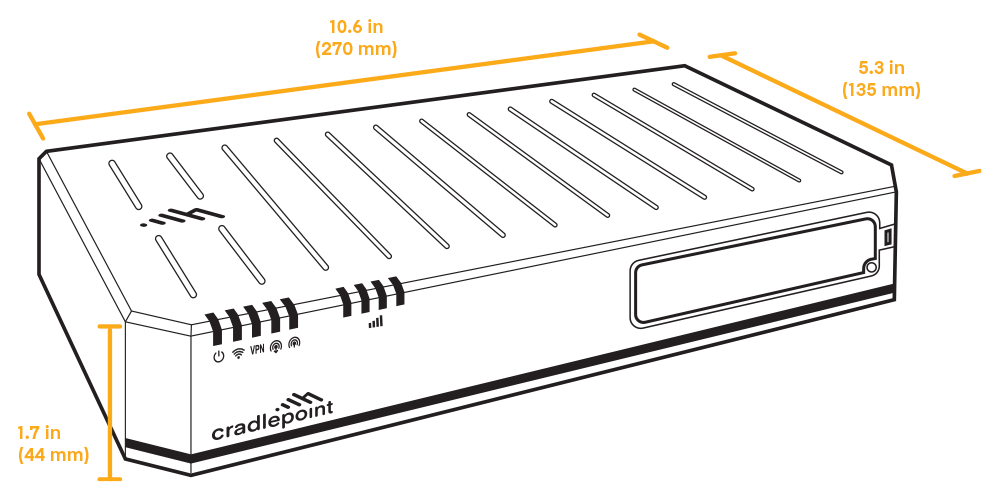

Dimensions
135 x 270 x 44 mm (5.3 x 10.6 x 1.7 in)
Shipping Weight
3.00 lb shipping weight

Interfaces

USB
1 x USB 2.0 Type A, 5 V / 500 mA / 2.5 W output
Modem
Embedded 5GB modem, 4 x SMA connectors; optional MC400 second modem
Ethernet
5 x GbE RJ45, 1 x 10GbE SFP+ (all LAN/WAN switchable)
Wi-Fi Speed
574 Mbps (2.4 GHz) and 1,200 Mbps (5 GHz)
Wi-Fi Radios
Dual-radio, dual-band concurrent 2.4/5 GHz
Supported SFP
Finisar FTLF8519P3BNL, FTLF1318P3BTL
Wi-Fi Antennas
Internal 2x2 antenna
Wi-Fi Features
Global Optimized Wi-Fi; 802.11k and 802.11v
Wi-Fi Security
WPA/WPA2/WPA3 Personal, WPA2/WPA3 Enterprise, Open
Wi-Fi Standard
2x2 MU-MIMO 802.11ax Wi-Fi 6 with DFS
Expansion Slot
1 x expansion slot; MC20BT Bluetooth Low Energy module
GNSS Connector
1 x SMA GNSS antenna connector
Modular Modem Slot
1 x MC400 modular modem slot (peak throughput 300 Mbps)
Supported SFP Plus
Finisar FTLX8574D3BCL, FTLX1475D3BCL, FCBG110SD1Cxx

Wi-Fi Power

IC
2.4 GHz 33.14; 5150–5250 MHz 25.74; 5250–5350 MHz 25.84; 5470–5725 MHz 29.82; 5725–5850 MHz 32.81 dBm EIRP
Fcc
2.4 GHz 33.14; 5150–5250 MHz 32.94; 5250–5350 MHz 29.90; 5470–5725 MHz 30.00; 5725–5850 MHz 32.81 dBm EIRP
Europe
2.4 GHz 19.93; 5150–5250 MHz 22.76; 5250–5350 MHz 22.92; 5500–5700 MHz 29.08 dBm EIRP
Australia New Zealand
AU/NZ: 2.4 GHz 19.93; 5150–5250 MHz 22.98; 5250–5350 MHz 22.98; 5500–5700 MHz 29.82; 5475–5825 MHz 32.81 dBm EIRP

Performance

Vlans
Up to 64 Layer 2/Layer 3 VLANs
Stateful Firewall
940 Mbps stateful firewall
Typical Client Count
50 typical clients
Concurrent VPN Tunnels
20 concurrent VPN tunnels
Concurrent Tcp Sessions
130,000 concurrent TCP sessions
Point TO Point Ipsec VPN
400 Mbps point-to-point IPsec VPN
Sase Secure Connect SD-WAN
IPsec 400 Mbps, Microtunnel 600 Mbps
Ips Application Aware Client Analytics
940 Mbps IPS/application-aware services/client analytics

Reliability

MTBF
E300-5GB: 399,642 hours (Telcordia SR332 at 25 °C)

Subscription

Plan
3-Year NetCloud Enterprise Branch Essentials Plan
Term
3-year subscription
Support
Phone 24 hours weekdays with weekend emergency response; web 24x7; chat 24x5
Warranty
Limited lifetime warranty while an active NetCloud Service Plan subscription is in place
Available Terms
1, 3 and 5-year terms available
Service Add Ons
NetCloud Exchange, NetCloud Advanced
Software Updates
Software updates via NetCloud Manager for the full subscription term
Device Management
NetCloud Manager for the full subscription term

Environmental

Storage Humidity
5% to 95% storage
Operating Humidity
10% to 90% operating
Storage Temperature
-20 °C to 70 °C (-4 °F to 158 °F)
Operating Temperature
0 °C to 45 °C (32 °F to 113 °F)

Certifications

Safety
UL/cUL, CB Scheme, EN 60950-1, EN 62368-1
Substance Compliance
WEEE, RoHS, REACH, California Prop 65

Product Summary

PoE
No PoE
Wi-Fi
Dual-band, dual-concurrent 802.11ax (Wi-Fi 6)
GPS GNSS
GPS/GNSS
5G Status
5G embedded or with Cradlepoint 5G Adapter
USB Ports
1 USB port
Throughput
940 Mbps (firewall)
VPN Tunnels
20 VPN tunnels
Serial Ports
No serial ports
Ethernet Ports
5 x GbE (LAN/WAN switchable), 1 x SFP+
Cloud Management
Cloud management
Special Features
5G embedded or W-Series Adapter pairing, dual modem, private cellular, NetCloud Exchange
Dual Modem Support
Dual-modem support
Wireless Connectivity
5G or LTE
Private Cellular Network
CBRS, 4G LTE, 5G
Network Operator Standards
PTCRB (U.S.), GCF (global)

Questions buyers ask

What is included with BF03-03005GB-GN?

The E300 router with the embedded 5GB modem and Wi-Fi, four external cellular paddle antennas, an external power supply, and a 3-year NetCloud Enterprise Branch Essentials plan. The plan includes NetCloud Manager, software updates and 24x7 support.

Does the E300 support 5G standalone?

Yes. The 5GB modem supports 5G FR1 in both NSA and SA modes, with LTE Advanced Pro Category 20.

Does the E300 provide PoE?

No. The E300 does not include PoE ports. For PoE, the Cradlepoint E3000 offers four 802.3bt ports.

Which market is this SKU for?

This part number is the North America configuration for the U.S. and Canada.

Can I upgrade the plan later?

Yes. A NetCloud Enterprise Branch Advanced plan can be added to the Essentials package at any time for additional capabilities.
