Cradlepoint5G & LTE Routers

Cradlepoint E300 5G Branch Router with Wi-Fi 6 and 1-Year NetCloud Essentials + Advanced (TAA)

5GMPN TAA-BFA1-03005GB-GN
  • Wi-Fi 6
  • Dual SIM
  • 5+ × 2.5 Gb+ Ethernet
  • GPS/GNSS
  • FirstNet Ready
  • 1 year included
$2,239.00

Backordered · ships as soon as it arrives

Included subscription · 1 year
1 year3 years+$1,019.775 years+$891.66
Compliance · TAA compliant
Standard−$169.80TAA compliant
Region · North America
North AmericaEMEA + APAC−$169.80
Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans
Compare all 17 configurations

Datasheets & documents

Overview

This TAA-compliant Cradlepoint E300 bundle pairs an all-in-one 5G branch router with a 1-year NetCloud Enterprise Branch Essentials + Advanced plan. It is packaged for U.S. Federal Government ordering. The router has an embedded 5G FR1 modem with dual SIM slots, dual-band Wi-Fi 6, five switchable Gigabit ports and a 10 GbE SFP+ port. It is built for branches, clinics, stores and pop-up sites that need day-one connectivity, VPN security and cellular-optimized SD-WAN.

  • Embedded 5G FR1 NSA/SA modem with LTE Advanced Pro Cat 20, up to 4.14 Gbps down / 660 Mbps up
  • Dual 2FF SIM slots, 4x4 MIMO and four included 600 MHz-6 GHz paddle antennas
  • 5 x GbE RJ45 plus 1 x 10 GbE SFP+, all LAN/WAN switchable
  • Dual-band, dual-concurrent 2x2 MU-MIMO Wi-Fi 6 (574 Mbps at 2.4 GHz, 1,200 Mbps at 5 GHz)
  • MC400 modular modem slot for optional dual-cellular connectivity
  • 940 Mbps stateful firewall, 400 Mbps IPsec VPN and 20 concurrent VPN tunnels
  • TAA-compliant SKU with 1-year NetCloud Enterprise Branch Essentials + Advanced plan
  • Open a site on day one over 5G or LTE, without waiting for a wired circuit

The Cradlepoint E300 (part number TAA-BFA1-03005GB-GN) is an enterprise branch router with an embedded 5G modem. It comes bundled with a 1-year Ericsson NetCloud Service Enterprise Branch Essentials + Advanced plan. This is the TAA-compliant SKU for U.S. Federal Government ordering. It suits pop-up temporary locations, branches, stores and clinics that need routing, security and Wi-Fi in one compact unit, with no extra hardware.

The embedded 5G modem supports 5G FR1 in NSA and SA modes and LTE Advanced Pro Category 20. Peak rates reach up to 4.14 Gbps downlink and 660 Mbps uplink. It has 4x4 MIMO, dual 2FF SIM slots and four included 600 MHz to 6 GHz paddle antennas. It also supports CBRS Band 48 for private cellular networks. For extra resilience, you can add an MC400 modular modem for dual-cellular operation. The E300 can also act as the controller for Cradlepoint 5G Wideband Adapters.

On the wired side, the E300 has five Gigabit RJ45 ports and one 10 GbE SFP+ port, all LAN/WAN switchable. That lets you run a wired broadband link as the primary connection and keep cellular as failover. Dual-band 2x2 MU-MIMO Wi-Fi 6 delivers up to 1,200 Mbps on 5 GHz and supports WPA3. Rated performance includes 940 Mbps stateful firewall throughput, 400 Mbps IPsec VPN, 20 concurrent VPN tunnels and up to 64 VLANs.

The NetCloud plan provides NetCloud Manager for cloud-based device management and software updates for the full term. It also includes support for the full term: phone support 24 hours on weekdays with emergency response on weekends, 24x7 web support and 24x5 chat. The hardware carries a limited lifetime warranty while an active NetCloud subscription is maintained. The Cradlepoint E300 datasheet is available as a reference document.

Ideal for

  • Pop-up and temporary sites that need secure connectivity on day one
  • Federal Government branch offices requiring TAA-compliant networking hardware
  • Retail stores and clinics running wired broadband with 5G failover
  • All-wireless 5G branches using SD-WAN and Secure Connect encrypted tunnels
  • Private cellular deployments on CBRS Band 48

Specifications

Power

Input
100-240 VAC, 1 A
Output
12 VDC, 3 A
Required
External power supply (included)
Consumption
Idle 9 W / Typical 13 W / Heavy 17 W

General

MPN
TAA-BFA1-03005GB-GN
UPC
840292704886
Brand
Cradlepoint (Ericsson Enterprise Wireless)
Model
Cradlepoint E300
Region
United States: Federal Government
Package Plan
1-Year NetCloud Enterprise Branch Essentials + Advanced
TAA Compliant
TAA compliant
Product Status
Active
Subscription Term
1 year
Hardware Configuration
5G with Wi-Fi (E300-5GB)

Package

Documentation
Cradlepoint E300 Datasheet
Shipping Weight
3.00 lb
Included Antennas
4 x 600 MHz-6 GHz cellular paddle antennas
Included Power Supply
External power supply included

Physical

Size

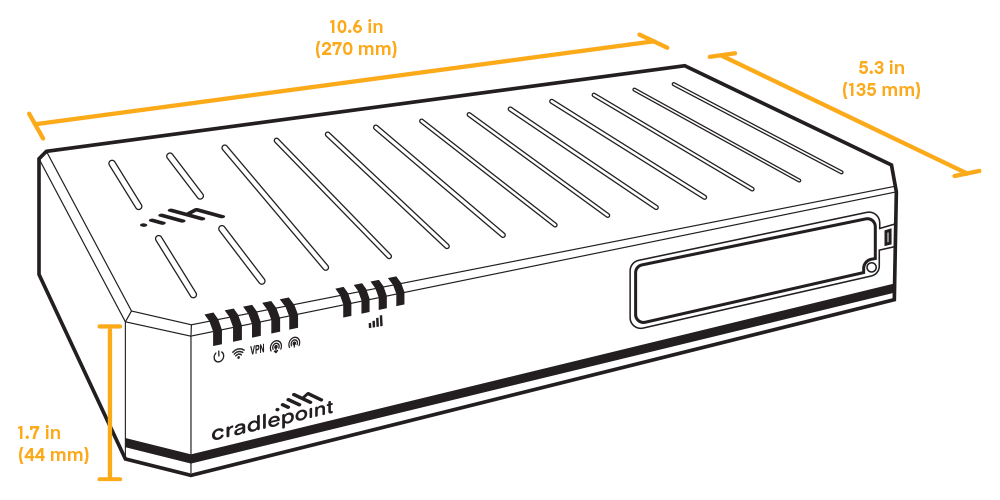

135 x 270 x 44 mm (5.3 x 10.6 x 1.7 in)
Weight
0.86 kg (1 lb 14 oz)

Interfaces

Wi-Fi
Dual-radio, dual-band concurrent 2x2 MU-MIMO 802.11ax Wi-Fi 6 with DFS, internal 2x2 antenna
Modem
Embedded 5GB low/mid-band modem with 4 x SMA connectors; optional MC400 modular modem for dual modem
Ethernet
5 x GbE RJ45 + 1 x 10 GbE SFP+ (all LAN/WAN switchable)
GNSS GPS
1 x SMA GNSS antenna connector
Expansion
1 x MC400 modem slot (300 Mbps peak), 1 x USB 2.0 Type A (5 V, 500 mA, 2.5 W), 1 x expansion slot (MC20BT Bluetooth LE module)
Wi-Fi Speed
574 Mbps (2.4 GHz) / 1,200 Mbps (5 GHz)
Wi-Fi Security
WPA/WPA2/WPA3 Personal, WPA2/WPA3 Enterprise, Open; 802.11k, 802.11v
Supported SFP Modules
Finisar FTLF8519P3BNL, FTLF1318P3BTL
Supported SFP Plus Modules
Finisar FTLX8574D3BCL, FTLX1475D3BCL, FCBG110SD1Cxx

Wi-Fi Power

IC
2.4 GHz 33.14; 5150–5250 MHz 25.74; 5250–5350 MHz 25.84; 5470–5725 MHz 29.82; 5725–5850 MHz 32.81 dBm EIRP
Fcc
2.4 GHz 33.14; 5150–5250 MHz 32.94; 5250–5350 MHz 29.90; 5470–5725 MHz 30.00; 5725–5850 MHz 32.81 dBm EIRP
Europe
2.4 GHz 19.93; 5150–5250 MHz 22.76; 5250–5350 MHz 22.92; 5500–5700 MHz 29.08 dBm EIRP
Australia New Zealand
2.4 GHz 19.93; 5150–5250 MHz 22.98; 5250–5350 MHz 22.98; 5500–5700 MHz 29.82; 5475–5825 MHz 32.81 dBm EIRP

Performance

Stateful Firewall
940 Mbps
Layer2 Layer3 Vlans
Up to 64
Typical Client Count
50
Concurrent VPN Tunnels
20
Concurrent Tcp Sessions
130,000
Point TO Point Ipsec VPN
400 Mbps
Sase Secure Connect SD WAN
IPsec 400 Mbps; Microtunnel 600 Mbps
Ips Application Aware Client Analytics
940 Mbps

Reliability

Calculated MTBF
E300-5GB: 399,642 hours (Telcordia SR332 at 25 °C)

Environmental

Storage Humidity
5% to 95%
Operating Humidity
10% to 90%
Storage Temperature
-20 °C to 70 °C (-4 °F to 158 °F)
Operating Temperature
0 °C to 45 °C (32 °F to 113 °F)

Cellular Modem

3g
WCDMA/UMTS/HSPA+
SMS
Yes
MIMO
4x4 MIMO
Antennas
4 x SMA female; 4 external 600 MHz-6 GHz paddle antennas included
GNSS GPS
Passive GNSS (multiplexed with DIV/MIMO2 antenna ports)
Modulation
Up to 256 QAM downlink and uplink (uplink 256 QAM only on particular carrier equipment)
Peak Rates
Up to 4.14 Gbps down / 660 Mbps up
Regulatory
FCC (U.S.), CE (EU), RCM (AU/NZ)
Technology
5G FR1 NSA/SA and 4G LTE, LTE Advanced Pro Cat 20, dual 2FF SIM, 3GPP Rel. 15
5G NR Bands
NSA/SA: n1 (2100), n2 (1900), n3 (1800), n5 (850), n7 (2600), n8 (900), n12 (700), n20 (800), n25 (1900), n28 (700), n38 (2600), n40 (2300), n41 (2500), n48 (3500), n66 (1700/2100), n71 (600), n77 (3700), n78 (3500), n79 (4900)
LTE Fdd Bands
B1 (2100), B2 (1900), B3 (1800), B4 (1700), B5 (850), B7 (2600), B8 (900), B12 (700), B13 (700), B14 (700), B17 (700), B18 (850), B19 (850), B20 (800), B25 (1900), B26 (850), B28 (700), B29 (700), B30 (2300), B32 (1500), B66 (1700), B71 (600)
LTE Tdd Bands
B34 (2000), B38 (2600), B39 (1900), B40 (2300), B41 (2500), B42 (3500), B43 (3700), B46 (5200), B48 (3500)
Transmit Power
5G NR 23 dBm ± 1.5; ENDC 20 dBm ± 1; LTE 23 dBm ± 1; LTE HPUE 25 dBm ± 1 (B41 SA only) (typical conducted)
Carrier Aggregation
LTE: up to 7 CA DL / 2 CA UL; LTE + 5G NR ENDC: 1 CA DL / 1 CA UL
Private Cellular Network
Yes, includes FCC Part 96 (CBRS Band 48)
Network Operator Standards
PTCRB (U.S., Canada), GCF (Worldwide)
Network Operator Certifications
AT&T, T-Mobile, Verizon
Public Safety Network Certifications
FirstNet Trusted, T-Mobile Connecting Heroes, Verizon Frontline

Certifications

Safety
UL/cUL, CB Scheme, EN 60950-1, EN 62368-1
Substance Compliance
WEEE, RoHS, REACH, California Prop 65

Cloud Services

Support
phone 24 hr weekdays + weekend emergency, web 24x7, chat 24x5
Warranty
Limited lifetime warranty while an active NetCloud plan is maintained
Service Plan
NetCloud Service for Enterprise Branch (Essentials + Advanced)
Service Add Ons
NetCloud Exchange, NetCloud Advanced
Software Updates
Via NetCloud Manager for the full subscription term
Device Management
NetCloud Manager for the full subscription term

Product Summary

PoE
No
Wi-Fi
Dual-band, dual-concurrent 802.11ax (Wi-Fi 6)
Category
Branch
GPS GNSS
Yes
5G Status
5G embedded or with Cradlepoint 5G Adapter
USB Ports
1
Form Factor
Industrial plastic; desktop or wall mountable
Serial Ports
0
Ethernet Ports
5 GbE (LAN/WAN switchable), 1 SFP+
Cloud Management
Yes
Special Features
5G embedded or paired with W-Series Adapters, dual modem, private cellular, NetCloud Exchange
Dual Modem Support
Yes
Wireless Connectivity
5G or LTE
Private Cellular Network
Yes — CBRS, 4G LTE, 5G
Available Subscription Terms
1, 3 & 5 years (this SKU: 1 year)

Questions buyers ask

Does this Cradlepoint E300 have a 5G modem?

Yes. The TAA-BFA1-03005GB-GN is the 5G with Wi-Fi configuration. Its embedded modem supports 5G FR1 in NSA and SA modes and LTE Advanced Pro Cat 20, with peak rates up to 4.14 Gbps downlink and 660 Mbps uplink.

What NetCloud subscription is included?

A 1-year NetCloud Enterprise Branch Essentials + Advanced plan. It includes NetCloud Manager cloud management and software updates, plus support for the full term.

Who is this SKU intended for?

It is the TAA-compliant ordering option for the U.S. Federal Government market. It is aimed at agencies and organizations that need TAA-compliant branch networking equipment.

Can I use it with wired broadband as well as cellular?

Yes. Its five Gigabit RJ45 ports and 10 GbE SFP+ port are all LAN/WAN switchable. You can terminate a wired broadband link as primary and use 5G or LTE as failover, or run the site entirely on cellular.

What warranty covers the hardware?

Cradlepoint hardware is covered by a limited lifetime warranty for as long as it has a subscription license to an active NetCloud Service Plan.
