Cradlepoint5G & LTE Routers

Cradlepoint E300 5G Branch Router with Wi-Fi 6 and 5-Year NetCloud Essentials + Advanced (TAA)

5GMPN TAA-BFA5-03005GB-GN
  • Wi-Fi 6
  • Dual SIM
  • 5+ × 2.5 Gb+ Ethernet
  • GPS/GNSS
  • FirstNet Ready
  • 5 years included
$3,988.73$4,359.00Save $370.27

Backordered · ships as soon as it arrives

Included subscription · 5 years
1 year−$891.663 years+$128.115 years
Compliance · TAA compliant
StandardTAA compliant
Region · North America
North AmericaEMEA + APAC−$1,061.46
Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans
Compare all 17 configurations

Datasheets & documents

Overview

The Cradlepoint E300 TAA-BFA5-03005GB-GN combines the compact E300 branch router, an embedded 5GB 5G modem and Wi-Fi with a 5-year NetCloud Enterprise Branch Essentials + Advanced plan. It is the TAA-compliant ordering option for U.S. federal government buyers. The E300 suits pop-up sites, branches, stores and clinics that need 5G connectivity, VPN security and cellular-optimized SD-WAN in one unit.

  • Embedded 5GB modem: 5G FR1 NSA/SA plus LTE Advanced Pro Cat 20, dual 2FF SIM, CBRS Band 48
  • 5 x GbE RJ45 and 1 x 10GbE SFP+, all LAN/WAN switchable
  • Dual-band 2x2 MU-MIMO Wi-Fi 6 with WPA3, up to 1,200 Mbps on 5 GHz
  • 940 Mbps stateful firewall and IPS throughput, 400 Mbps IPsec VPN, 20 VPN tunnels
  • MC400 modular modem slot for dual cellular; controller for Cradlepoint 5G Wideband Adapters
  • 5-year NetCloud Enterprise Branch Essentials + Advanced; TAA-compliant SKU
  • Open temporary or pop-up locations on 5G without waiting for a wired circuit
  • Use 5G as failover behind wired broadband for hybrid WAN resilience

The Cradlepoint E300 is an all-in-one branch router for pop-up and temporary locations, branches, stores and clinics. It delivers 4G and 5G connectivity, VPN security and cellular-optimized SD-WAN without extra hardware. TAA-BFA5-03005GB-GN is the TAA-compliant option for U.S. federal government procurement. It bundles the E300 with the embedded 5GB modem, Wi-Fi, and five years of NetCloud Enterprise Branch Essentials + Advanced.

The 5GB modem supports 5G FR1 in NSA and SA modes with LTE Advanced Pro Category 20, dual 2FF SIM slots and peak rates up to 4.14 Gbps down and 660 Mbps up. Bands include n71, n41, n77, n78 and n79, plus CBRS Band 48 for private cellular. For wired links, the E300 has five GbE ports and one 10GbE SFP+ port, all LAN/WAN switchable. Dual-band 2x2 MU-MIMO Wi-Fi 6 reaches 1,200 Mbps on 5 GHz with WPA3. An MC400 modular modem slot adds a second cellular connection. The E300 can also act as the controller for Cradlepoint 5G Wideband Adapters.

Rated performance is 940 Mbps for both stateful firewall and IPS/application-aware services, with 400 Mbps IPsec VPN. It supports 20 VPN tunnels, 130,000 concurrent TCP sessions, up to 64 VLANs and around 50 typical clients. The chassis measures 135 x 270 x 44 mm and weighs 0.86 kg.

The Essentials + Advanced plan covers routing, VPN, SD-WAN, security, Connection Manager and zero-touch deployment through NetCloud Manager. Support and software updates are included for the full five years. A limited lifetime hardware warranty applies while the NetCloud subscription remains active.

Ideal for

  • Federal government sites that require TAA-compliant cellular routers
  • Pop-up and temporary locations that need secure connectivity on day one
  • Small branches, stores and clinics running 5G primary or wired-plus-5G failover
  • Sites pairing the E300 with Cradlepoint 5G Wideband Adapters
  • Long-term deployments that want five years of management and support in one purchase

Specifications

Power

Input
100-240 VAC, 1 A
Output
12 VDC, 3 A
Consumption
Idle 9 W / Typical 13 W / Heavy 17 W
Power Supply
External power supply (included)

General

MPN
TAA-BFA5-03005GB-GN
UPC
840292702295
Brand
Cradlepoint (Ericsson Cradlepoint)
Model
Cradlepoint E300
Region
United States: Federal Government
Package Plan
5-Year NetCloud Enterprise Branch Essentials + Advanced Plans
TAA Compliant
Yes
Product Status
Active
Subscription Term
5 years
Hardware Configuration
5G with Wi-Fi (5GB modem)

Package

Included Items
E300 router, power supply, 4 cellular antennas, 5-year NetCloud Essentials + Advanced
Shipping Weight
3 lb

Physical

Weight
0.86 kg (1 lb 14 oz)
Dimensions

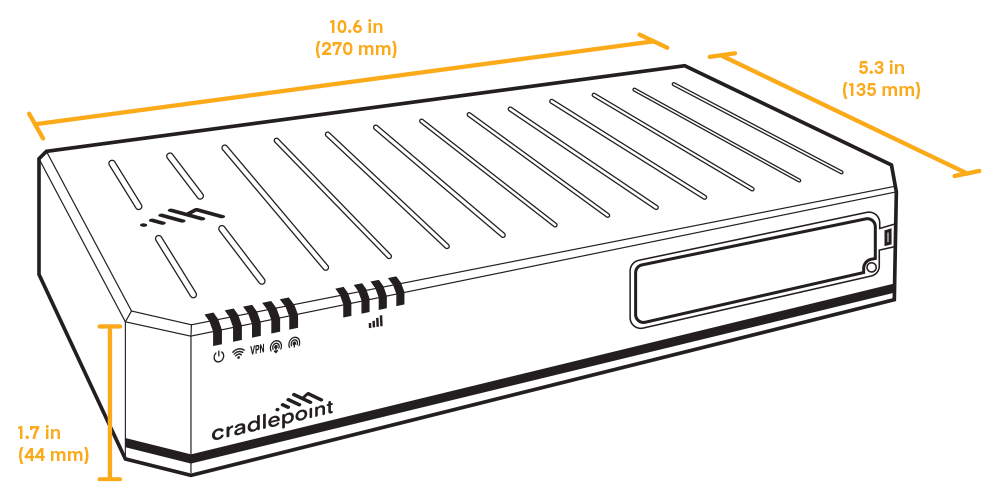

135 x 270 x 44 mm (5.3 x 10.6 x 1.7 in)

Interfaces

Wi-Fi
2x2 MU-MIMO Wi-Fi 6, dual-band concurrent, 574 Mbps (2.4 GHz) / 1,200 Mbps (5 GHz), internal antenna, WPA3
Modem
Embedded 5GB modem with 4 x SMA (this SKU); optional MC400 dual modem
Ethernet

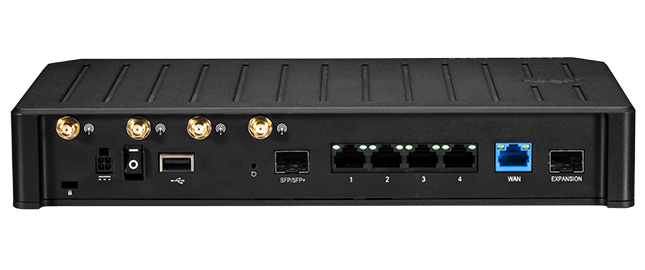

5 x GbE RJ45, 1 x 10GbE SFP+ (all LAN/WAN switchable)
GNSS GPS
1 x SMA GNSS antenna connector
Expansion
MC400 slot (300 Mbps), USB 2.0 Type A, expansion slot (MC20BT BLE)
Supported SFP
Finisar FTLF8519P3BNL, FTLF1318P3BTL
Supported SFP Plus
Finisar FTLX8574D3BCL, FTLX1475D3BCL, FCBG110SD1Cxx

Wi-Fi Power

IC
2.4 GHz 33.14; 5150–5250 25.74; 5250–5350 25.84; 5470–5725 29.82; 5725–5850 32.81 dBm EIRP
Fcc
2.4 GHz 33.14; 5150–5250 32.94; 5250–5350 29.90; 5470–5725 30.00; 5725–5850 32.81 dBm EIRP
Europe
2.4 GHz 19.93; 5150–5250 22.76; 5250–5350 22.92; 5500–5700 29.08 dBm EIRP
Australia New Zealand
2.4 GHz 19.93; 5150–5250 22.98; 5250–5350 22.98; 5500–5700 29.82; 5475–5825 32.81 dBm EIRP

Performance

Stateful Firewall
940 Mbps
Layer2 Layer3 Vlans
Up to 64
Typical Client Count
50
Concurrent VPN Tunnels
20
Concurrent Tcp Sessions
130,000
Point TO Point Ipsec VPN
400 Mbps
Sase Secure Connect SD WAN
IPsec 400 Mbps; Microtunnel 600 Mbps
Ips Application Aware Client Analytics
940 Mbps

Reliability

Calculated MTBF
E300-5GB: 399,642 hours (Telcordia SR332, 25 °C)

Environmental

Storage Humidity
5% to 95%
Operating Humidity
10% to 90%
Storage Temperature
-20 °C to 70 °C (-4 °F to 158 °F)
Operating Temperature
0 °C to 45 °C (32 °F to 113 °F)

Certifications

Safety
UL/cUL, CB Scheme, EN 60950-1, EN 62368-1
Substance Compliance
WEEE, RoHS, REACH, California Prop 65

Cloud Services

Support
Support for the full subscription term
Warranty
Limited lifetime warranty with active NetCloud plan
Service Plans
NetCloud Service for Enterprise Branch
Service Add Ons
NetCloud Exchange, NetCloud Advanced
Software Updates
Via NetCloud Manager for the full term
Device Management
NetCloud Manager for the full term

Product Summary

PoE
No
Wi-Fi
Dual-band, dual-concurrent; 802.11ax (Wi-Fi 6)
Category
Branch
GPS GNSS
Yes
USB Ports
1
Throughput
940 Mbps (firewall)
Form Factor
Industrial Plastic
VPN Tunnels
20
Serial Ports
0
Five G Status
5G embedded or with Cradlepoint 5G Adapter
Ethernet Ports
5 GbE (LAN/WAN switchable), 1 SFP+
Cloud Management
Yes
Special Features
5G embedded or paired with W-Series Adapters, dual modem, private cellular, NetCloud Exchange
Dual Modem Support
Yes
Subscription Terms
1, 3 & 5 years
Operating Temperature
0 °C to 45 °C (32 °F to 113 °F)
Wireless Connectivity
5G or LTE
Private Cellular Network
Yes — CBRS, 4G LTE, 5G
Network Operator Standards
PTCRB (U.S.), GCF (global)

Cellular Modem 5gb

SMS
Yes
GNSS
Passive GNSS (multiplexed with DIV/MIMO2 ports)
MIMO
4x4 MIMO
Three G
WCDMA/UMTS/HSPA+
Antennas
4 x external 600 MHz–6 GHz paddle antennas included (SMA female)
Modulation
Up to 256 QAM DL / 256 QAM UL
Peak Rates
Up to 4.14 Gbps down / 660 Mbps up
Regulatory
FCC, CE, RCM
Technology
5G FR1 NSA/SA + LTE Advanced Pro Cat 20, dual 2FF SIM, 3GPP Rel. 15
5G NR Bands
NSA/SA: n1 (2100), n2 (1900), n3 (1800), n5 (850), n7 (2600), n8 (900), n12 (700), n20 (800), n25 (1900), n28 (700), n38 (2600), n40 (2300), n41 (2500), n48 (3500), n66 (1700/2100), n71 (600), n77 (3700), n78 (3500), n79 (4900)
LTE Fdd Bands
B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71
LTE Tdd Bands
B34, B38, B39, B40, B41, B42, B43, B46, B48
Transmit Power
5G NR 23 ± 1.5 dBm; ENDC 20 ± 1 dBm; LTE 23 ± 1 dBm; HPUE 25 ± 1 dBm (B41 SA)
Carrier Aggregation
LTE: 7 CA DL / 2 CA UL; ENDC: 1 CA DL / 1 CA UL
Private Cellular Network
Yes, FCC Part 96 (CBRS Band 48)
Network Operator Standards
PTCRB (U.S., Canada); GCF (Worldwide)
Public Safety Certifications
FirstNet Trusted, T-Mobile Connecting Heroes, Verizon Frontline
Network Operator Certifications
AT&T, T-Mobile, Verizon

Questions buyers ask

What is included with TAA-BFA5-03005GB-GN?

The Cradlepoint E300 router with the embedded 5GB 5G modem and Wi-Fi, an external power supply, and four cellular paddle antennas. It also includes a 5-year NetCloud Enterprise Branch Essentials + Advanced subscription.

Does the E300 support PoE?

No. The E300 does not provide PoE. It offers five GbE ports and one 10GbE SFP+ port, all LAN/WAN switchable.

Can the E300 use 5G standalone networks?

Yes. The embedded 5GB modem supports 5G FR1 in NSA and SA modes, with LTE Advanced Pro Category 20 as well.

Can I add a second cellular connection?

Yes. The MC400 modular modem slot, with up to 300 Mbps peak, supports dual 5G or LTE connectivity. The E300 can also act as the controller for Cradlepoint 5G Wideband Adapters.

What is the operating temperature range?

The E300 operates from 0 °C to 45 °C (32 °F to 113 °F) at 10% to 90% humidity.
