Cradlepoint5G & LTE Routers

Cradlepoint E300 5G Branch Router with Wi-Fi 6 and 1-Year NetCloud Enterprise Branch Essentials (TAA)

5GMPN TAA-BF01-03005GB-GN
  • Wi-Fi 6
  • Dual SIM
  • 5+ × 2.5 Gb+ Ethernet
  • GPS/GNSS
  • FirstNet Ready
  • 1 year included
$1,999.00

In stock · only 4 leftShips from the US

Included subscription · 1 year
1 year3 years+$1,019.775 years+$891.66
Compliance · TAA compliant
Standard−$169.80TAA compliant
Region · North America
North AmericaEMEA + APAC−$169.80
Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans
Compare all 17 configurations

Datasheets & documents

Overview

The Cradlepoint E300 is an all-in-one branch router with an embedded 5G modem, dual-band Wi-Fi 6, five LAN/WAN-switchable Gigabit Ethernet ports and a 10 GbE SFP+ port. This part number bundles the router with a 1-Year Ericsson NetCloud Enterprise Branch Essentials Plan. It is the TAA-compliant U.S. Federal Government ordering option, built for agencies and contractors that need day-one connectivity, VPN security and cellular-optimized SD-WAN at pop-up sites, branches, stores and clinics.

  • Embedded 5G FR1 NSA/SA modem with LTE Advanced Pro Cat 20, dual 2FF SIM slots and 4x4 MIMO
  • 5 x GbE RJ45 and 1 x 10 GbE SFP+, all LAN/WAN switchable
  • Dual-band concurrent 2x2 MU-MIMO Wi-Fi 6 (802.11ax) with DFS and WPA3
  • 940 Mbps stateful firewall and IPS throughput, 400 Mbps IPsec VPN, 20 concurrent VPN tunnels
  • MC400 modular modem slot for optional dual-modem operation
  • 1-Year NetCloud Enterprise Branch Essentials Plan with NetCloud Manager, software updates and 24x7 support
  • TAA-compliant U.S. Federal Government ordering SKU
  • Open pop-up and temporary sites on day one over embedded 5G, with no wait for a wired circuit

The Cradlepoint E300 (part number TAA-BF01-03005GB-GN) pairs an E300 enterprise router in its 5G with Wi-Fi configuration with a 1-Year Ericsson NetCloud Enterprise Branch Essentials Plan. It is the TAA-compliant SKU for U.S. Federal Government ordering. Ericsson positions the E300 for temporary locations, branches, stores and clinics. Routing, security and Wi-Fi share one compact enclosure, so a site can go live on 5G from day one without waiting for a wired circuit.

The embedded 5G modem supports 5G FR1 in NSA and SA modes, with LTE Advanced Pro Category 20 fallback. Peak rates reach up to 4.14 Gbps downlink and 660 Mbps uplink. It has dual 2FF SIM slots, 4x4 MIMO and four included 600 MHz to 6 GHz paddle antennas. The modem holds AT&T, T-Mobile and Verizon certifications, plus FirstNet Trusted, T-Mobile Connecting Heroes and Verizon Frontline public safety certifications, and supports private cellular on CBRS Band 48. An MC400 modular modem slot adds a second modem for dual cellular. The E300 can also act as a controller for Cradlepoint 5G Wideband Adapters.

On the wired side, all five GbE RJ45 ports and the 10 GbE SFP+ port are LAN/WAN switchable. You can terminate a broadband link and keep cellular as failover, or run the site entirely on wireless. The dual-band 2x2 MU-MIMO Wi-Fi 6 radio supports WPA3. Rated performance includes a 940 Mbps stateful firewall, 940 Mbps IPS and application-aware services, 400 Mbps IPsec VPN, 20 concurrent VPN tunnels and up to 64 VLANs, sized for about 50 typical clients.

The Essentials package covers NetCloud Manager device management and software updates for the full term. It also includes 24x7 support: 24-hour phone support on weekdays with weekend emergency response, 24x7 web and 24x5 chat. The hardware carries a limited lifetime warranty while the subscription is active, and NetCloud Enterprise Branch Advanced can be added at any time. The Cradlepoint E300 datasheet is available for full technical detail.

Ideal for

  • Pop-up and temporary federal sites that need 5G connectivity from day one
  • Small to mid-sized government branch offices using broadband with 5G failover
  • Clinics, stores and field offices needing routing, firewall and Wi-Fi 6 in one unit
  • Public safety deployments on FirstNet or Verizon Frontline networks
  • Private LTE/5G sites on CBRS Band 48

Specifications

Power

Input
100–240 VAC, 1 A
Output
12 VDC, 3 A
Power Supply
External power supply (included)
Consumption Idle
9 W
Consumption Heavy
17 W
Consumption Typical
13 W

General

MPN
TAA-BF01-03005GB-GN
UPC
840292704978
Brand
Cradlepoint (Ericsson)
Model
Cradlepoint E300
Manufacturer
Ericsson Enterprise Wireless (Ericsson Cradlepoint)
Product Status
Active

Package

Documentation
Cradlepoint E300 Datasheet
Shipping Weight
3.00 lb
Included Antennas
4 x external 600 MHz–6 GHz cellular paddle antennas
Included Power Supply
External power supply included

Physical

Weight
0.86 kg (1 lb 14 oz)

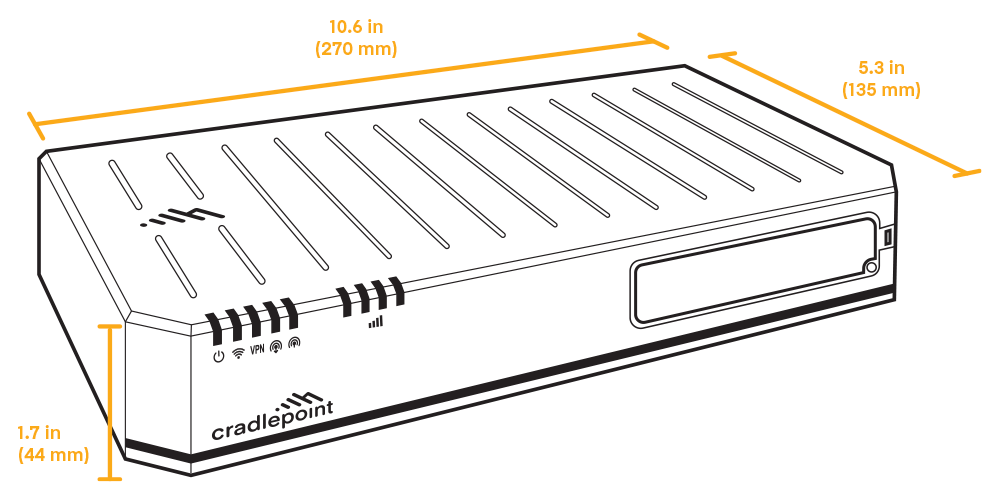

Dimensions
135 x 270 x 44 mm (5.3 x 10.6 x 1.7 in)

Interfaces

Wi-Fi
Wi-Fi 6 2x2 MU-MIMO, dual-band concurrent, 574 Mbps (2.4 GHz) / 1,200 Mbps (5 GHz), internal antenna, WPA3
Modem
This SKU: embedded 5GB low/mid-band modem with 4 x SMA cellular antenna connectors; optional dual modem via modular MC400
Ethernet

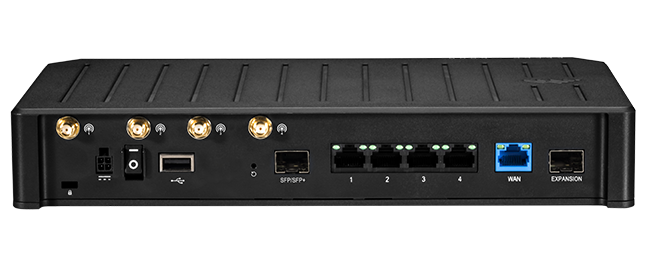

5 x GbE RJ45 (LAN/WAN switchable); 1 x 10 GbE SFP+ (LAN/WAN switchable)
GNSS GPS
1 x SMA GNSS antenna connector
Expansion
1 x MC400 modem slot (300 Mbps peak); 1 x USB 2.0 Type A (5 V, 500 mA, 2.5 W); 1 x expansion slot; MC20BT Bluetooth LE module
Supported SFP Modules
Finisar FTLF8519P3BNL, FTLF1318P3BTL
Supported SFP Plus Modules
Finisar FTLX8574D3BCL, FTLX1475D3BCL, FCBG110SD1Cxx

Wi-Fi Power

IC
2.4 GHz 33.14; 5150–5250 MHz 25.74; 5250–5350 MHz 25.84; 5470–5725 MHz 29.82; 5725–5850 MHz 32.81 dBm EIRP
Fcc
2.4 GHz 33.14; 5150–5250 MHz 32.94; 5250–5350 MHz 29.90; 5470–5725 MHz 30.00; 5725–5850 MHz 32.81 dBm EIRP
Europe
2.4 GHz 19.93; 5150–5250 MHz 22.76; 5250–5350 MHz 22.92; 5500–5700 MHz 29.08 dBm EIRP
Australia New Zealand
2.4 GHz 19.93; 5150–5250 MHz 22.98; 5250–5350 MHz 22.98; 5500–5700 MHz 29.82; 5475–5825 MHz 32.81 dBm EIRP

Performance

L2 L3 Vlans
Up to 64
Stateful Firewall
940 Mbps
Typical Client Count
50
Concurrent VPN Tunnels
20
Concurrent Tcp Sessions
130,000
Point TO Point Ipsec VPN
400 Mbps
Sase Secure Connect SD WAN
IPsec 400 Mbps; Microtunnel 600 Mbps
Ips Application Aware Client Analytics
940 Mbps

Reliability

Calculated MTBF
E300-5GB: 399,642 hours (Telcordia SR332 at 25 °C)

Environmental

Storage Humidity
5% to 95%
Operating Humidity
10% to 90%
Storage Temperature
-20 °C to 70 °C (-4 °F to 158 °F)
Operating Temperature
0 °C to 45 °C (32 °F to 113 °F)

Certifications

Safety
UL/cUL; CB Scheme; EN 60950-1; EN 62368-1
Substance Compliance
WEEE; RoHS; REACH; California Prop 65

Cloud Services

Support
Support for the full subscription term
Warranty
Limited lifetime warranty while an active NetCloud Service Plan is licensed
Service Plans
NetCloud Service for Enterprise Branch
Service Add Ons
NetCloud Exchange, NetCloud Advanced
Software Updates
Via NetCloud Manager for the full subscription term
Device Management
NetCloud Manager for the full subscription term
Essentials Support Channels
Phone 24h weekdays + weekend emergency; web 24x7; chat 24x5

Product Summary

PoE
No
Wi-Fi
Dual-band, dual-concurrent; 802.11ax (Wi-Fi 6)
Category
Branch
GPS GNSS
Yes
5G Status
5G embedded or with Cradlepoint 5G Adapter
USB Ports
1
Throughput
940 Mbps (Firewall)
Form Factor
Industrial Plastic
VPN Tunnels
20
Serial Ports
0
Ethernet Ports
5 GbE (LAN/WAN switchable), 1 SFP+
Cloud Management
Yes
Special Features
5G embedded or paired with W-Series Adapters, dual modem, private cellular, NetCloud Exchange
Dual Modem Support
Yes
Subscription Terms
1, 3 & 5 years
Operating Temperature
0 °C to 45 °C (32 °F to 113 °F)
Wireless Connectivity
5G or LTE
Private Cellular Network
Yes — CBRS, 4G LTE, 5G
Network Operator Standards
PTCRB (U.S.), GCF (global)

Sku Configuration

Tier
Essentials
Region
United States: Federal Government
FIPS Model
No
Plan Family
NetCloud Enterprise Branch
Package Plan
1-Year NetCloud Enterprise Branch Essentials Plan
TAA Compliant
TAA-compliant SKU
Upgrade Option
NetCloud Enterprise Branch Advanced add-on available
Subscription Term
1 year
Hardware Configuration
5G with Wi-Fi

Cellular Modem 5gb

3g
WCDMA/UMTS/HSPA+
SMS
Yes
GNSS
Passive GNSS (multiplexed with DIV/MIMO2 antenna ports)
MIMO
4x4 MIMO
Antennas
4 x external 600 MHz–6 GHz paddle antennas included (SMA female)
LTE Bands
FDD: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71; TDD: B34, B38, B39, B40, B41, B42, B43, B46, B48
Modulation
Up to 256 QAM downlink and uplink (uplink 256 QAM only on particular carrier equipment)
Regulatory
FCC (U.S.); CE (EU); RCM (AU/NZ)
Technology
5G FR1 NSA/SA and 4G LTE; LTE Advanced Pro Cat 20; dual 2FF SIM slots; 3GPP Rel. 15
5G NR Bands
NSA/SA: n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41, n48, n66, n71, n77, n78, n79
Peak Uplink
Up to 660 Mbps
Peak Downlink
Up to 4.14 Gbps
Transmit Power
5G NR 23 dBm ± 1.5; ENDC 20 dBm ± 1; LTE 23 dBm ± 1; LTE HPUE 25 dBm ± 1 (B41 SA only)
Carrier Aggregation
LTE: up to 7 CA DL / 2 CA UL; LTE + 5G NR ENDC: 1 CA DL / 1 CA UL
Private Cellular Network
Yes, includes FCC Part 96 (CBRS Band 48)
Network Operator Standards
PTCRB (U.S., Canada); GCF (Worldwide)
Public Safety Certifications
FirstNet Trusted™; T-Mobile Connecting Heroes; Verizon Frontline
Network Operator Certifications
AT&T; T-Mobile; Verizon

Questions buyers ask

What does the 1-Year NetCloud Enterprise Branch Essentials Plan include?

It covers NetCloud Manager device management and software updates for the full term. It also includes 24x7 support: 24-hour phone support on weekdays with weekend emergency response, 24x7 web and 24x5 chat. The router is covered by a limited lifetime warranty while an active NetCloud Service Plan is licensed.

Is this E300 TAA compliant?

Yes. TAA-BF01-03005GB-GN is the TAA-compliant U.S. Federal Government ordering option for the E300 in its 5G with Wi-Fi configuration.

Which carriers and public safety networks is the 5G modem certified on?

The embedded 5G modem is certified on AT&T, T-Mobile and Verizon. It also carries FirstNet Trusted, T-Mobile Connecting Heroes and Verizon Frontline public safety certifications.

Can the E300 run two cellular connections?

Yes. An MC400 modular modem slot adds a second modem for dual cellular connectivity. The E300 can also act as a controller for Cradlepoint 5G Wideband Adapters.

Can I add more NetCloud features later?

Yes. A NetCloud Enterprise Branch Advanced plan can be added to the Essentials package at any time. NetCloud Exchange is also available as an add-on.
