Cradlepoint5G & LTE Routers

Cradlepoint E300 5G Branch Router with Wi-Fi 6 and 3-Year NetCloud Essentials + Advanced Plans (TAA)

5GMPN TAA-BFA3-03005GB-GN
  • Wi-Fi 6
  • Dual SIM
  • 5+ × 2.5 Gb+ Ethernet
  • GPS/GNSS
  • FirstNet Ready
  • 3 years included
$3,018.77$3,299.00Save $280.23

Backordered · ships as soon as it arrives

Included subscription · 3 years
1 year−$1,019.773 years5 years−$128.11
Compliance · TAA compliant
Standard−$658.84TAA compliant
Region · North America
North AmericaEMEA + APAC−$1,189.57
Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans
Compare all 17 configurations

Datasheets & documents

Overview

The Ericsson Cradlepoint E300 (TAA-BFA3-03005GB-GN) is an all-in-one 5G branch router for U.S. federal government ordering. It combines an embedded 5G FR1 NSA/SA modem, dual-band Wi-Fi 6, five switchable Gigabit Ethernet ports and a 10 GbE SFP+ port in one unit. This TAA-compliant SKU includes 3 years of NetCloud Enterprise Branch Essentials + Advanced plans, with NetCloud Manager, support and software updates for the full term. It suits branches, clinics, stores and pop-up sites that need cellular or hybrid WAN from day one.

  • Embedded 5G FR1 NSA/SA modem (LTE Advanced Pro Cat 20) with dual 2FF SIM slots, 4x4 MIMO, and up to 4.14 Gbps downlink and 660 Mbps uplink
  • 5 x GbE RJ45 ports and 1 x 10 GbE SFP+ port, all LAN/WAN switchable
  • Dual-band, concurrent 2x2 MU-MIMO Wi-Fi 6 (802.11ax) with DFS and WPA3
  • MC400 modular modem slot for optional dual-modem cellular, plus USB 2.0 and a Bluetooth LE expansion slot
  • 940 Mbps stateful firewall and IPS throughput, 400 Mbps IPsec VPN, 20 concurrent VPN tunnels
  • 3-year NetCloud Enterprise Branch Essentials + Advanced plans with NetCloud Manager, software updates and support for the full term
  • TAA-compliant SKU for U.S. federal government ordering
  • Bring a new or temporary site online from day one on embedded 5G, without waiting for a wired circuit.

The Cradlepoint E300 is Ericsson's all-in-one enterprise branch router. It provides routing, security and Wi-Fi in a single compact unit, so an office, store, clinic or temporary site can connect to the internet and critical applications without extra hardware. This SKU is the 5G with Wi-Fi configuration. It uses an embedded 5G low/mid-band modem (5G FR1 NSA/SA, LTE Advanced Pro Category 20) with dual 2FF SIM slots, 4x4 MIMO and peak rates of up to 4.14 Gbps downlink and 660 Mbps uplink. Four external 600 MHz to 6 GHz paddle antennas are included.

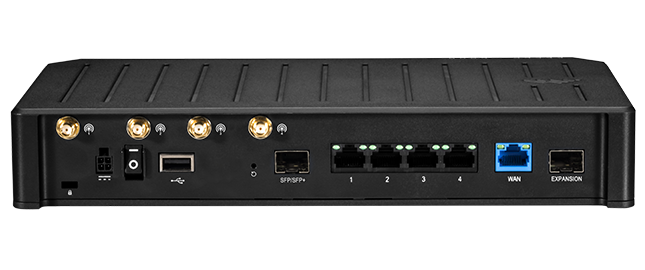

On the wired side, the E300 has five Gigabit RJ45 ports and one 10 GbE SFP+ port, all LAN/WAN switchable. You can run the site on all-wireless 5G, or terminate a wired broadband link with cellular failover for hybrid connectivity. An MC400 modular modem slot adds a second cellular modem for dual connectivity. The router can also act as the controller for Cradlepoint 5G Wideband Adapters. The 2x2 MU-MIMO Wi-Fi 6 radio runs 2.4 GHz and 5 GHz concurrently and supports WPA3.

Rated performance is 940 Mbps for the stateful firewall and for IPS and application-aware services. Point-to-point IPsec VPN is rated at 400 Mbps, with up to 20 concurrent VPN tunnels and up to 64 VLANs. The modem supports private cellular, including CBRS Band 48 under FCC Part 96. It carries AT&T, T-Mobile and Verizon network certifications, plus FirstNet Trusted, T-Mobile Connecting Heroes and Verizon Frontline public-safety certifications.

This part number is TAA-compliant and ordered for the United States federal government market. It bundles 3-year NetCloud Enterprise Branch Essentials and Advanced plans. The Essentials package includes: - NetCloud Manager cloud management and software updates for the full term - 24x7 support - A limited lifetime hardware warranty that applies while the NetCloud subscription is active

The Cradlepoint E300 datasheet is available as a reference document.

Ideal for

  • Federal agency branch offices needing a TAA-compliant 5G router with integrated Wi-Fi
  • Pop-up and temporary sites that must be online from day one without a wired circuit
  • Hybrid WAN at clinics and stores, with wired broadband primary and 5G failover
  • Private cellular deployments using CBRS Band 48
  • Public-safety locations using FirstNet or Verizon Frontline networks

Specifications

Wi-Fi

Radios
Dual-radio, dual-band concurrent (2.4/5 GHz)
Antenna
Internal 2x2 antenna
Roaming
802.11k, 802.11v
Security
WPA/WPA2/WPA3 Personal, WPA2/WPA3 Enterprise, Open
Standard
2x2 MU-MIMO Wi-Fi 6 (802.11ax) with DFS
Speed 5ghz
1,200 Mbps (5 GHz)
Optimization
Global Optimized Wi-Fi
Speed 2 4ghz
574 Mbps (2.4 GHz)

Power

Input
100-240 VAC, 1 A
Output
12 VDC, 3 A
Required
External power supply (included)
Consumption Idle
9 W idle
Consumption Heavy
17 W heavy
Consumption Typical
13 W typical

General

MPN
TAA-BFA3-03005GB-GN
PoE
No
UPC
840292702288
Brand
Ericsson Cradlepoint
Model
Cradlepoint E300
Region
United States: Federal Government
Category
Enterprise branch router
Form Factor
Industrial plastic enclosure
Serial Ports
No serial ports
TAA Compliant
TAA-compliant SKU
Product Status
Active
Hardware Configuration
5G with Wi-Fi

Package

Plan
3-Year NetCloud Enterprise Branch Essentials + Advanced Plans
Power Supply
External power supply included
Shipping Weight
3.00 lb
Antennas Included
4 x 600 MHz to 6 GHz cellular paddle antennas
Subscription Term
3 years
Subscription Terms Offered
E300 plans offered in 1, 3 and 5 year terms

Cellular

3g
WCDMA/UMTS/HSPA+
SIM
Dual 2FF SIM slots
SMS
SMS supported
GNSS
Passive GNSS (multiplexed with DIV/MIMO2 ports)
MIMO
4x4 MIMO
Antennas
4 x SMA female, 600 MHz to 6 GHz paddle antennas included
Modulation
Up to 256 QAM DL/UL (on particular carrier equipment)
Regulatory
FCC (U.S.), CE (EU), RCM (AU/NZ)
Technology
5G FR1 NSA/SA + 4G LTE Cat 20 (3GPP Rel. 15)
5G NR Bands
NSA/SA: n1 (2100), n2 (1900), n3 (1800), n5 (850), n7 (2600), n8 (900), n12 (700), n20 (800), n25 (1900), n28 (700), n38 (2600), n40 (2300), n41 (2500), n48 (3500), n66 (1700/2100), n71 (600), n77 (3700), n78 (3500), n79 (4900)
Peak Uplink
Up to 660 Mbps
LTE Fdd Bands
B1 (2100), B2 (1900), B3 (1800), B4 (1700), B5 (850), B7 (2600), B8 (900), B12 (700), B13 (700), B14 (700), B17 (700), B18 (850), B19 (850), B20 (800), B25 (1900), B26 (850), B28 (700), B29 (700), B30 (2300), B32 (1500), B66 (1700), B71 (600)
LTE Tdd Bands
B34 (2000), B38 (2600), B39 (1900), B40 (2300), B41 (2500), B42 (3500), B43 (3700), B46 (5200), B48 (3500)
Peak Downlink
Up to 4.14 Gbps
Transmit Power
5G NR 23 dBm ± 1.5; ENDC 20 dBm ± 1; LTE 23 dBm ± 1; LTE HPUE 25 dBm ± 1 (B41 SA only)
Private Cellular
yes, incl. CBRS Band 48 (FCC Part 96)
Carrier Aggregation
LTE: 7 CA DL / 2 CA UL; LTE + 5G NR ENDC: 1 CA DL / 1 CA UL
Network Operator Standards
PTCRB (U.S., Canada); GCF (Worldwide)
Public Safety Certifications
FirstNet Trusted, T-Mobile Connecting Heroes, Verizon Frontline
Network Operator Certifications
AT&T, T-Mobile, Verizon

Physical

Weight
0.86 kg (1 lb 14 oz)

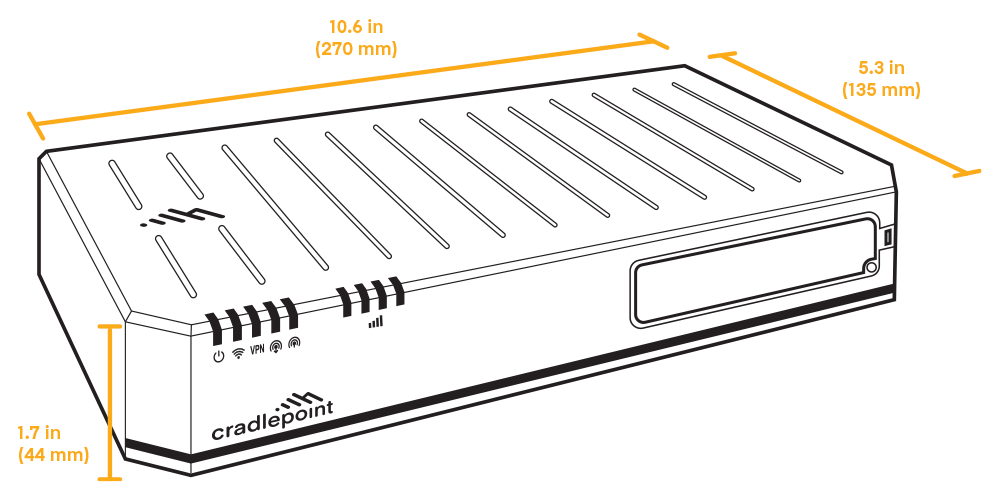

Dimensions
135 x 270 x 44 mm (5.3 x 10.6 x 1.7 in)

Interfaces

USB
1 x USB 2.0 Type A (5 V, 500 mA, 2.5 W)
Modem
Embedded 5G low/mid-band modem, 4 x SMA; optional MC400 dual modem
Ethernet
5 x GbE RJ45 + 1 x 10 GbE SFP+, all LAN/WAN switchable
Supported SFP
Finisar FTLF8519P3BNL, FTLF1318P3BTL
Expansion Slot
1 x expansion slot (MC20BT Bluetooth LE module)
GNSS Connector
1 x SMA GNSS antenna connector
Modular Modem Slot
1 x MC400 slot (300 Mbps peak)
Supported SFP Plus
Finisar FTLX8574D3BCL, FTLX1475D3BCL, FCBG110SD1Cxx

Wi-Fi Power

IC
2.4 GHz 33.14; 5150–5250 25.74; 5250–5350 25.84; 5470–5725 29.82; 5725–5850 32.81 dBm EIRP
Fcc
2.4 GHz 33.14; 5150–5250 32.94; 5250–5350 29.90; 5470–5725 30.00; 5725–5850 32.81 dBm EIRP
Europe
2.4 GHz 19.93; 5150–5250 22.76; 5250–5350 22.92; 5500–5700 29.08 dBm EIRP
Australia New Zealand
AU/NZ: 2.4 GHz 19.93; 5150–5250 22.98; 5250–5350 22.98; 5500–5700 29.82; 5475–5825 32.81 dBm EIRP

Performance

Vlans
Up to 64 Layer 2 / Layer 3 VLANs
Stateful Firewall
940 Mbps
Typical Client Count
50
Concurrent VPN Tunnels
20
Concurrent Tcp Sessions
130,000
Point TO Point Ipsec VPN
400 Mbps
Sase Secure Connect SD WAN
IPsec 400 Mbps; Microtunnel 600 Mbps
Ips Application Aware Client Analytics
940 Mbps

Reliability

Calculated MTBF
E300-5GB: 399,642 hours (Telcordia SR332 at 25 °C)

Environmental

Storage Humidity
5% to 95%
Operating Humidity
10% to 90%
Storage Temperature
-20 °C to 70 °C (-4 °F to 158 °F)
Operating Temperature
0 °C to 45 °C (32 °F to 113 °F)

Certifications

Safety
UL/cUL, CB Scheme, EN 60950-1, EN 62368-1
Substance Compliance
WEEE, RoHS, REACH, California Prop 65

Cloud Services

Support
Support for full term (phone 24h weekdays + weekend emergency, web 24x7, chat 24x5)
Warranty
Limited lifetime warranty while NetCloud plan is active
Service Plans
NetCloud Service for Enterprise Branch
Service Add Ons
NetCloud Exchange, NetCloud Advanced
Software Updates
Software updates for full term
Device Management
NetCloud Manager for full term

Questions buyers ask

Is this Cradlepoint E300 a 5G model?

Yes. This SKU is the 5G with Wi-Fi configuration. It has an embedded 5G FR1 NSA/SA modem with LTE Advanced Pro Cat 20 fallback, dual 2FF SIM slots and four included paddle antennas.

What does the TAA in the part number mean?

TAA-BFA3-03005GB-GN is the TAA-compliant ordering option for the United States federal government market.

What is included with the 3-year NetCloud plans?

The Essentials package includes NetCloud Manager cloud management and software updates for the full 3-year term, plus 24x7 support and a limited lifetime warranty. This SKU also includes the NetCloud Advanced plan, which adds further capabilities.

Can I add a second cellular modem?

Yes. The E300 has an MC400 modular modem slot for dual 5G or LTE connectivity. The slot has a peak throughput of 300 Mbps.

How is the hardware warranty handled?

Cradlepoint hardware has a limited lifetime warranty. It applies for as long as the router holds a subscription license to an active NetCloud Service Plan.
