Cradlepoint5G & LTE Routers

Cradlepoint E300 5G Branch Router with Wi-Fi 6 and 5-Year NetCloud Enterprise Branch Essentials Plan (TAA)

5GMPN TAA-BF05-03005GB-GN
  • Wi-Fi 6
  • Dual SIM
  • 5+ × 2.5 Gb+ Ethernet
  • GPS/GNSS
  • FirstNet Ready
  • 5 years included
$2,890.66$3,159.00Save $268.34

In stock · only 4 leftShips from the US

Included subscription · 5 years
1 year−$891.663 years+$128.115 years
Compliance · TAA compliant
StandardTAA compliant
Region · North America
North AmericaEMEA + APAC−$1,061.46
Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans
Compare all 17 configurations

Datasheets & documents

Overview

The Cradlepoint E300 (TAA-BF05-03005GB-GN) is an all-in-one branch router with an embedded 5G low/mid-band modem, dual-band 2x2 Wi-Fi 6, five switchable Gigabit Ethernet ports and a 10 GbE SFP+ port. It is bundled with a 5-year NetCloud Enterprise Branch Essentials plan and ordered as a TAA-compliant SKU for U.S. Federal Government buyers. It suits pop-up sites, branches, stores and clinics that need cellular connectivity from day one, SD-WAN and cloud management.

  • Embedded 5G FR1 NSA/SA modem with LTE Advanced Pro Cat 20, dual SIM slots and up to 4.14 Gbps peak downlink
  • 5 x GbE RJ45 and 1 x 10 GbE SFP+ ports, all LAN/WAN switchable
  • Dual-band concurrent 2x2 MU-MIMO Wi-Fi 6 with WPA3 and up to 1,200 Mbps on 5 GHz
  • 940 Mbps stateful firewall and IPS throughput, 400 Mbps IPsec VPN, 20 concurrent VPN tunnels
  • MC400 modular modem slot for dual-modem connectivity; acts as controller for Cradlepoint 5G Wideband Adapters
  • 5-year NetCloud Enterprise Branch Essentials plan with NetCloud Manager, software updates and 24x7 support
  • TAA-compliant SKU for U.S. Federal Government ordering
  • Open a site on day one over 5G or LTE, without waiting for a wired circuit to be installed

The Ericsson Cradlepoint E300 brings routing, security, Wi-Fi and cellular WAN together in one compact unit for small to mid-sized branches, temporary locations, retail stores and clinics. This package pairs the E300 in its 5G with Wi-Fi hardware configuration with a 5-year NetCloud Enterprise Branch Essentials plan. It is a TAA-compliant ordering option for the U.S. Federal Government.

The embedded 5G FR1 modem supports NSA and SA operation, LTE Advanced Pro Category 20 and dual 2FF SIM slots. It reaches peak rates of up to 4.14 Gbps downlink and 660 Mbps uplink, and four external paddle antennas are included. The modem is certified on AT&T, T-Mobile and Verizon, carries FirstNet Trusted, T-Mobile Connecting Heroes and Verizon Frontline public safety certifications, and supports private CBRS networks on Band 48. You can use it as the only WAN, or run a wired broadband link with 5G or LTE failover. An MC400 modular modem slot adds a second cellular modem, and the E300 can act as the controller for Cradlepoint 5G Wideband Adapters.

On the LAN side, the router provides five GbE RJ45 ports and one 10 GbE SFP+ port, all LAN/WAN switchable. It also has concurrent dual-band 2x2 MU-MIMO Wi-Fi 6 with WPA3. Rated performance covers 940 Mbps stateful firewall and IPS throughput, 400 Mbps IPsec VPN, 20 concurrent VPN tunnels and a typical load of 50 clients.

The Essentials plan covers NetCloud Manager device management and software updates for the full term. It also includes 24x7 support and a limited lifetime hardware warranty that runs while the NetCloud subscription stays active. NetCloud Advanced can be added at any time for more capabilities. The Cradlepoint E300 datasheet is available for deployment planning.

Ideal for

  • Pop-up and temporary sites that need connectivity before a wired circuit is installed
  • Retail stores and clinics running wired broadband with 5G or LTE failover
  • Federal branch offices ordering through TAA-compliant procurement
  • All-wireless branches using dual cellular modems for WAN redundancy
  • Private CBRS Band 48 cellular deployments

Specifications

Power

Input
100-240 VAC, 1 A
Output
12 VDC, 3 A
Consumption
Idle 9 W, typical 13 W, heavy 17 W
Power Supply
External power supply included

General

MPN
TAA-BF05-03005GB-GN
UPC
840292702677
Brand
Cradlepoint (Ericsson Cradlepoint)
Model
Cradlepoint E300
Region
United States: Federal Government
Manufacturer
Ericsson Enterprise Wireless (Ericsson Cradlepoint)
TAA Compliant
TAA-compliant SKU
Product Status
Active
Shipping Weight
3.00 lb (shipping)
Hardware Configuration
5G with Wi-Fi

Physical

Weight
0.86 kg (1 lb 14 oz)

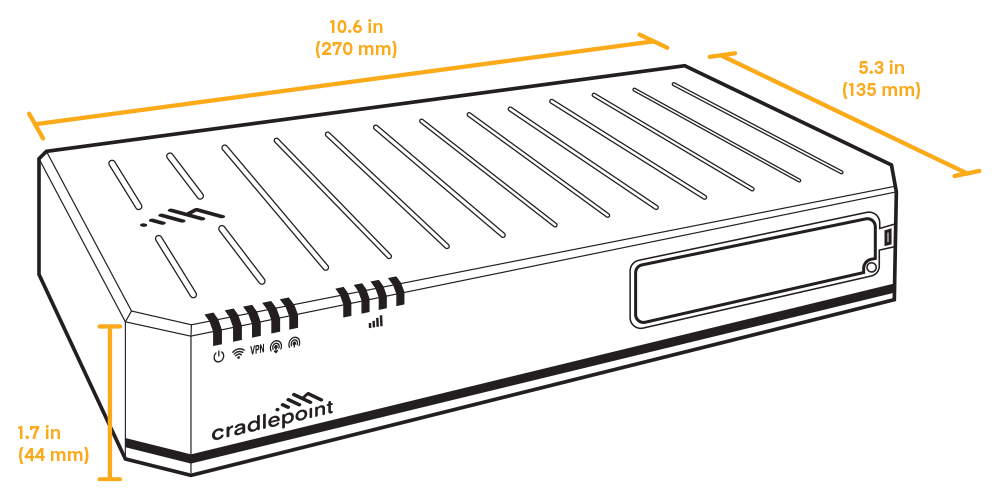

Dimensions
135 x 270 x 44 mm (5.3 x 10.6 x 1.7 in)

Interfaces

USB
1 x USB 2.0 Type A (5 V, 500 mA, 2.5 W)
Wi-Fi
Dual-radio, dual-band concurrent 2x2 MU-MIMO Wi-Fi 6 with DFS
Modem
Embedded 5G low/mid-band modem, 4 x SMA connectors

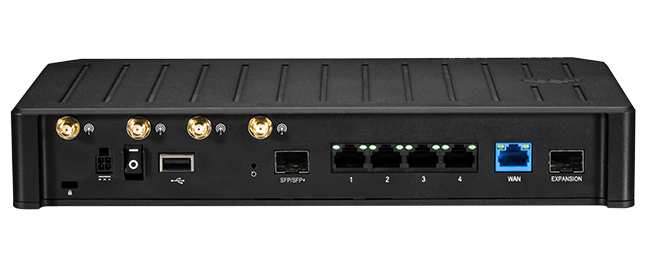

Ethernet
5 x GbE RJ45, 1 x 10 GbE SFP+ (all LAN/WAN switchable)
GNSS GPS
1 x SMA GNSS antenna connector
Expansion
MC400 modem slot (300 Mbps peak), expansion slot, MC20BT Bluetooth LE module
Wi-Fi Antenna
Internal 2x2 antenna
Wi-Fi Features
Global Optimized Wi-Fi; 802.11k, 802.11v
Wi-Fi Security
WPA/WPA2/WPA3 Personal, WPA2/WPA3 Enterprise, Open
Wi-Fi Data Rates
574 Mbps (2.4 GHz), 1,200 Mbps (5 GHz)
Optional Dual Modem
Modular MC400 Modem
Supported SFP Modules
Finisar FTLF8519P3BNL, FTLF1318P3BTL; SFP+: Finisar FTLX8574D3BCL, FTLX1475D3BCL, FCBG110SD1Cxx

Wi-Fi Power

IC
2.4 GHz 33.14; 5150–5250 25.74; 5250–5350 25.84; 5470–5725 29.82; 5725–5850 32.81 dBm EIRP
Fcc
2.4 GHz 33.14; 5150–5250 32.94; 5250–5350 29.90; 5470–5725 30.00; 5725–5850 32.81 dBm EIRP
Europe
2.4 GHz 19.93; 5150-5250 22.76; 5250-5350 22.92; 5500-5700 29.08 dBm EIRP
Australia New Zealand
AU/NZ: 2.4 GHz 19.93; 5150-5250 22.98; 5250-5350 22.98; 5500-5700 29.82; 5475-5825 32.81 dBm EIRP

Performance

Vlans
Up to 64 Layer 2 / Layer 3 VLANs
Stateful Firewall
940 Mbps
Typical Client Count
50
Concurrent VPN Tunnels
20
Concurrent Tcp Sessions
130,000
Point TO Point Ipsec VPN
400 Mbps
Sase Secure Connect SD WAN
IPsec 400 Mbps; Microtunnel 600 Mbps
Ips Application Aware Client Analytics
940 Mbps

Reliability

Calculated MTBF
399,642 hours (Telcordia SR332 at 25 °C)

Subscription

Plan
5-Year NetCloud Enterprise Branch Essentials Plan
Term
5 years
Support
24x7 support for the full subscription term
Warranty
Limited lifetime warranty with active NetCloud plan
Service Plans
NetCloud Service for Enterprise Branch
Available Terms
1, 3 & 5 years
Service Add Ons
NetCloud Exchange, NetCloud Advanced
Software Updates
Software updates for the full subscription term
Device Management
NetCloud Manager for the full subscription term

Environmental

Storage Humidity
5% to 95%
Operating Humidity
10% to 90%
Storage Temperature
-20 °C to 70 °C (-4 °F to 158 °F)
Operating Temperature
0 °C to 45 °C (32 °F to 113 °F)

Cellular Modem

SMS
Yes
MIMO
4x4 MIMO
Three G
WCDMA/UMTS/HSPA+
Antennas
4 x 600 MHz-6 GHz paddle antennas included (SMA female)
GNSS GPS
Passive GNSS (multiplexed with DIV/MIMO2 ports)
LTE Bands
FDD B1-B5, B7, B8, B12-B14, B17-B20, B25, B26, B28-B30, B32, B66, B71; TDD B34, B38-B43, B46, B48
Modulation
Up to 256 QAM DL/UL (carrier-equipment dependent)
Peak Rates
Up to 4.14 Gbps down / 660 Mbps up
Regulatory
FCC, CE, RCM
Technology
5G FR1 NSA/SA + LTE Cat 20, dual 2FF SIM, 3GPP Rel. 15
Transmit Power
5G NR 23 dBm ± 1.5; ENDC 20 dBm ± 1; LTE 23 dBm ± 1; HPUE 25 dBm ± 1 (B41 SA)
Five G NR Bands
n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41, n48, n66, n71, n77, n78, n79 (NSA and SA)
Carrier Aggregation
LTE: 7 CA DL / 2 CA UL; ENDC: 1 CA DL / 1 CA UL
Private Cellular Network
Yes, CBRS Band 48 (FCC Part 96)
Network Operator Standards
PTCRB (U.S., Canada); GCF (Worldwide)
Public Safety Certifications
FirstNet Trusted, T-Mobile Connecting Heroes, Verizon Frontline
Network Operator Certifications
AT&T, T-Mobile, Verizon

Certifications

Safety
UL/cUL, CB Scheme, EN 60950-1, EN 62368-1
Substance Compliance
WEEE, RoHS, REACH, California Prop 65

Product Summary

PoE
No
Wi-Fi
Dual-band, dual-concurrent Wi-Fi 6
Category
Branch
GPS GNSS
Yes
USB Ports
1
Throughput
940 Mbps (firewall)
Form Factor
Industrial plastic
VPN Tunnels
20
Serial Ports
0
Five G Status
5G embedded or with Cradlepoint 5G Adapter
Ethernet Ports
5 GbE (LAN/WAN switchable), 1 SFP+
Cloud Management
Yes
Special Features
5G embedded or paired with W-Series Adapters, dual modem, private cellular, NetCloud Exchange
Dual Modem Support
Yes
Wireless Connectivity
5G or LTE
Private Cellular Network
Yes — CBRS, 4G LTE, 5G
Network Operator Standards
PTCRB (U.S.), GCF (global)

Questions buyers ask

Does this E300 have a 5G modem?

Yes. This SKU uses the 5G with Wi-Fi hardware configuration. It has an embedded 5G FR1 low/mid-band modem that supports NSA and SA plus LTE Advanced Pro Category 20, with four external paddle antennas included.

What does the 5-year Essentials plan include?

The plan provides NetCloud Manager device management and software updates for five years. It also includes 24x7 support and a limited lifetime hardware warranty that applies while the subscription stays active. NetCloud Advanced can be added at any time.

Can I add a second cellular connection?

Yes. The E300 has an MC400 modular modem slot for dual-modem connectivity. It can also act as the controller for Cradlepoint 5G Wideband Adapters.

Which carriers is the 5G modem certified on?

The modem is certified on AT&T, T-Mobile and Verizon. It also holds FirstNet Trusted, T-Mobile Connecting Heroes and Verizon Frontline public safety certifications.

Who is this SKU intended for?

It is a TAA-compliant ordering option for the U.S. Federal Government.
