Fortinet FortiGate Rugged 50G-5G Industrial 5G Firewall with 3-Year Enterprise Protection

5GMPN FGR-50G-5G-BDL-809-36
  • Dual SIM
  • 5+ × 1 Gb Ethernet
  • GPS/GNSS
  • Rugged
  • 3 years included
$11,936.98$16,261.96Save $4,324.98

Backordered · ships as soon as it arrives

Included subscription · 3 years
Hardware only−$6,226.391 year−$3,920.323 years5 years+$3,574.40
Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans
Compare all 7 configurations

Datasheets & documents

Overview

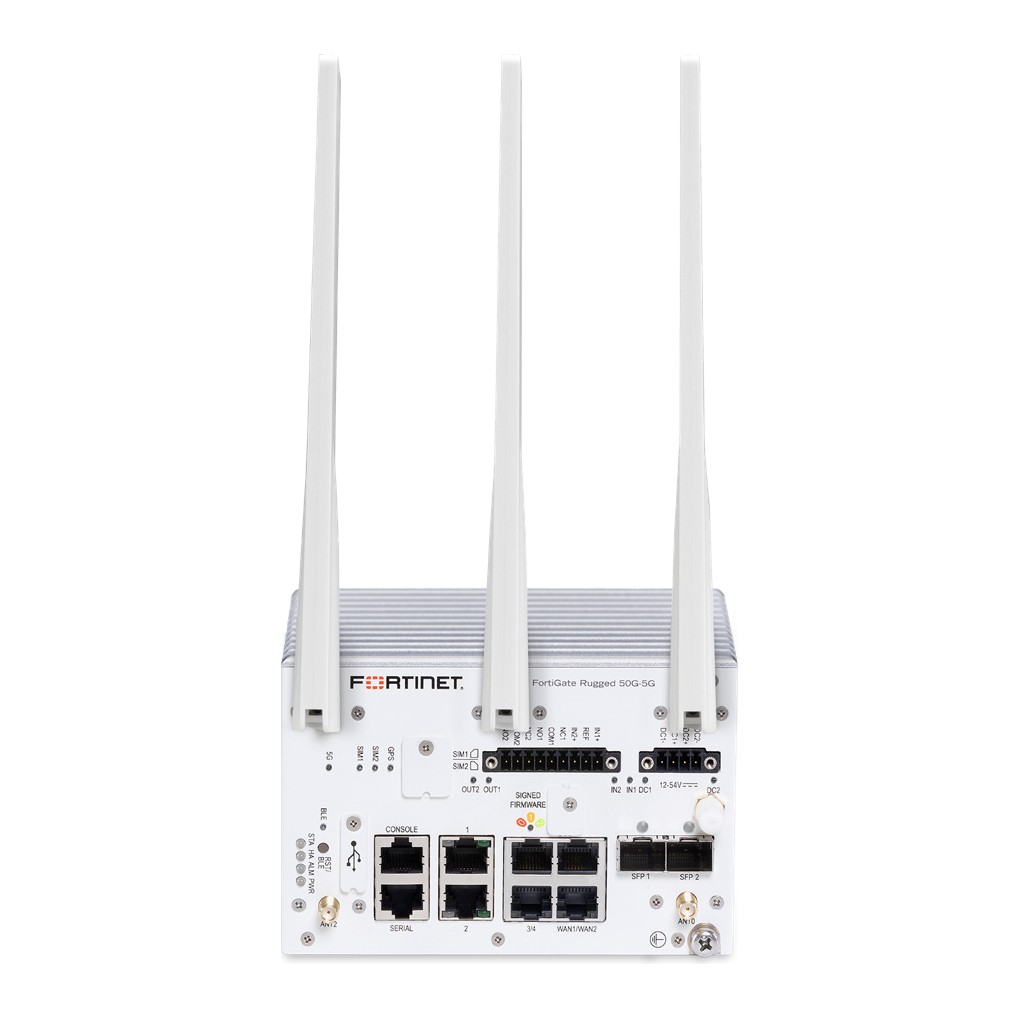

The Fortinet FortiGate Rugged 50G-5G (FGR-50G-5G-BDL-809-36) is a fanless, DIN-rail next-generation firewall with an embedded dual-SIM 5G modem and GPS, built for industrial and OT networks. It is bundled with a 3-year FortiCare Premium and FortiGuard Enterprise Protection subscription. The appliance delivers up to 1.25 Gbps NGFW and 1.1 Gbps threat protection throughput, operates from -40°C to 75°C, and accepts redundant 12V to 54V DC inputs.

  • Fanless, IP40, DIN-rail appliance rated -40°C to 75°C, IEC 61850-3, IEEE 1613 and EN 50155 certified
  • Embedded Telit Cinterion FN990A28-HP 5G modem with 2 SIM slots (active/passive) and GPS
  • 6 GE RJ45 ports, 2 SFP slots, RJ45 serial, RJ45 console, USB-A 2.0, digital I/O and BLE
  • FortiSP5 processor: up to 6 Gbps firewall, 5.3 Gbps IPsec VPN, 1.25 Gbps NGFW, 1.1 Gbps threat protection
  • Built-in Secure SD-WAN with FortiOS management and security automation
  • Redundant 12V to 54V DC dual power inputs, 16 W average consumption
  • 3-year FortiCare Premium and FortiGuard Enterprise Protection subscription included
  • Deploy full NGFW security in cabinets and enclosures without fans or climate control

The FortiGate Rugged 50G-5G is Fortinet's compact industrial next-generation firewall for substations, rail, transportation and other operational technology sites where a standard office firewall will not survive. This bundle (FGR-50G-5G-BDL-809-36) pairs the hardware with 36 months of FortiCare Premium and FortiGuard Enterprise Protection, Fortinet's most complete security services package.

The fanless, IP40, DIN-rail chassis runs from -40°C to 75°C and is certified to IEC 61850-3 and IEEE 1613 for the electric power industry and EN 50155 for rolling stock. Power comes from redundant 12V to 54V DC dual inputs, with an average draw of 16 W. Connectivity includes six GE RJ45 ports (four LAN, two WAN), two SFP slots, an RJ45 serial data port, an RJ45 console port, USB-A 2.0, Bluetooth Low Energy, a digital I/O module and a TPM.

The embedded Telit Cinterion FN990A28-HP 5G modem has two SIM slots (active/passive), four external SMA WWAN antennas and a passive GPS antenna. It covers a broad set of 5G NR and LTE bands, carries AT&T, T-Mobile, Verizon and PTCRB certification, and is FirstNet Capable (5G) and T-Priority ready.

Powered by the FortiSP5 secure processor and FortiOS, the unit is rated at up to 6 Gbps firewall, 5.3 Gbps IPsec VPN, 2.25 Gbps IPS and 700,000 concurrent sessions, with built-in Secure SD-WAN. The Enterprise Protection bundle adds IPS, anti-malware with FortiGate Cloud Sandbox, AI-based inline malware prevention, URL/DNS/video filtering, DLP, attack surface security, application control, inline CASB and anti-spam. The FortiGate Rugged Series Data Sheet and QuickStart Guide are available for this model.

Ideal for

  • Electric utility substations requiring IEC 61850-3 and IEEE 1613 certified network security
  • Rail and rolling-stock networks needing EN 50155 certified 5G connectivity
  • Remote OT and industrial control sites with dual-SIM 5G primary or backup WAN
  • Public safety and critical infrastructure deployments on FirstNet or T-Priority
  • DIN-rail cabinets in oil and gas, water and transportation facilities

Specifications

General

MPN
FGR-50G-5G-BDL-809-36
Brand
Fortinet
Model
FGR-50G-5G
Bundle
FortiCare Premium + FortiGuard Enterprise Protection (EP)
Bundle Code
809
Product Name
FortiGate Rugged 50G-5G
Services Included
Full FortiGuard Enterprise Protection service set plus FortiCare Premium
Subscription Term
3 years (36 months)

Package

DC Cables
DC cables not included
GPS Antenna
1x external SMA GPS antenna (passive GPS)
Wwan Antennas
4x external SMA WWAN antennas

Overview

Atp Throughput
1.1 Gbps
Ips Throughput
2.25 Gbps
Ngfw Throughput
1.25 Gbps

Cellular Wireless

MIMO
Yes
Wcdma
B1, B2, B4, B5 (B6, B19), B8 (for EU and APAC regions only)
Regions
All Regions
5G Bands
n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29 (SDL), n30, n38, n40, n41, n48, n66, n71, n75 (SDL), n76 (SDL), n77, n78, n79 (PC1.5 support on n41, n77, n78, n79 bands)
Diversity
Yes
GNSS Bias
Yes
LTE Bands
B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29 (SDL), B30, B32 (SDL), B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71
SIM Slots
2 (Active/Passive)
Modem Model
Telit Cinterion FN990A28-HP (2 SIM Slots, Active/Passive)
Gsm Gprs Edge
Not supported
Umts Hspa Plus
B1, B2, B4, B5, B6, B8, B19
Cdma 1xrtt Evdo
Not supported
Maximum TX Power
23 dBm (Power Class 3), 26 dBm (Power Class 2 in B41/n41)

Industry Compliance

RF
EN 301 908-1 V15.2.1 (2023-01); EN 301 908-2 V13.1.1 (2020-06); EN 301 908-13 V13.2.1 (2022-02); Draft EN 301 908-25 V15.1.1; EN 300 328 V2.2.2 (2019-07); EN 303 413 V1.2.1 (2021-04); EN 18031-1:2024; EN IEC 62311:2020; EN 50665:2017; FCC Part 15 Subpart C 15.247; FCC 47 CFR Part 2.1091; ISED RSS-247 Issue 3; RSS-102 Issue 6
Emc
EN 55032:2015 + A1:2020, Class A; EN 55035:2017 + A11:2020; ETSI EN 301 489-1 V2.2.3 (2019-11); ETSI EN 301 489-17 V3.2.4 (2020-09); ETSI EN 301 489-19 V2.1.1 (2019-04); ETSI EN 301 489-52 V1.2.1 (2021-11)
Rohs
EN IEC 63000:2018, EN 50581:2012
Health And Safety
IEC 62368-1:2014, 2nd Ed.; EN 62368-1:2014; IEC 62368-1:2018, 3rd Ed.; EN IEC 62368-1:2020
Regulatory Compliance
FCC Part 15 Class A, RCM, VCCI Class A, CE, UL/cUL, CB, USGv6/IPv6
Rolling Stock Industry
EN 50155:2021; EN 50121-1:2017; EN 50121-3-2:2016 + A1:2019; EN 50121-4:2016 + A1:2019; EMC, Environmental, Shock and Vibration Certified
Electric Power Industry
IEC 61850-3 and IEEE 1613 Certified

Dimensions And Power

Weight
3.97 lbs (1.8 kg)
IP Rating
IP40
Form Factor
DIN-rail
Antenna Size
205 mm x 25 mm (H x W)
Power Supply
12V to 54V DC redundant dual inputs, 2 pins per terminal block, negative or positive ground, DC cables not included
Dimensions IN
5.47 x 3.52 x 4.80 in (H x W x L)
Dimensions MM
139 x 89.5 x 122 mm (H x W x L)
Maximum Current
12V DC / 2A
Heat Dissipation
82 BTU/h
Power Consumption
16 W / 24 W (average / maximum)

Modem Certifications

Module Certifications
FCC, IC, RED, NCC, JATE/TELEC, KC, NCC+, RCM, GCF, PTCRB, AT&T, FirstNet, KDDI, KT, Telstra, T-Mobile US, Verizon, T-Priority

Operating Environment

Humidity
5% to 95% non-condensing
Operating Altitude
Up to 10,000 ft (3048 m)
Storage Temperature
-40°F to 185°F (-40°C to 85°C)
Operating Temperature
-40°F to 167°F (-40°C to 75°C)

Carrier Certifications

Att
Yes
Ptcrb
Yes
Verizon
Yes
T Mobile
Yes

Enterprise Traffic Mix

Ips Throughput
2.25 Gbps
Ngfw Throughput
1.25 Gbps
Threat Protection Throughput
1.1 Gbps

Interfaces And Modules

Processor
FortiSP5
Console Port
1 RJ45
Cellular Modem
5G, GPS
Serial Interface
1 RJ45
Digital I/O Module
Yes
Microsd Card Slot
None
USB Client Server
1 USB-A 2.0
Bypass GE Port Pair
None
Bluetooth Low Energy
Yes
GE LAN WAN Interfaces
6 RJ45
Dedicated GE SFP Slots
2
Trusted Platform Module
Yes

Public Safety Networks

Att Firstnet
FirstNet Capable (5G)
Verizon Frontline
In Progress
T Mobile T Priority
Yes

System Performance And Capacity

Max Fortiaps
16 / 8 (total / tunnel)
Max Fortitokens
500
Virtual Domains
5 / 5 (default / maximum)
Firewall Latency
2.43 μs (64 byte, UDP)
Firewall Policies
2,000
High Availability
Active-Active, Active-Passive, Clustering
Max Fortiswitches
8
Ssl Inspection Cps
699 (IPS, avg. HTTPS)
Ipsec VPN Throughput
5.3 Gbps (512 byte)
Concurrent Sessions Tcp
700,000
Firewall Throughput Pps
9 Mpps
Ipv4 Firewall Throughput
6 / 6 / 6 Gbps (1518 / 512 / 64 byte UDP)
Ssl Inspection Throughput
1.3 Gbps (IPS, avg. HTTPS)
New Sessions Per Second Tcp
85,000
Application Control Throughput
3 Gbps (HTTP 64K)
Client TO Gateway Ipsec Tunnels
250
Gateway TO Gateway Ipsec Tunnels
200
Ssl Inspection Concurrent Sessions
74,000 (IPS, avg. HTTPS)

Questions buyers ask

What is included with FGR-50G-5G-BDL-809-36?

The FortiGate Rugged 50G-5G hardware plus a 3-year (36-month) FortiCare Premium and FortiGuard Enterprise Protection subscription. The hardware ships with four external SMA WWAN antennas and one external SMA GPS antenna; DC cables are not included.

Which cellular carriers is it certified for?

The unit is carrier certified for AT&T, T-Mobile and Verizon and is PTCRB certified. It is FirstNet Capable (5G) and supports T-Mobile T-Priority; Verizon Frontline is listed as in progress.

How is the appliance powered and mounted?

It mounts on DIN rail and runs from redundant 12V to 54V DC dual inputs on terminal blocks, with negative or positive ground. Average consumption is 16 W and maximum is 24 W.

What environments is it rated for?

It operates from -40°C to 75°C, 5% to 95% non-condensing humidity and up to 10,000 ft, in a fanless IP40 indoor enclosure. It is certified to IEC 61850-3, IEEE 1613 and EN 50155.

Does it support SIM failover?

Yes. The Telit Cinterion FN990A28-HP modem has two SIM slots operating in active/passive mode, and the firewall also has two GE RJ45 WAN ports for wired uplinks alongside built-in Secure SD-WAN.
