Fortinet FortiGate Rugged 60G-5G 5G Firewall with 1-Year FortiCare Premium and Enterprise Protection

5GMPN FGR-60G-5G-BDL-809-12
  • Dual SIM
  • 5+ × 1 Gb Ethernet
  • GPS/GNSS
  • Rugged
  • 1 year included
$8,101.62$11,037.00Save $2,935.38

Backordered · ships as soon as it arrives

Included subscription · 1 year
Hardware only−$2,908.281 year3 years+$4,944.075 years+$9,451.89
Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans
Compare all 7 configurations

Datasheets & documents

Overview

The FGR-60G-5G-BDL-809-12 bundle pairs the Fortinet FortiGate Rugged 60G-5G, a fanless IP40 industrial firewall with an embedded Telit Cinterion 5G modem, with a 1-year (12-month) FortiCare Premium and FortiGuard Enterprise Protection subscription. Enterprise Protection covers IPS, anti-malware with FortiGate Cloud Sandbox, URL, DNS and video filtering, anti-spam, AI-based inline malware prevention, DLP and attack surface security. That gives an OT or remote site hardware and threat intelligence under one order.

  • FortiGate Rugged 60G-5G hardware with 12 months of FortiCare Premium and FortiGuard Enterprise Protection
  • Enterprise Protection: IPS, anti-malware with FortiGate Cloud Sandbox, URL/DNS/video filtering, anti-spam, DLP and attack surface security
  • Embedded Telit Cinterion FN990A28-HP 5G modem with 2 SIM slots and passive GPS
  • Fanless IP40 chassis rated for -40°C to 75°C; IEC 61850-3, IEEE 1613 and EN 50155:2021 certified
  • 6 GE RJ45 ports, 2 SFP slots, bypass pair, RJ45 serial, digital I/O and microSD
  • Up to 1.1 Gbps threat protection and 7.1 Gbps IPsec VPN throughput
  • Order the rugged 5G firewall and a full year of FortiGuard security services under one part number
  • Activate IPS, anti-malware, sandboxing and web filtering from day one of the 12-month term

This bundle combines the FortiGate Rugged 60G-5G appliance with 12 months of FortiCare Premium support and FortiGuard Enterprise Protection (bundle code 809). It is aimed at industrial, utility, transportation and OT teams that want the rugged hardware and a full security-services stack on one SKU. The Enterprise Protection bundle includes the following services:

- IPS with malicious and botnet URL blocking - Anti-malware protection, including AV, botnet domains, mobile malware, virus outbreak protection, content disarm and reconstruct, AI-based heuristic AV and FortiGate Cloud Sandbox - URL, DNS and video filtering with malicious certificate detection - Anti-spam and AI-based inline malware prevention - Data loss prevention - Attack surface security: IoT device detection, IoT vulnerability correlation and virtual patching, security rating and outbreak check - FortiConverter service for a one-time configuration conversion

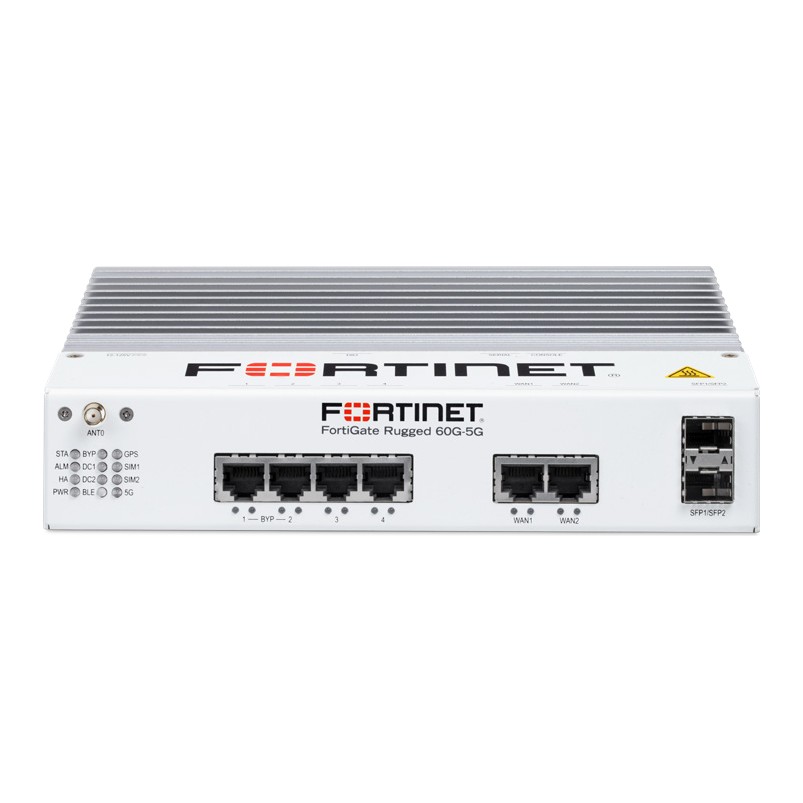

The hardware is a fanless IP40 appliance for desktop, DIN rail or wall mounting, rated from -40°C to 75°C. It is certified to IEC 61850-3, IEEE 1613 and EN 50155:2021. The embedded Telit Cinterion FN990A28-HP 5G modem covers 5G NR bands including n41, n71, n77 and n78, plus LTE, for all regions. It has two SIM slots (active/passive), passive GPS and four external SMA antennas. Carrier certifications cover PTCRB, AT&T and T-Mobile, with Verizon in progress, and the unit is AT&T FirstNet Capable (5G).

The wired interfaces are 6 GE RJ45 LAN/WAN ports, 2 dedicated SFP slots, a PORT1-2 bypass pair, RJ45 data serial and console ports, USB-A 2.0, digital I/O and microSD. The FortiSP5 processor delivers up to 8 Gbps firewall, 7.1 Gbps IPsec VPN and 1.1 Gbps threat protection throughput, and Fortinet lists these metrics as provisional. Power comes from redundant 12V to 125V DC inputs. The FortiGate Rugged Series Data Sheet and the 60G-5G QuickStart Guide document the platform.

Ideal for

  • New rugged 5G firewall deployments that need IPS, anti-malware and web filtering active from day one
  • Utility substations and OT networks that require IoT/OT device detection and virtual patching
  • Rolling stock and transit security gateways with 5G backhaul
  • Remote industrial sites that want hardware, support and threat intelligence on a single order
  • Migrating from another firewall platform using the included FortiConverter service

Specifications

General

MPN
FGR-60G-5G-BDL-809-12
UPC
195875598087
Brand
Fortinet
Product Name
FortiGate Rugged 60G-5G
Product Type
Ruggedized 5G NGFW with security services bundle
Hardware Model
FGR-60G-5G

Package

Ips
IPS, malicious/botnet URLs
Anti Spam
Included
DC Cables
DC power cables not included
Forticare
FortiCare Premium
Bundle Code
809
Bundle Name
FortiCare Premium + FortiGuard Enterprise Protection (EP)
Shipping Weight
1.00 lbs
Subscription Term
12 months (1 year)
Data Loss Prevention
Included
Forticonverter Service
FortiConverter one-time configuration conversion
Anti Malware Protection
AV, botnet domains, mobile malware, virus outbreak protection, content disarm and reconstruct, AI-based heuristic AV, FortiGate Cloud Sandbox
Attack Surface Security
IoT device detection, IoT vulnerability correlation and virtual patching, security rating, outbreak check
Url Dns Video Filtering
URL, DNS and video filtering, malicious certificate
AI Inline Malware Prevention
Included

Cellular Wireless

GPS
Passive GPS (combined with ANT1)
MIMO
Yes
Wcdma
B1, B2, B4, B5 (B6, B19), B8 (for EU and APAC regions only)
Regions
All Regions
5G Bands
n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29 (SDL), n30, n38, n40, n41, n48, n66, n71, n75 (SDL), n76 (SDL), n77, n78, n79 (PC1.5 support on n41, n77, n78, n79)
Diversity
Yes
GNSS Bias
Yes
LTE Bands
B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29 (SDL), B30, B32 (SDL), B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71
Modem Model
Telit Cinterion FN990A28-HP (2 SIM slots, active/passive)
Gsm Gprs Edge
Not supported
Maximum TX Power
23 dBm (Power Class 3), 26 dBm (Power Class 2 in B41/n41)
Umts Hspa Plus Bands
B1, B2, B4, B5, B6, B8, B19
Cdma 1xrtt EV DO Rev A
Not supported
Wwan Antennas Included
4 x external SMA WWAN antennas

Dimensions And Power

Weight
2.87 lbs (1.30 kg)
IP Rating
IP40
Form Factor
Desktop, DIN-rail or wall mount
Power Supply
12V to 125V DC redundant dual inputs, 2 pins per terminal block, negative or positive ground, DC cables not included
Dimensions IN
1.68 x 8.50 x 6.26 in (H x W x L)
Dimensions MM
42.7 x 216 x 159 mm (H x W x L)
Maximum Current
2.5 A @ 12V
Heat Dissipation
88.7 BTU/h
Antenna Height X Width
205 mm x 25 mm
Power Consumption Avg Max
20.75 W / 26 W

Modem Certifications

Module Certifications
FCC, IC, RED, NCC, JATE/TELEC, KC, NCC+, RCM, GCF, PTCRB, AT&T, FirstNet, KDDI, KT, Telstra

Operating Environment

Humidity
5% to 95% non-condensing
Operating Altitude
Up to 10 000 ft (3048 m)
Storage Temperature
-40°F to 185°F (-40°C to 85°C)
Operating Temperature
-40°F to 167°F (-40°C to 75°C)

Carrier Certifications

Att
Yes
Ptcrb
Yes
Verizon
In Progress
T Mobile
Yes

Enterprise Traffic Mix

Ips Throughput
2.25 Gbps
Ngfw Throughput
1.25 Gbps
Threat Protection Throughput
1.1 Gbps

Interfaces And Modules

Processor
FortiSP5
Console Port
1 x RJ45
Cellular Modem
5G, GPS
Serial Interface
1 x RJ45
Digital I/O Module
Yes
Microsd Card Slot
Yes
USB Client Server
1 x USB-A 2.0
Bypass GE Port Pair
PORT1-2 RJ45
Bluetooth Low Energy
Not supported
GE LAN WAN Interfaces
6 x RJ45
Dedicated GE SFP Slots
2
Trusted Platform Module
Yes

Public Safety Networks

Att Firstnet
FirstNet Capable (5G)
Verizon Frontline
In Progress
T Mobile T Priority
In Progress

System Performance And Capacity

Max Fortitokens
500
Firewall Policies
5000
Max Fortiswitches
24
Ssl VPN Throughput
Not supported
Concurrent Sessions Tcp
1.4 M
Firewall Throughput Pps
12 Mpps
Max Fortiaps Total Tunnel
96 / 48
New Sessions Per Second Tcp
85 000
Virtual Domains Default Max
10 / 10
Firewall Latency 64 Byte Udp
5.82 μs
Ipsec VPN Throughput 512 Byte
7.1 Gbps
High Availability Configurations
Active-Active, Active-Active, Clustering
Ssl Inspection Cps Ips Avg Https
715
Client TO Gateway Ipsec VPN Tunnels
500
Gateway TO Gateway Ipsec VPN Tunnels
200
Application Control Throughput Http 64k
3.6 Gbps
Ssl Inspection Throughput Ips Avg Https
1.4 Gbps
Concurrent Ssl VPN Users Recommended Max
Not supported
Ipv4 Firewall Throughput 1518 512 64 Byte Udp
8 / 8 / 8 Gbps
Ssl Inspection Concurrent Sessions Ips Avg Https
1.4 M

Industry Compliance And Certifications

RF
EN 301 908-1 V15.2.1 (2023-01); EN 301 908-2 V13.1.1 (2020-06); EN 301 908-13 V13.2.1 (2022-02); Draft EN 301 908-25 V15.1.1; EN 300 328 V2.2.2 (2019-07); EN 303 413 V1.2.1 (2021-04); EN 18031-1:2024; EN IEC 62311:2020; EN 50665:2017; FCC Part 15 Subpart C 15.247; FCC 47 CFR Part 2.1091; ISED RSS-247 Issue 3; RSS-102 Issue 6
Emc
EN 55032:2015 + A1:2020, Class A; EN 55035:2017 + A11:2020; ETSI EN 301 489-1 V2.2.3 (2019-11); ETSI EN 301 489-17 V3.2.4 (2020-09); ETSI EN 301 489-19 V2.1.1 (2019-04); ETSI EN 301 489-52 V1.2.1 (2021-11)
Rohs
EN IEC 63000:2018; EN 50581:2012
Health And Safety
IEC 62368-1:2014, 2nd Ed.; EN 62368-1:2014; IEC 62368-1:2018, 3rd Ed.; EN IEC 62368-1:2020; IEC 61000-4-9 Severity 5 (In Progress)
Regulatory Compliance
FCC Part 15 Class A, RCM, VCCI Class A, CE, UL/cUL, CB; IEC 60812:2018 (In Progress); USGv6/IPv6
Rolling Stock Industry
EN 50155:2021; EN 50121-1:2017; EN 50121-3-2:2016 + A1:2019; EN 50121-4:2016 + A1:2019; EMC, environmental, shock and vibration certified
Electric Power Industry
IEC 61850-3 and IEEE 1613 Certified

Questions buyers ask

What does the FGR-60G-5G-BDL-809-12 part number include?

It includes the FortiGate Rugged 60G-5G hardware plus a 12-month (1-year) FortiCare Premium and FortiGuard Enterprise Protection subscription, which Fortinet designates as bundle code 809.

Which security services are in FortiGuard Enterprise Protection?

IPS with malicious/botnet URL blocking; anti-malware protection, including AV, content disarm and reconstruct, and FortiGate Cloud Sandbox; URL, DNS and video filtering; anti-spam; AI-based inline malware prevention; data loss prevention; and attack surface security. A one-time FortiConverter configuration conversion and FortiCare Premium are also included.

Is the hardware 5G?

Yes. The FortiGate Rugged 60G-5G has an embedded Telit Cinterion FN990A28-HP 5G modem with two SIM slots (active/passive), passive GPS and four external SMA WWAN antennas.

Is it FirstNet capable?

Yes. The unit is listed as AT&T FirstNet Capable (5G). T-Mobile T-Priority and Verizon Frontline support are in progress.
