Cradlepoint5G & LTE Routers

Cradlepoint S450 LTE Cat 6 IoT Router with 3-Year NetCloud IoT Essentials Plan (TAA, No Wi-Fi)

4G LTEMPN TAA-TBT3-0450-C6-NA-N
  • Dual SIM
  • 1 × 1 Gb Ethernet
  • GPS/GNSS
  • PoE powered
  • 3 years included
$383.41$419.00Save $35.59

In stockShips from the US

Included subscription · 3 years
3 years5 years+$153.73
Compliance · TAA compliant
StandardTAA compliant
Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans
Compare all 8 configurations

Datasheets & documents

Overview

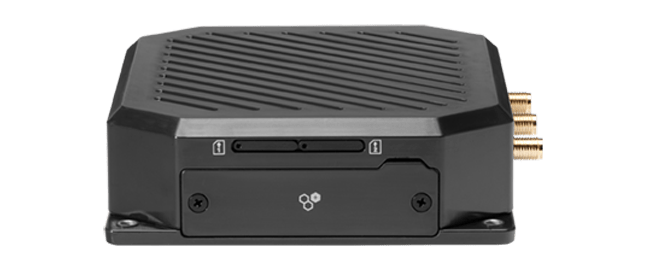

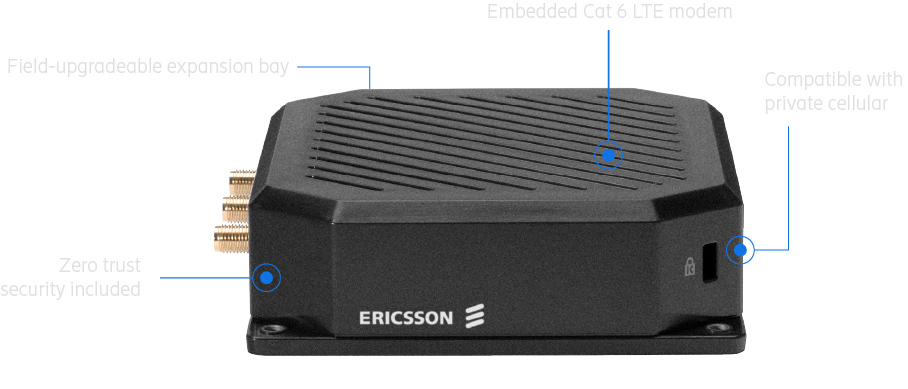

The Cradlepoint S450 is the wired-only version of the S400 platform. It is a cloud-managed, semi-ruggedized Cat 6 LTE router for IoT endpoints where Wi-Fi is not wanted. This TAA-compliant North America package includes a 3-year NetCloud IoT Essentials Plan, an AC power supply and antennas. It offers dual SIM slots, 300 Mbps peak LTE download, a Gigabit Ethernet port, GNSS, and an expansion slot for serial, GPIO or dual Fast Ethernet modules.

  • Embedded Cat 6 LTE modem with 2x2 MIMO, dual 4FF SIM slots and 300 Mbps down / 50 Mbps up peak rates
  • North America LTE bands including B12, B13, B14, B71 and CBRS Band 48
  • Wired-only configuration with no Wi-Fi radio
  • 1 x Gigabit Ethernet (LAN/WAN), USB 2.0 and an expansion slot for serial DB-9, dual Fast Ethernet or GPIO modules
  • Low power draw: 3.3 W typical, 4.6 W heavy, with PoE or 9–33 VDC input
  • 3-year NetCloud IoT Essentials Plan with cloud management, zero trust security and 24x7 support
  • TAA-compliant SKU with AC power supply and antennas included
  • Eliminate an unneeded wireless access point in security-sensitive or wired-only deployments

The Ericsson Cradlepoint S450 shares the compact, semi-ruggedized design of the S400 series but ships without Wi-Fi. That makes it a clean fit for IoT deployments where connected equipment is wired and a wireless access point would be unnecessary or unwelcome, such as kiosks, signage players, controllers and light industrial machines. Part number TAA-TBT3-0450-C6-NA-N is the TAA-compliant North America package, offered for U.S. Federal Government ordering. It includes a 3-year NetCloud IoT Essentials Plan, an AC power supply and antennas.

An embedded Cat 6 LTE modem (3GPP Rel. 11) delivers peak rates of 300 Mbps down and 50 Mbps up. It uses 2x2 MIMO and downlink carrier aggregation, with two 4FF SIM slots and SIM-based auto-carrier selection. The North America modem supports LTE bands B2, B4, B5, B7, B12, B13, B14, B25, B26, B29, B30, B66 and B71, plus TDD B41 and B48 with FCC Part 96 CBRS for private LTE. AT&T, T-Mobile and Verizon are listed as network operator certifications. Wired devices connect through one Gigabit Ethernet port (LAN/WAN selectable), a USB 2.0 port, and an expansion slot for an RS232 DB-9 serial, dual Fast Ethernet or 20-pin GPIO module.

Without the Wi-Fi radio, the S450 draws less power: 2.9 W idle, 3.3 W typical and 4.6 W heavy. It runs from 9–33 VDC or 802.3af PoE and operates from -20 °C to 60 °C. It carries MIL-STD-810H shock and vibration testing plus Class I Div 2 and ATEX 2 certification.

The Essentials plan covers NetCloud Manager management and software updates for the full term, plus zero trust security and 24x7 support. It also provides a limited lifetime hardware warranty while the subscription remains active.

Ideal for

  • Wired-only LTE connectivity for kiosks and point-of-sale endpoints
  • Signage players and controllers where Wi-Fi is prohibited
  • Serial and GPIO integration with industrial equipment
  • Low-power installations running on PoE or DC supplies
  • TAA-compliant IoT deployments for federal and public-sector agencies

Specifications

Power

PoE
802.3af PSE Type 1 (15 W)
Protection
Reverse polarity and transient voltage protection (ISO 7637-2)
Sleep Mode
Not supported
Input Options
One of: DC input or PoE
DC Input Range
9–33 VDC
Consumption Idle
2.9 W (S450 DC)
Fuse 9 TO 12 Vdc
Use a 3 A fuse for 9–12 VDC installations
Fuse Over 12 Vdc
Use a 2 A fuse for > 12 VDC installations
Consumption Heavy
4.6 W (S450 DC)
Consumption Typical
3.3 W (S450 DC)

General

MPN
TAA-TBT3-0450-C6-NA-N
Wi-Fi
No Wi-Fi
Brand
Cradlepoint (Ericsson Enterprise Wireless)
Model
Cradlepoint S450 (S400 series)
Region
North America; U.S. Federal Government ordering option
Package Plan
3-Year NetCloud IoT Essentials Plan
TAA Compliant
TAA-compliant
Product Status
Active
Subscription Term
3 years
Essentials Support
Phone: 24-hour weekdays with emergency response on weekends; web: 24x7; chat: 24x5
Hardware Configuration
Cat 6 LTE without Wi-Fi, with AC power supply and antennas

Cellular

SIM
Dual SIM slots, 4FF form factor
SMS
Yes
GNSS
Active GNSS; GPS, GLONASS, BeiDou, Galileo
MIMO
2x2 MIMO
Antennas
SMA female connectors; external 600 MHz–6 GHz cellular paddle antennas (qty 2)
Modulation
Up to 16 QAM
Regulatory
FCC (U.S.); IC (Canada)
Technology
Cat 6 LTE (3GPP Rel. 11)
Peak Upload
50 Mbps (LTE)
LTE Bands Fdd
B2 (1900), B4 (1700), B5 (850), B7 (2600), B12 (700), B13 (700), B14 (700), B25 (1900), B26 (850), B29 (700), B30 (2300), B66 (1700), B71 (600)
LTE Bands Tdd
B41 (2500), B48 (3500)
Peak Download
300 Mbps (LTE)
Transmit Power
LTE 23 dBm ± 2 (typical conducted)
Carrier Selection
SIM-based auto-carrier selection
Carrier Aggregation
Downlink: up to 2 CA; Uplink: up to 1 CA
Private Cellular Network
Yes, includes FCC Part 96 (CBRS Band 48)
Network Operator Standards
PTCRB (U.S., Canada)
Network Operator Certifications
AT&T, T-Mobile, Verizon

GNSS GPS

Power
Passive (no power provided)
Accuracy
Autonomous @ open sky 2 meter (CEP-50)
Protocols
NMEA 0183; TAIP
Frequencies
L1
Sensitivity
Acquisition: -147 dBm; Tracking: -159 dBm; Reacquisition: -159 dBm
Update Rate
1 Hz (once per second)
Constellations
GPS, Galileo, GLONASS, BDS
Time TO First Fix
30 seconds (cold start)

Physical

Weight
221 g (7.8 oz)

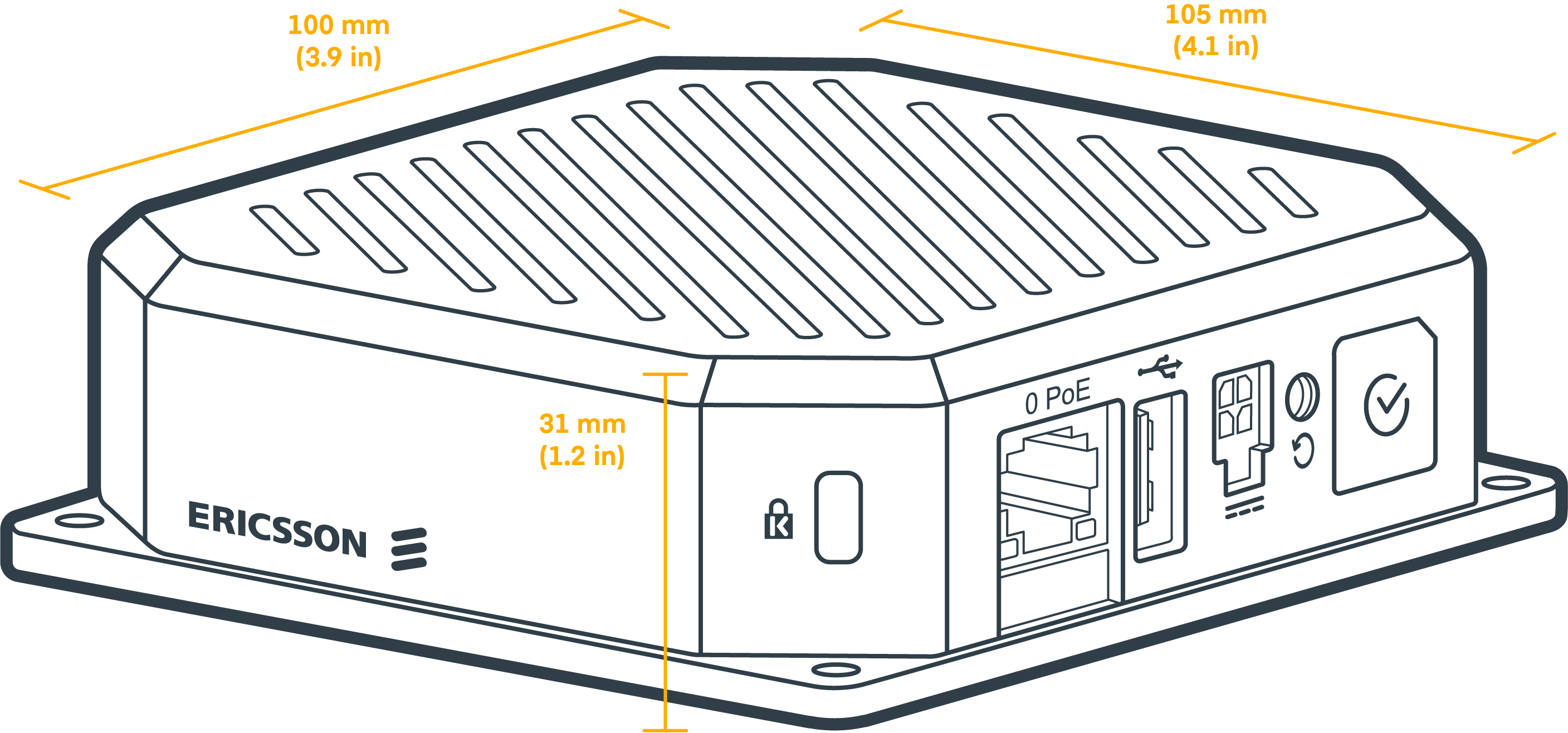

Dimensions
100 x 105 x 31 mm (3.9 x 4.1 x 1.2 in)
Construction
Plastic housing
Shipping Weight
1.23 lb

Interfaces

USB
5 V, 500 mA, 2.5 W)
GNSS
Passive GNSS (multiplex with cellular antenna)
Modem
Embedded Cat 6 LTE modem; 2 x SMA cellular antenna connectors

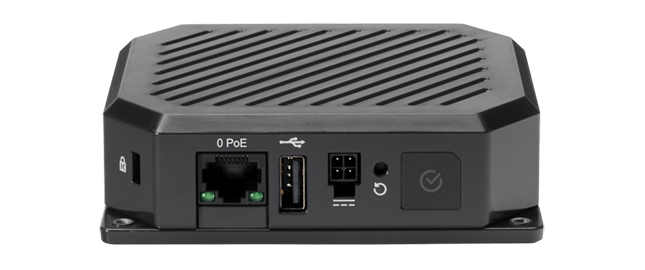

Ethernet
1 x GbE RJ45 (LAN/WAN selectable)
Expansion Slot
1 x expansion module slot
Expansion Gpio Module
GPIO module, 20-pin (2 x 10) Molex Micro-Fit 3.0 connector
Expansion Serial Module
Serial DB-9, RS232 interface with hardware flow control
Expansion Ethernet Module
Dual Fast Ethernet, 2 x FE RJ45 (LAN/WAN selectable)

Performance

Vlans
Up to 64 Layer 2 / Layer 3 VLANs
Stateful Firewall
95 Mbps
Concurrent Sessions
32,000 (TCP)
Ipsec VPN Throughput
Point-to-point IPsec VPN: 20 Mbps
Concurrent VPN Tunnels
5
Typical Iot Client Count
25

Reliability

MTBF
1,828,355 hours (Telcordia SR332 at 25 °C)
MTBF With Db9 Module
1,712,886 hours (Telcordia SR332 at 25 °C)
MTBF With Gpio Module
1,343,279 hours (Telcordia SR332 at 25 °C)
MTBF With Ethernet Module
1,659,720 hours (Telcordia SR332 at 25 °C)

Environmental

Storage Humidity
5% to 95% non-condensing
Ingress Protection
IP30
Operating Humidity
5% to 95% non-condensing
Storage Temperature
-20 °C to 70 °C (-4 °F to 158 °F)
Operating Temperature
-20 °C to 60 °C (-4 °F to 140 °F)

Certifications

Safety
UL/cUL; CB Scheme; EN 62368-1
Regulatory
FCC (U.S.); IC (Canada); CE (EU); RCM (AU/NZ); UKCA (UK); ANATEL (Brazil); IFT (Mexico); SUBTEL (Chile); MCMC (Malaysia); IMDA (Singapore)
Hazardous Locations
Class I Div 2 (North America); ATEX 2 (Europe)
Substance Compliance
WEEE; RoHS; REACH; California Prop 65
Shock Vibration Humidity
MIL STD 810H Method 514.8, Annex C-1, Category 4; Method 516.8, Procedure I; Method 516.8, Procedure V

Cloud Services

Support
NetCloud Packages include support for the full subscription term
Warranty
Limited lifetime warranty for as long as an active NetCloud Service Plan license is maintained
Service Plans
NetCloud Service for IoT
Service Add Ons
NetCloud Exchange, NetCloud Advanced
Software Updates
Via NetCloud Manager for the full subscription term
Device Management
NetCloud Manager for the full subscription term

Questions buyers ask

What is the difference between the Cradlepoint S450 and S400?

The S450 has no Wi-Fi radio and draws less power. Otherwise it shares the S400's Cat 6 LTE modem, Gigabit Ethernet port, USB 2.0, expansion slot, GNSS and semi-ruggedized housing.

What is included with TAA-TBT3-0450-C6-NA-N?

The package includes the Cradlepoint S450 router, a 3-year NetCloud IoT Essentials Plan, an AC power supply and antennas.

Does the S450 support 5G?

No. It is an LTE Cat 6 router with peak rates of 300 Mbps down and 50 Mbps up.

Which LTE bands does the North America S450 support?

It supports FDD bands B2, B4, B5, B7, B12, B13, B14, B25, B26, B29, B30, B66 and B71, plus TDD B41 and B48 (CBRS).

How is the S450 powered?

It runs from a 9–33 VDC input or 802.3af PoE (PSE Type 1, 15 W), and an AC power supply is included in this package.
