Cradlepoint5G & LTE Routers

Cradlepoint S450 LTE Cat 6 IoT Router with 3-Year NetCloud IoT Essentials + Advanced (TAA)

4G LTEMPN TAA-TBV3-0450-C6-NA-N
  • Dual SIM
  • 1 × 1 Gb Ethernet
  • GPS/GNSS
  • PoE powered
  • 3 years included
$581.06$635.00Save $53.94

In stockShips from the US

Included subscription · 3 years
3 years5 years+$153.73
Compliance · TAA compliant
StandardTAA compliant
Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans
Compare all 8 configurations

Datasheets & documents

Overview

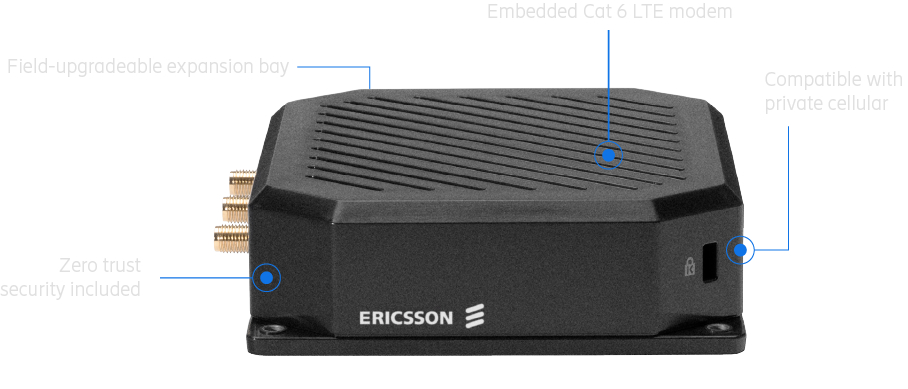

The Cradlepoint S450 is the non-Wi-Fi model of the S400 Series: a compact, semi-ruggedized, cloud-managed LTE router for IoT, kiosk, signage and light-industrial use. This TAA-compliant North America SKU (TAA-TBV3-0450-C6-NA-N) bundles the router with 3-year NetCloud IoT Essentials and Advanced plans, an AC power supply and antennas. It has an embedded Cat 6 LTE modem with dual SIM slots, Gigabit Ethernet, USB 2.0, an expansion module slot and passive GNSS.

  • Embedded Cat 6 LTE modem: 300 Mbps peak download, 50 Mbps upload, 2x2 MIMO, dual 4FF SIM slots
  • North America LTE bands including B12/B13/B14/B71 plus CBRS Band 48 for private LTE
  • 1 x Gigabit Ethernet (LAN/WAN), 1 x USB 2.0 and an expansion slot for serial, dual Fast Ethernet or GPIO modules
  • Passive GNSS supporting GPS, Galileo, GLONASS and BDS
  • Semi-ruggedized: -20 °C to 60 °C operation, MIL-STD-810H shock/vibration, Class I Div 2
  • Power from 9–33 VDC or 802.3af PoE; AC power supply and antennas included
  • 3-year NetCloud IoT Essentials + Advanced plans with NetCloud Manager and 24x7 support
  • Procure through federal channels with a TAA-compliant SKU covering hardware and three years of cloud services

The Ericsson Cradlepoint S450 is a cloud-managed, semi-ruggedized LTE router for IoT networks where devices connect by cable rather than Wi-Fi. It suits controllers, sensors, kiosks and signage players in light-industrial and retail environments. This TAA-compliant package is the U.S. Federal Government ordering option. It pairs the S450 with both the NetCloud IoT Essentials and Advanced plans for three years, plus an AC power supply and antennas.

An embedded Cat 6 LTE modem (3GPP Rel. 11) delivers 300 Mbps peak download and 50 Mbps upload with 2x2 MIMO and downlink carrier aggregation. Dual 4FF SIM slots support SIM-based auto-carrier selection. The North America modem covers LTE bands including B2, B4, B5, B12, B13, B14, B66 and B71, plus CBRS Band 48 for private LTE. The manufacturer lists AT&T, T-Mobile and Verizon operator certifications.

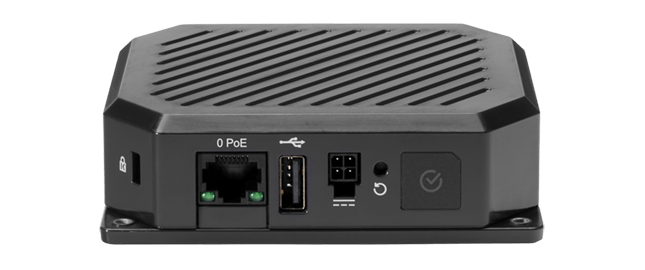

For wired equipment, the S450 has one Gigabit Ethernet port (LAN/WAN selectable) and a USB 2.0 Type-A port. Its expansion slot accepts a serial DB-9 (RS232), dual Fast Ethernet or 20-pin GPIO module. Passive GNSS supports GPS, Galileo, GLONASS and BDS with NMEA 0183 and TAIP output. The unit measures 100 x 105 x 31 mm and draws 3.3 W typical from 9–33 VDC or 802.3af PoE. It operates from -20 °C to 60 °C and carries MIL-STD-810H shock and vibration and Class I Div 2 ratings.

NetCloud Manager covers device management, group policies, software updates and zero-trust connect-and-go security for the full term, with 24x7 support. The limited lifetime hardware warranty applies while the NetCloud subscription is active.

Ideal for

  • Wired IoT gateways for controllers, sensors and PLCs
  • Kiosk and digital signage connectivity where Wi-Fi is not wanted
  • TAA-compliant federal and public-sector IoT rollouts
  • Vehicle-adjacent or portable asset tracking using GNSS
  • Private LTE deployments on CBRS Band 48

Specifications

GNSS

Accuracy
2 m (CEP-50), autonomous at open sky
Protocols
NMEA 0183, TAIP
Frequencies
L1
Update Rate
1 Hz (once per second)
Antenna Power
Passive (no power provided)
Constellations
GPS, Galileo, GLONASS, BDS
Time TO First Fix
30 seconds (cold start)
Sensitivity Tracking
-159 dBm
Sensitivity Acquisition
-147 dBm
Sensitivity Reacquisition
-159 dBm

Power

PoE
PoE 802.3af PSE Type 1 (15 W)
Fusing
3 A fuse (9–12 VDC), 2 A fuse (>12 VDC)
DC Input
9–33 VDC input
Protection
Reverse polarity and transient protection (ISO 7637-2)
Included Supply
AC power supply included
Consumption Idle
S450 DC idle: 2.9 W
Consumption Heavy
S450 DC heavy: 4.6 W
Consumption Sleep
not supported
Consumption Typical
S450 DC typical: 3.3 W

General

MPN
TAA-TBV3-0450-C6-NA-N
Brand
Cradlepoint (Ericsson Enterprise Wireless)
Model
Cradlepoint S450 (S400 Series)
Market
TAA-compliant U.S. Federal Government ordering option, North America modem
Package Plan
3-Year NetCloud IoT Essentials + Advanced Plans
Product Status
Active
Subscription Term
3 years
Hardware Configuration
Cat 6 LTE, no Wi-Fi, AC power supply and antennas included

Cellular

3g
No 3G
SIM
Dual SIM slots, 4FF (Nano) form factor
SMS
SMS supported
MIMO
2x2 MIMO
Antennas
2 x external 600 MHz–6 GHz paddle antennas, SMA female
Modulation
Up to 16 QAM
Regulatory
FCC (U.S.), IC (Canada)
Technology
LTE Cat 6 (3GPP Release 11)
Peak Upload
50 Mbps LTE upload
LTE Fdd Bands
B2 (1900), B4 (1700), B5 (850), B7 (2600), B12 (700), B13 (700), B14 (700), B25 (1900), B26 (850), B29 (700), B30 (2300), B66 (1700), B71 (600)
LTE Tdd Bands
B41 (2500), B48 (3500)
Peak Download
300 Mbps LTE download
Transmit Power
LTE 23 dBm ± 2 (typical conducted)
Carrier Selection
SIM-based auto-carrier selection
Carrier Aggregation
Downlink up to 2CA, uplink up to 1CA
GNSS Constellations
GPS, GLONASS, BeiDou, Galileo
Private Cellular Network
Private LTE: FCC Part 96 CBRS Band 48
Network Operator Standards
PTCRB (U.S., Canada)
Network Operator Certifications
AT&T, T-Mobile, Verizon

Physical

Weight
221 g (7.8 oz)
Dimensions

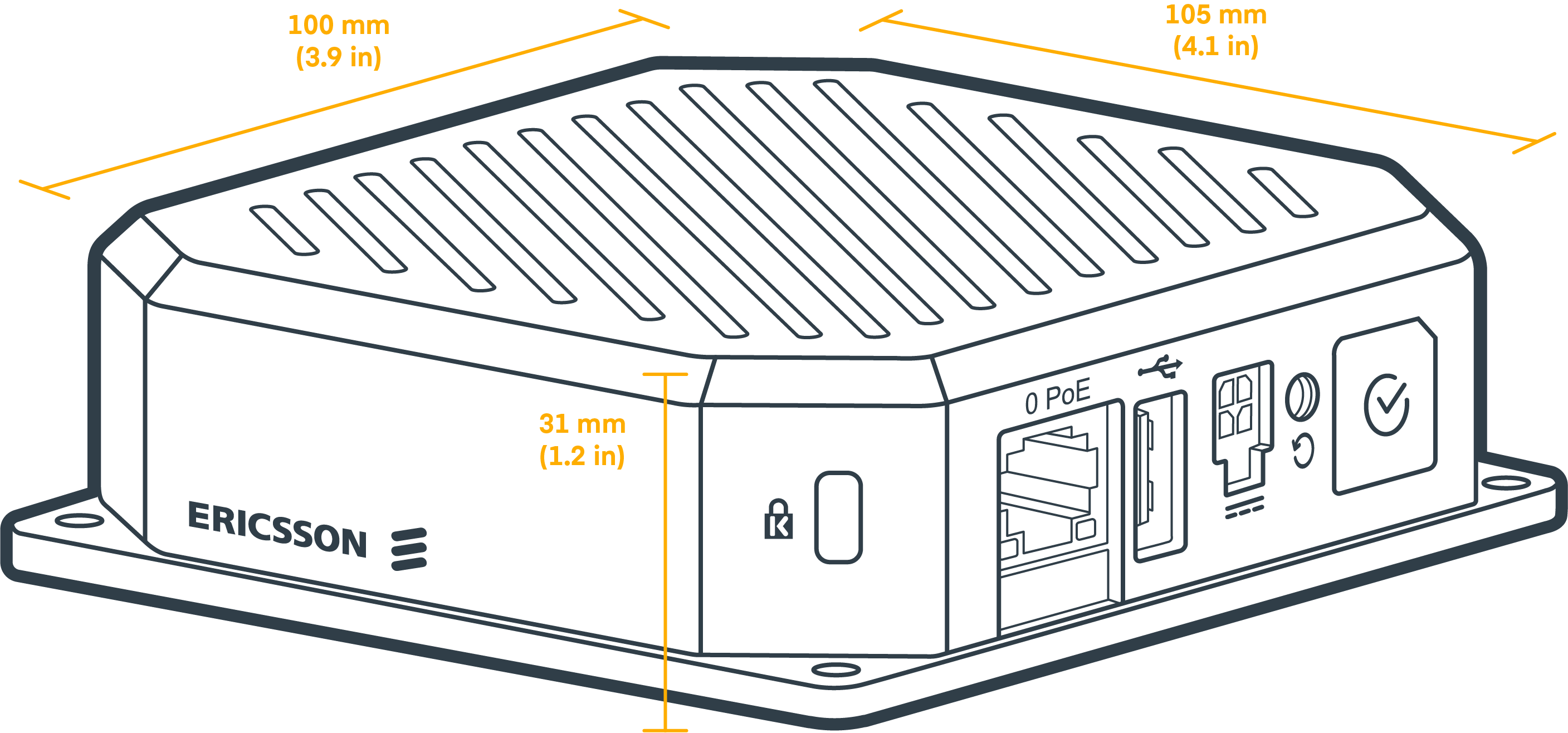

100 x 105 x 31 mm (3.9 x 4.1 x 1.2 in)
Construction
Plastic housing
Shipping Weight
1.23 lb shipping weight

Interfaces

USB
1 x USB 2.0 Type-A, 5 V / 500 mA / 2.5 W output
GNSS
Passive GNSS, multiplexed with cellular antenna
Wi-Fi
No Wi-Fi (S450 is the non-Wi-Fi model)
Modem
Embedded Cat 6 LTE modem, 2 x SMA cellular connectors
Ethernet
1 x Gigabit Ethernet RJ45 (LAN/WAN selectable)
Gpio Module
20-pin Molex Micro-Fit 3.0
Serial Module
Optional module: DB-9 RS232 with hardware flow control
Expansion Slot
1 x expansion module slot
Ethernet Module
Optional module: 2 x Fast Ethernet RJ45 (LAN/WAN selectable)

Performance

Vlans
Up to 64 Layer 2 / Layer 3 VLANs
Ipsec VPN
20 Mbps point-to-point IPsec VPN
Stateful Firewall
95 Mbps stateful firewall
Concurrent Sessions
32,000 concurrent sessions
Typical Iot Clients
25 typical IoT clients
Concurrent VPN Tunnels
5 concurrent VPN tunnels

Reliability

MTBF Base
1,828,355 hours (Telcordia SR332 at 25 °C)
MTBF Db9 Module
With DB9 module: 1,712,886 hours
MTBF Gpio Module
With GPIO module: 1,343,279 hours
MTBF Ethernet Module
With Ethernet module: 1,659,720 hours

Environmental

Storage Humidity
5% to 95% non-condensing
Ingress Protection
IP30
Operating Humidity
5% to 95% non-condensing
Storage Temperature
-20 °C to 70 °C (-4 °F to 158 °F)
Operating Temperature
-20 °C to 60 °C (-4 °F to 140 °F)

Certifications

TAA
TAA-compliant SKU
Safety
UL/cUL, CB Scheme, EN 62368-1
Regulatory
FCC (U.S.), IC (Canada), CE (EU), RCM (AU/NZ), UKCA (UK), ANATEL (Brazil), IFT (Mexico), SUBTEL (Chile), MCMC (Malaysia), IMDA (Singapore)
Hazardous Locations
Class I Div 2 (North America), ATEX 2 (Europe)
Substance Compliance
WEEE, RoHS, REACH, California Prop 65
Shock Vibration Humidity
MIL-STD-810H 514.8 (Annex C-1, Cat. 4), 516.8 Proc. I and Proc. V

Cloud Services

Support
24x7 support for the full subscription term
Warranty
Limited lifetime warranty with active NetCloud subscription
Included Plan
NetCloud IoT Essentials + Advanced Plans, 3 years
Service Plans
NetCloud Service for IoT
Service Add Ons
NetCloud Exchange, NetCloud Advanced
Software Updates
Software updates via NetCloud Manager for the full term
Device Management
NetCloud Manager for the full term

Questions buyers ask

What is the difference between the S450 and S400?

Both share the same Cat 6 LTE modem, ports, GNSS and ruggedization. The S400 adds a dual-band Wi-Fi 5 radio, while the S450 has no Wi-Fi and draws slightly less power.

What does this package include?

It includes the S450 router, 3-year NetCloud IoT Essentials and Advanced plans, an AC power supply and antennas.

Can the S450 connect serial or GPIO equipment?

Yes, through its expansion slot. The slot accepts a DB-9 RS232 serial module, a dual Fast Ethernet module or a 20-pin GPIO module.

Does it support private LTE networks?

Yes. The North America modem supports FCC Part 96 CBRS Band 48 for private cellular networks.

What environments is it rated for?

The S450 operates from -20 °C to 60 °C at 5% to 95% non-condensing humidity and carries an IP30 rating. It meets MIL-STD-810H shock and vibration methods and is certified for Class I Div 2 hazardous locations.
