Cradlepoint S450 LTE Cat 6 IoT Router (No Wi-Fi) with 3-Year NetCloud IoT Essentials Plan (US & Canada)

4G LTEMPN TBT3-0450-C6-NA-N
  • Dual SIM
  • 1 × 1 Gb Ethernet
  • GPS/GNSS
  • PoE powered
  • 3 years included
$383.41$419.00Save $35.59

In stockShips from the US

Included subscription · 3 years
3 years5 years+$153.73
Compliance · Standard
StandardTAA compliant
Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans
Compare all 8 configurations

Datasheets & documents

Overview

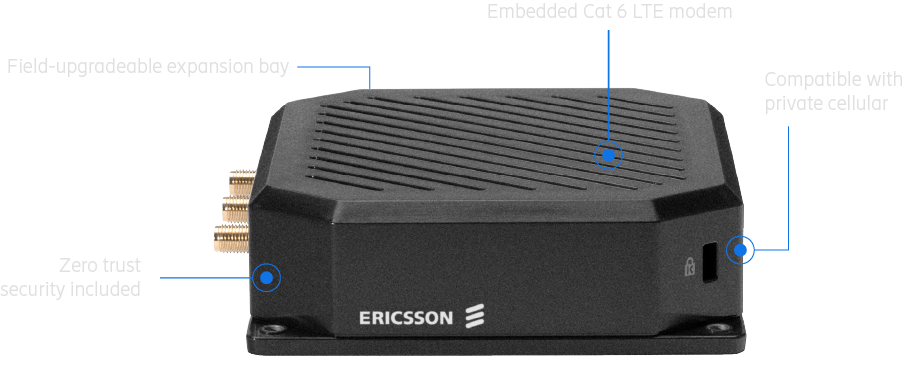

The Cradlepoint S450 (TBT3-0450-C6-NA-N) is the Wi-Fi-free version of the S400 platform. It is a cloud-managed, semi-ruggedized LTE Cat 6 router for wired IoT endpoints in the U.S. and Canada. It has a dual-SIM modem rated to 300 Mbps download, Gigabit Ethernet, GNSS and an expansion slot for serial, GPIO or extra Ethernet. The bundle includes a 3-year NetCloud IoT Essentials plan, an AC power supply and antennas.

  • No Wi-Fi radio: wired-only S400-series platform
  • Cat 6 LTE modem: 300 Mbps down / 50 Mbps up, 2x2 MIMO, dual 4FF SIM
  • North American LTE bands including B71 and CBRS Band 48; AT&T, T-Mobile and Verizon certifications
  • 1 x Gigabit Ethernet, USB 2.0 and an expansion slot for serial, dual FE or GPIO modules
  • GNSS with GPS, Galileo, GLONASS and BeiDou
  • 3.3 W typical draw; 9–33 VDC or 802.3af PoE; AC power supply and antennas included
  • 3-year NetCloud IoT Essentials plan with NetCloud Manager and 24x7 support
  • Fits sites that require cellular connectivity without a Wi-Fi access point

The Ericsson Cradlepoint S450 is the S400-series router built without Wi-Fi. It suits deployments where equipment connects by cable and a wireless access point is unwanted or not allowed. This part number, TBT3-0450-C6-NA-N, is the North America configuration for the U.S. and Canada. It ships with a 3-year NetCloud IoT Essentials plan, an AC power supply and antennas.

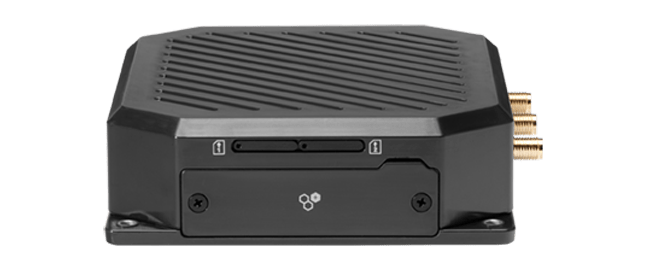

The embedded Cat 6 LTE modem provides dual 4FF SIM slots with SIM-based auto-carrier selection, 2x2 MIMO and downlink carrier aggregation. Peak rates reach 300 Mbps down and 50 Mbps up. Band support covers LTE 2, 4, 5, 7, 12, 13, 14, 25, 26, 29, 30, 66 and 71, plus TDD 41 and 48, including CBRS for private LTE. The modem is PTCRB certified, with operator certifications for AT&T, T-Mobile and Verizon.

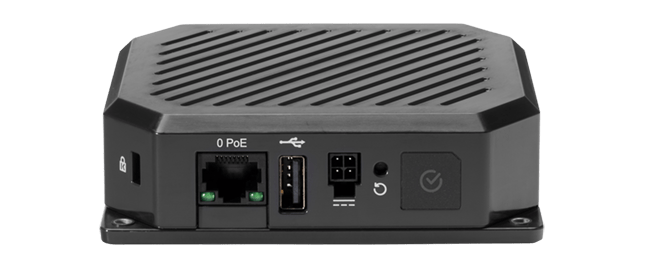

Wired connections start with one Gigabit Ethernet port (LAN/WAN selectable) and USB 2.0. An expansion slot accepts RS232 serial (DB-9), dual Fast Ethernet or a 20-pin GPIO module. GNSS covers GPS, Galileo, GLONASS and BeiDou. The S450 draws 3.3 W typical on DC and accepts 9–33 VDC or 802.3af PoE. It is rated from -20 °C to 60 °C and IP30, meets MIL-STD-810H shock and vibration methods, and is certified for Class I Div 2 and ATEX Zone 2.

NetCloud IoT Essentials adds NetCloud Manager for management at scale, group policies, troubleshooting and software updates. It also includes zero trust connect-and-go security and 24x7 support. The hardware carries a limited lifetime warranty while the subscription is active.

Ideal for

  • Wired-only cellular connectivity for PLCs, meters and controllers
  • Industrial sites where Wi-Fi radios are not permitted
  • Private LTE (CBRS) endpoints
  • Payment terminals, kiosks and signage connected by Ethernet
  • GNSS-enabled portable IoT deployments

Specifications

Power

PoE
PoE 802.3af PSE Type 1 (15 W)
DC Input
9–33 VDC (3 A fuse for 9–12 VDC; 2 A fuse above 12 VDC)
Protection
Reverse polarity and transient voltage protection (ISO 7637-2)
Consumption
S450 DC: Idle 2.9 W; Typical 3.3 W; Heavy 4.6 W; Sleep not supported
AC Power Supply
AC power supply included

General

MPN
TBT3-0450-C6-NA-N
Brand
Ericsson Cradlepoint
Model
Cradlepoint S450 (S400 series)
Region
U.S. and Canada configuration
Product Type
Cloud-managed, semi-ruggedized LTE IoT router, without Wi-Fi
Product Status
Active

Package

Contents
S450 router, 3-year NetCloud IoT Essentials plan, AC power supply, antennas
Documentation
Cradlepoint S400 series datasheet

Cellular

3g
No 3G
SIM
Dual SIM slots, 4FF; SIM-based auto-carrier selection
SMS
SMS supported
MIMO
2x2 MIMO
Antennas
SMA female; external 600 MHz–6 GHz cellular paddle antennas (qty 2)
Modulation
Up to 16 QAM
Regulatory
FCC (U.S.), IC (Canada)
Technology
Cat 6 LTE (3GPP Release 11)
Peak Upload
50 Mbps LTE upload
LTE Bands Fdd
B2 (1900), B4 (1700), B5 (850), B7 (2600), B12 (700), B13 (700), B14 (700), B25 (1900), B26 (850), B29 (700), B30 (2300), B66 (1700), B71 (600)
LTE Bands Tdd
B41 (2500), B48 (3500)
Peak Download
300 Mbps LTE download
Transmit Power
LTE 23 dBm ± 2 (typical conducted)
Private Cellular
Yes, includes FCC Part 96 (CBRS Band 48)
Operator Standards
PTCRB (U.S., Canada)
Carrier Aggregation
Downlink up to 2 CA; uplink up to 1 CA
GNSS Constellations
GPS, GLONASS, BeiDou, Galileo
Operator Certifications
AT&T, T-Mobile, Verizon

GNSS GPS

Power
Passive (no power provided)
Accuracy
Autonomous at open sky 2 m (CEP-50)
Protocols
NMEA 0183, TAIP
Frequencies
L1
Sensitivity
Acquisition -147 dBm; Tracking -159 dBm; Reacquisition -159 dBm
Update Rate
1 Hz (once per second)
Constellations
GPS, Galileo, GLONASS, BDS
Time TO First Fix
30 seconds (cold start)

Physical

Weight
221 g (7.8 oz)
Dimensions

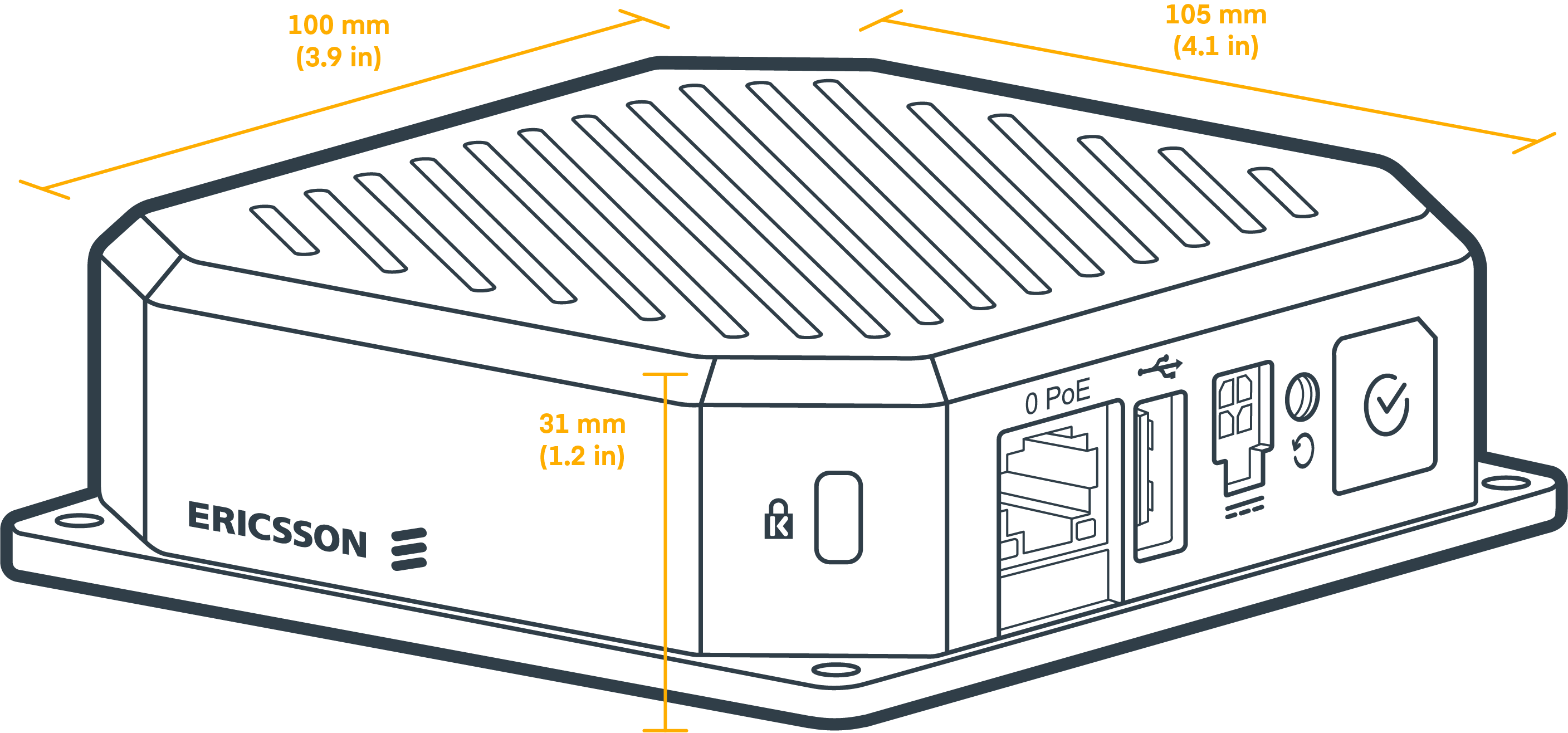

100 x 105 x 31 mm (3.9 x 4.1 x 1.2 in)
Construction
Plastic housing
Shipping Weight
1.23 lb

Interfaces

USB
1 x USB 2.0 Type A (5 V, 500 mA, 2.5 W output)
GNSS
Passive GNSS (multiplexed with cellular antenna)
Wi-Fi
No Wi-Fi
Modem
Embedded Cat 6 LTE modem; 2 x SMA cellular antenna connectors
Ethernet
1 x GbE RJ45 (LAN/WAN selectable)
Expansion Slot
1 x expansion module slot
Expansion Modules
Serial DB-9 RS232 with hardware flow control; Dual Fast Ethernet (2 x FE RJ45, LAN/WAN); GPIO 20-pin Molex Micro-Fit 3.0

Performance

Vlans
Up to 64 Layer 2 / Layer 3 VLANs
Ipsec VPN
20 Mbps
Stateful Firewall
95 Mbps
Concurrent Sessions
32,000
Typical Iot Clients
25
Concurrent VPN Tunnels
5

Reliability

MTBF
1,828,355 hours (Telcordia SR332 at 25 °C)
MTBF Db9 Module
With DB9 module: 1,712,886 hours
MTBF Gpio Module
With GPIO module: 1,343,279 hours
MTBF Ethernet Module
With Ethernet module: 1,659,720 hours

Subscription

Plan
NetCloud IoT Essentials Plan
Term
3-year subscription
Support
Phone 24-hour weekdays with weekend emergency response, web 24x7, chat 24x5, for the full term
Warranty
Limited lifetime warranty while an active NetCloud Service Plan is in place
Service Plans
NetCloud Service for IoT
Service Add Ons
NetCloud Exchange, NetCloud Advanced
Software Updates
Software updates via NetCloud Manager for the full subscription term
Device Management
NetCloud Manager for the full subscription term

Environmental

Humidity
5% to 95% non-condensing (operating and storage)
Ingress Protection
IP30
Storage Temperature
-20 °C to 70 °C (-4 °F to 158 °F)
Operating Temperature
-20 °C to 60 °C (-4 °F to 140 °F)

Certifications

Safety
UL/cUL, CB Scheme, EN 62368-1
Regulatory
FCC, IC, CE, RCM, UKCA, ANATEL, IFT, SUBTEL, MCMC, IMDA
Hazardous Locations
Class I Div 2 (North America); ATEX Zone 2 (Europe)
Substance Compliance
WEEE, RoHS, REACH, California Prop 65
Shock Vibration Humidity
MIL-STD-810H Method 514.8 Annex C-1 Cat 4; Method 516.8 Procedures I and V

Questions buyers ask

How is the S450 different from the S400?

The S450 has no Wi-Fi radio and draws less power (2.9 W idle, 3.3 W typical, 4.6 W heavy on DC). Otherwise it shares the S400's LTE modem, interfaces, expansion slot and ratings.

Which carriers is it certified for?

The North America modem lists network operator certifications for AT&T, T-Mobile and Verizon. It is also PTCRB certified.

Can I connect serial equipment?

Yes. The expansion slot accepts a DB-9 RS232 serial module with hardware flow control. A dual Fast Ethernet module or a 20-pin GPIO module can be used instead.

What is included in the box?

The S450 router, a 3-year NetCloud IoT Essentials plan, an AC power supply and antennas.

What happens to the warranty after the plan ends?

Cradlepoint hardware carries a limited lifetime warranty for as long as it has an active NetCloud Service Plan subscription.
