Cradlepoint5G & LTE Routers

Cradlepoint S450 LTE Cat 6 IoT Router with 5-Year NetCloud IoT Essentials + Advanced (TAA, No Wi-Fi)

4G LTEMPN TAA-TBV5-0450-C6-NA-N
  • Dual SIM
  • 1 × 1 Gb Ethernet
  • GPS/GNSS
  • PoE powered
  • 5 years included
$868.39$949.00Save $80.61

In stockShips from the US

Included subscription · 5 years
3 years−$153.735 years
Compliance · TAA compliant
StandardTAA compliant
Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans
Compare all 8 configurations

Datasheets & documents

Overview

The Cradlepoint S450 is the wired-only member of the S400 series: a cloud-managed, semi-ruggedized Cat 6 LTE router for IoT without a Wi-Fi radio. This TAA-compliant U.S. Federal Government SKU includes a 5-year NetCloud IoT Essentials + Advanced subscription. Per the ordering guide, it ships with an AC power supply and antennas. It provides dual SIM slots, a Gigabit Ethernet port, USB, GNSS and an expansion slot for serial, GPIO or dual Fast Ethernet modules.

  • Embedded Cat 6 LTE modem, 300 Mbps down / 50 Mbps up peak, dual 4FF SIM slots
  • No Wi-Fi radio: the wired-only S400-series model
  • North American LTE bands including B71, B14 and CBRS Band 48; AT&T, T-Mobile and Verizon certified
  • 1 x GbE RJ45 (LAN/WAN), USB 2.0 Type-A and an expansion slot for serial DB-9, GPIO or dual Fast Ethernet
  • GNSS with GPS, Galileo, GLONASS and BDS
  • 9–33 VDC or 802.3af PoE power, 3.3 W typical draw; -20 °C to 60 °C operation
  • 5-year NetCloud IoT Essentials + Advanced Plans; TAA-compliant SKU
  • The wired-only design suits secure sites and deployments that do not need a Wi-Fi access point

The Ericsson Cradlepoint S450 is the S400-series IoT router built without Wi-Fi. It suits sites where a wireless LAN is unnecessary or not permitted, such as light industrial controllers, digital signage players and kiosks. Part number TAA-TBV5-0450-C6-NA-N is the TAA-compliant configuration for U.S. Federal Government ordering. It combines the S450 with 5 years of NetCloud IoT Essentials and the NetCloud IoT Advanced Plan, plus an AC power supply and antennas per the ordering guide.

Connectivity comes from an embedded Cat 6 LTE modem (3GPP Rel. 11) with 2x2 MIMO and peak rates of 300 Mbps down and 50 Mbps up. Dual 4FF SIM slots support SIM-based auto-carrier selection. The North American band set spans B2, B4, B5, B12, B13, B14, B66 and B71, plus B41 and CBRS Band 48 for private LTE. The modem carries AT&T, T-Mobile and Verizon operator certifications.

Wired connections include: • One LAN/WAN-selectable GbE port • A USB 2.0 Type-A port • An expansion slot that adds RS232 serial, a 20-pin GPIO module or two Fast Ethernet ports

GNSS covers GPS, Galileo, GLONASS and BDS for location-aware deployments. The S450 runs from 9–33 VDC or 802.3af PoE and draws a typical 3.3 W. It operates from -20 °C to 60 °C and meets MIL-STD-810H shock and vibration methods and Class I Div 2 hazardous location ratings.

Throughout the subscription term, NetCloud Manager provides centralized cloud management, group policies, troubleshooting and software updates. Zero trust connect-and-go security and 24x7 support are included. Cradlepoint hardware carries a limited lifetime warranty while an active NetCloud Service Plan is maintained.

Ideal for

  • Wired-only LTE connectivity for industrial controllers and sensors
  • Digital signage and kiosk backhaul where Wi-Fi is not wanted
  • Federal agency IoT sites that require TAA-compliant hardware
  • Private LTE (CBRS Band 48) IoT deployments
  • Legacy serial and GPIO equipment brought online through expansion modules

Specifications

Power

Features
Reverse polarity and transient voltage protection (ISO 7637-2)
Required
One of: DC input 9–33 VDC (use 3 A fuse for 9–12 VDC, 2 A fuse for >12 VDC); PoE 802.3af PSE Type 1 (15 W)
Consumption
S450 DC — Sleep: not supported; Idle: 2.9 W; Typical: 3.3 W; Heavy: 4.6 W

General

MPN
TAA-TBV5-0450-C6-NA-N
Brand
Cradlepoint (Ericsson Cradlepoint)
Model
Cradlepoint S450 (S400 series)
Manufacturer
Ericsson Enterprise Wireless
Product Status
Active

Package

Region
United States Federal Government (TAA-compliant)
Support
Phone: 24-hour weekdays with emergency response on weekends; Web: 24x7; Chat: 24x5
Subscription
NetCloud IoT Essentials + Advanced Plans
TAA Compliant
TAA-compliant SKU
Shipping Weight
1.23 lb
Subscription Term
5 years
Hardware Configuration
Cat 6 (150 Mbps) without Wi-Fi, with AC power supply and antennas

Cellular

SMS
Yes
MIMO
2x2 MIMO
Power
LTE 23 dBm ± 2 (typical conducted)
Antennas
SMA female connectors; 2 x external 600 MHz–6 GHz cellular paddle antennas
GNSS GPS
Active GNSS; GPS; GLONASS; BeiDou; Galileo
LTE Bands
FDD: B2 (1900), B4 (1700), B5 (850), B7 (2600), B12 (700), B13 (700), B14 (700), B25 (1900), B26 (850), B29 (700), B30 (2300), B66 (1700), B71 (600); TDD: B41 (2500), B48 (3500)
Modulation
Up to 16 QAM
Regulatory
FCC (U.S.); IC (Canada)
Technology
Cat 6 LTE (3GPP Rel. 11); dual 4FF SIM slots; SIM-based auto-carrier selection
Peak Upload
LTE upload: 50 Mbps
Peak Download
LTE download: 300 Mbps
Carrier Aggregation
Downlink: up to 2 CA; Uplink: up to 1 CA
Private Cellular Network
Yes, includes FCC Part 96 (CBRS Band 48)
Network Operator Standards
PTCRB (U.S., Canada)
Network Operator Certifications
AT&T; T-Mobile; Verizon

GNSS GPS

Power
Passive (no power provided)
Accuracy
Autonomous @ open sky 2 meter (CEP-50)
Protocols
NMEA 0183; TAIP
Frequencies
L1
Sensitivity
Acquisition: -147 dBm; Tracking: -159 dBm; Reacquisition: -159 dBm
Update Rate
1 Hz (once per second)
Constellations
GPS; Galileo; GLONASS; BDS
Time TO First Fix
30 seconds (cold start)

Physical

Size

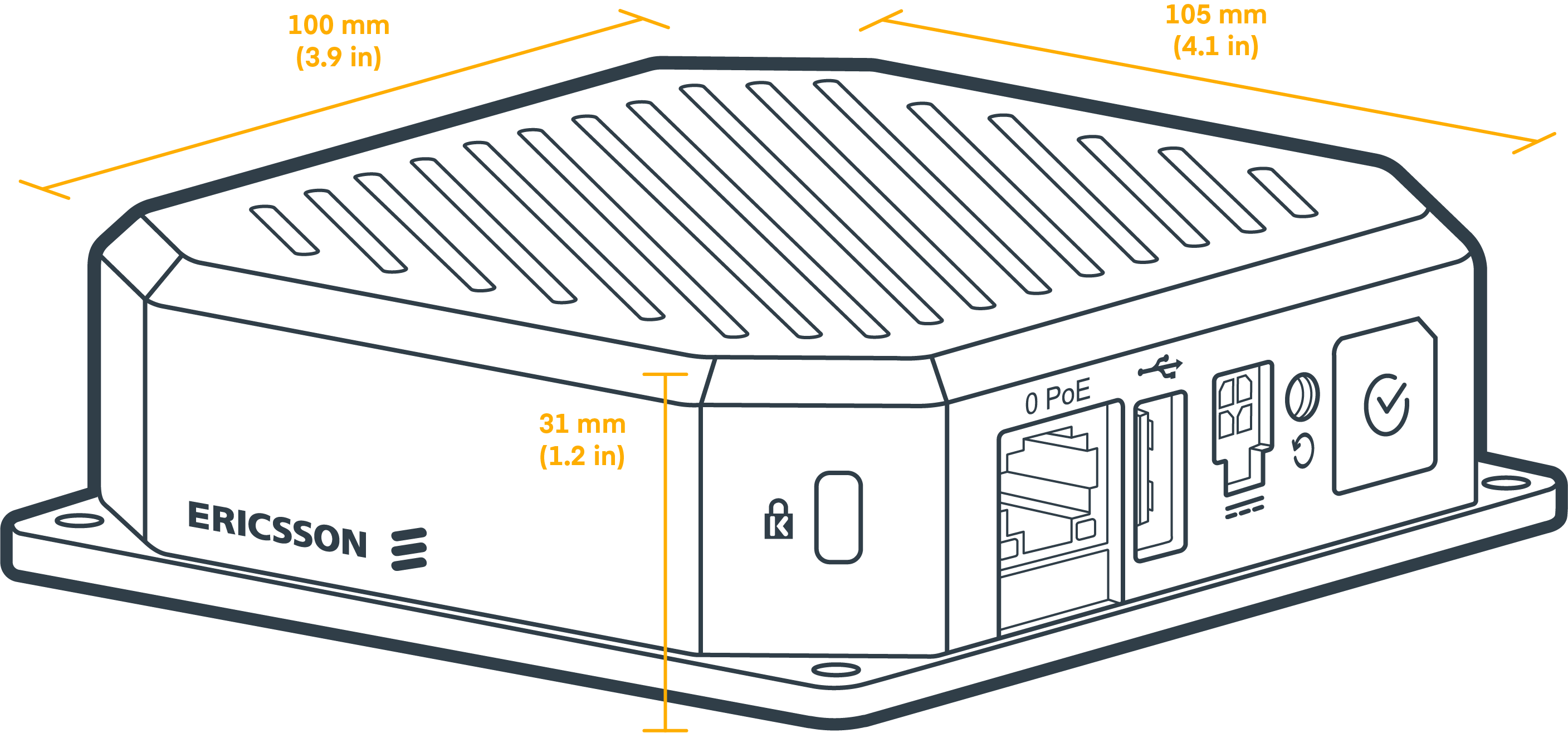

100 x 105 x 31 mm (3.9 x 4.1 x 1.2 in)
Weight
221 g (7.8 oz)
Construction
Plastic housing

Interfaces

Modem
Embedded Cat 6 LTE modem; 2 x SMA cellular antenna connectors
Ethernet
1 x GbE RJ45 (LAN/WAN selectable)
GNSS GPS
Passive GNSS (multiplex with cellular antenna)
Expansion
1 x USB 2.0 Type A (output 5 V, 500 mA, 2.5 W); 1 x expansion module slot: Serial DB-9 RS232 with hardware flow control, Dual Fast Ethernet (2 x FE RJ45, LAN/WAN selectable), or GPIO module (20-pin 2 x 10 Molex Micro-Fit 3.0)

Performance

Vlans
Up to 64 Layer 2 / Layer 3 VLANs
Stateful Firewall
95 Mbps
Concurrent Sessions
32,000
Concurrent VPN Tunnels
5
Point TO Point Ipsec VPN
20 Mbps
Typical Iot Client Count
25

Reliability

MTBF
1,828,355 hours (Telcordia SR332 at 25 °C)
MTBF Db9 Module
With DB9 module: 1,712,886 hours (Telcordia SR332 at 25 °C)
MTBF Gpio Module
With GPIO module: 1,343,279 hours (Telcordia SR332 at 25 °C)
MTBF Ethernet Module
With Ethernet module: 1,659,720 hours (Telcordia SR332 at 25 °C)

Environmental

Humidity
Operating and storage: 5% to 95% non-condensing
Ingress Protection
IP30
Storage Temperature
-20 °C to 70 °C (-4 °F to 158 °F)
Operating Temperature
-20 °C to 60 °C (-4 °F to 140 °F)

Certifications

Safety
UL/cUL; CB Scheme; EN 62368-1
Regulatory
FCC (U.S.); IC (Canada); CE (EU); RCM (AU/NZ); UKCA (UK); ANATEL (Brazil); IFT (Mexico); SUBTEL (Chile); MCMC (Malaysia); IMDA (Singapore)
Hazardous Locations
Class I Div 2 (North America); ATEX 2 (Europe)
Substance Compliance
WEEE; RoHS; REACH; California Prop 65
Shock Vibration Humidity
MIL-STD-810H Method 514.8 Annex C-1 Cat. 4; Method 516.8 Procedure I; Method 516.8 Procedure V

Cloud Services

Support
Support for the full subscription term
Warranty
Limited lifetime warranty for as long as the device has an active NetCloud Service Plan subscription
Service Plans
NetCloud Service for IoT
Service Add Ons
NetCloud Exchange, NetCloud Advanced
Software Updates
NetCloud Manager for the full subscription term
Device Management
NetCloud Manager for the full subscription term

Product Summary

PoE
Yes
Wi-Fi
No Wi-Fi (S450)
GPS GNSS
Passive
5G Status
None
USB Ports
1
Throughput
95 Mbps (Firewall)
Form Factor
Plastic
VPN Tunnels
5
Serial Ports
1 (Expansion module)
Ethernet Ports
1 GbE (LAN/WAN switchable); 2 FE ports
Cloud Management
Yes
Special Features
Extension modules for serial port, GPIO, and 2 Ethernet ports
Dual Modem Support
No
Subscription Terms
3 or 5 years
Operating Temperature
-20 °C to 60 °C (-4 °F to 140 °F)
Wireless Connectivity
LTE
Private Cellular Network
Yes — 4G LTE (CBRS)
Network Operator Standards
PTCRB (U.S.), GCF (global)

Questions buyers ask

Does the S450 have Wi-Fi?

No. The S450 is the S400-series configuration without Wi-Fi. It connects devices over Ethernet, USB and optional expansion modules.

What is included with TAA-TBV5-0450-C6-NA-N?

The S450 router, a 5-year NetCloud IoT Essentials package with the NetCloud IoT Advanced Plan, and an AC power supply and antennas per the ordering guide.

Which LTE networks does it support?

The North American Cat 6 modem covers bands including B2, B4, B5, B12, B13, B14, B66, B71, B41 and CBRS B48. It is certified on AT&T, T-Mobile and Verizon.

Can it be powered over Ethernet?

Yes. It accepts 802.3af PoE (PSE Type 1, 15 W) or a 9–33 VDC input.
