Cradlepoint5G & LTE Routers

Cradlepoint S450 LTE Cat 6 IoT Router with 5-Year NetCloud IoT Essentials Plan (North America)

4G LTEMPN TBT5-0450-C6-NA-N
  • Dual SIM
  • 1 × 1 Gb Ethernet
  • GPS/GNSS
  • PoE powered
  • 5 years included
$537.14$587.00Save $49.86

In stockShips from the US

Included subscription · 5 years
3 years−$153.735 years
Compliance · Standard
StandardTAA compliant
Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans
Compare all 8 configurations

Datasheets & documents

Overview

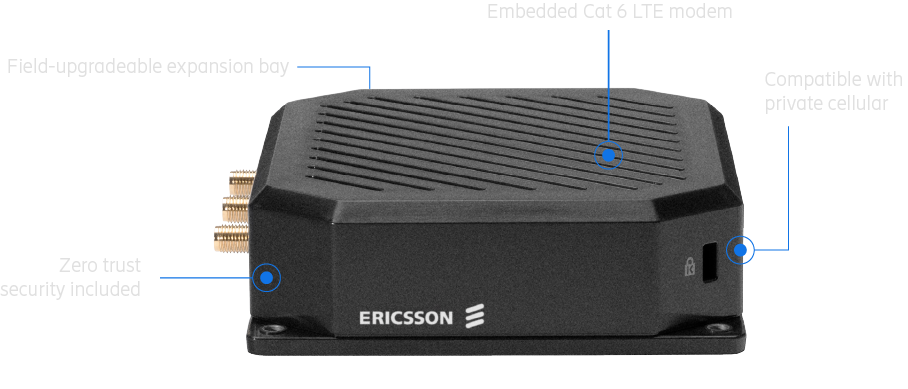

The Cradlepoint S450 (TBT5-0450-C6-NA-N) is a cloud-managed, semi-ruggedized 4G LTE router for IoT, kiosk, digital signage and light industrial deployments in the U.S. and Canada. It pairs an embedded Cat 6 LTE modem with dual SIM slots, Gigabit Ethernet and an expansion module slot. This configuration has no Wi-Fi. The package includes a 5-year NetCloud IoT Essentials plan with NetCloud Manager, 24x7 support and zero trust security, plus an AC power supply and two cellular antennas.

  • Embedded Cat 6 LTE modem: up to 300 Mbps download / 50 Mbps upload, 2x2 MIMO

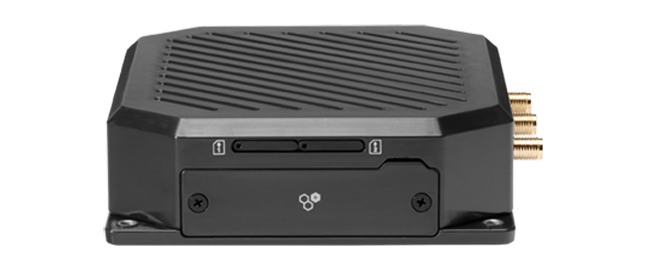

  • Dual 4FF SIM slots with SIM-based auto-carrier selection
  • 1 x GbE RJ45 (LAN/WAN), 1 x USB 2.0 and an expansion slot for serial, dual Fast Ethernet or GPIO modules
  • Passive GNSS supporting GPS, Galileo, GLONASS and BDS
  • 9–33 VDC or 802.3af PoE power; IP30, -20 °C to 60 °C, MIL-STD-810H, Class I Div 2
  • 5-year NetCloud IoT Essentials plan with NetCloud Manager, 24x7 support and zero trust security
  • Keeps IoT endpoints online by failing over between two carrier SIMs
  • Manages fleets of devices from one cloud console with group policies and remote troubleshooting

The Ericsson Cradlepoint S450 is the non-Wi-Fi model of the S400 series, a compact, cloud-managed router built for IoT networks. This North America SKU (U.S. & Canada) bundles the hardware with a 5-year NetCloud IoT Essentials plan, an AC power supply and two external 600 MHz–6 GHz cellular paddle antennas. It suits kiosks, digital signage, remote sensors and light industrial equipment where a small, dependable LTE connection matters more than raw throughput.

Connectivity comes from an embedded Cat 6 LTE modem (3GPP Rel. 11) rated for up to 300 Mbps download and 50 Mbps upload. The modem supports 2x2 MIMO and downlink carrier aggregation. Dual 4FF SIM slots with SIM-based auto-carrier selection allow carrier failover. North American band coverage includes B2, B4, B5, B7, B12, B13, B14, B25, B26, B29, B30, B66 and B71, plus TDD B41 and B48 (CBRS) for private cellular networks. The modem carries AT&T, T-Mobile and Verizon network certifications.

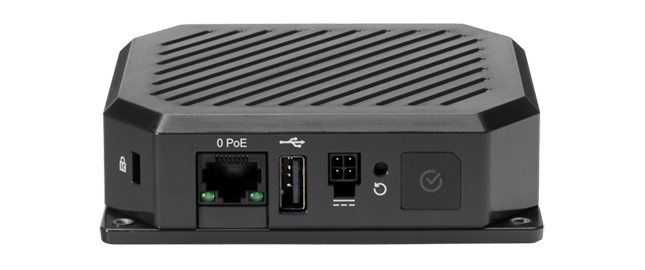

Wired options start with one Gigabit Ethernet port (LAN/WAN selectable) and a USB 2.0 Type A port. The expansion slot accepts a serial DB-9 RS232 module, a dual Fast Ethernet module or a 20-pin GPIO module. Passive GNSS (GPS, Galileo, GLONASS, BDS) supports asset tracking. Power comes from 9–33 VDC with reverse polarity and transient protection, or from 802.3af PoE. Typical draw is 3.3 W.

The S450 is built for tough sites. It operates from -20 °C to 60 °C, is rated IP30 and is tested to MIL-STD-810H shock and vibration methods. It holds Class I Div 2 hazardous location certification. For the full 5-year term, the Essentials plan provides NetCloud Manager for centralized configuration, group policies, troubleshooting and software updates. The plan also includes 24x7 support and a limited lifetime hardware warranty while the subscription is active.

Ideal for

  • Kiosks and self-service terminals needing an always-on LTE link
  • Digital signage networks managed centrally across many sites
  • Light industrial IoT with serial or GPIO-connected equipment
  • Asset tracking and portable IoT deployments using GNSS
  • Private LTE (CBRS Band 48) connectivity for campus IoT devices

Specifications

GNSS

Power
Passive (none provided)
Accuracy
2 m autonomous, open sky (CEP-50)
Protocols
NMEA 0183, TAIP
Frequencies
L1
Sensitivity
-147 dBm acquisition, -159 dBm tracking/reacquisition
Update Rate
1 Hz
Constellations
GPS, Galileo, GLONASS, BDS
Time TO First Fix
30 s (cold start)

Power

PoE
802.3af Type 1 (15 W)
Sleep
Not supported
Fusing
3 A (9–12 VDC), 2 A (>12 VDC)
DC Input
9–33 VDC
Protection
Reverse polarity, transient voltage (ISO 7637-2)
Consumption Idle
Idle (S450 DC): 2.9 W
Consumption Heavy
Heavy (S450 DC): 4.6 W
Consumption Typical
Typical (S450 DC): 3.3 W

General

MPN
Part Number: TBT5-0450-C6-NA-N
Brand
Cradlepoint (Ericsson Enterprise Wireless)
Model
S450 (S400 series)
Region
North America (U.S. & Canada)
Service Plan
NetCloud IoT Essentials
Product Status
Manufacturer Status: Active
Subscription Term
5 years
Hardware Configuration
Cat 6 LTE, no Wi-Fi, with AC power supply and antennas

Package

Contents
Includes: S450 router, 5-yr NetCloud IoT Essentials plan, AC power supply, 2 antennas
Shipping Weight
1.23 lb

Cellular

SMS
Yes
MIMO
2x2
Antennas
2 x external 600 MHz–6 GHz paddle antennas, SMA female
Modem GNSS
GPS, GLONASS, BeiDou, Galileo
Modulation
Up to 16 QAM
Regulatory
FCC, IC
Technology
Cat 6 LTE, dual 4FF SIM, auto-carrier selection
Peak Upload
50 Mbps
LTE Bands Fdd
LTE FDD: B2, B4, B5, B7, B12, B13, B14, B25, B26, B29, B30, B66, B71
LTE Bands Tdd
LTE TDD: B41, B48
Peak Download
300 Mbps
Transmit Power
LTE 23 dBm ± 2 (typical conducted)
Carrier Aggregation
DL up to 2 CA, UL up to 1 CA
Private Cellular Network
Yes, CBRS Band 48 (FCC Part 96)
Network Operator Standards
PTCRB (U.S., Canada)
Network Operator Certifications
AT&T, T-Mobile, Verizon
Public Safety Network Certifications
Public Safety Certifications: N/A

Physical

Weight
221 g (7.8 oz)
Dimensions

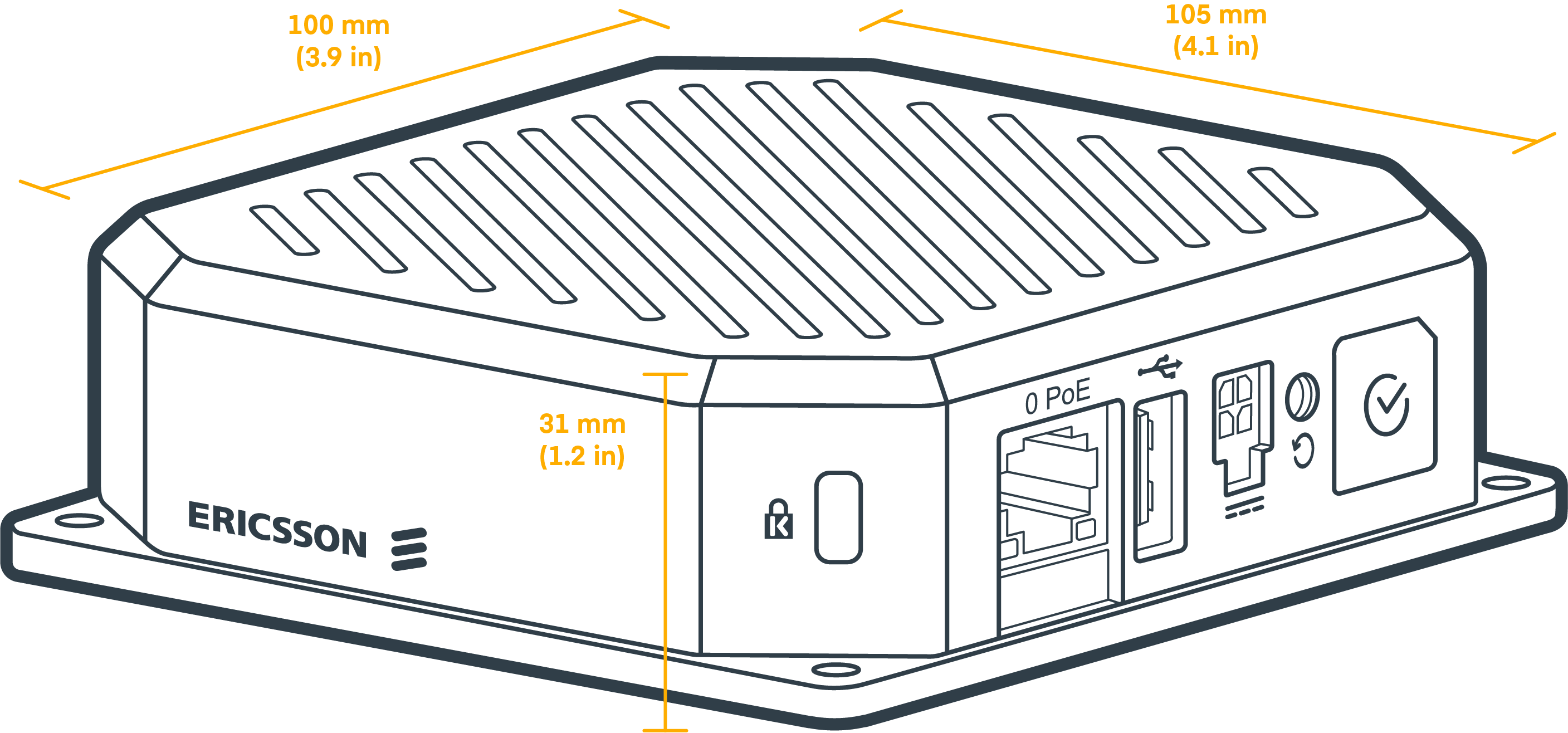

Size: 100 x 105 x 31 mm (3.9 x 4.1 x 1.2 in)
Construction
Plastic housing

Interfaces

USB
1 x USB 2.0 Type A (5 V, 500 mA, 2.5 W)
GNSS
Passive, multiplexed with cellular antenna
Wi-Fi
Not included on the S450 configuration
Modem
Embedded Cat 6 LTE, 2 x SMA connectors
Ethernet
1 x GbE RJ45 (LAN/WAN selectable)
Expansion Slot
1 x module slot
Expansion Module Options
Serial DB-9 RS232, Dual FE RJ45, 20-pin GPIO

Performance

Vlans
Up to 64
Stateful Firewall
95 Mbps
Concurrent Sessions
32,000
Ipsec VPN Throughput
Point-to-Point IPsec VPN: 20 Mbps
Concurrent VPN Tunnels
5
Typical Iot Client Count
25

Reliability

MTBF Base
MTBF S400/S450: 1,828,355 h (Telcordia SR332, 25 °C)
MTBF Db9 Module
MTBF with DB9 Module: 1,712,886 h
MTBF Gpio Module
MTBF with GPIO Module: 1,343,279 h
MTBF Ethernet Module
MTBF with Ethernet Module: 1,659,720 h

Environmental

Humidity
5%–95% non-condensing
Ingress Protection
IP30
Storage Temperature
-20 °C to 70 °C (-4 °F to 158 °F)
Operating Temperature
-20 °C to 60 °C (-4 °F to 140 °F)

Certifications

Safety
UL/cUL, CB Scheme, EN 62368-1
Regulatory
FCC, IC, CE, RCM, UKCA, ANATEL, IFT, SUBTEL, MCMC, IMDA
Hazardous Locations
Class I Div 2, ATEX 2
Substance Compliance
WEEE, RoHS, REACH, Prop 65
Shock Vibration Humidity
MIL-STD-810H 514.8 (Annex C-1, Cat 4), 516.8 Proc. I and V

Cloud Services

Support
Included for full term (phone, web 24x7, chat 24x5)
Warranty
Limited lifetime with active NetCloud subscription
Service Plans
NetCloud Service for IoT
Service Add Ons
NetCloud Exchange, NetCloud Advanced
Software Updates
Via NetCloud Manager, full term
Device Management
NetCloud Manager, full term

Questions buyers ask

Does the Cradlepoint S450 have Wi-Fi?

No. This S450 configuration is Cat 6 LTE without Wi-Fi. It provides wired connectivity through a Gigabit Ethernet port and optional expansion modules.

What is included in this package?

The S450 router, a 5-year NetCloud IoT Essentials plan, an AC power supply and two external cellular paddle antennas. The Essentials plan includes NetCloud Manager, software updates and 24x7 support for the full term.

Which market is this SKU for?

The NA part number is configured for North America (U.S. and Canada). Its LTE bands include B2, B4, B5, B12, B13, B14, B66, B71 and B48, and the modem carries AT&T, T-Mobile and Verizon certifications.

How can the S450 be powered?

It can run from the included AC power supply, from 9–33 VDC with reverse polarity and transient protection, or from 802.3af PoE (Type 1, 15 W).

What warranty applies?

Cradlepoint hardware carries a limited lifetime warranty for as long as it holds an active NetCloud Service Plan subscription, such as the included 5-year Essentials plan.
