Fortinet FortiGate 51G-5G Firewall with 5G Modem and 5-Year Enterprise Protection Bundle

5GMPN FG-51G-5G-BDL-809-60
  • 5+ × 1 Gb Ethernet
  • 5 years included
$6,415.70$8,740.23Save $2,324.53

Backordered · ships as soon as it arrives

Included subscription · 5 years
Hardware only−$3,673.121 year−$2,808.863 years−$1,339.625 years
Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans
Compare all 7 configurations

Datasheets & documents

Overview

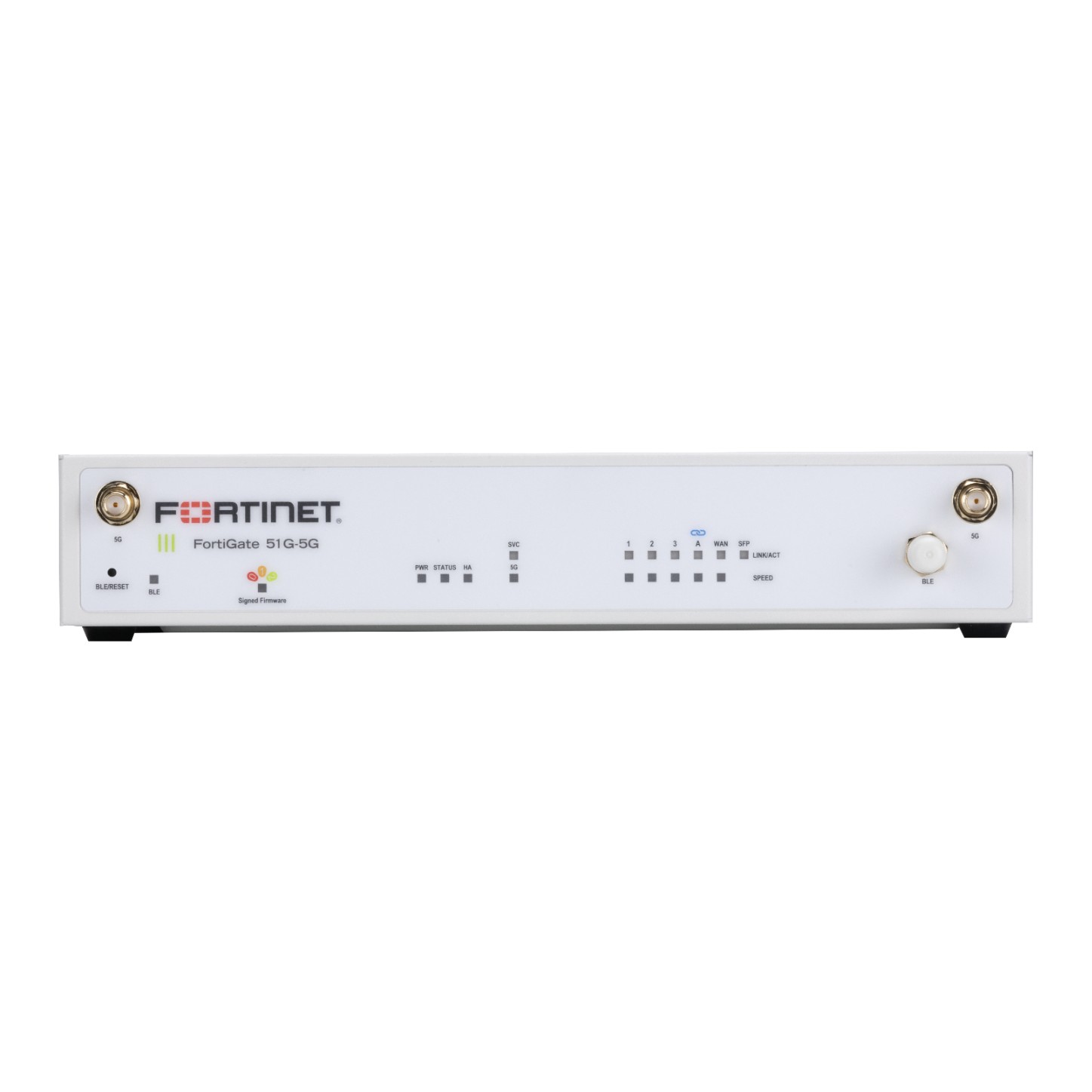

The Fortinet FortiGate 51G-5G is a fanless desktop next-generation firewall with an embedded Telit Cinterion 5G modem, dual nano-SIM slots and five external SMA antenna ports. It combines firewalling, SD-WAN and network controller functions in one appliance for branch and distributed sites. This bundle (FG-51G-5G-BDL-809-60) pairs the hardware with a 5-year term of FortiCare Premium and FortiGuard Enterprise Protection, covering IPS, anti-malware, URL/DNS/video filtering, DLP and attack surface security.

  • Embedded Telit Cinterion FN990A28-HP 5G modem with 2 nano-SIM slots (active/passive) and 5 external SMA antenna ports
  • 5x GE RJ45 ports: 1 WAN, 3 internal, 1 FortiLink (default), plus USB and RJ45 console
  • Fortinet SD-WAN ASIC with FortiOS: up to 5 Gbps firewall, 4.5 Gbps IPsec VPN, 1.1 Gbps threat protection
  • Firewalling, SD-WAN and network controller integrated in every FortiGate at no extra cost
  • 64 GB SSD, TPM, Bluetooth Low Energy and signed firmware hardware switch in a fanless desktop chassis
  • 5-year FortiCare Premium and FortiGuard Enterprise Protection included (bundle code 809)
  • Five years of Enterprise Protection and FortiCare Premium on one SKU simplifies lifecycle budgeting
  • Brings a site online over 5G or LTE with dual-SIM failover between two carriers

The FortiGate 51G-5G is Fortinet's 5G-equipped member of the FortiGate/FortiWiFi 50G series, built for distributed enterprise sites that need firewalling, SD-WAN and cellular WAN in a single desktop appliance. It runs FortiOS on Fortinet's SD-WAN ASIC with an embedded multi-core processor, rated at up to 5 Gbps firewall throughput, 4.5 Gbps IPsec VPN, 1.25 Gbps NGFW and 1.1 Gbps threat protection throughput.

Cellular connectivity comes from an embedded Telit Cinterion FN990A28-HP 5G modem with two nano-SIM slots in active/passive mode and five external SMA antenna ports. It covers a wide set of 5G NR bands, including n41, n71, n77 and n78, plus broad LTE support. Fortinet lists PTCRB, AT&T and Verizon certification, FirstNet capability, and T-Mobile certification targeted for Q4 2026. Wired connectivity includes five GE RJ45 ports (one WAN, three internal and one FortiLink by default), a USB port and an RJ45 console port, with 64 GB of onboard SSD storage.

The appliance is fanless (0 dBA), draws 8.3 W on average and includes a Trusted Platform Module, Bluetooth Low Energy and a signed firmware hardware switch. It can manage up to 8 FortiSwitches and 16 FortiAPs, supports 5 virtual domains, and runs in Active-Active, Active-Passive or clustered high availability configurations.

This SKU bundles the hardware with a 5-year (60-month) FortiCare Premium and FortiGuard Enterprise Protection term, the longest bundle term for this model and a fit for organizations planning a full lifecycle deployment. Included services are IPS, anti-malware protection with FortiGate Cloud Sandbox, URL, DNS and video filtering, anti-spam, AI-based inline malware prevention, data loss prevention, attack surface security with IoT detection and virtual patching, and a one-time FortiConverter configuration conversion.

Ideal for

  • Branch offices and retail stores needing a firewall, SD-WAN and 5G WAN in one appliance
  • Multi-year site rollouts that budget hardware and security services together for 5 years
  • Primary 5G internet for sites without wired broadband, with dual-SIM carrier failover
  • Public safety and field sites using FirstNet-capable cellular connectivity
  • Small sites managing FortiSwitches and FortiAPs from a single FortiOS controller

Specifications

Radio

MU MIMO
—
Maximum TX Power
—
Maximum Wi-Fi Speeds
—

Bundle

Ips
IPS, Malicious/Botnet URLs
Support
FortiCare Premium
Anti Spam
Included
Bundle Code
809 (Enterprise Protection)
Service Term
60 months (5 years)
Protection Bundle
FortiGuard Enterprise Protection
Data Loss Prevention
Included
Forticonverter Service
One Time Configuration Conversion
Anti Malware Protection
AV, Botnet Domains, Mobile Malware, Virus Outbreak Protection, Content Disarm and Reconstruct, AI-based Heuristic AV, FortiGate Cloud Sandbox
Attack Surface Security
IoT Device Detection, IoT Vulnerability Correlation and Virtual Patching, Security Rating, Outbreak Check
Url Dns Video Filtering
URL, DNS and Video Filtering, Malicious Certificate
AI Inline Malware Prevention
Included

General

MPN
FG-51G-5G-BDL-809-60
Brand
Fortinet
Model
FG-51G-5G
Device Type
Next-generation firewall / SD-WAN appliance with 5G modem
Product Name
FortiGate 51G-5G
Operating System
FortiOS

Package

Shipping Weight
5.67 lbs

Hardware

USB Port
1
Internal Storage
64 GB SSD
Antenna Ports Sma
5
Console Port Rj45
1
SIM Slots Nano SIM
2
Wireless Interface
—
Bluetooth Low Energy
Yes
Trusted Platform Module
Yes
Signed Firmware Hardware Switch
Yes
Hardware Accelerated GE WAN Ports
1
Hardware Accelerated GE Rj45 Ports
3
Hardware Accelerated GE Rj45 Fortilink Ports Default
1

Modem 5G

MIMO
Yes
Wcdma
B1, B2, B4, B5 (B6, B19), B8 (EU and APAC regions only)
Regions
All Regions
Bands 5G
n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29 (SDL), n30, n38, n40, n41, n48, n66, n71, n75 (SDL), n76 (SDL), n77, n78, n79 (PC1.5 on n41, n77, n78, n79)
Diversity
Yes
GNSS Bias
Yes
LTE Bands
B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29 (SDL), B30, B32 (SDL), B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71
Modem Model
Telit Cinterion FN990A28-HP (2 SIM slots, active/passive)
Gsm Gprs Edge
—
Umts Hspa Plus
B1, B2, B4, B5, B6, B8, B19
Maximum TX Power
23 dBm (Power Class 3), 26 dBm (Power Class 2 in B41/n41)
Cdma 1xrtt Evdo Rev A
—
Carrier Certifications
PTCRB: Yes; AT&T: Yes; T-Mobile: Target Q4 2026; Verizon: Yes; Public Safety Network: Yes (FirstNet capable)

Dimensions

Weight
2.2 lbs (1.0 kg)
Form Factor
Desktop
Height Width Length IN
1.6 x 8.5 x 6.3 in
Height Width Length MM
40.5 x 216 x 160 mm

System Performance

Max Fortitokens
500
Performance Note
All values are "up to"; IPsec tested with AES256-SHA256
Firewall Policies
2,000
Ssl VPN Throughput
—
Concurrent Sessions Tcp
720,000
Firewall Throughput Pps
6 Mpps
Capwap Throughput Http 64k
3.8 Gbps
Max Fortiswitches Supported
8
New Sessions Per Second Tcp
85,000
Firewall Latency 64 Byte Udp
2.42 μs
Ipsec VPN Throughput 512 Byte
4.5 Gbps
Max Fortiaps Total Tunnel Mode
16 / 8
Virtual Domains Default Maximum
5 / 5
High Availability Configurations
Active-Active, Active-Passive, Clustering
Ssl Inspection Cps Ips Avg Https
699
Client TO Gateway Ipsec VPN Tunnels
250
Concurrent Ssl VPN Users Tunnel Mode
—
Gateway TO Gateway Ipsec VPN Tunnels
200
Application Control Throughput Http 64k
2.8 Gbps
Ssl Inspection Throughput Ips Avg Https
1.3 Gbps
Firewall Throughput 1518 512 64 Byte Udp
5 / 5 / 4 Gbps
Ssl Inspection Concurrent Sessions Ips Avg Https
74,000

Performance Enterprise Traffic Mix

Ips Throughput
2.25 Gbps
Ngfw Throughput
1.25 Gbps
Threat Protection Throughput
1.1 Gbps

Operating Environment Certifications

Humidity
10% to 90% non-condensing
Compliance
FCC, ISED, CE, UL/cUL, CB
Noise Level
Fanless, 0 dBA
Power Rating
12 VDC, 3 A
Certifications
USGv6/IPv6
Power Required
External DC power adapter, 100–240V AC, 50/60 Hz
Maximum Current
100V/0.4A, 240V/0.2A
Heat Dissipation
30.35 BTU/h
Operating Altitude
Up to 10,000 ft (3,048 m)
Storage Temperature
-31°F to 158°F (-35°C to 70°C)
Operating Temperature
32°F to 104°F (0°C to 40°C)
Power Consumption Avg Max
8.3 W / 8.9 W

Questions buyers ask

What does the BDL-809-60 part of the SKU mean?

It identifies a hardware bundle with Fortinet bundle code 809, which is FortiCare Premium plus FortiGuard Enterprise Protection, for a 60-month (5-year) term.

Does the FortiGate 51G-5G support two SIM cards?

Yes. The embedded Telit Cinterion FN990A28-HP modem has two nano-SIM slots operating in active/passive mode.

Which carriers is the 5G modem certified with?

Fortinet lists PTCRB, AT&T and Verizon certification, FirstNet capability for public safety networks, and T-Mobile certification targeted for Q4 2026.

Does the FortiGate 51G-5G have built-in Wi-Fi?

No Wi-Fi radio is specified for this model. It can manage up to 16 FortiAPs (8 in tunnel mode) as a network controller.

What security services are included for the 5-year term?

IPS, anti-malware protection with FortiGate Cloud Sandbox, URL, DNS and video filtering, anti-spam, AI-based inline malware prevention, data loss prevention, attack surface security, a one-time FortiConverter configuration conversion and FortiCare Premium.
