Fortinet FortiWiFi 50G-5G-II 5G Firewall with Wi-Fi 6 and 5-Year FortiGuard UTP Bundle

5GMPN FWF-50G-5G-II-A-BDL-95060
  • 5+ × 1 Gb Ethernet
  • 5 years included
$5,587.28$7,611.65Save $2,024.37

Backordered · ships as soon as it arrives

Included subscription · 5 years
1 year−$2,828.893 years−$845.575 years
Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans
Compare all 5 configurations

Datasheets & documents

Overview

The Fortinet FortiWiFi 50G-5G-II combines a FortiGate next-generation firewall, SD-WAN, a dual-radio 802.11ax (Wi-Fi 6) access point and an embedded Telit Cinterion 5G modem in one desktop appliance. This bundle (region code A) pairs the hardware with a 5-year (60-month) FortiCare Premium and FortiGuard Unified Threat Protection subscription covering IPS, anti-malware, URL/DNS/video filtering, application control, inline CASB and anti-spam, making it a complete security platform for branch offices and distributed sites.

  • Embedded Telit Cinterion FN990A28-HP 5G modem with 2 nano SIM slots (active/passive)
  • Up to 5 Gbps firewall, 4.5 Gbps IPsec VPN and 1.1 Gbps threat protection throughput on Fortinet's SD-WAN ASIC
  • Dual-radio 2.4/5 GHz 802.11ax (Wi-Fi 6) with 2x2 MU-MIMO, up to 1201 Mbps at 5 GHz

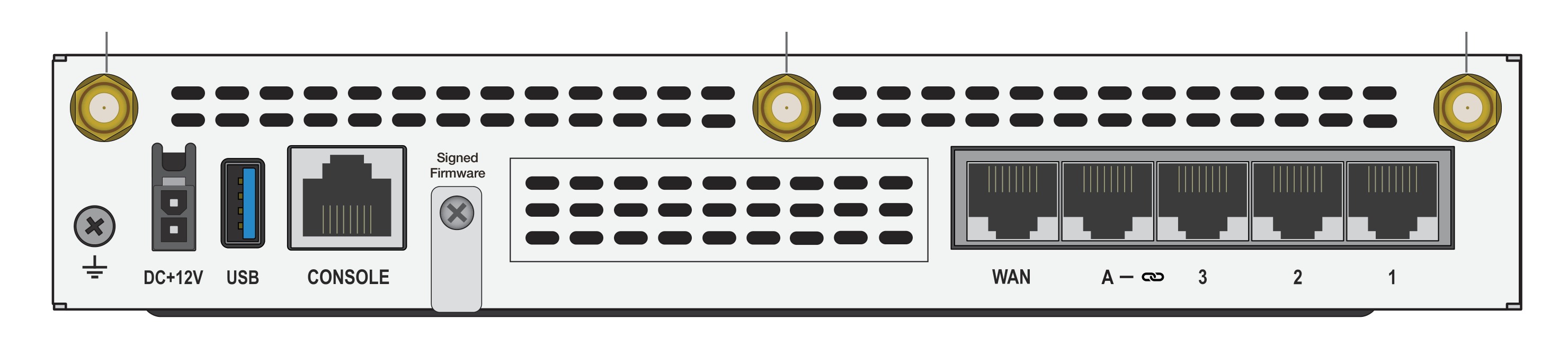

  • 5x GE RJ45 ports: 1 WAN, 3 internal and 1 FortiLink
  • SD-WAN and network controller included; manages up to 8 FortiSwitches and 16 FortiAPs
  • 5-year FortiCare Premium and FortiGuard Unified Threat Protection subscription included
  • Replace a separate firewall, Wi-Fi access point and cellular router at each branch with one managed appliance
  • Keep sites online with a 5G WAN link and dual SIM failover alongside a wired WAN connection

The FortiWiFi 50G-5G-II is a branch security appliance that brings firewalling, SD-WAN, network control and wireless access together on FortiOS, Fortinet's converged networking and security operating system. It is built for distributed enterprise sites, retail locations and small offices that need enterprise-grade protection and a cellular WAN link without a stack of separate devices. This SKU includes the hardware plus a 5-year FortiCare Premium and FortiGuard Unified Threat Protection (UTP) term, ordered under region code A.

The 50G family runs on Fortinet's patented SD-WAN ASIC, delivering up to 5 Gbps firewall throughput, 4.5 Gbps IPsec VPN throughput, 1.25 Gbps NGFW and 1.1 Gbps threat protection throughput with logging enabled. It supports 720,000 concurrent TCP sessions, 200 gateway-to-gateway and 250 client-to-gateway IPsec tunnels, and can manage up to 8 FortiSwitches and 16 FortiAPs. SD-WAN and the network controller are included in every FortiGate appliance at no extra cost.

Cellular connectivity comes from an embedded Telit Cinterion FN990A28-HP 5G modem with two nano SIM slots (active/passive), broad 5G NR and LTE band coverage, and PC1.5 support on n41, n77, n78 and n79. Fortinet lists PTCRB, AT&T and Verizon certification and FirstNet capability for the modem. Local networking includes five GE RJ45 ports (one WAN, three internal, one FortiLink), a dual-radio 2x2 MU-MIMO Wi-Fi 6 interface, Bluetooth Low Energy, a TPM and a signed-firmware hardware switch.

The bundled FortiGuard UTP services add IPS with malicious/botnet URL blocking, anti-malware protection including FortiGate Cloud Sandbox and content disarm and reconstruct, URL, DNS and video filtering, application control, inline CASB and anti-spam, backed by FortiCare Premium support for the full term. The FortiGate/FortiWiFi 50G Series Data Sheet documents the full specification.

Ideal for

  • Branch office firewall, SD-WAN edge and Wi-Fi in a single appliance
  • Retail and franchise locations needing 5G primary or failover WAN
  • Temporary or pop-up sites where wired broadband is unavailable
  • Public safety and field offices that require a FirstNet-capable connection
  • Distributed enterprises standardizing on Fortinet Security Fabric with a 5-year service term

Specifications

Radio

MU MIMO
2x2 MU-MIMO
Max TX Power
21.0 dBm/chain @ 2.4 GHz, 19.5 dBm/chain @ 5 GHz
Max Wi-Fi Speeds
1201 Mbps @ 5 GHz, 574 Mbps @ 2.4 GHz

General

MPN
FWF-50G-5G-II-A-BDL-95060
Brand
Fortinet
Model
FWF-50G-5G-II
Region Code
Region code A
Product Name
FortiWiFi 50G-5G-II
Ordering Description
5x GE RJ45 (1x WAN, 4x internal), 802.11a/b/g/n/ac/ax, embedded 3G/4G/LTE/5G HP WWAN module, 8 external SMA WWAN antennas

Hardware

Tpm
Yes
USB Port
1
SIM Slots
2 nano SIM
GE WAN Ports
1 hardware-accelerated GE WAN port
GE Rj45 Ports
3 hardware-accelerated GE RJ45 ports
Internal Storage
—
Antenna Ports Sma
3
Console Port Rj45
1
Wireless Interface
Dual radio 2.4/5 GHz, 802.11 a/b/g/n/ac/ax
Bluetooth Low Energy
Yes
GE Rj45 Fortilink Ports
1 hardware-accelerated GE RJ45 FortiLink port (default)
Signed Firmware Hardware Switch
Yes

Dimensions

Hwl MM
42 x 216 x 178 mm
Weight
2.4 lbs (1.1 kg)
Hwl Inches
1.7 x 8.5 x 7.0 in
Form Factor
Desktop

Subscription

Ips
IPS, Malicious/Botnet URLs
Term
5 years (60 months)
Bundle
FortiCare Premium + FortiGuard UTP
Support
FortiCare Premium
Anti Spam
Anti-Spam
Bundle Code
950
Inline Casb
Inline CASB
Base Services
Device/OS Detection, GeoIPs, Trusted CA Certificates, Internet Services and Botnet IPs, DDNS (v4/v6), Local Protection, PSIRT Check, Anti-Phishing
Application Control
Application Control
Anti Malware Protection
AV, Botnet Domains, Mobile Malware, Virus Outbreak Protection, CDR, AI-based Heuristic AV, FortiGate Cloud Sandbox
Url Dns Video Filtering
URL, DNS and Video Filtering, Malicious Certificate

Cellular 5G Modem

MIMO
Yes
Wcdma
B1, B2, B4, B5 (B6, B19), B8 (EU and APAC regions only)
Regions
All Regions
5G Bands
n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29 (SDL), n30, n38, n40, n41, n48, n66, n71, n75 (SDL), n76 (SDL), n77, n78, n79 (PC1.5 on n41, n77, n78, n79)
Diversity
Yes
GNSS Bias
Yes
LTE Bands
B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29 (SDL), B30, B32 (SDL), B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71
Umts Hspa
B1, B2, B4, B5, B6, B8, B19
Modem Model
Telit Cinterion FN990A28-HP (2 SIM, active/passive)
Max TX Power
23 dBm (PC3), 26 dBm (PC2 in B41/n41)
Gsm Gprs Edge
—
Cdma 1xrtt Evdo
—
Carrier Certifications
PTCRB: Yes; AT&T: Yes; T-Mobile: Target Q4 26; Verizon: Yes; Public Safety: Yes (FirstNet Capable)

System Performance

Max Fortiaps
16 total / 8 tunnel mode
Max Fortitokens
500
Virtual Domains
5 default / 5 maximum
Firewall Latency
2.42 μs (64 byte UDP)
Capwap Throughput
3.8 Gbps (HTTP 64K)
Firewall Policies
2,000
High Availability
Active-Active, Active-Passive, Clustering
Max Fortiswitches
8
Ssl Inspection Cps
699 (IPS, avg. HTTPS)
Ssl VPN Throughput
—
Ipsec VPN Throughput
4.5 Gbps (512 byte)
Concurrent Sessions Tcp
720,000
Firewall Throughput Pps
6 Mpps
Firewall Throughput Udp
5 / 5 / 4 Gbps (1518/512/64 byte UDP)
Concurrent Ssl VPN Users
—
Ssl Inspection Throughput
1.3 Gbps (IPS, avg. HTTPS)
New Sessions Per Second Tcp
85,000
Application Control Throughput
2.8 Gbps (HTTP 64K)
Client TO Gateway Ipsec Tunnels
250
Gateway TO Gateway Ipsec Tunnels
200
Ssl Inspection Concurrent Sessions
74,000 (IPS, avg. HTTPS)

Operating Environment

Humidity
10% to 90% non-condensing
Compliance
FCC, IC, CE, UL/cUL, CB
Noise Level
21.73 dBA
Power Rating
12 VDC, 3 A
Certifications
USGv6/IPv6
Power Required
External DC power adapter, 100–240V AC, 50/60 Hz
Maximum Current
100V AC / 0.4 A, 240V AC / 0.2 A
Heat Dissipation
80.44 BTU/hr
Power Consumption
20.43 W avg / 23.59 W max
Operating Altitude
Up to 10,000 ft (3048 m)
Storage Temperature
-31°F to 158°F (-35°C to 70°C)
Operating Temperature
32°F to 104°F (0°C to 40°C)

System Performance Enterprise Mix

Ips Throughput
2.25 Gbps
Ngfw Throughput
1.25 Gbps
Threat Protection Throughput
1.1 Gbps

Questions buyers ask

What does the 5-year UTP bundle include?

FortiCare Premium support plus FortiGuard Unified Threat Protection for 60 months: IPS, anti-malware protection with FortiGate Cloud Sandbox, URL/DNS/video filtering, anti-spam, application control, inline CASB and base services such as GeoIP, DDNS and anti-phishing.

Does the FortiWiFi 50G-5G-II support 5G?

Yes. It has an embedded Telit Cinterion FN990A28-HP 5G modem with two nano SIM slots in active/passive mode and support for a wide range of 5G NR and LTE bands.

Which carrier certifications does Fortinet list for the modem?

Fortinet lists PTCRB, AT&T and Verizon certification and FirstNet capability, with T-Mobile certification targeted for Q4 26.

How many Ethernet ports does it have?

Five GE RJ45 ports: one WAN port, three internal ports and one FortiLink port, plus a USB port and an RJ45 console port.

What Wi-Fi does it provide?

A dual-radio 2.4 GHz and 5 GHz 802.11ax (Wi-Fi 6) interface with 2x2 MU-MIMO and maximum speeds of 1201 Mbps at 5 GHz and 574 Mbps at 2.4 GHz.
