Fortinet FortiWiFi 50G-5G-II 5G Firewall with Wi-Fi 6 and Dual SIM (FWF-50G-5G-II-T)

5GMPN FWF-50G-5G-II-T
  • 5+ × 1 Gb Ethernet
$1,922.57$2,572.00Save $649.43

In stockShips from the US

Included subscription
1 year3 years5 years
Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans
Compare all 5 configurations

Datasheets & documents

Overview

The Fortinet FortiWiFi 50G-5G-II (FWF-50G-5G-II-T) is a desktop FortiGate next-generation firewall with SD-WAN, a dual-radio 802.11ax (Wi-Fi 6) access point and an embedded Telit Cinterion 5G modem with two nano SIM slots. It delivers up to 5 Gbps firewall and 4.5 Gbps IPsec VPN throughput on Fortinet's SD-WAN ASIC, giving branch offices and distributed sites secure wired, wireless and cellular connectivity from one appliance. This SKU is region code T hardware.

  • Embedded Telit Cinterion FN990A28-HP 5G modem with 2 nano SIM slots (active/passive)
  • Up to 5 Gbps firewall and 4.5 Gbps IPsec VPN throughput on Fortinet's SD-WAN ASIC
  • Dual-radio 2.4/5 GHz 802.11ax (Wi-Fi 6), 2x2 MU-MIMO, up to 1201 Mbps at 5 GHz

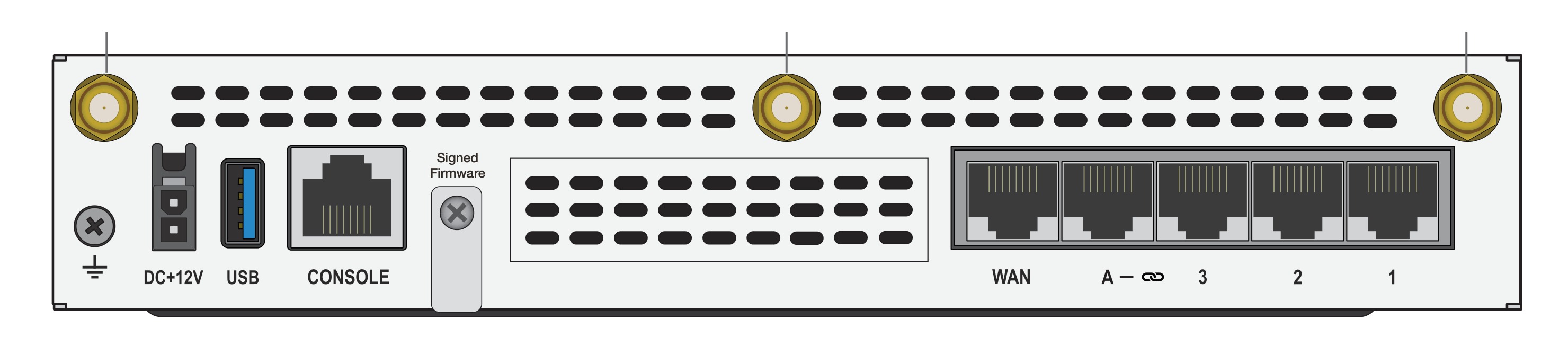

  • 5x GE RJ45 ports: 1 WAN, 3 internal and 1 FortiLink
  • SD-WAN and network controller included; supports up to 8 FortiSwitches and 16 FortiAPs
  • TPM, Bluetooth Low Energy and signed-firmware hardware switch
  • Consolidate firewall, Wi-Fi and cellular router into one managed box per site
  • Use 5G as a primary link or as automatic backup to a wired WAN

The FortiWiFi 50G-5G-II integrates firewalling, SD-WAN, network control and wireless access in one compact appliance running FortiOS, Fortinet's converged networking and security platform. It is designed for distributed enterprise sites, retail branches and small offices that want enterprise-grade security with a built-in cellular WAN. This listing is the FWF-50G-5G-II-T, ordered under Fortinet region code T, as the appliance on its own without a bundled subscription term.

Performance comes from Fortinet's patented SD-WAN ASIC and an embedded multi-core processor: up to 5 Gbps firewall throughput, 4.5 Gbps IPsec VPN, 2.25 Gbps IPS, 1.25 Gbps NGFW and 1.1 Gbps threat protection throughput. The appliance handles 720,000 concurrent TCP sessions and 85,000 new sessions per second, and supports 200 site-to-site and 250 client IPsec tunnels. SD-WAN and the network controller are included, with management for up to 8 FortiSwitches and 16 FortiAPs.

The embedded Telit Cinterion FN990A28-HP modem provides 5G NR and LTE connectivity across a broad band list, with two nano SIM slots in active/passive mode and PC1.5 support on n41, n77, n78 and n79. Fortinet lists PTCRB, AT&T and Verizon certification and FirstNet capability. On the LAN side there are five GE RJ45 ports (one WAN, three internal, one FortiLink), dual-radio 2x2 MU-MIMO Wi-Fi 6, Bluetooth Low Energy for setup, a TPM and a signed-firmware hardware switch.

At 42 x 216 x 178 mm and 20.43 W average draw, it sits on a desk or shelf and runs quietly at 21.73 dBA. Full specifications are published in the FortiGate/FortiWiFi 50G Series Data Sheet.

Ideal for

  • Branch office security gateway with 5G WAN and Wi-Fi 6
  • Retail and quick-service locations needing cellular failover for payments and POS
  • Construction trailers and temporary sites without wired broadband
  • FirstNet-capable connectivity for public safety facilities
  • Small offices standardizing on FortiGate SD-WAN and the Fortinet Security Fabric

Specifications

Radio

MU MIMO
2x2 MU-MIMO
Max TX Power
21.0 dBm/chain @ 2.4 GHz, 19.5 dBm/chain @ 5 GHz
Max Wi-Fi Speeds
1201 Mbps @ 5 GHz, 574 Mbps @ 2.4 GHz

General

MPN
FWF-50G-5G-II-T
Brand
Fortinet
Model
FWF-50G-5G-II
Region Code
Region code T
Product Name
FortiWiFi 50G-5G-II
Ordering Description
5x GE RJ45 (1x WAN, 4x internal), 802.11a/b/g/n/ac/ax, embedded 3G/4G/LTE/5G HP WWAN module, 8 external SMA WWAN antennas

Hardware

Tpm
Yes
USB Port
1
SIM Slots
2 nano SIM
GE WAN Ports
1 hardware-accelerated GE WAN port
GE Rj45 Ports
3 hardware-accelerated GE RJ45 ports
Internal Storage
—
Antenna Ports Sma
3
Console Port Rj45
1
Wireless Interface
Dual radio 2.4/5 GHz, 802.11 a/b/g/n/ac/ax
Bluetooth Low Energy
Yes
GE Rj45 Fortilink Ports
1 hardware-accelerated GE RJ45 FortiLink port (default)
Signed Firmware Hardware Switch
Yes

Dimensions

Hwl MM
42 x 216 x 178 mm
Weight
2.4 lbs (1.1 kg)
Hwl Inches
1.7 x 8.5 x 7.0 in
Form Factor
Desktop

Cellular 5G Modem

MIMO
Yes
Wcdma
B1, B2, B4, B5 (B6, B19), B8 (EU and APAC regions only)
Regions
All Regions
5G Bands
n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29 (SDL), n30, n38, n40, n41, n48, n66, n71, n75 (SDL), n76 (SDL), n77, n78, n79 (PC1.5 on n41, n77, n78, n79)
Diversity
Yes
GNSS Bias
Yes
LTE Bands
B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29 (SDL), B30, B32 (SDL), B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71
Umts Hspa
B1, B2, B4, B5, B6, B8, B19
Modem Model
Telit Cinterion FN990A28-HP (2 SIM, active/passive)
Max TX Power
23 dBm (PC3), 26 dBm (PC2 in B41/n41)
Gsm Gprs Edge
—
Cdma 1xrtt Evdo
—
Carrier Certifications
PTCRB: Yes; AT&T: Yes; T-Mobile: Target Q4 26; Verizon: Yes; Public Safety: Yes (FirstNet Capable)

System Performance

Max Fortiaps
16 total / 8 tunnel mode
Max Fortitokens
500
Virtual Domains
5 default / 5 maximum
Firewall Latency
2.42 μs (64 byte UDP)
Capwap Throughput
3.8 Gbps (HTTP 64K)
Firewall Policies
2,000
High Availability
Active-Active, Active-Passive, Clustering
Max Fortiswitches
8
Ssl Inspection Cps
699 (IPS, avg. HTTPS)
Ssl VPN Throughput
—
Ipsec VPN Throughput
4.5 Gbps (512 byte)
Concurrent Sessions Tcp
720,000
Firewall Throughput Pps
6 Mpps
Firewall Throughput Udp
5 / 5 / 4 Gbps (1518/512/64 byte UDP)
Concurrent Ssl VPN Users
—
Ssl Inspection Throughput
1.3 Gbps (IPS, avg. HTTPS)
New Sessions Per Second Tcp
85,000
Application Control Throughput
2.8 Gbps (HTTP 64K)
Client TO Gateway Ipsec Tunnels
250
Gateway TO Gateway Ipsec Tunnels
200
Ssl Inspection Concurrent Sessions
74,000 (IPS, avg. HTTPS)

Operating Environment

Humidity
10% to 90% non-condensing
Compliance
FCC, IC, CE, UL/cUL, CB
Noise Level
21.73 dBA
Power Rating
12 VDC, 3 A
Certifications
USGv6/IPv6
Power Required
External DC power adapter, 100–240V AC, 50/60 Hz
Maximum Current
100V AC / 0.4 A, 240V AC / 0.2 A
Heat Dissipation
80.44 BTU/hr
Power Consumption
20.43 W avg / 23.59 W max
Operating Altitude
Up to 10,000 ft (3048 m)
Storage Temperature
-31°F to 158°F (-35°C to 70°C)
Operating Temperature
32°F to 104°F (0°C to 40°C)

System Performance Enterprise Mix

Ips Throughput
2.25 Gbps
Ngfw Throughput
1.25 Gbps
Threat Protection Throughput
1.1 Gbps

Questions buyers ask

Does this SKU include FortiGuard or FortiCare subscriptions?

No. FWF-50G-5G-II-T is the appliance on its own, without a bundled subscription term.

What does the -T suffix mean?

It is Fortinet's region code for this model; Fortinet orders the FortiWiFi 50G-5G-II per region code.

Which cellular modem is inside?

A Telit Cinterion FN990A28-HP 5G modem with two nano SIM slots in active/passive mode, supporting a broad set of 5G NR, LTE and UMTS/HSPA+ bands.

How many Ethernet ports does it have?

Five GE RJ45 ports: one WAN, three internal and one FortiLink, plus one USB port and an RJ45 console port.

Is it rack-mountable?

Fortinet lists the form factor as desktop, measuring 42 x 216 x 178 mm and weighing 2.4 lbs.
