Cradlepoint5G & LTE Routers

Cradlepoint R2155 5G Ruggedized Vehicle Router (No Wi-Fi) with 1-Year NetCloud Mobile Performance Essentials

5GMPN MB01-2155-5GB-GA
  • Dual SIM
  • 1 × 2.5 Gb+ Ethernet
  • GPS/GNSS
  • PoE powered
  • Rugged
  • FirstNet Ready
$2,013.11$2,199.99Save $186.88

In stockShips from the US

Included subscription · 1 year
1 year3 years+$156.495 years+$348.66
Compliance · Standard
StandardTAA compliant+$186.88
Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans
Compare all 19 configurations

Datasheets & documents

Overview

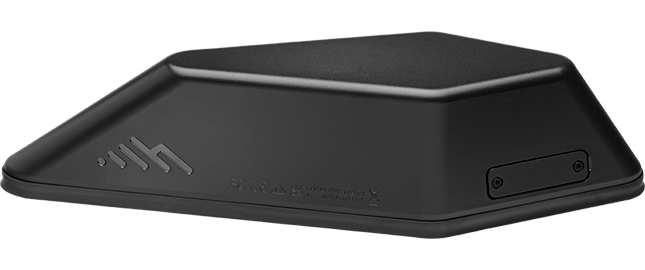

The Cradlepoint R2155 (MB01-2155-5GB-GA) is an exterior-mounted 5G ruggedized router. It combines a 5G NR and Cat 20 LTE modem, four internal cellular antennas and the router in one IP67, IK09-rated polycarbonate housing built for vehicle roofs and IoT cabinets. This non-Wi-Fi configuration comes with a 1-year NetCloud Mobile Performance Essentials plan. The SIM and AC power supply are not included.

  • Embedded 5G NR FR1 (NSA/SA) and LTE Advanced Pro Cat 20 modem with dual 4FF SIM slots, rated up to 4.14 Gbps downlink / 660 Mbps uplink
  • Four internal cellular antennas in an exterior-mount, IP67 and IK09-rated polycarbonate housing
  • One 2.5 GbE RJ45 LAN port with 802.3at PoE input, or 9–36 VDC input with ignition sensing
  • Operates as a standalone 5G router or as a captive 5G modem for supported Cradlepoint routers
  • Passive GNSS for automatic vehicle location and coverage mapping
  • Quad-core ARMv8 edge computing for Docker containerized applications
  • 1-year NetCloud Mobile Performance Essentials plan with 24x7 support and NetCloud Manager
  • Simplify vehicle installs: the modem, antennas and router share one roof-mounted unit, so there are no coax runs and no signal loss

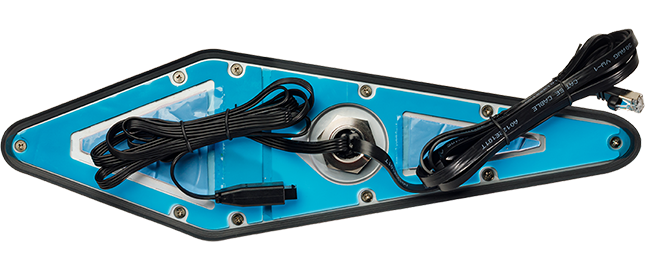

The Cradlepoint R2155 is the non-Wi-Fi model of the Ericsson Cradlepoint R2100 Series 5G ruggedized router, designed for mass transit, public safety and IoT deployments. It mounts on the roof of a vehicle or on an IoT cabinet enclosure. Because the modem, antennas and router sit together in one aerodynamic housing, the install needs no coax cable runs. Power comes over the non-removable 9–36 VDC cable with ignition sensing, or over 802.3at PoE through its single 2.5 GbE port.

The embedded modem supports 5G NR FR1 in both NSA and SA modes, falls back to LTE Advanced Pro Category 20, and has dual 4FF SIM slots. It is rated for peak rates of up to 4.14 Gbps downlink and 660 Mbps uplink with 4x4 MIMO. The modem carries AT&T, T-Mobile and Verizon certifications, plus FirstNet Trusted, T-Mobile Connecting Heroes and Verizon Frontline Verified for public safety. It also supports private cellular networks, including CBRS Band 48. Passive GNSS feeds automatic vehicle location and coverage mapping.

The R2155 can run as a self-contained 5G router. It can also serve as a captive 5G modem for a supported Cradlepoint controlling router, where NetCloud Manager treats it as an internal modem that needs no separate licence. For edge workloads, a quad-core ARMv8 CPU runs Docker containerized applications. The unit is rated to 900 Mbps stateful firewall throughput, 10 concurrent VPN tunnels and about 100 typical clients.

The 1-year NetCloud Mobile Performance Essentials plan covers the following for the full term: • NetCloud Manager cloud management • Software and firmware updates • 24x7 support • Enterprise Wireless University access • A limited lifetime hardware warranty that runs while the subscription is active

A NetCloud Advanced licence can be added at any time. The package is offered for all regions, and the R2100 datasheet is available.

Ideal for

  • Roof-mounted 5G connectivity for buses, light rail and other mass-transit vehicles
  • Public safety vehicles that need priority access on FirstNet, T-Mobile and Verizon first-responder programs
  • Cabinet-mounted 5G WAN for IoT, traffic and utility enclosures
  • Adding 5G as a captive modem to an existing Cradlepoint in-vehicle router
  • Automatic vehicle location and cellular coverage mapping with GNSS

Specifications

Power

Fusing
3 A (9–24 VDC) / 2.5 A (>24 VDC)
DC Cable
380 mm DC cable, 4-pin Molex micro-fit
DC Input
9–36 VDC steady state
Features
Ignition sensing
PoE Input
802.3at PoE, 30 W
Consumption R2155
6 W idle / 10 W typical / 11.5 W heavy

General

MPN
MB01-2155-5GB-GA
UPC
840292702455
Brand
Ericsson Cradlepoint
Model
Cradlepoint R2155 (R2100 Series)
Manufacturer
Ericsson Enterprise Wireless
Product Status
Active

Package

Region
All Regions
Documents
Datasheet available
Upgrade Option
NetCloud Advanced add-on available
Subscription Plan
1-Year NetCloud Mobile Performance Essentials Plan
Subscription Term
1 year
Essentials Inclusions
Endpoint, 24x7 support, limited lifetime warranty, Enterprise Wireless University
Hardware Configuration
R2155 5G router without Wi-Fi, integrated antennas; SIM and AC power supply not included

Cellular

3g
WCDMA/UMTS/HSPA+
SMS
SMS supported
GNSS
Passive GNSS
MIMO
4x4 MIMO
3g Bands
Bands 1, 2, 4, 5, 6, 8, 9, 19
Antennas
4 internal cellular antennas
LTE Bands
FDD B1–B71 and TDD B34–B48 as listed
Modulation
Up to 256 QAM DL/UL
Peak Rates
Up to 4.14 Gbps down / 660 Mbps up
Regulatory
FCC, IC, CE, RCM
Technology
5G FR1 NSA/SA, LTE Cat 20, dual 4FF SIM, 3GPP Rel 15
5G NR Bands
n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n48/n66/n71/n77/n78/n79
Transmit Power
23 dBm 5G/LTE, 25 dBm HPUE B41
Carrier Aggregation
LTE DL 7CA / UL 2CA; ENDC DL 1CA / UL 1CA
Private Cellular Network
Private LTE/5G incl. CBRS Band 48
Network Operator Standards
PTCRB, GCF
Public Safety Certifications
FirstNet Trusted, T-Mobile Connecting Heroes, Verizon Frontline Verified
Network Operator Certifications
AT&T, T-Mobile, Verizon

Physical

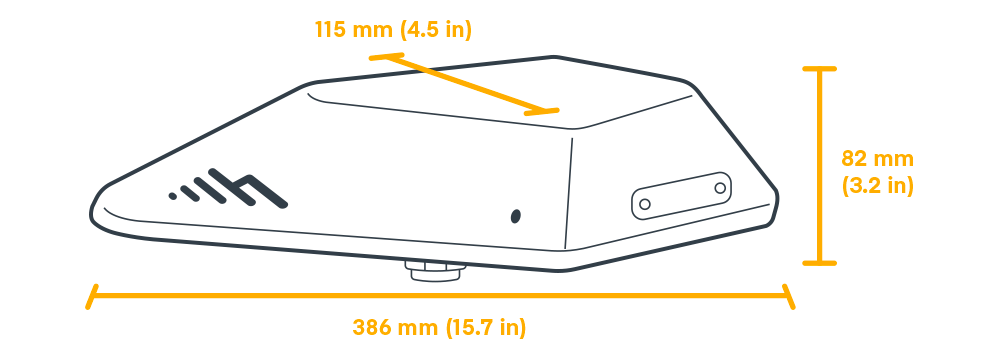

Size
115 x 386 x 82 mm
Weight
1.46 kg
Housing
Polycarbonate, exterior-mount

Interfaces

Modem
Embedded 5G NR FR1 + LTE Cat 20 modem
WI FI
No Wi-Fi on R2155
Ethernet
1 x 2.5 GbE RJ45 LAN on 380 mm non-removable cable
GNSS GPS
Passive GNSS via internal cellular antennas

Performance

Vlans
Up to 64 Layer 2/Layer 3 VLANs
Ipsec VPN
300 Mbps point-to-point IPsec VPN
Stateful Firewall
900 Mbps
Concurrent Sessions
32,000
Typical Client Count
100
Concurrent VPN Tunnels
10
Ips App Aware Client Analytics
650 Mbps

Reliability

MTBF
1,895,792 hours
Shock Vibration
MIL-STD-810G shock and vibration

Environmental

Humidity
5–95%
Corrosion
IEC 60068-2-11 salt mist
Impact Protection
IK09
Ingress Protection
IP67
Storage Temperature
-40 to 85 °C
Operating Temperature
-30 to 70 °C

Certifications

Safety
CB Scheme, IEC/EN 62368-1
Vehicle
E-Mark, SAE J1455 Cat 2
Security
Non-FIPS SKU
Substance Compliance
WEEE, RoHS, REACH, Prop 65

Cloud Services

Support
Support for full term
Warranty
Limited lifetime with active subscription
Service Plans
NetCloud Mobile Performance / Ruggedized IoT
Available Terms
1, 3 or 5 years
Service Add Ons
NetCloud Exchange, NetCloud Advanced
Software Updates
Included for full term
Device Management
NetCloud Manager

Edge Computing

CPU
Quad-core ARMv8 64-bit
Memory
Up to 1.8 GB
Applications
Docker containers
Flash Storage
Up to 8 GB

Questions buyers ask

Does the R2155 have Wi-Fi?

No. The R2155 is the non-Wi-Fi model in the R2100 Series. Its single 2.5 GbE port connects to a router, switch or other wired equipment. The R2105 is the Wi-Fi 6 version.

How is the R2155 powered?

It runs from a 9–36 VDC supply through its non-removable cable with ignition sensing. It can also be powered by 802.3at PoE (30 W) over its Ethernet port. An AC power supply is not included.

Can I use it with a router I already have?

Yes. With supported Cradlepoint controlling routers, the R2155 can act as a captive 5G modem. NetCloud Manager treats it as an internal modem, so no separate licence is needed.

Is a SIM card included?

No. The unit has dual 4FF SIM slots, and the SIM is optional and not included.

What does the 1-year Essentials plan include?

It includes NetCloud Manager cloud management, software updates and 24x7 support for the year. It also covers Enterprise Wireless University access and a limited lifetime hardware warranty that applies while the subscription is active.
