Cradlepoint5G & LTE Routers

Cradlepoint R2155 5G Ruggedized Vehicle Router, TAA, 5-Year NetCloud Mobile Performance Essentials + Advanced

5GMPN TAA-MBA5-2155-5GB-GA
  • Dual SIM
  • 1 × 2.5 Gb+ Ethernet
  • GPS/GNSS
  • PoE powered
  • Rugged
  • FirstNet Ready
$3,824.92$4,179.99Save $355.07

In stockShips from the US

Included subscription · 5 years
1 year−$161.783 years−$192.175 years
Compliance · TAA compliant
StandardTAA compliant
Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans
Compare all 19 configurations

Datasheets & documents

Overview

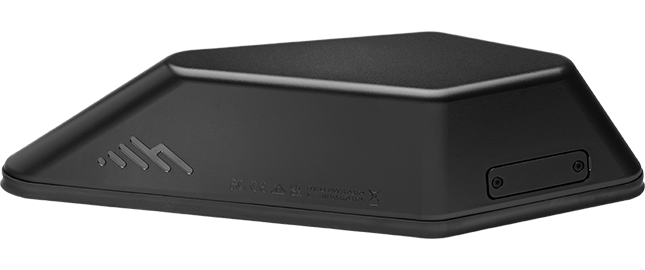

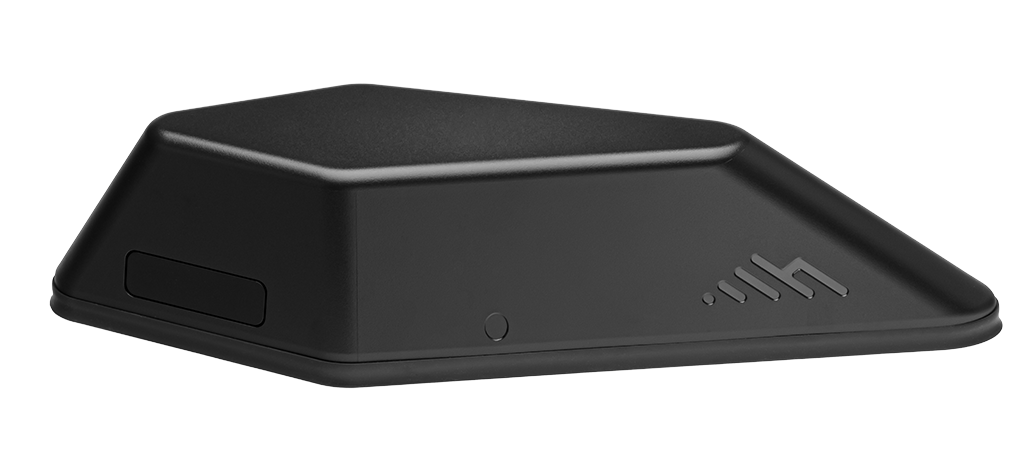

The Cradlepoint R2155 is the non-Wi-Fi model of the Ericsson Cradlepoint R2100 5G ruggedized router. It combines the modem, four internal cellular antennas and the router in one IP67, exterior-mounted housing for vehicle and IoT deployments. This TAA-compliant U.S. Federal Government SKU includes a 5-year Ericsson NetCloud Mobile Performance Essentials + Advanced subscription. It supports 5G FR1 NSA/SA and LTE Category 20 with peak rates up to 4.14 Gbps down, and it can run from 9–36 VDC or 802.3at PoE with no coax runs.

  • Integrated 5G modem, four internal cellular antennas and router in one roof-mountable ruggedized housing
  • 5G FR1 NSA/SA and LTE Advanced Pro Cat 20 with 4x4 MIMO; peak rates up to 4.14 Gbps downlink and 660 Mbps uplink
  • IP67, IK09 impact protection, salt-mist corrosion resistance and MIL-STD-810G shock/vibration testing
  • Runs as a self-contained router or as a captive 5G modem for supported Ericsson Cradlepoint routers
  • Powered by 9–36 VDC with ignition sensing or 802.3at PoE; no coax cables required
  • FirstNet Trusted, T-Mobile Connecting Heroes and Verizon Frontline Verified public safety certifications
  • 5-year TAA-compliant NetCloud Mobile Performance Essentials + Advanced subscription with coverage mapping
  • Simplify vehicle installs because modem and antennas sit on the roof, with one power cable or a single PoE Ethernet run and no coax loss

The Cradlepoint R2155 is built for mass transit, public safety and other organizations that need 5G on vehicles or IoT cabinet enclosures. It belongs to the Ericsson Cradlepoint R2100 series and is the configuration without Wi-Fi. The modem, antennas and router share a single aerodynamic, ruggedized housing that mounts on a vehicle roof or an enclosure, so the unit needs no coax cabling. The housing is rated IP67, carries IK09 impact protection and IEC60068-2-11 salt-mist corrosion resistance, and is tested to MIL-STD-810G for shock and vibration. It operates from -30 °C to 70 °C.

The embedded modem supports 5G FR1 NSA/SA and LTE Advanced Pro Category 20, with 4x4 MIMO, dual 4FF SIM slots and peak rates up to 4.14 Gbps downlink and 660 Mbps uplink. It holds AT&T, T-Mobile and Verizon operator certifications. For public safety networks it is FirstNet Trusted, T-Mobile Connecting Heroes and Verizon Frontline Verified. It also supports CBRS Band 48 private cellular. Passive GNSS shares the internal cellular antennas and feeds Automatic Vehicle Location systems.

You can deploy the R2155 in two ways. It can run as a self-contained router through its 2.5 GbE LAN port, or as a captive 5G modem behind a supported Ericsson Cradlepoint controlling router. In captive mode, NetCloud Manager treats it as an internal modem, so it needs no separate license. Power comes from a 9–36 VDC cable with ignition sensing or from 802.3at PoE.

The included 5-year NetCloud Mobile Performance Essentials + Advanced subscription covers the following: • NetCloud Manager cloud management and all software and firmware updates. • 24x7 support and access to Enterprise Wireless University. • A limited lifetime warranty for as long as the subscription is active. • Advanced coverage mapping, which combines GNSS location with 5G/LTE signal health.

This package does not include a SIM card or an AC power supply.

Ideal for

  • Roof-mounted 5G connectivity for police, fire and EMS vehicles on FirstNet and other public safety networks
  • Mass transit buses and fleet vehicles that need a single integrated modem-antenna unit with ignition sensing
  • Adding 5G to an existing Ericsson Cradlepoint vehicle router as a PoE-powered captive modem
  • Exterior-mounted 5G for IoT cabinets and enclosures exposed to dust, water and salt mist
  • Federal agency deployments that require a TAA-compliant SKU with multi-year cloud management

Specifications

Power

Fusing
3 A fuse (9–24 VDC); 2.5 A fuse (>24 VDC)

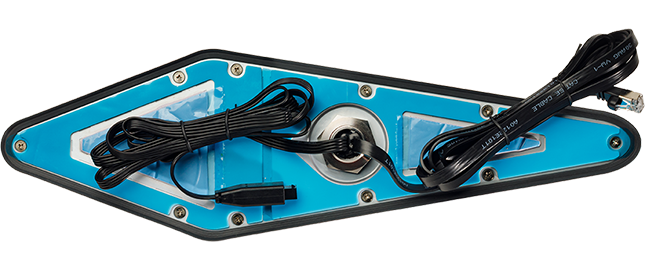

DC Cable
380 mm non-removable cable, 4-pin 2x2 Molex micro-fit
DC Input
9–36 VDC steady state
Features
Ignition sensing (automatic ON, time-delay OFF)
PoE Class
802.3at Class 4 PD (30 W)
PoE Input
802.3at PSE Type 2 (30 W)
Consumption Idle
R2155 idle: 6 W
Consumption Heavy
R2155 heavy: 11.5 W
Consumption Sleep
R2155 sleep: 50 mW
Consumption Typical
R2155 typical: 10 W

General

MPN
TAA-MBA5-2155-5GB-GA
UPC
840292702530
Brand
Cradlepoint (Ericsson Cradlepoint)
Model
R2155 (non-Wi-Fi model)
Series
Cradlepoint R2100 series
Manufacturer
Ericsson Enterprise Wireless (Ericsson Cradlepoint)
Product Status
Active

Package

Region
United States: Federal Government
FIPS Sku
Non-FIPS SKU
TAA Compliant
TAA-compliant SKU
Shipping Weight
5.03 lb
Subscription Plan
5-Year NetCloud Mobile Performance Essentials + Advanced Plans
Subscription Term
5 years
Essentials Inclusions
Endpoint, 24x7 support, limited lifetime warranty, Enterprise Wireless University access
Hardware Configuration
R2155 5G router without Wi-Fi; integrated antennas; 4FF SIM not included; no AC power supply

Cellular

SMS
Yes
MIMO
4x4 MIMO
Three G
WCDMA/UMTS/HSPA+
Antennas
4 x internal cellular antennas
GNSS GPS
Passive GNSS
LTE Bands
FDD: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71; TDD: B34, B38, B39, B40, B41, B42, B43, B46, B48
Modulation
5G FR1: DL/UL up to 256 QAM (carrier equipment dependent)
Regulatory
FCC, IC, CE, RCM
Technology
5G FR1 NSA/SA + LTE Advanced Pro Cat 20; dual 4FF SIM; 3GPP Rel. 15
Peak Uplink
Up to 660 Mbps uplink
Peak Downlink
Up to 4.14 Gbps downlink
Three G Bands
1, 2, 4, 5, 6, 8, 9, 19
Transmit Power
5G NR 23 dBm ± 1.5; ENDC 20 dBm ± 1; LTE 23 dBm ± 1; LTE HPUE 25 dBm ± 1 (B41 SA only)
Five G NR Bands
NSA/SA: n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41, n48, n66, n71, n77, n78, n79
Carrier Aggregation
LTE: DL up to 7 CA / UL up to 2 CA; LTE + 5G NR ENDC: DL 1 CA / UL 1 CA
Gcf Global Operators
GCF member operator list
Private Cellular Network
Yes, including FCC Part 96 CBRS Band 48
Network Operator Standards
PTCRB (U.S., Canada); GCF (Worldwide)
Public Safety Certifications
FirstNet Trusted, T-Mobile Connecting Heroes, Verizon Frontline Verified
Ptcrb North America Operators
PTCRB operator information
Network Operator Certifications
AT&T, T-Mobile, Verizon

Physical

Weight
1.46 kg (3 lb 4 oz)

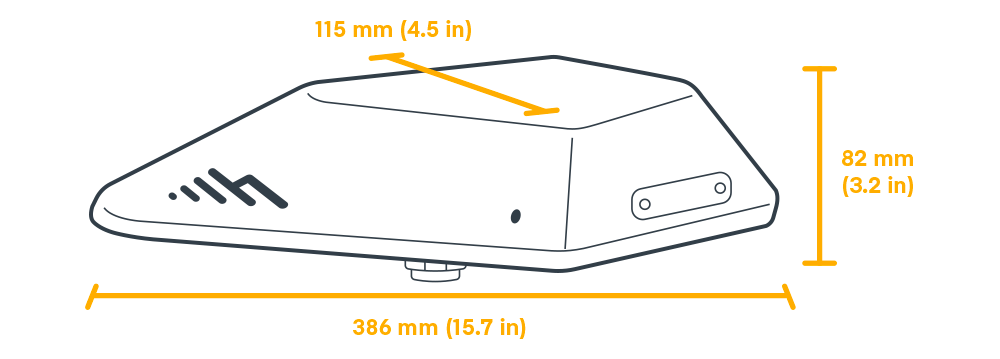

Dimensions
115 x 386 x 82 mm (4.5 x 15.7 x 3.2 in)

Interfaces

Modem
Embedded 5G NR FR1 low-/mid-band and 4G LTE Cat 20 modem
WI FI
None on R2155 (Wi-Fi 6 on R2100 Wi-Fi models only)
Ethernet
1 x 2.5 GbE RJ45 (LAN only) on 380 mm (14.96 in) non-removable shielded flat CAT5e cable
GNSS GPS
Passive GNSS, multiplexed with internal cellular antennas

Performance

Vlans
Up to 64 Layer 2/Layer 3 VLANs
Stateful Firewall
900 Mbps
Concurrent Sessions
32,000
Typical Client Count
100
Concurrent VPN Tunnels
10
Point TO Point Ipsec VPN
300 Mbps
Ips Application Aware Client Analytics
650 Mbps

Reliability

Vlans
Up to 64 Layer 2/Layer 3 VLANs
Calculated MTBF
1,895,792 hours (Telcordia SR332 at 25 °C)
Shock Vibration
MIL-STD-810G Sec. 2.2.2 Proc. 1 (shock, vibration) and Proc. 5 (shock)

Environmental

Storage Humidity
5% to 95%
Impact Protection
IK09 (protected against 10 joules impact)
Ingress Protection
IP67 (dust tight and water immersion up to 1 meter)
Operating Humidity
5% to 95%
Storage Temperature
-40 °C to 85 °C (-40 °F to 185 °F)
Corrosion Resistance
IEC60068-2-11 corrosion resistance (salt mist)
Operating Temperature
-30 °C to 70 °C (-22 °F to 158 °F)

Certifications

Safety
CB Scheme; IEC/EN 62368-1
Vehicle
E-Mark; SAE J1455 Category 2
Security
FIPS 140-3 Level 1 in process (FIPS models only; this SKU is non-FIPS)
Shock Vibration
MIL-STD-810G Sec. 2.2.2 Proc. 1 and Proc. 5
Substance Compliance
WEEE, RoHS, REACH, California Prop 65

Cloud Services

Support
Support for the full subscription term
Warranty
Limited lifetime warranty with active NetCloud subscription
Service Plans
NetCloud Mobile Performance; NetCloud Ruggedized IoT
Service Add Ons
NetCloud Exchange; NetCloud Advanced
Software Updates
Software updates via NetCloud Manager for the full term
Device Management
NetCloud Manager for the full term

Edge Computing

CPU
Quad-core ARMv8 64-bit
Memory
Up to 1.8 GB
Applications
Docker containerized applications
Flash Storage
Up to 8 GB

Product Summary

PoE
802.3at
WI FI
None on R2155 (Wi-Fi 6 offered on R2100 Wi-Fi models)
GPS GNSS
Passive
Throughput
900 Mbps (Firewall)
Form Factor
Polycarbonate
VPN Tunnels
10
Five G Status
5G Embedded
Ethernet Ports
1 x 2.5 GbE RJ45
Cloud Management
Yes
Special Features
External mounting for best reception with no signal loss
Subscription Terms
1, 3 & 5 years
Operating Temperature
-30 °C to 70 °C (-22 °F to 158 °F)
Wireless Connectivity
Dual Connectivity; 5G & Cat 20 LTE
Private Cellular Network
Yes — CBRS, 4G LTE, 5G
Network Operator Standards
PTCRB (U.S. & Canada), GCF (worldwide)

R2105 Wi-Fi Power Reference

Fcc
2.4 GHz 30.9; 5250–5350 MHz 29.4; 5470–5725 MHz 29.5; 5725–5850 MHz 34.3 dBm EIRP
Canada
2.4 GHz 30.9; 5470–5725 MHz 29.5; 5725–5850 MHz 34.3 dBm EIRP
European Union
R2105 Wi-Fi model only — EU: 2.4 GHz 20.0; 5470–5725 MHz 22.7 dBm EIRP
Global Safe Mode
R2105 Wi-Fi model only — Global Safe Mode: 2.4 GHz 20.0 dBm EIRP

Questions buyers ask

Does the R2155 include Wi-Fi?

No. The R2155 is the R2100-series configuration without Wi-Fi. It connects clients through its 2.5 GbE RJ45 LAN port, or it can act as a captive 5G modem for a supported Ericsson Cradlepoint router. The Wi-Fi 6 version of the R2100 is the R2105.

How is the R2155 powered?

It accepts 9–36 VDC through its 380 mm Molex micro-fit power cable, with ignition sensing for automatic on and time-delay off. It can also be powered over Ethernet from an 802.3at PSE Type 2 (30 W) source. An AC power supply is not included.

Is a SIM card included?

No. The router has dual 4FF SIM slots, but a SIM is not included with this SKU.

What does the 5-year Essentials + Advanced subscription cover?

The subscription runs for the full 5-year term and covers the following: • NetCloud Manager cloud management. • All software and firmware updates. • 24x7 support (phone 24-hour weekdays with weekend emergency response, web 24x7, chat 24x5). • Enterprise Wireless University access. • A limited lifetime warranty while the subscription is active. The Advanced plan adds capabilities such as GNSS-based coverage mapping.

Is this SKU FIPS certified?

No. This is a TAA-compliant, non-FIPS SKU for U.S. Federal Government ordering. FIPS 140-3 Level 1 applies only to R2100 FIPS models, and that module is listed as in process.
