Cradlepoint5G & LTE Routers

Cradlepoint R2155 5G Ruggedized Router (No Wi-Fi) with 1-Year NetCloud Mobile Performance Essentials Plan (TAA)

5GMPN TAA-MB01-2155-5GB-GA
  • Dual SIM
  • 1 × 2.5 Gb+ Ethernet
  • GPS/GNSS
  • PoE powered
  • Rugged
  • FirstNet Ready
$2,199.99

In stockShips from the US

Included subscription · 1 year
1 year3 years−$30.395 years+$161.78
Compliance · TAA compliant
Standard−$186.88TAA compliant
Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans
Compare all 19 configurations

Datasheets & documents

Overview

The Cradlepoint R2155 is the no-Wi-Fi model of the R2100 Series 5G ruggedized router. It is built to mount on a vehicle roof or IoT enclosure, with a 5G NR / Cat 20 LTE modem and four internal cellular antennas in an IP67, IK09 housing. It connects to onboard equipment through a 2.5 GbE port. This TAA-compliant SKU for U.S. Federal Government ordering includes a 1-year NetCloud Mobile Performance Essentials plan and runs from 9–36 VDC or 802.3at PoE.

  • Embedded 5G NR FR1 (NSA/SA) and LTE Advanced Pro Cat 20 modem with 4x4 MIMO, up to 4.14 Gbps downlink and 660 Mbps uplink
  • No-Wi-Fi configuration with one 2.5 GbE RJ45 LAN port
  • Integrated modem, four internal cellular antennas and router in an exterior-mount IP67, IK09 housing
  • Powered from 9–36 VDC with ignition sensing, or by 802.3at PoE; 10 W typical consumption
  • Works as a standalone 5G router or as a license-free captive 5G modem for supported Cradlepoint routers
  • FirstNet Trusted, T-Mobile Connecting Heroes and Verizon Frontline Verified; CBRS Band 48 support
  • TAA-compliant SKU with a 1-year NetCloud Mobile Performance Essentials plan
  • Add 5G to an existing Cradlepoint vehicle router as a captive modem, with no extra license

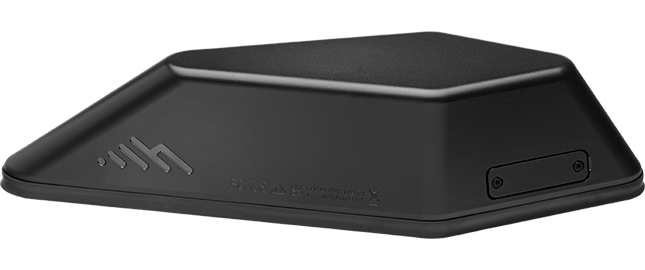

The Ericsson Cradlepoint R2155 is the R2100 Series 5G ruggedized router configured without Wi-Fi. It fits deployments where wireless LAN is already handled elsewhere, or where Wi-Fi is not wanted. It mounts on a vehicle roof or attaches to an IoT cabinet enclosure. The modem, antennas and router sit in a single aerodynamic polycarbonate housing rated IP67 and IK09, so no antenna coax cables are needed. This part number (TAA-MB01-2155-5GB-GA) is the TAA-compliant U.S. Federal Government ordering option and bundles the router with a 1-year NetCloud Mobile Performance Essentials plan.

The embedded 5G NR FR1 (NSA/SA) and LTE Advanced Pro Category 20 modem supports 4x4 MIMO, dual 4FF SIM slots and peak rates of up to 4.14 Gbps downlink and 660 Mbps uplink. It also supports CBRS Band 48 for private cellular networks. It carries AT&T, T-Mobile and Verizon network operator certifications, and it is FirstNet Trusted, T-Mobile Connecting Heroes and Verizon Frontline Verified. A single 2.5 GbE LAN port delivers the connection to in-vehicle or in-cabinet equipment.

A common role for the R2155 is a captive 5G modem for supported Cradlepoint controlling routers. In that role NetCloud Manager manages both devices as one entity and treats the R2155 as an internal modem, so it needs no separate license. PoE power lets a single Ethernet run carry both power and data. Passive GNSS supports Automatic Vehicle Location, and ignition sensing handles power-on and delayed shutdown. Without Wi-Fi, typical power draw is 10 W.

The Essentials plan covers NetCloud Manager, software updates, 24x7 support and Enterprise Wireless University access for the full term. A limited lifetime warranty applies while the subscription is active. The package does not include a SIM or an AC power supply. The Cradlepoint R2100 datasheet has full specifications.

Ideal for

  • Captive 5G modem added to an existing Cradlepoint in-vehicle router
  • Public safety vehicles that need priority cellular access without an extra Wi-Fi radio
  • Federal fleets that require TAA-compliant cellular equipment
  • Roof-mounted 5G uplink for mass transit where onboard Wi-Fi is handled by another device
  • IoT cabinets on public or private CBRS cellular networks

Specifications

Modem

3g
WCDMA/UMTS/HSPA+
SMS
Yes
MIMO
4x4 MIMO
3g Bands
1, 2, 4, 5, 6, 8, 9, 19
Antennas
4 internal cellular antennas
GNSS GPS
Passive GNSS
Modulation
Up to 256 QAM DL/UL (carrier-equipment dependent)
Peak Rates
Up to 4.14 Gbps down / 660 Mbps up
Regulatory
FCC; IC; CE; RCM
Technology
5G FR1 NSA/SA + LTE-A Pro Cat 20; dual 4FF SIM; 3GPP Rel. 15
5G NR Bands
n1 (2100), n2 (1900), n3 (1800), n5 (850), n7 (2600), n8 (900), n12 (700), n20 (800), n25 (1900), n28 (700), n38 (2600), n40 (2300), n41 (2500), n48 (3500), n66 (1700/2100), n71 (600), n77 (3700), n78 (3500), n79 (4900)
LTE Bands Fdd
B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71
LTE Bands Tdd
B34, B38, B39, B40, B41, B42, B43, B46, B48
Transmit Power
5G NR 23 ± 1.5 / EN-DC 20 ± 1 / LTE 23 ± 1 / HPUE 25 ± 1 dBm (B41 SA) — typical conducted
Carrier Aggregation
LTE: 7CA DL / 2CA UL; EN-DC: 1CA DL / 1CA UL
Private Cellular Network
Yes, incl. FCC Part 96 (CBRS Band 48)
Network Operator Standards
PTCRB (U.S., Canada); GCF (worldwide)
Public Safety Certifications
FirstNet Trusted™; T-Mobile Connecting Heroes; Verizon Frontline Verified
Network Operator Certifications
AT&T; T-Mobile; Verizon

Power

Fusing
3 A fuse for 9–24 VDC installs; 2.5 A fuse for > 24 VDC installs
Features
Ignition sensing (automatic ON & time-delay OFF)
Required
One of: 9–36 VDC via non-removable DC cable (4-pin 2x2 Molex Micro-Fit) or 802.3at PSE Type 2 (30 W)
PoE Class
802.3at Class 4 PD (30 W)
Consumption R2155
Sleep 50 mW / Idle 6 W / Typical 10 W / Heavy 11.5 W

General

MPN
TAA-MB01-2155-5GB-GA
UPC
840292705166
Brand
Cradlepoint (Ericsson Enterprise Wireless)
Model
Cradlepoint R2155 (R2100 Series)
Region
United States: Federal Government
Service Plan
1-Year NetCloud Mobile Performance Essentials Plan
TAA Compliant
TAA compliant
Shipping Weight
5.03 lb
Subscription Term
1 year
Hardware Configuration
R2155 5G router without Wi-Fi; SIM and AC power supply not included; integrated antennas

Physical

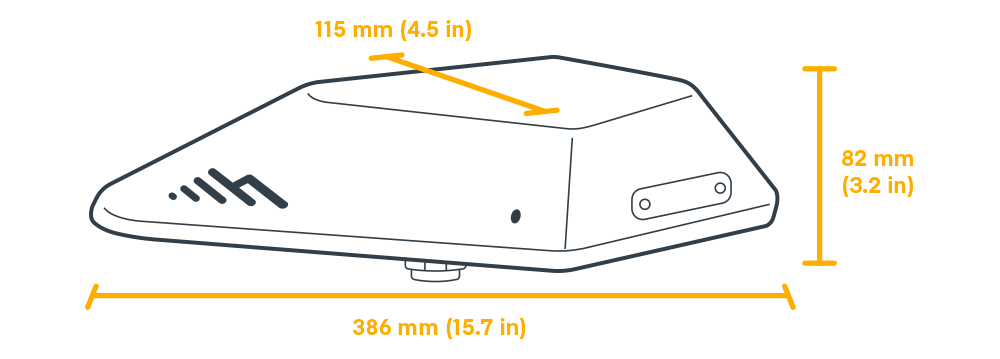

Size
115 x 386 x 82 mm (4.5 x 15.7 x 3.2 in)
Weight
1.46 kg (3 lb 4 oz)

Interfaces

Wi-Fi
Not included on R2155
Modem
Embedded 5G NR FR1 low-/mid-band and 4G LTE Cat 20 modem
Ethernet

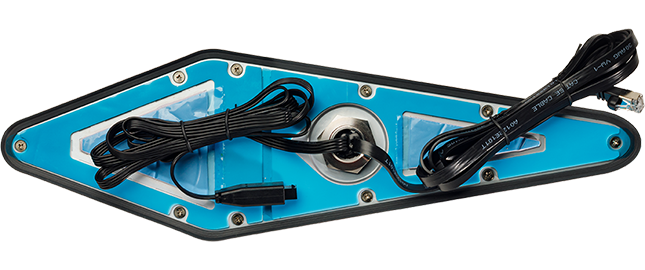

1 x 2.5 GbE RJ45 (LAN only) on 380 mm (14.96 in) non-removable shielded CAT5e flat cable
GNSS GPS
Passive GNSS (multiplexed with internal cellular antennas)

Performance

Vlans
Up to 64 Layer 2/Layer 3 VLANs
Stateful Firewall
900 Mbps
Typical Client Count
100
Concurrent VPN Tunnels
10
Concurrent Sessions Tcp
32,000
Point TO Point Ipsec VPN
300 Mbps
Ips App Aware Client Analytics
650 Mbps

Reliability

Vlans
Up to 64 Layer 2/Layer 3 VLANs
Calculated MTBF
1,895,792 hours (Telcordia SR332 at 25 °C)
Shock Vibration
MIL-STD-810G Sec. 2.2.2 Proc. 1 (shock, vibration) and Proc. 5 (shock)

Environmental

Humidity
5% to 95% operating and storage
Impact Protection
IK09 (protected against 10 joules impact)
Storage Temperature
-40 °C to 85 °C (-40 °F to 185 °F)
Operating Temperature
-30 °C to 70 °C (-22 °F to 158 °F)
Ingress Protection Corrosion
IP67 (dust tight, water immersion up to 1 m); IEC60068-2-11 salt-mist corrosion resistance

Certifications

Safety
CB Scheme; IEC/EN 62368-1
Vehicle
E-Mark; SAE J1455 Category 2
Security
FIPS 140-3 Level 1 in process (R2100 FIPS models only; this SKU is non-FIPS)
Shock Vibration
MIL-STD-810G Sec. 2.2.2 Proc. 1 and 5
Substance Compliance
WEEE; RoHS; REACH; California Prop 65

Cloud Services

Support
Support for the full subscription term
Warranty
Limited lifetime warranty with active NetCloud subscription
Service Plans
NetCloud Mobile Performance; NetCloud Ruggedized IoT
Service Add Ons
NetCloud Exchange; NetCloud Advanced
Software Updates
Via NetCloud Manager for the full term
Device Management
NetCloud Manager for the full term

Edge Computing

CPU
Quad-core ARMv8 64-bit
Memory
Up to 1.8 GB (for NetCloud Container Orchestrator)
Applications
Docker containerized applications
Flash Storage
Up to 8 GB

Product Summary

PoE
802.3at
Wi-Fi
None (no-Wi-Fi model)
GPS GNSS
Passive
5G Status
5G Embedded
Throughput
900 Mbps (Firewall)
Form Factor
Polycarbonate
VPN Tunnels
10
Ethernet Ports
1 x 2.5 GbE RJ45
Cloud Management
Yes
Special Features
External mounting for best reception with no signal loss
Operating Temperature
-30 °C to 70 °C (-22 °F to 158 °F)
Wireless Connectivity
Dual Connectivity; 5G & Cat 20 LTE
Private Cellular Network
Yes — CBRS, 4G LTE, 5G
Network Operator Standards
PTCRB (U.S. & Canada), GCF (worldwide)
Subscription Terms Available
1, 3 & 5 years

Questions buyers ask

Does the R2155 have Wi-Fi?

No. The R2155 is the no-Wi-Fi model of the R2100 Series. It delivers its 5G connection over a 2.5 GbE LAN port. The R2105 is the Wi-Fi 6 model.

Is a power supply or SIM included?

No. This configuration ships without an AC power supply or SIM. It runs from 9–36 VDC through its non-removable DC cable or from 802.3at PoE, and it has dual 4FF SIM slots.

Can the R2155 add 5G to my existing Cradlepoint router?

Yes. With supported Cradlepoint controlling routers it runs as a captive modem. NetCloud Manager treats it as an internal modem, so no separate license is needed.

What does the Essentials plan cover?

For one year, the plan covers NetCloud Manager cloud management, software and firmware updates, 24x7 support and Enterprise Wireless University access. The limited lifetime warranty applies while a NetCloud subscription is active.

How rugged is the R2155?

The R2155 is rated IP67 and IK09, is tested to MIL-STD-810G for shock and vibration, and resists salt-mist corrosion. It operates from -30 °C to 70 °C.
