Cradlepoint R2155 5G Ruggedized Vehicle Router with 5-Year TAA NetCloud Mobile Performance Essentials Plan

5GMPN TAA-MB05-2155-5GB-GA
  • Dual SIM
  • 1 × 2.5 Gb+ Ethernet
  • GPS/GNSS
  • PoE powered
  • Rugged
  • FirstNet Ready
$2,909.87$3,179.99Save $270.12

In stockShips from the US

Included subscription · 5 years
1 year−$161.783 years−$192.175 years
Compliance · TAA compliant
StandardTAA compliant
Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans
Compare all 19 configurations

Datasheets & documents

Overview

The Cradlepoint TAA-MB05-2155-5GB-GA pairs the Ericsson Cradlepoint R2155, an exterior-mounted 5G ruggedized router without Wi-Fi, with a 5-year NetCloud Mobile Performance Essentials plan. It is a TAA-compliant ordering option for U.S. Federal Government buyers. The modem, four internal cellular antennas and router share one IP67, IK09 polycarbonate housing built for vehicle roofs and IoT cabinets. It runs as a standalone 5G router or as a captive 5G modem for a supported Cradlepoint router. No AC power supply is included, and no SIM is supplied.

  • Embedded 5G NR FR1 (NSA/SA) and LTE Advanced Pro Cat 20 modem with 4x4 MIMO and four internal cellular antennas
  • Exterior roof or enclosure mounting in an IP67, IK09 polycarbonate housing with MIL-STD-810G shock and vibration ratings
  • Dual 4FF SIM slots and 1 x 2.5 GbE RJ45 LAN port
  • Powered by 9–36 VDC with ignition sensing or by 802.3at PoE (30 W)
  • Standalone 5G router or captive 5G modem for supported Cradlepoint routers
  • FirstNet Trusted, T-Mobile Connecting Heroes and Verizon Frontline Verified certifications
  • 5-year NetCloud Mobile Performance Essentials plan; TAA-compliant U.S. Federal Government SKU
  • One cable, no coax: the modem and antennas sit on the roof, so installs are simpler and there is no cable signal loss

The Cradlepoint R2155 is the no-Wi-Fi configuration of the Ericsson Cradlepoint R2100 5G ruggedized router. It is built for mass transit, public safety and IoT deployments that need high-bandwidth cellular in a simple exterior-mounted form factor. This part number, TAA-MB05-2155-5GB-GA, is the TAA-compliant U.S. Federal Government SKU. It bundles the router with a 5-year Ericsson NetCloud Mobile Performance Essentials plan. The package ships with integrated antennas and no AC power supply, and a 4FF SIM is not included.

The R2155 mounts on a vehicle roof or an enclosure, so the modem sits outside the vehicle with no coax runs or signal loss. It has an embedded 5G NR FR1 modem (NSA and SA) with LTE Advanced Pro Category 20 fallback, 4x4 MIMO and dual 4FF SIM slots. Peak rates reach up to 4.14 Gbps downlink and 660 Mbps uplink. The modem is certified on AT&T, T-Mobile and Verizon and carries FirstNet Trusted, T-Mobile Connecting Heroes and Verizon Frontline Verified public safety certifications. It also supports CBRS Band 48 private cellular.

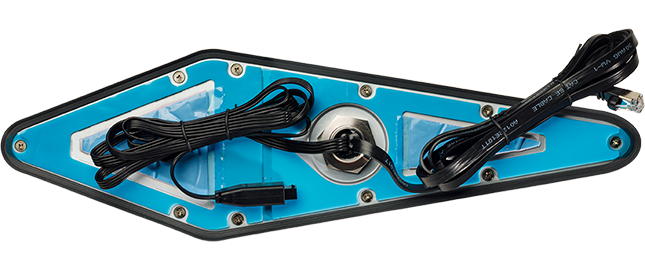

Installation needs only one cable to the vehicle, either 9–36 VDC with ignition sensing or 802.3at PoE. The single 2.5 GbE RJ45 LAN port connects the unit to onboard equipment or to a controlling Cradlepoint router. In captive mode, NetCloud Manager treats the R2155 as that router's internal modem, so no separate licence is needed. The housing is rated IP67, IK09 and MIL-STD-810G for shock and vibration, and it carries E-Mark and SAE J1455 vehicle certifications. It operates from -30 °C to 70 °C.

The Essentials plan covers NetCloud Manager cloud management and software updates for the full term. It also includes 24x7 support, access to Enterprise Wireless University, and a limited lifetime warranty while the subscription is active. NetCloud Advanced can be added at any time for features such as coverage mapping.

Ideal for

  • Roof-mounted 5G connectivity for police, fire and EMS vehicles on FirstNet and other public safety networks
  • Mass transit buses and fleet vehicles that need a single-cable, no-coax 5G installation
  • Adding 5G to an existing Cradlepoint in-vehicle router as a captive modem
  • Exterior-mounted cellular for IoT cabinets and enclosures in harsh outdoor environments
  • U.S. Federal Government deployments that require TAA-compliant hardware

Specifications

Power

Features
Ignition sensing (automatic ON & time-delay OFF)
Required
9–36 VDC (380 mm non-removable cable, 4-pin 2x2 Molex micro-fit; 3 A fuse for 9–24 VDC, 2.5 A fuse above 24 VDC) or 802.3at PSE Type 2 (30 W)
PoE Class
802.3at Class 4 PD (30 W)
AC Power Supply
No AC power supply included
Consumption R2105
R2105 (Wi-Fi model): Sleep 50 mW; Idle 8 W; Typical 14.5 W; Heavy 17 W
Consumption R2155
Sleep 50 mW; Idle 6 W; Typical 10 W; Heavy 11.5 W

General

MPN
TAA-MB05-2155-5GB-GA
UPC
840292703339
Brand
Cradlepoint (Ericsson Enterprise Wireless)
Model
Cradlepoint R2155 (R2100 Series)
Region
United States: Federal Government
FIPS Model
Non-FIPS model
Service Plan
5-Year NetCloud Mobile Performance Essentials Plan
TAA Compliant
TAA compliant
Shipping Weight
5.03 lb shipping weight
Subscription Term
5 years
Hardware Configuration
R2155 5G router without Wi-Fi; integrated antennas; SIM and AC power supply not included

Cellular

3g
WCDMA/UMTS/HSPA+
SMS
SMS supported
MIMO
4x4 MIMO
3g Bands
1, 2, 4, 5, 6, 8, 9, 19
Antennas
4 x internal cellular antennas
GNSS GPS
Passive GNSS
LTE Bands
FDD: B1 (2100), B2 (1900), B3 (1800), B4 (1700), B5 (850), B7 (2600), B8 (900), B12 (700), B13 (700), B14 (700), B17 (700), B18 (850), B19 (850), B20 (800), B25 (1900), B26 (850), B28 (700), B29 (700), B30 (2300), B32 (1500), B66 (1700), B71 (600); TDD: B34 (2000), B38 (2600), B39 (1900), B40 (2300), B41 (2500), B42 (3500), B43 (3700), B46 (5200), B48 (3500)
Modulation
5G FR1: DL up to 256 QAM, UL up to 256 QAM (only enabled on particular carrier equipment)
Peak Rates
Downlink up to 4.14 Gbps; Uplink up to 660 Mbps
Regulatory
FCC (U.S.); IC (Canada); CE (EU); RCM (AU/NZ)
Technology
5G FR1 NSA/SA and 4G LTE; LTE Advanced Pro Cat 20; dual 4FF SIM slots; 3GPP Release 15
5G NR Bands
NSA and SA: n1 (2100), n2 (1900), n3 (1800), n5 (850), n7 (2600), n8 (900), n12 (700), n20 (800), n25 (1900), n28 (700), n38 (2600), n40 (2300), n41 (2500), n48 (3500), n66 (1700/2100), n71 (600), n77 (3700), n78 (3500), n79 (4900)
Transmit Power
5G NR: 23 dBm ± 1.5; ENDC: 20 dBm ± 1; LTE: 23 dBm ± 1; LTE HPUE: 25 dBm ± 1 (B41 SA only), typical conducted
Carrier Aggregation
LTE only: DL up to 7 CA / UL up to 2 CA; LTE + 5G NR ENDC: DL 1 CA / UL 1 CA
Private Cellular Network
Yes, includes FCC Part 96 (CBRS Band 48)
Network Operator Standards
PTCRB (U.S., Canada); GCF (Worldwide)
Public Safety Certifications
FirstNet Trusted™; T-Mobile Connecting Heroes; Verizon Frontline Verified
Network Operator Certifications
AT&T; T-Mobile; Verizon

Physical

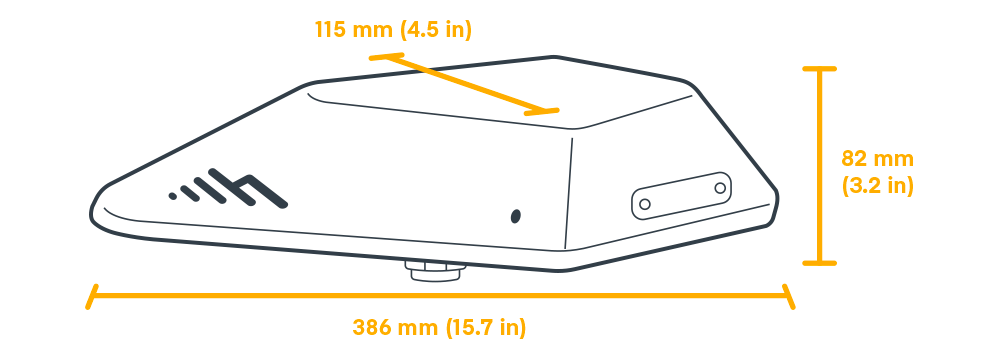

Size
115 x 386 x 82 mm (4.5 x 15.7 x 3.2 in)
Weight
1.46 kg (3 lb 4 oz)

Interfaces

Wi-Fi
Wi-Fi-equipped R2100 models only; the R2155 is the configuration without Wi-Fi
Modem
Embedded 5G NR FR1 low-, mid-band, and 4G LTE Category 20 modem
Ethernet
1 x 2.5 GbE RJ45 (LAN only) on a 380 mm (14.96 in) non-removable shielded CAT5e flat cable with male RJ45
GNSS GPS
Passive GNSS (multiplex with internal cellular antennas)

Performance

Stateful Firewall
900 Mbps
Concurrent Sessions
32,000
Layer2 Layer3 Vlans
Up to 64
Typical Client Count
100
Concurrent VPN Tunnels
10
Point TO Point Ipsec VPN
300 Mbps
Ips Application Aware Client Analytics
650 Mbps

Reliability

Calculated MTBF
1,895,792 hours (Telcordia SR332 at 25 °C)
Shock Vibration
MIL-STD-810G Section 2.2.2, Procedure 1 (Shock, Vibration) and Procedure 5 (Shock)
Layer2 Layer3 Vlans
Up to 64

Environmental

Humidity
Operating 5% to 95%; Storage 5% to 95%
Temperature
Operating -30 °C to 70 °C (-22 °F to 158 °F); Storage -40 °C to 85 °C (-40 °F to 185 °F)
Impact Protection
IK09 (protected against 10 joules impact)
Ingress Protection Corrosion
IP67 (dust tight and water immersion up to 1 meter); IEC60068-2-11 corrosion resistance (salt mist)

Certifications

Safety
CB Scheme; IEC/EN 62368-1
Vehicle
E-Mark; SAE J1455 Category 2
Security
FIPS 140-3 Level 1 module in process (R2100 FIPS models only)
Shock Vibration
MIL-STD-810G Section 2.2.2, Procedures 1 and 5
Substance Compliance
WEEE; RoHS; REACH; California Prop 65

Cloud Services

Support
Support for the full subscription term (phone 24-hour weekdays with weekend emergency response, web 24x7, chat 24x5)
Warranty
Limited lifetime warranty while subscribed to an active NetCloud Service plan
Service Plans
NetCloud Mobile Performance; NetCloud Ruggedized IoT
Service Add Ons
NetCloud Exchange; NetCloud Advanced
Software Updates
Software updates via NetCloud Manager for the full subscription term
Device Management
NetCloud Manager for the full subscription term

Edge Computing

CPU
Quad-core ARMv8 64-bit
Memory
Up to 1.8 GB (NetCloud Container Orchestrator allocation)
Applications
Docker containerized applications
Flash Storage
Up to 8 GB (NetCloud Container Orchestrator allocation)

Product Summary

PoE
802.3at
Wi-Fi
Wi-Fi 6 on Wi-Fi-equipped R2100 models; this R2155 configuration is without Wi-Fi
GPS GNSS
Passive
5G Status
5G Embedded
Throughput
900 Mbps (Firewall)
Form Factor
Polycarbonate
VPN Tunnels
10
Ethernet Ports
1 x 2.5 GbE RJ45
Cloud Management
Yes
Special Features
External mounting for best reception with no signal loss
Subscription Terms
1, 3 & 5 years
Operating Temperature
-30 °C to 70 °C (-22 °F to 158 °F)
Wireless Connectivity
Dual Connectivity; 5G & Cat 20 LTE
Private Cellular Network
Yes — CBRS, 4G LTE, 5G
Network Operator Standards
PTCRB (U.S. & Canada), GCF (worldwide)

Wi-Fi Power R2105

Fcc
2.4 GHz 30.9; 5250–5350 MHz 29.4; 5470–5725 MHz 29.5; 5725–5850 MHz 34.3 dBm EIRP
Canada
2.4 GHz 30.9; 5470–5725 MHz 29.5; 5725–5850 MHz 34.3 dBm EIRP
European Union
R2105 only — EU: 2.4 GHz 20.0; 5470–5725 MHz 22.7 dBm EIRP
Global Safe Mode
2.4 GHz 20.0 dBm EIRP

Questions buyers ask

Does the Cradlepoint R2155 have Wi-Fi?

No. The R2155 is the R2100 Series configuration without Wi-Fi. It delivers 5G over its 2.5 GbE port as a standalone router or as a captive modem for a controlling Cradlepoint router. The R2105 is the Wi-Fi 6 model.

How is the R2155 powered?

It runs on 9–36 VDC through its non-removable 4-pin Molex micro-fit cable with ignition sensing, or on 802.3at PoE (30 W). No AC power supply is included.

What does the 5-year Essentials plan include?

It includes NetCloud Manager cloud management and software updates for the full term. Support covers phone 24 hours on weekdays with weekend emergency response, web 24x7 and chat 24x5. It also includes access to Enterprise Wireless University and a limited lifetime warranty while the subscription is active.

Is this SKU TAA compliant?

Yes. TAA-MB05-2155-5GB-GA is the TAA-compliant ordering option for the U.S. Federal Government market.

Does it work on public safety networks?

Yes. The modem is FirstNet Trusted, T-Mobile Connecting Heroes and Verizon Frontline Verified. It is also certified on AT&T, T-Mobile and Verizon, and it supports CBRS Band 48 private cellular.
