Cradlepoint5G & LTE Routers

Cradlepoint R2155 5G Exterior-Mount Rugged Router without Wi-Fi, 3-Year TAA NetCloud Essentials

5GMPN TAA-MB03-2155-5GB-GA
  • Dual SIM
  • 1 × 2.5 Gb+ Ethernet
  • GPS/GNSS
  • PoE powered
  • Rugged
  • FirstNet Ready
$2,461.49$2,689.99Save $228.50

In stockShips from the US

Included subscription · 3 years
1 year+$30.393 years5 years+$192.17
Compliance · TAA compliant
StandardTAA compliant
Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans
Compare all 19 configurations

Datasheets & documents

Overview

The Cradlepoint R2155 is the non-Wi-Fi model of the R2100 5G ruggedized router series. It combines a 5G NR and Cat 20 LTE modem, internal antennas and a router in one housing built for a vehicle roof or IoT cabinet. This TAA-compliant U.S. Federal Government SKU (TAA-MB03-2155-5GB-GA) includes a 3-year NetCloud Mobile Performance Essentials plan. It connects over a single 2.5 GbE cable, powered by PoE or 9–36 VDC. It is well suited to adding 5G to an existing Cradlepoint router as a captive modem.

  • Integrated 5G NR FR1 (NSA/SA) and LTE Advanced Pro Cat 20 modem with four internal cellular antennas and 4x4 MIMO
  • Non-Wi-Fi R2100 series model for WAN and captive modem roles
  • 1 x 2.5 GbE RJ45 LAN on a non-removable 380 mm shielded flat cable
  • Powered by 802.3at PoE or 9–36 VDC with ignition sensing; 10 W typical consumption
  • IP67, IK09 and IEC 60068-2-11 salt mist rated housing for roof or cabinet mounting
  • Passive GNSS for Automatic Vehicle Location integration
  • TAA-compliant SKU with a 3-year NetCloud Mobile Performance Essentials plan
  • Adds 5G to an existing Cradlepoint vehicle router as a captive modem managed as one device, with no separate license

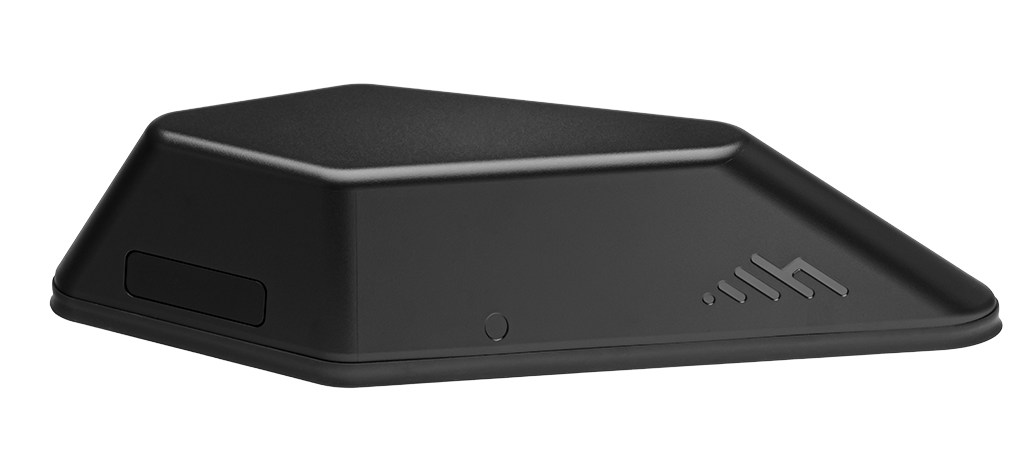

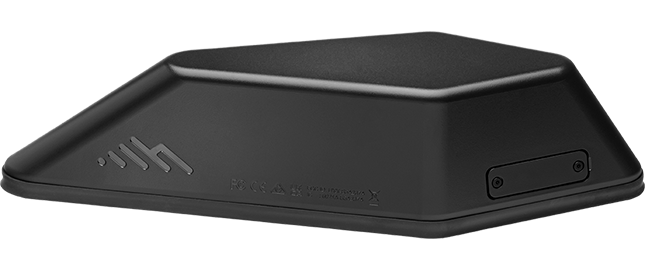

The Ericsson Cradlepoint R2155 is the R2100 series 5G ruggedized router without Wi-Fi. It suits deployments where local wireless comes from another device, or where the job is simply to deliver a strong 5G WAN link over Ethernet. The modem, four internal cellular antennas and router sit in a single aerodynamic polycarbonate housing. That housing is designed for vehicle roofs and IoT cabinets, and is rated IP67, IK09 impact protected, and tested for salt mist corrosion. Part number TAA-MB03-2155-5GB-GA is the TAA-compliant ordering option for the United States Federal Government. It bundles the hardware with a 3-year NetCloud Mobile Performance Essentials plan. A SIM card and AC power supply are not included.

The embedded modem supports 5G NR FR1 in NSA and SA modes and LTE Advanced Pro Cat 20, with peak rates up to 4.14 Gbps down and 660 Mbps up. It has 4x4 MIMO and dual 4FF SIM slots. Certifications include AT&T, T-Mobile and Verizon, plus FirstNet Trusted, T-Mobile Connecting Heroes and Verizon Frontline Verified, and it supports CBRS Band 48.

The R2155 is a strong fit for captive modem use. Paired with a supported Cradlepoint controlling router, it adds 5G to an existing installation and is managed in NetCloud Manager as a single entity, with no separate license. A single 2.5 GbE LAN port on a non-removable 380 mm shielded flat cable carries data. Power comes from 802.3at PoE or 9–36 VDC with ignition sensing. Typical draw is 10 W, lower than the Wi-Fi model. Passive GNSS supports AVL integration, and the unit operates from -30 °C to 70 °C.

The Essentials plan includes NetCloud Manager, software updates and 24x7 support for the full term, with a limited lifetime warranty while the plan is active. The R2100 data sheet is available.

Ideal for

  • Captive 5G modem for existing Cradlepoint routers in public safety and fleet vehicles
  • Roof-mounted 5G WAN for transit vehicles where Wi-Fi is provided by other equipment
  • Exterior-mounted 5G connectivity for IoT cabinets and outdoor enclosures
  • TAA-compliant federal fleet and field deployments
  • Low-power installations that run on a single PoE cable

Specifications

Modem

SMS
Yes
MIMO
4x4 MIMO
Three G
WCDMA/UMTS/HSPA+
Antennas
4 x internal cellular antennas
GNSS GPS
Passive GNSS
NR Bands
5G NR (NSA/SA): n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41, n48, n66, n71, n77, n78, n79
TX Power
5G NR 23 dBm ±1.5; EN-DC 20 dBm ±1; LTE 23 dBm ±1; HPUE 25 dBm ±1 (B41) (typical conducted)
LTE Bands
FDD B1/2/3/4/5/7/8/12/13/14/17/18/19/20/25/26/28/29/30/32/66/71; TDD B34/38/39/40/41/42/43/46/48
Modulation
Up to 256 QAM downlink and uplink (carrier dependent)
Peak Rates
Up to 4.14 Gbps down / 660 Mbps up
Regulatory
FCC, IC, CE, RCM
Technology
5G FR1 NSA/SA + LTE Advanced Pro Cat 20; dual 4FF SIM; 3GPP Release 15
Three G Bands
1, 2, 4, 5, 6, 8, 9, 19
Carrier Aggregation
LTE: 7 CA DL / 2 CA UL; EN-DC: 1 CA DL / 1 CA UL
Gcf Global Operators
GCF members list
Private Cellular Network
Yes, CBRS Band 48 (FCC Part 96)
Network Operator Standards
PTCRB (U.S., Canada), GCF (worldwide)
Public Safety Certifications
FirstNet Trusted, T-Mobile Connecting Heroes, Verizon Frontline Verified
Ptcrb North America Operators
PTCRB operators
Network Operator Certifications
AT&T, T-Mobile, Verizon

Power

Fuse
3 A fuse for 9–24 VDC; 2.5 A fuse above 24 VDC
DC Input
9–36 VDC via 380 mm non-removable cable with 4-pin 2x2 Molex micro-fit connector
Features
Ignition sensing (automatic ON, time-delay OFF)
PoE Class
802.3at Class 4 PD (30 W)
PoE Input
Alternatively 802.3at PSE Type 2 (30 W)
Consumption
R2155: sleep 50 mW, idle 6 W, typical 10 W, heavy 11.5 W

General

MPN
TAA-MB03-2155-5GB-GA
UPC
840292703322
Plan
3-Year NetCloud Mobile Performance Essentials Plan
Brand
Cradlepoint (Ericsson Enterprise Wireless)
Model
Cradlepoint R2155 (R2100 series, without Wi-Fi)
Region
United States Federal Government
FIPS Model
Non-FIPS model
TAA Compliant
TAA compliant
Product Status
Active
Shipping Weight
5.03 lb
Subscription Term
3 years
Hardware Configuration
5G router without Wi-Fi; integrated antennas; SIM and AC power supply not included

Physical

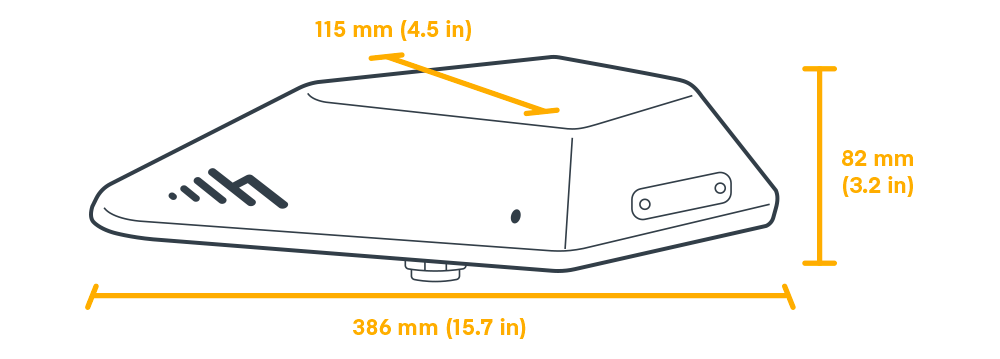

Size
115 x 386 x 82 mm (4.5 x 15.7 x 3.2 in)
Weight
1.46 kg (3 lb 4 oz)

Interfaces

Wi-Fi
No Wi-Fi
Modem
Embedded 5G NR FR1 low/mid-band + LTE Cat 20 modem
Ethernet
1 x 2.5 GbE (LAN only) on 380 mm non-removable shielded flat cable with male RJ45
GNSS GPS
Passive GNSS (multiplexed with internal cellular antennas)

Performance

Stateful Firewall
900 Mbps
Layer2 Layer3 Vlans
Up to 64
Typical Client Count
100
Concurrent VPN Tunnels
10
Concurrent Tcp Sessions
32,000
Point TO Point Ipsec VPN
300 Mbps
Ips Application Aware Client Analytics
650 Mbps

Reliability

Calculated MTBF
1,895,792 hours (Telcordia SR332 at 25 °C)
Shock Vibration
MIL-STD-810G 2.2.2 Procedure 1 (shock, vibration) and Procedure 5 (shock)
Layer2 Layer3 Vlans
Up to 64

Environmental

Humidity
5% to 95% operating and storage
Impact Protection
IK09 (protected against 10 joules impact)
Storage Temperature
-40 °C to 85 °C (-40 °F to 185 °F)
Operating Temperature
-30 °C to 70 °C (-22 °F to 158 °F)
Ingress Protection Corrosion
IP67 (dust tight, immersion up to 1 m); IEC 60068-2-11 salt mist

Certifications

Safety
CB Scheme, IEC/EN 62368-1
Vehicle
E-Mark, SAE J1455 Category 2
Security
FIPS 140-3 Level 1 module in process (FIPS models only; this SKU is non-FIPS)
Shock Vibration
MIL-STD-810G 2.2.2 Procedures 1 and 5
Substance Compliance
WEEE, RoHS, REACH, California Prop 65

Cloud Services

Support
Support for the full term plus Enterprise Wireless University access
Warranty
Limited lifetime warranty with active NetCloud subscription
Service Plans
NetCloud Mobile Performance or Ruggedized IoT
Service Add Ons
NetCloud Exchange, NetCloud Advanced
Software Updates
Software updates via NetCloud Manager for the full term
Device Management
NetCloud Manager for the full term

Edge Computing

CPU
Quad-core ARMv8 64-bit
Memory
Up to 1.8 GB
Applications
Docker containerized applications
Flash Storage
Up to 8 GB

Product Summary

PoE
802.3at
Wi-Fi
None (Wi-Fi 6 is offered on the R2105 model)
GPS GNSS
Passive GNSS
Status 5G
5G Embedded
Throughput
900 Mbps (firewall)
Form Factor
Polycarbonate
VPN Tunnels
10
Ethernet Ports
1 x 2.5 GbE RJ45
Cloud Management
Yes
Special Features
External mounting for best reception with no signal loss
Subscription Terms
1, 3 & 5 years available
Operating Temperature
-30 °C to 70 °C (-22 °F to 158 °F)
Wireless Connectivity
Dual Connectivity: 5G & Cat 20 LTE
Private Cellular Network
Yes — CBRS, 4G LTE, 5G
Network Operator Standards
PTCRB (U.S. & Canada), GCF (worldwide)

Questions buyers ask

Does the R2155 have Wi-Fi?

No. The R2155 is the R2100 series model without Wi-Fi. The R2105 is the equivalent model with dual-band Wi-Fi 6.

Can the R2155 add 5G to my existing Cradlepoint router?

Yes. With supported Cradlepoint controlling routers, it can run as a captive modem. NetCloud Manager then treats it as an internal modem and manages both units as a single entity, with no separate license.

How is it powered and connected?

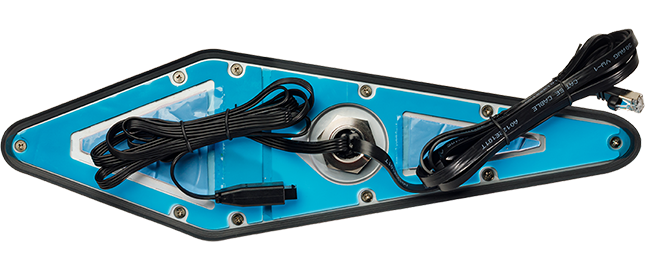

It uses a single 2.5 GbE LAN port on a 380 mm non-removable shielded flat cable. Power comes from 802.3at PoE or from 9–36 VDC with ignition sensing through a 4-pin Molex micro-fit cable. An AC power supply is not included.

Are antennas or a SIM included?

Four cellular antennas are built into the housing, and passive GNSS shares them. The unit has dual 4FF SIM slots, and a SIM card is not included.

Who is this SKU for?

TAA-MB03-2155-5GB-GA is the TAA-compliant ordering option for the United States Federal Government. It bundles the R2155 with a 3-year NetCloud Mobile Performance Essentials plan.
