Cradlepoint5G & LTE Routers

Cradlepoint R2155 5G Ruggedized Roof-Mount Router (No Wi-Fi) with 3-Year NetCloud Essentials + Advanced Plans (TAA)

5GMPN TAA-MBA3-2155-5GB-GA
  • Dual SIM
  • 1 × 2.5 Gb+ Ethernet
  • GPS/GNSS
  • PoE powered
  • Rugged
  • FirstNet Ready
$3,010.53$3,289.99Save $279.46

In stockShips from the US

Included subscription · 3 years
1 year+$30.393 years5 years+$192.17
Compliance · TAA compliant
StandardTAA compliant
Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans
Compare all 19 configurations

Datasheets & documents

Overview

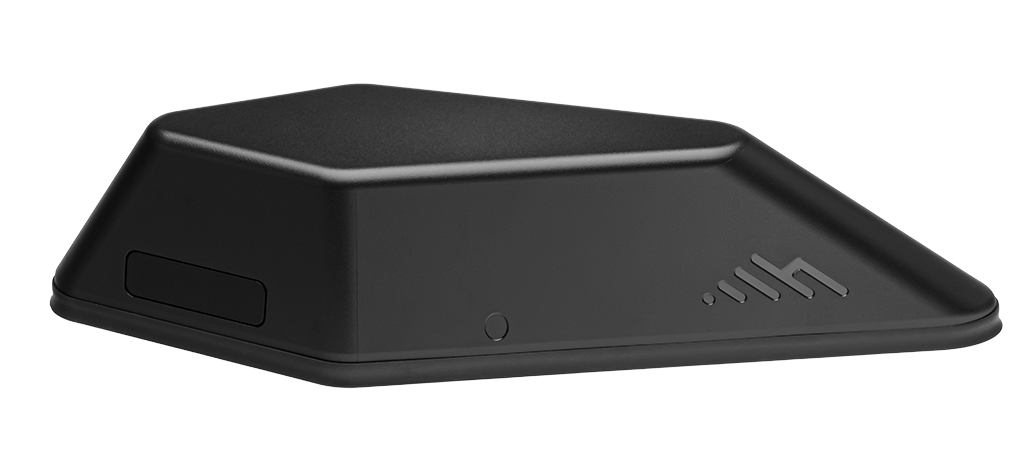

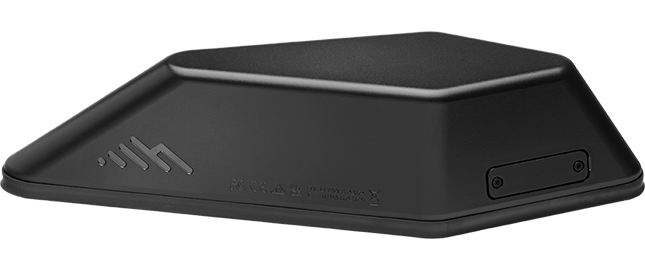

The Cradlepoint R2155 is the non-Wi-Fi model of the R2100 ruggedized 5G router, designed to mount on a vehicle roof or IoT enclosure. It delivers 5G over a single 2.5 GbE cable. This TAA-compliant U.S. Federal Government SKU (TAA-MBA3-2155-5GB-GA) includes 3-year NetCloud Mobile Performance Essentials and Advanced plans. It pairs a 5G NR / Cat 20 LTE modem and internal antennas with dual 4FF SIM slots and passive GNSS in an IP67, IK09 housing, powered by DC or 802.3at PoE. A SIM card and AC power supply are not included.

  • Integrated 5G NR FR1 (NSA/SA) and LTE Advanced Pro Cat 20 modem with 4 internal cellular antennas and 4x4 MIMO
  • Non-Wi-Fi R2100 model with 1 x 2.5 GbE RJ45 (LAN) on a 380 mm flat cable
  • Powered by 9–36 VDC with ignition sensing or 802.3at PoE; 10 W typical consumption
  • Captive modem mode for supported Cradlepoint controlling routers
  • IP67, IK09, salt-mist corrosion resistance and MIL-STD-810G shock/vibration
  • Passive GNSS for AVL integration and coverage mapping
  • 3-year NetCloud Mobile Performance Essentials + Advanced plans, TAA-compliant SKU
  • Add rooftop 5G to an existing Cradlepoint router and manage both as one device, with no extra licence

The Cradlepoint R2155 combines a 5G modem, four internal cellular antennas and a router in one aerodynamic, exterior-mounted housing, without Wi-Fi. It suits deployments where a separate in-vehicle router or equipment cabinet already handles local networking. Mounting it on the roof removes coax runs and antenna cable loss. Part number TAA-MBA3-2155-5GB-GA is the TAA-compliant U.S. Federal Government ordering option. It includes 3-year NetCloud Mobile Performance Essentials and Advanced plans.

The embedded modem supports 5G NR FR1 in NSA and SA modes, with LTE Advanced Pro Category 20, 4x4 MIMO and peak rates up to 4.14 Gbps down and 660 Mbps up. It has dual 4FF SIM slots and CBRS Band 48 support for private networks. Carrier certifications cover AT&T, T-Mobile and Verizon, and public safety certifications include FirstNet Trusted, T-Mobile Connecting Heroes and Verizon Frontline Verified. One 2.5 GbE LAN port on a 380 mm flat cable carries the connection into the vehicle.

The R2155 can run as a self-contained 5G router, or as a captive modem with supported Cradlepoint controlling routers. In captive mode, NetCloud Manager manages both devices as a single entity and needs no separate licence. It draws 10 W typical, and can be powered from 9–36 VDC with ignition sensing or from 802.3at PoE, so one cable can carry both power and data.

The housing is rated IP67 and IK09, resists salt-mist corrosion and meets MIL-STD-810G shock and vibration requirements. The 3-year plans include NetCloud Manager, software updates, 24x7 support and a limited lifetime warranty while the subscription is active. They also provide the Advanced location and coverage-map analytics. The Cradlepoint R2100 datasheet is available.

Ideal for

  • Adding rooftop 5G to an existing Cradlepoint in-vehicle router as a captive modem
  • Exterior 5G backhaul for transit and public safety vehicles with separate onboard networking
  • IoT cabinets and roadside enclosures that need wired 5G without Wi-Fi
  • Federal fleet deployments requiring TAA-compliant equipment
  • Installations where one PoE cable must carry both power and data

Specifications

Power

DC Cable
380 mm DC cable, 4-pin 2x2 Molex micro-fit
DC Input
9–36 VDC steady state
PoE Class
802.3at Class 4 PD (30 W)
PoE Input
Alternative: 802.3at PSE Type 2 (30 W)
Fuse 9 TO 24 Vdc
3 A fuse for 9–24 VDC
Ignition Sensing
Ignition sensing (automatic ON, time-delay OFF)
Consumption R2105
R2105 (Wi-Fi model): sleep 50 mW, idle 8 W, typical 14.5 W, heavy 17 W
Consumption R2155
R2155 (this model): sleep 50 mW, idle 6 W, typical 10 W, heavy 11.5 W
Fuse Above 24 Vdc
2.5 A fuse for >24 VDC

General

MPN
TAA-MBA3-2155-5GB-GA
UPC
840292702523
Brand
Cradlepoint (Ericsson)
Model
Cradlepoint R2155 (R2100 series, without Wi-Fi)
Manufacturer
Ericsson Enterprise Wireless
Product Status
Active
Shipping Weight
5.03 lb

Package

Plan
NetCloud Mobile Performance Essentials + Advanced
Region
United States Federal Government
TAA Compliant
TAA compliant
Subscription Term
3 years
Essentials Inclusions
24x7 support, limited lifetime warranty, Enterprise Wireless University
Hardware Configuration
R2155 without Wi-Fi, integrated antennas; SIM and AC power supply not included

Cellular

SMS
Yes
GNSS
Passive GNSS
MIMO
4x4 MIMO
Three G
WCDMA/UMTS/HSPA+
Antennas
4 x internal cellular antennas
TX Power
5G NR 23 dBm ±1.5; EN-DC 20 dBm ±1; LTE 23 dBm ±1; HPUE 25 dBm ±1 (B41 SA only), typical conducted
Modulation
Up to 256 QAM DL/UL (carrier-equipment dependent)
Regulatory
FCC, IC, CE, RCM
Technology
5G FR1 NSA/SA + LTE Advanced Pro Cat 20, dual 4FF SIM, 3GPP Rel. 15
Peak Uplink
Up to 660 Mbps
LTE Fdd Bands
B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71
LTE Tdd Bands
B34, B38, B39, B40, B41, B42, B43, B46, B48
Peak Downlink
Up to 4.14 Gbps
Three G Bands
1, 2, 4, 5, 6, 8, 9, 19
Five G NR Bands
NSA & SA: n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41, n48, n66, n71, n77, n78, n79
Carrier Aggregation
LTE: 7CA DL / 2CA UL; EN-DC: 1CA DL / 1CA UL
Gcf Global Operators
GCF members list
Private Cellular Network
Yes, FCC Part 96 CBRS Band 48
Network Operator Standards
PTCRB (U.S., Canada), GCF (worldwide)
Public Safety Certifications
FirstNet Trusted, T-Mobile Connecting Heroes, Verizon Frontline Verified
Ptcrb North America Operators
PTCRB operators
Network Operator Certifications
AT&T, T-Mobile, Verizon

Physical

Weight
1.46 kg (3 lb 4 oz)

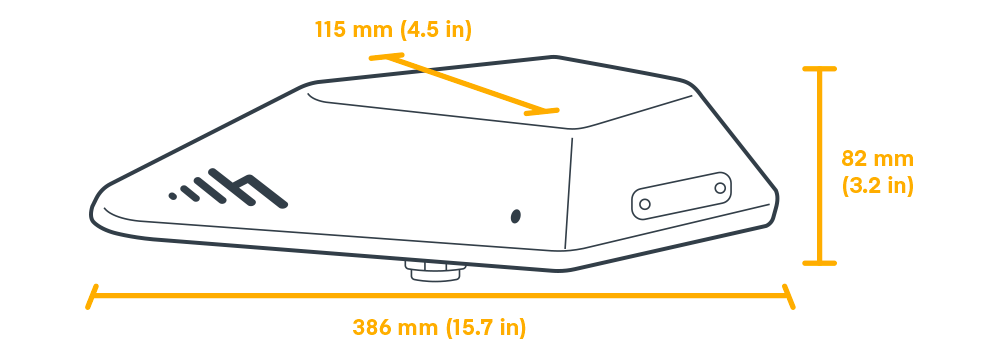

Dimensions
115 x 386 x 82 mm (4.5 x 15.7 x 3.2 in)

Interfaces

GNSS
Passive GNSS via internal cellular antennas
Wi-Fi
None (R2155 is the non-Wi-Fi model)
Modem
Embedded 5G NR FR1 / LTE Cat 20 modem
Ethernet
1 x 2.5 GbE (LAN only), 380 mm flat CAT5e cable with RJ45

Performance

L2 L3 Vlans
Up to 64
Stateful Firewall
900 Mbps
Typical Client Count
100
Concurrent VPN Tunnels
10
Concurrent Tcp Sessions
32,000
Point TO Point Ipsec VPN
300 Mbps
Ips App Aware Client Analytics
650 Mbps

Reliability

L2 L3 Vlans
Up to 64
Calculated MTBF
1,895,792 hours (Telcordia SR332 at 25 °C)
Shock Vibration
MIL-STD-810G 2.2.2 Procedures 1 and 5

Environmental

Storage Humidity
5% to 95%
Impact Protection
IK09 (10 joules impact)
Ingress Protection
IP67 (dust tight, immersion up to 1 m)
Operating Humidity
5% to 95%
Storage Temperature
-40 °C to 85 °C (-40 °F to 185 °F)
Corrosion Resistance
IEC 60068-2-11 salt mist
Operating Temperature
-30 °C to 70 °C (-22 °F to 158 °F)

Certifications

Safety
CB Scheme, IEC/EN 62368-1
Vehicle
E-Mark, SAE J1455 Category 2
Security
FIPS 140-3 Level 1 in process on R2100 FIPS models only (this SKU is not a FIPS model)
Shock Vibration
MIL-STD-810G 2.2.2 Procedures 1 and 5
Substance Compliance
WEEE, RoHS, REACH, California Prop 65

Cloud Services

Support
Support for the full subscription term
Warranty
Limited lifetime warranty with active NetCloud subscription
Service Plans
NetCloud Mobile Performance; NetCloud Ruggedized IoT
Service Add Ons
NetCloud Exchange, NetCloud Advanced
Software Updates
Via NetCloud Manager (full term)
Device Management
NetCloud Manager (full term)

Edge Computing

CPU
Quad-core ARMv8 64-bit
Memory
Up to 1.8 GB (for NetCloud Container Orchestrator)
Applications
Docker containerized applications
Flash Storage
Up to 8 GB (for NetCloud Container Orchestrator)

Product Summary

PoE
802.3at
Wi-Fi
None (Wi-Fi 6 is available on the R2105 model)
GPS GNSS
Passive
Throughput
900 Mbps (firewall)
Form Factor
Polycarbonate
VPN Tunnels
10
Five G Status
5G Embedded
Ethernet Ports
1 x 2.5 GbE RJ45
Cloud Management
Yes
Special Features
External mounting for best reception with no signal loss
Subscription Terms
1, 3 & 5 years
Operating Temperature
-30 °C to 70 °C (-22 °F to 158 °F)
Wireless Connectivity
Dual connectivity: 5G & Cat 20 LTE
Private Cellular Network
Yes: CBRS, 4G LTE, 5G
Network Operator Standards
PTCRB (U.S. & Canada), GCF (worldwide)

Questions buyers ask

Does the R2155 have Wi-Fi?

No. The R2155 is the non-Wi-Fi R2100 model and delivers its connection over one 2.5 GbE port. Choose the R2105 if you need built-in Wi-Fi 6.

Does this include a SIM card or power supply?

No. The router has dual 4FF SIM slots, but no SIM card is included, and no AC power supply is included. It runs on 9–36 VDC through its 380 mm cable, or on 802.3at PoE.

Can it work with my existing Cradlepoint router?

Yes. As a captive modem with supported Cradlepoint controlling routers, the R2155 is managed in NetCloud Manager as part of the same device. It is treated as an internal modem, so no separate licence is required.

What does the 3-year plan include?

Essentials includes NetCloud Manager, software updates, 24x7 support, Enterprise Wireless University access and a limited lifetime warranty while the subscription is active. Advanced adds GNSS-based location history and cellular coverage maps.
