Cradlepoint5G & LTE Routers

Cradlepoint R2155 5G Ruggedized Vehicle Router (No Wi-Fi) with 3-Year NetCloud Ruggedized IoT Essentials (TAA)

5GMPN TAA-TC03-2155-5GB-GA
  • Dual SIM
  • 1 × 2.5 Gb+ Ethernet
  • GPS/GNSS
  • PoE powered
  • Rugged
  • FirstNet Ready
$2,169.60$2,371.00Save $201.40

In stockShips from the US

Included subscription · 3 years
1 year+$30.393 years5 years+$192.17
Compliance · TAA compliant
StandardTAA compliant
Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans
Compare all 19 configurations

Datasheets & documents

Overview

The Cradlepoint R2155 is the non-Wi-Fi model of the R2100 series, an exterior-mounted 5G ruggedized router for vehicles and IoT enclosures. It packs an embedded 5G NR FR1 and Cat 20 LTE modem, four internal cellular antennas and passive GNSS into an IP67, IK09 polycarbonate housing, and it delivers connectivity over a single 2.5 GbE LAN port. This TAA-compliant U.S. Federal Government SKU includes a 3-year NetCloud Ruggedized IoT Essentials plan. A SIM and AC power supply are not included.

  • Embedded 5G NR FR1 (NSA/SA) and LTE Advanced Pro Cat 20 modem with 4x4 MIMO and dual 4FF SIM slots
  • Integrated modem and four internal cellular antennas in one exterior-mount housing, with no coax cables
  • Non-Wi-Fi model with a 2.5 GbE RJ45 LAN port on a non-removable shielded flat cable
  • IP67, IK09, MIL-STD-810G shock/vibration and -30 °C to 70 °C operating range
  • 9–36 VDC power with ignition sensing, or 802.3at PoE
  • Captive-modem mode with supported Cradlepoint controlling routers
  • TAA-compliant SKU with a 3-year NetCloud Ruggedized IoT Essentials plan
  • Adds 5G to an existing Cradlepoint vehicle router without replacing it, managed as one device with no separate license

The Ericsson Cradlepoint R2155 brings 5G to vehicles and IoT cabinets in a ruggedized housing that mounts on a roof or enclosure. It is the R2100-series model without Wi-Fi. That makes it a fit where connectivity should be delivered only over Ethernet, such as feeding an existing in-vehicle router or a wired IoT controller. The modem, four internal cellular antennas and router share one aerodynamic IP67 case rated IK09 and MIL-STD-810G for shock and vibration, with an operating range of -30 °C to 70 °C.

The embedded 5G NR FR1 modem supports NSA and SA networks with LTE Advanced Pro Category 20, 4x4 MIMO, dual 4FF SIM slots and peak rates up to 4.14 Gbps down and 660 Mbps up. It is certified for AT&T, T-Mobile and Verizon and holds FirstNet Trusted, T-Mobile Connecting Heroes and Verizon Frontline Verified status. It also supports CBRS Band 48 private networks.

The most common role for the R2155 is a captive modem. Paired with a supported Cradlepoint controlling router, it adds 5G to an existing installation, and NetCloud Manager treats it as an internal modem that needs no separate license. A single 802.3at PoE cable can carry power and the 5G connection, or the unit can run from 9–36 VDC with ignition sensing. Its typical draw of 10 W is lower than the Wi-Fi-equipped R2105. A quad-core ARMv8 CPU with up to 1.8 GB memory and 8 GB flash runs Docker containers.

The bundled 3-year NetCloud Ruggedized IoT Essentials plan covers NetCloud Manager management and software updates for the full term. It also includes 24x7 support, Enterprise Wireless University access, and a limited lifetime hardware warranty while the subscription is active.

Ideal for

  • Captive 5G modem for an existing Cradlepoint in-vehicle router, powered and connected over one PoE cable
  • Public safety and first-responder fleets using FirstNet or carrier priority networks
  • Wired-only 5G uplink for outdoor IoT cabinets and controllers
  • Transit vehicles where onboard Wi-Fi is handled by a separate router
  • U.S. Federal Government deployments requiring TAA-compliant hardware

Specifications

Modem

3g
WCDMA/UMTS/HSPA+
SMS
Yes
MIMO
4x4 MIMO
3g Bands
1, 2, 4, 5, 6, 8, 9, 19
Antennas
4 internal cellular antennas
GNSS GPS
Passive GNSS
LTE Bands
FDD B1/2/3/4/5/7/8/12/13/14/17/18/19/20/25/26/28/29/30/32/66/71; TDD B34/38/39/40/41/42/43/46/48
Modulation
Up to 256 QAM downlink and uplink (on particular carrier equipment)
Peak Rates
Up to 4.14 Gbps down / 660 Mbps up
Regulatory
FCC, IC, CE, RCM
Technology
5G FR1 NSA/SA, LTE-A Pro Cat 20, dual 4FF SIM, 3GPP Rel. 15
5G NR Bands
n1 (2100), n2 (1900), n3 (1800), n5 (850), n7 (2600), n8 (900), n12 (700), n20 (800), n25 (1900), n28 (700), n38 (2600), n40 (2300), n41 (2500), n48 (3500), n66 (1700/2100), n71 (600), n77 (3700), n78 (3500), n79 (4900)
Transmit Power
5G NR 23 ±1.5; ENDC 20 ±1; LTE 23 ±1; LTE HPUE 25 ±1 (B41 SA) dBm
Carrier Aggregation
LTE: 7 CA DL / 2 CA UL; ENDC: 1 CA DL / 1 CA UL
Private Cellular Network
Yes, including CBRS Band 48 (FCC Part 96)
Network Operator Standards
PTCRB (U.S., Canada); GCF (Worldwide)
Network Operator Certifications
AT&T, T-Mobile, Verizon
Public Safety Network Certifications
FirstNet Trusted, T-Mobile Connecting Heroes, Verizon Frontline Verified

Power

Features
Ignition sensing (automatic ON & time-delay OFF)
Required
9–36 VDC (Molex micro-fit, fused) or 802.3at PoE Type 2 (30 W)
Consumption PoE
802.3at Class 4 PD (30 W)
Consumption R2155
Sleep 50 mW; Idle 6 W; Typical 10 W; Heavy 11.5 W

General

MPN
TAA-TC03-2155-5GB-GA
UPC
840292703445
Brand
Cradlepoint (Ericsson Enterprise Wireless)
Model
Cradlepoint R2155 (R2100 series)
Region
United States Federal Government (TAA-compliant)
Package Plan
3-Year NetCloud Ruggedized IoT Essentials Plan
TAA Compliant
TAA-compliant SKU
Subscription Term
3 years
Essentials Inclusions
Endpoint, 24x7 support, limited lifetime warranty, Enterprise Wireless University
Hardware Configuration
R2155 5G router without Wi-Fi, integrated antennas; SIM and AC power supply not included

Physical

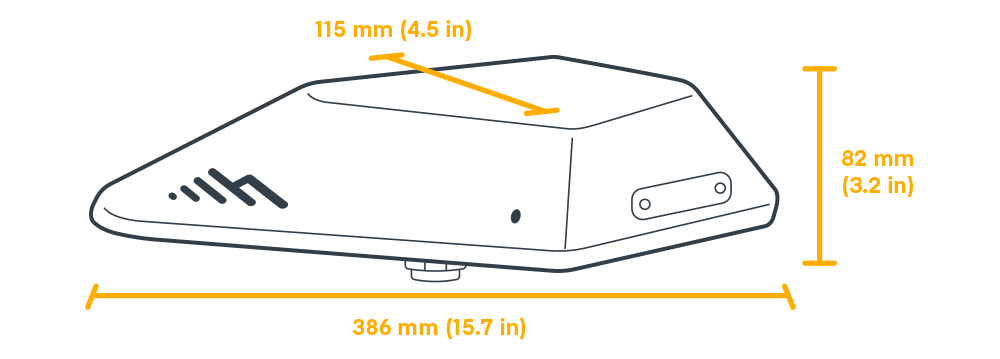

Size
115 x 386 x 82 mm (4.5 x 15.7 x 3.2 in)
Weight
1.46 kg (3 lb 4 oz)

Interfaces

Wi-Fi
No Wi-Fi (non-Wi-Fi R2155 model)
Modem
Embedded 5G NR FR1 low-/mid-band and 4G LTE Cat 20 modem
Ethernet
1 x 2.5 GbE RJ45 (LAN only) on 380 mm (14.96 in) non-removable shielded flat CAT5e cable
GNSS GPS
Passive GNSS (multiplexed with internal cellular antennas)

Performance

Stateful Firewall
900 Mbps
Concurrent Sessions
32,000
Layer2 Layer3 Vlans
Up to 64
Typical Client Count
100
Concurrent VPN Tunnels
10
Point TO Point Ipsec VPN
300 Mbps
Ips Application Aware Client Analytics
650 Mbps

Reliability

Calculated MTBF
1,895,792 hours (Telcordia SR332 at 25 °C)
Layer2 Layer3 Vlans
Up to 64
Shock Vibration Humidity
MIL-STD-810G Sec. 2.2.2 Proc. 1 (Shock, Vibration) and Proc. 5 (Shock)

Environmental

Humidity
Operating 5–95%; Storage 5–95%
Temperature
Operating -30 °C to 70 °C; Storage -40 °C to 85 °C
Impact Protection
IK09 (10 J impact)
Ingress Protection Corrosion
IP67; IEC 60068-2-11 salt-mist corrosion resistance

Certifications

Safety
CB Scheme; IEC/EN 62368-1
Vehicle
E-Mark; SAE J1455 Category 2
Security
FIPS 140-3 Level 1 in process (FIPS models only)
Substance Compliance
WEEE; RoHS; REACH; California Prop 65
Shock Vibration Humidity
MIL-STD-810G Sec. 2.2.2 Proc. 1 and Proc. 5

Cloud Services

Support
Support for the full subscription term
Warranty
Limited lifetime warranty with active NetCloud subscription
Service Plans
NetCloud Mobile Performance; NetCloud Ruggedized IoT
Service Add Ons
NetCloud Exchange; NetCloud Advanced
Software Updates
Via NetCloud Manager for the full term
Device Management
NetCloud Manager for the full term

Edge Computing

CPU
Quad-core ARMv8 64-bit
Memory
Up to 1.8 GB
Applications
Docker containerized applications
Flash Storage
Up to 8 GB

Product Summary

PoE
802.3at
Wi-Fi
No Wi-Fi
GPS GNSS
Passive
5G Status
5G Embedded
Throughput
900 Mbps (Firewall)
Form Factor
Polycarbonate
VPN Tunnels
10
Ethernet Ports
1 x 2.5 GbE RJ45
Cloud Management
Yes
Special Features
External mounting for best reception with no signal loss
Subscription Terms
1, 3 & 5 years
Operating Temperature
-30 °C to 70 °C (-22 °F to 158 °F)
Wireless Connectivity
Dual Connectivity; 5G & Cat 20 LTE
Private Cellular Network
Yes — CBRS, 4G LTE, 5G
Network Operator Standards
PTCRB (U.S. & Canada), GCF (worldwide)

Questions buyers ask

Does the R2155 have Wi-Fi?

No. The R2155 is the R2100-series model without Wi-Fi, and it delivers connectivity through its 2.5 GbE LAN port. If you need onboard Wi-Fi 6, choose the R2105.

Can it add 5G to my existing Cradlepoint router?

Yes. With supported Cradlepoint controlling routers, the R2155 runs as a captive modem. NetCloud Manager manages it as an internal modem, with no separate license. It can be PoE powered while delivering the 5G connection over Ethernet.

Is a SIM or power supply included?

No. The unit has dual 4FF SIM slots, but a SIM is not included, and there is no AC power supply. It accepts 9–36 VDC through a Molex micro-fit cable with ignition sensing, or 802.3at PoE Type 2 (30 W).

What does the 3-year Essentials plan cover?

It covers NetCloud Manager device management and software updates for the full term, 24x7 support and access to Enterprise Wireless University. It also includes a limited lifetime hardware warranty while the subscription is active. NetCloud Advanced can be added later.
