Cradlepoint5G & LTE Routers

Cradlepoint S400 LTE Cat 6 IoT Router with Wi-Fi 5 and 3-Year NetCloud IoT Essentials Plan (TAA)

4G LTEMPN TAA-TBT3-0400-C6-NA-N
  • Wi-Fi 5
  • Dual SIM
  • 1 × 1 Gb Ethernet
  • GPS/GNSS
  • PoE powered
  • 3 years included
$447.46$489.00Save $41.54

In stockShips from the US

Included subscription · 3 years
3 years5 years+$153.73
Compliance · TAA compliant
StandardTAA compliant
Region · North America
North AmericaLatin AmericaEMEA+$153.73
Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans
Compare all 15 configurations

Datasheets & documents

Overview

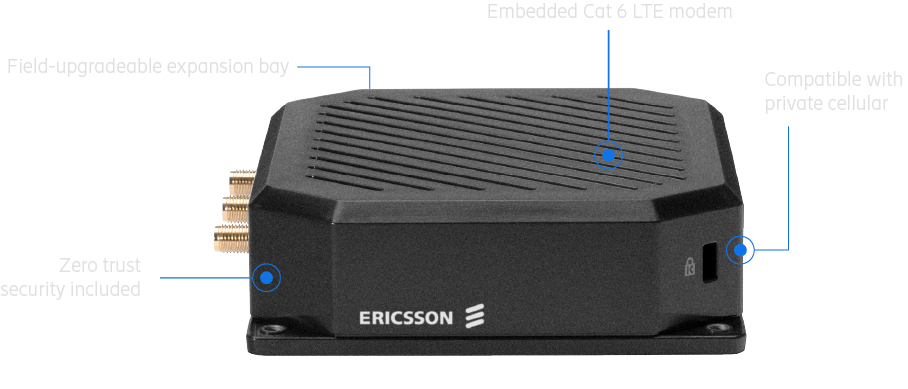

The Cradlepoint S400 is a cloud-managed, semi-ruggedized LTE router for IoT networks in light industrial, digital signage and kiosk deployments. This TAA-compliant North America package pairs the router with a 3-year NetCloud IoT Essentials Plan and includes an AC power supply and antennas. It has an embedded Cat 6 LTE modem with dual SIM slots and 300 Mbps peak download, plus single-radio dual-band Wi-Fi 5, a Gigabit Ethernet port, GNSS positioning, and an expansion slot for serial, GPIO or extra Ethernet modules.

  • Embedded Cat 6 LTE modem with 2x2 MIMO, dual 4FF SIM slots and 300 Mbps down / 50 Mbps up peak rates
  • North America LTE bands including B12, B13, B14, B71 and CBRS Band 48 for private LTE
  • Single-radio dual-band 802.11ac Wi-Fi 5 (2.4 GHz or 5 GHz) with WPA3 support
  • 1 x Gigabit Ethernet (LAN/WAN), USB 2.0 and an expansion slot for serial DB-9, dual Fast Ethernet or GPIO modules
  • Semi-ruggedized: -20 °C to 60 °C operation, MIL-STD-810H shock/vibration, Class I Div 2 and ATEX 2
  • 3-year NetCloud IoT Essentials Plan with cloud management, zero trust security and 24x7 support
  • TAA-compliant SKU with AC power supply and antennas included
  • Keep kiosks, signage and IoT gear online with dual-SIM LTE and automatic carrier selection

The Ericsson Cradlepoint S400 is a compact, semi-ruggedized router and secure appliance built for IoT endpoints: kiosks, digital signage, light industrial equipment and portable assets. Part number TAA-TBT3-0400-C6-NA-N is the TAA-compliant North America package, offered for U.S. Federal Government ordering. It bundles the router with a 3-year NetCloud IoT Essentials Plan, an AC power supply and antennas.

Connectivity comes from an embedded Cat 6 LTE modem (3GPP Rel. 11) with 2x2 MIMO, downlink carrier aggregation and peak rates of 300 Mbps down and 50 Mbps up. Two 4FF SIM slots support SIM-based auto-carrier selection. The North America modem covers LTE bands B2, B4, B5, B7, B12, B13, B14, B25, B26, B29, B30, B66 and B71, plus TDD B41 and B48. B48 support includes FCC Part 96 CBRS for private LTE. The datasheet lists network operator certifications for AT&T, T-Mobile and Verizon. On the local side, the S400 provides one Gigabit Ethernet port (LAN/WAN selectable) and 1x1 802.11ac Wi-Fi 5 that runs on either 2.4 GHz or 5 GHz. There is also a USB 2.0 port and an expansion slot for an RS232 DB-9 serial, dual Fast Ethernet or 20-pin GPIO module.

The hardware is sized for the edge. It operates from -20 °C to 60 °C and is tested to MIL-STD-810H shock and vibration methods. It carries Class I Div 2 and ATEX 2 hazardous-location certifications. Power comes from 9–33 VDC with reverse-polarity and transient protection, or from 802.3af PoE. Typical draw is 4.1 W.

The Essentials plan provides NetCloud Manager for management, group policies and software updates across the full term, plus connect-and-go zero trust security. It also includes 24x7 support and a limited lifetime hardware warranty for as long as an active NetCloud subscription is maintained. A NetCloud IoT Advanced Plan can be added at any time.

Ideal for

  • Cellular connectivity for self-service kiosks and payment terminals
  • Digital signage networks managed from the cloud
  • Light industrial equipment monitoring via serial or GPIO modules
  • Asset tracking and portable IoT with built-in GNSS
  • Federal and public-sector IoT deployments that require TAA-compliant hardware

Specifications

Power

PoE
802.3af PSE Type 1 (15 W)
Protection
Reverse polarity and transient voltage protection (ISO 7637-2)
Sleep Mode
Not supported
Input Options
One of: DC input or PoE
DC Input Range
9–33 VDC
Consumption Idle
3.3 W (S400 DC)
Fuse 9 TO 12 Vdc
Use a 3 A fuse for 9–12 VDC installations
Fuse Over 12 Vdc
Use a 2 A fuse for > 12 VDC installations
Consumption Heavy
5.8 W (S400 DC)
Consumption Typical
4.1 W (S400 DC)

General

MPN
TAA-TBT3-0400-C6-NA-N
Brand
Cradlepoint (Ericsson Enterprise Wireless)
Model
Cradlepoint S400
Region
North America; U.S. Federal Government ordering option
Package Plan
3-Year NetCloud IoT Essentials Plan
TAA Compliant
TAA-compliant
Product Status
Active
Subscription Term
3 years
Essentials Support
Phone: 24-hour weekdays with emergency response on weekends; web: 24x7; chat: 24x5
Hardware Configuration
Cat 6 LTE with Wi-Fi, with AC power supply and antennas

Cellular

SIM

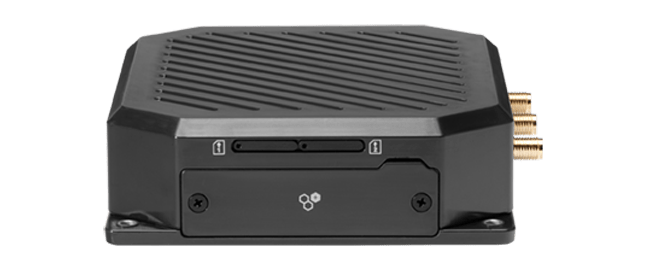

Dual SIM slots, 4FF form factor
SMS
Yes
GNSS
Active GNSS; GPS, GLONASS, BeiDou, Galileo
MIMO
2x2 MIMO
Antennas
SMA female connectors; external 600 MHz–6 GHz cellular paddle antennas (qty 2)
Modulation
Up to 16 QAM
Regulatory
FCC (U.S.); IC (Canada)
Technology
Cat 6 LTE (3GPP Rel. 11)
Peak Upload
50 Mbps (LTE)
LTE Bands Fdd
B2 (1900), B4 (1700), B5 (850), B7 (2600), B12 (700), B13 (700), B14 (700), B25 (1900), B26 (850), B29 (700), B30 (2300), B66 (1700), B71 (600)
LTE Bands Tdd
B41 (2500), B48 (3500)
Peak Download
300 Mbps (LTE)
Transmit Power
LTE 23 dBm ± 2 (typical conducted)
Carrier Selection
SIM-based auto-carrier selection
Carrier Aggregation
Downlink: up to 2 CA; Uplink: up to 1 CA
Private Cellular Network
Yes, includes FCC Part 96 (CBRS Band 48)
Network Operator Standards
PTCRB (U.S., Canada)
Network Operator Certifications
AT&T, T-Mobile, Verizon

GNSS GPS

Power
Passive (no power provided)
Accuracy
Autonomous @ open sky 2 meter (CEP-50)
Protocols
NMEA 0183; TAIP
Frequencies
L1
Sensitivity
Acquisition: -147 dBm; Tracking: -159 dBm; Reacquisition: -159 dBm
Update Rate
1 Hz (once per second)
Constellations
GPS, Galileo, GLONASS, BDS
Time TO First Fix
30 seconds (cold start)

Physical

Weight
221 g (7.8 oz)
Dimensions

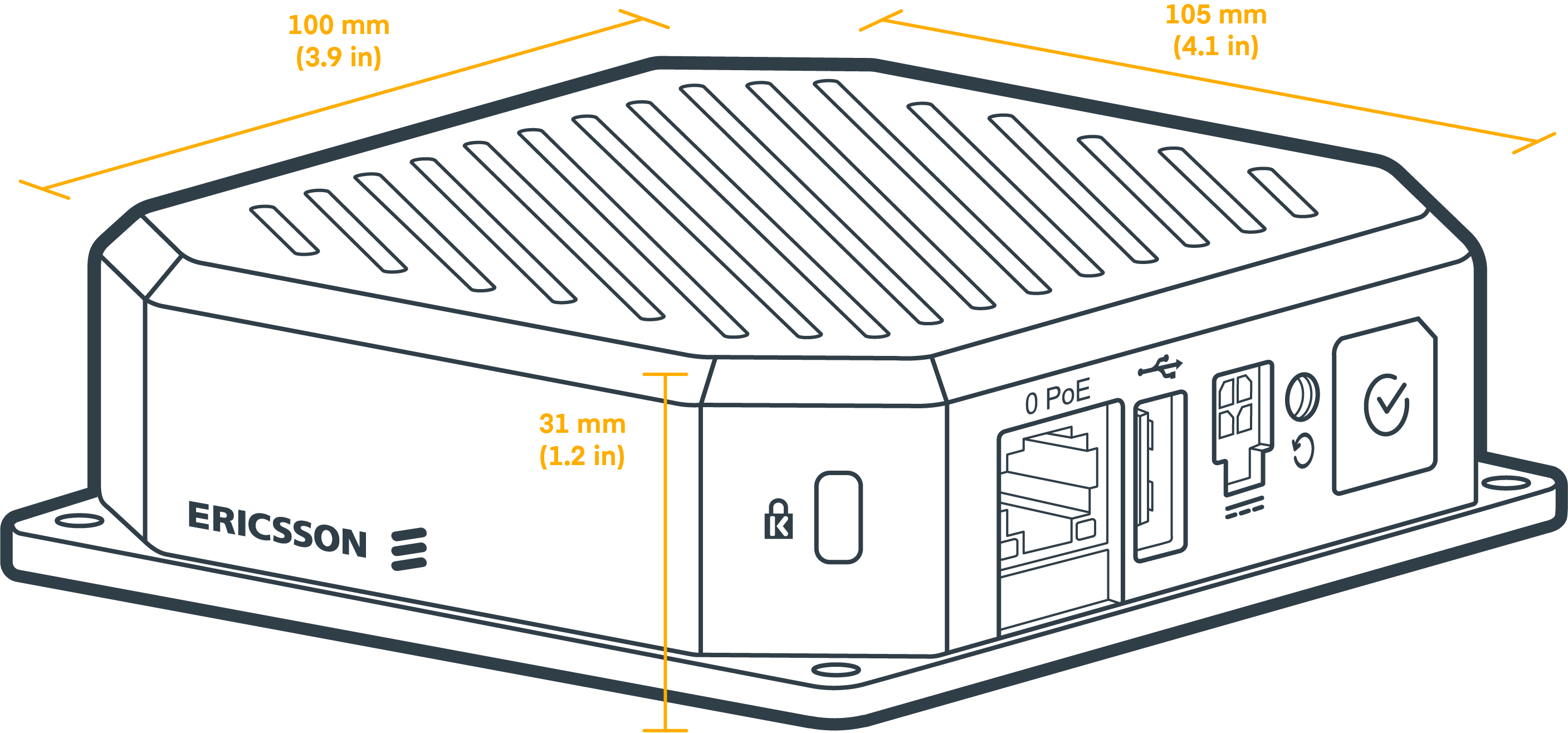

100 x 105 x 31 mm (3.9 x 4.1 x 1.2 in)
Construction
Plastic housing
Shipping Weight
1.23 lb

Interfaces

USB
5 V, 500 mA, 2.5 W)
GNSS
Passive GNSS (multiplex with cellular antenna)
Wi-Fi
Single-radio, dual-band, non-concurrent (2.4 GHz or 5 GHz); 1x1 MIMO 802.11ac Wi-Fi 5
Modem
Embedded Cat 6 LTE modem; 2 x SMA cellular antenna connectors
Ethernet

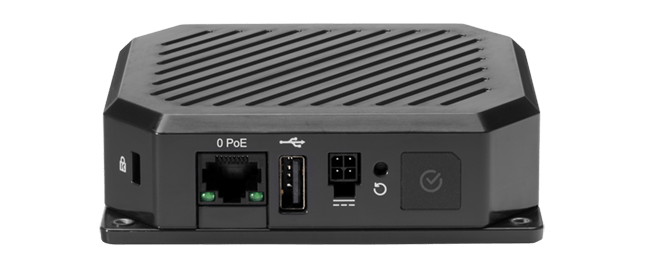

1 x GbE RJ45 (LAN/WAN selectable)
Wi-Fi Features
Global Optimized Wi-Fi & International SDR; 802.11k, 802.11v
Wi-Fi Security
WPA/WPA2/WPA3 Personal, WPA2/WPA3 Enterprise, Open
Expansion Slot
1 x expansion module slot
Wi-Fi Data Rates
150 Mbps (2.4 GHz) and 433 Mbps (5 GHz)
Wi-Fi Certification
Wi-Fi Alliance Certified
Expansion Gpio Module
GPIO module, 20-pin (2 x 10) Molex Micro-Fit 3.0 connector
Wi-Fi Antenna Connector
1 x RP-SMA Wi-Fi antenna connector
Expansion Serial Module
Serial DB-9, RS232 interface with hardware flow control
Expansion Ethernet Module
Dual Fast Ethernet, 2 x FE RJ45 (LAN/WAN selectable)

Wi-Fi Power

CE
2.4 GHz: 17.50 dBm; 5150–5250 MHz: 16.64 dBm; 5250–5350 MHz: 16.64 dBm; 5470–5725 MHz: 17.01 dBm; 5725–5875 MHz: 11.50 dBm (conducted)
IC
2.4 GHz: 19.60 dBm; 5150–5250 MHz: 16.25 dBm; 5250–5350 MHz: 15.89 dBm; 5470–5725 MHz: 15.93 dBm; 5725–5850 MHz: 14.38 dBm (conducted)
Fcc
2.4 GHz: 19.60 dBm; 5150–5250 MHz: 16.25 dBm; 5250–5350 MHz: 15.89 dBm; 5470–5725 MHz: 15.93 dBm; 5725–5850 MHz: 14.38 dBm (conducted)
Rcm
2.4 GHz: 17.50 dBm; 5150–5250 MHz: 16.64 dBm; 5250–5350 MHz: 16.64 dBm; 5470–5725 MHz: 17.01 dBm; 5725–5850 MHz: 14.38 dBm (conducted)
Ukca
2.4 GHz: 17.50 dBm; 5150–5250 MHz: 16.64 dBm; 5250–5350 MHz: 16.64 dBm; 5470–5725 MHz: 17.01 dBm; 5725–5875 MHz: 16.12 dBm (conducted)
Global Safe Mode
2.4 GHz: 14 dBm conducted

Performance

Vlans
Up to 64 Layer 2 / Layer 3 VLANs
Stateful Firewall
95 Mbps
Concurrent Sessions
32,000 (TCP)
Ipsec VPN Throughput
Point-to-point IPsec VPN: 20 Mbps
Concurrent VPN Tunnels
5
Typical Iot Client Count
25

Reliability

MTBF
1,828,355 hours (Telcordia SR332 at 25 °C)
MTBF With Db9 Module
1,712,886 hours (Telcordia SR332 at 25 °C)
MTBF With Gpio Module
1,343,279 hours (Telcordia SR332 at 25 °C)
MTBF With Ethernet Module
1,659,720 hours (Telcordia SR332 at 25 °C)

Environmental

Storage Humidity
5% to 95% non-condensing
Ingress Protection
IP30
Operating Humidity
5% to 95% non-condensing
Storage Temperature
-20 °C to 70 °C (-4 °F to 158 °F)
Operating Temperature
-20 °C to 60 °C (-4 °F to 140 °F)

Certifications

Safety
UL/cUL; CB Scheme; EN 62368-1
Regulatory
FCC (U.S.); IC (Canada); CE (EU); RCM (AU/NZ); UKCA (UK); ANATEL (Brazil); IFT (Mexico); SUBTEL (Chile); MCMC (Malaysia); IMDA (Singapore)
Hazardous Locations
Class I Div 2 (North America); ATEX 2 (Europe)
Substance Compliance
WEEE; RoHS; REACH; California Prop 65
Shock Vibration Humidity
MIL STD 810H Method 514.8, Annex C-1, Category 4; Method 516.8, Procedure I; Method 516.8, Procedure V

Cloud Services

Support
NetCloud Packages include support for the full subscription term
Warranty
Limited lifetime warranty for as long as an active NetCloud Service Plan license is maintained
Service Plans
NetCloud Service for IoT
Service Add Ons
NetCloud Exchange, NetCloud Advanced
Software Updates
Via NetCloud Manager for the full subscription term
Device Management
NetCloud Manager for the full subscription term

Questions buyers ask

What is included with TAA-TBT3-0400-C6-NA-N?

The package includes the Cradlepoint S400 router with Wi-Fi, a 3-year NetCloud IoT Essentials Plan, an AC power supply and antennas.

Does the S400 support 5G?

No. The S400 uses an embedded Cat 6 LTE modem with peak rates of 300 Mbps down and 50 Mbps up.

Can the S400 be powered over Ethernet?

Yes. It accepts 802.3af PoE (PSE Type 1, 15 W) or a 9–33 VDC input with reverse-polarity and transient protection.

What does the NetCloud IoT Essentials Plan provide?

It provides NetCloud Manager for device management and software updates over the full term, connect-and-go zero trust security, and 24x7 support. It also provides a limited lifetime hardware warranty while the subscription stays active. A NetCloud IoT Advanced Plan can be added at any time.

Is the S400 suitable for hazardous locations?

The S400 is certified Class I Div 2 for North America and ATEX 2 for Europe. It operates from -20 °C to 60 °C and is tested to MIL-STD-810H shock and vibration methods.
