Cradlepoint5G & LTE Routers

Cradlepoint S400 LTE Cat 6 IoT Router with Wi-Fi 5 and 5-Year NetCloud IoT Essentials Plan (Mexico)

4G LTEMPN TBT5-0400-C6-LA-M
  • Wi-Fi 5
  • Dual SIM
  • 1 × 1 Gb Ethernet
  • GPS/GNSS
  • PoE powered
  • 5 years included
$601.19$657.00Save $55.81

In stock · only 2 leftShips from the US

Included subscription · 5 years
3 years−$153.735 years
Compliance · Standard
StandardTAA compliant−$153.73
Region · Latin America
North AmericaLatin AmericaEMEA
Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans
Compare all 15 configurations

Datasheets & documents

Overview

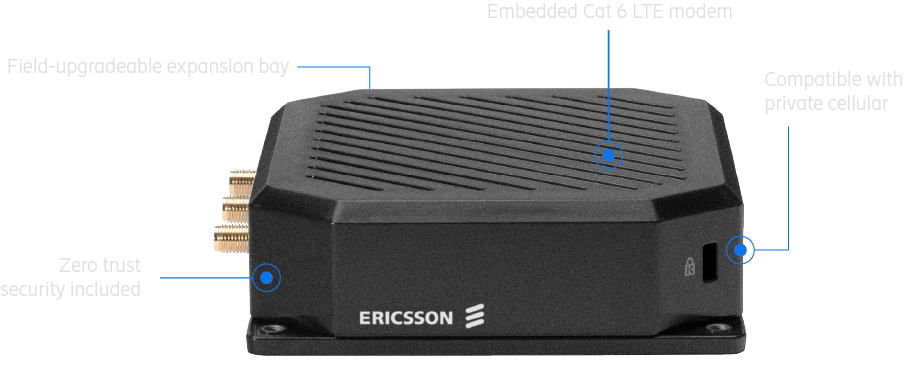

The Cradlepoint S400 (TBT5-0400-C6-LA-M) is a compact, semi-ruggedized, cloud-managed LTE router for IoT, digital signage, kiosks and light industrial sites. It combines an embedded Cat 6 LTE modem with dual SIM slots, single-radio dual-band Wi-Fi 5, a Gigabit Ethernet port, passive GNSS and an expansion module slot. This part number is the Mexico-market configuration. It ships with an AC power supply and antennas and bundles a 5-year NetCloud IoT Essentials plan with NetCloud Manager, 24x7 support and a limited lifetime warranty for the term.

  • Embedded Cat 6 LTE modem (3GPP Rel. 11) with 300 Mbps peak download, 50 Mbps upload and 2x2 MIMO
  • Dual 4FF SIM slots with SIM-based auto-carrier selection
  • Single-radio, dual-band 802.11ac Wi-Fi 5 (2.4 GHz or 5 GHz) with WPA3 support
  • 1 x GbE RJ45 (LAN/WAN), 1 x USB 2.0 and an expansion slot for serial, dual Fast Ethernet or GPIO modules
  • Passive GNSS with GPS, Galileo, GLONASS and BDS support
  • 9–33 VDC or 802.3af PoE power, -20 °C to 60 °C operation, MIL-STD-810H and Class I Div 2 rated
  • 5-year NetCloud IoT Essentials plan with NetCloud Manager, zero trust security and 24x7 support
  • Keep kiosks, signage and IoT equipment online over LTE, with dual SIMs for carrier choice at each site

The Ericsson Cradlepoint S400 is a cloud-managed, semi-ruggedized router and secure appliance built for IoT networks. It suits light industrial equipment, digital signage and kiosks. This part number, TBT5-0400-C6-LA-M, is the North America: Mexico regional configuration. It pairs the S400 hardware with a 5-year NetCloud IoT Essentials plan, an AC power supply and antennas. U.S. and Canada deployments use the NA-region part number instead.

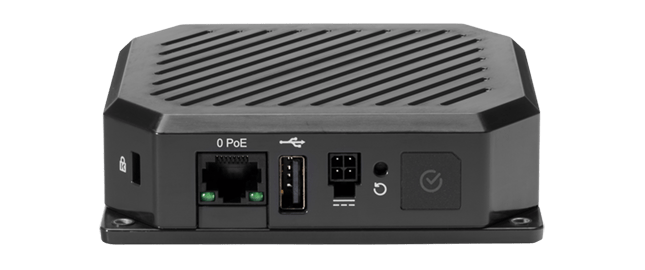

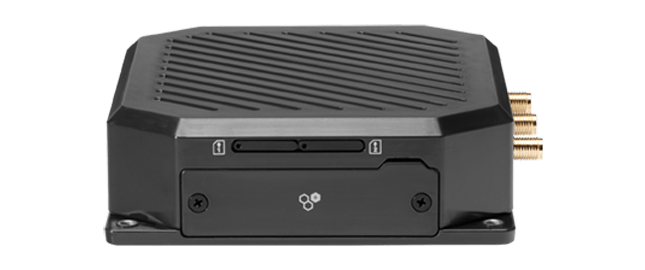

Connectivity is built around an embedded Cat 6 LTE modem with peak rates of 300 Mbps down and 50 Mbps up. The modem has 2x2 MIMO, two 4FF SIM slots with SIM-based auto-carrier selection, and two SMA cellular antenna connectors. Locally, the S400 provides one Gigabit Ethernet port (LAN/WAN selectable) and one USB 2.0 Type-A port. Single-radio, dual-band 802.11ac Wi-Fi 5 runs on 2.4 GHz or 5 GHz and supports WPA3. An expansion slot accepts a serial DB-9 RS232 module, a dual Fast Ethernet module or a 20-pin GPIO module. Passive GNSS covers GPS, Galileo, GLONASS and BDS for asset tracking.

The S400 is designed for demanding sites. It runs from -20 °C to 60 °C and accepts 9–33 VDC input or 802.3af PoE. Its power input has reverse polarity and transient voltage protection. The router is tested to MIL-STD-810H shock and vibration methods and rated for Class I Div 2 and ATEX Zone 2 hazardous locations. The unit measures 100 x 105 x 31 mm and weighs 221 g.

The NetCloud IoT Essentials plan covers the full 5-year term. It includes NetCloud Manager for configuration, group policies, troubleshooting and software updates, plus connect-and-go zero trust security. Support is 24x7, and the limited lifetime hardware warranty applies while the subscription is active. A NetCloud IoT Advanced plan can be added at any time.

Ideal for

  • Primary LTE connectivity for self-service kiosks and payment terminals
  • Digital signage networks managed centrally across many sites
  • Light industrial equipment monitoring via serial or GPIO expansion modules
  • Asset tracking and portable IoT deployments using built-in GNSS
  • PoE-powered IoT gateways in enclosures and hazardous (Class I Div 2) locations

Specifications

GNSS

Power
Passive (none provided)
Accuracy
2 m autonomous, open sky (CEP-50)
Protocols
NMEA 0183, TAIP
Frequencies
L1
Update Rate
1 Hz
Constellations
GPS, Galileo, GLONASS, BDS
Time TO First Fix
30 s (cold start)
Sensitivity Tracking
Tracking Sensitivity: -159 dBm
Sensitivity Acquisition
Acquisition Sensitivity: -147 dBm
Sensitivity Reacquisition
Reacquisition Sensitivity: -159 dBm

Wi-Fi

MIMO
1x1
Radio
Single-radio dual-band, non-concurrent
Roaming
802.11k, 802.11v
Security
WPA/WPA2/WPA3 Personal, WPA2/WPA3 Enterprise, Open
Standard
802.11ac (Wi-Fi 5)
Rate 5ghz
5 GHz Rate: 433 Mbps
Rate 2 4ghz
2.4 GHz Rate: 150 Mbps
Certification
Wi-Fi Alliance Certified
Regulatory Mode
Global Optimized Wi-Fi & International SDR
Antenna Connector
1 x RP-SMA

Power

PoE
802.3af Type 1 (15 W)
Fusing
3 A (9–12 VDC), 2 A (>12 VDC)
DC Input
9–33 VDC
Protection
Reverse polarity & transient voltage (ISO 7637-2)
Consumption Idle
3.3 W
Consumption Heavy
5.8 W
Consumption Sleep
Sleep Mode: Not supported
Consumption Typical
4.1 W

General

MPN
Manufacturer Part Number: TBT5-0400-C6-LA-M
Brand
Cradlepoint (Ericsson Enterprise Wireless)
Model
Cradlepoint S400
Region
North America – Mexico
Device Type
Cloud-managed, semi-ruggedized LTE IoT router
Product Status
Manufacturer Status: Active

Package

Contents
Includes: S400 router with Wi-Fi, AC power supply, antennas and 5-year NetCloud IoT Essentials plan
Shipping Weight
1.23 lb

Cellular

SIM
Dual 4FF (Nano) SIM slots
SMS
Yes
MIMO
2x2
Antennas
2 x external 600 MHz–6 GHz paddle antennas, SMA female
Technology
4G LTE Cat 6 (3GPP Rel. 11)
Peak Upload
Peak LTE Upload: 50 Mbps
Peak Download
Peak LTE Download: 300 Mbps
Carrier Selection
SIM-based automatic

Physical

Weight
221 g (7.8 oz)
Dimensions
Size: 100 x 105 x 31 mm (3.9 x 4.1 x 1.2 in)
Construction
Plastic housing

Interfaces

USB
1 x USB 2.0 Type-A (5 V, 500 mA, 2.5 W)
GNSS
Passive, multiplexed with cellular antenna
Modem
Embedded Cat 6 LTE, 2 x SMA cellular connectors
Ethernet
1 x Gigabit RJ45 (LAN/WAN selectable)
Expansion Slot
1 x module slot
Expansion Gpio Module
20-pin (2 x 10) Molex Micro-Fit 3.0
Expansion Serial Module
DB-9 RS232 with hardware flow control
Expansion Ethernet Module
2 x Fast Ethernet RJ45 (LAN/WAN)

Wi-Fi Power

CE
2.4 GHz 17.50 dBm; 5 GHz 11.50–17.01 dBm
IC
2.4 GHz 19.60 dBm; 5 GHz 14.38–16.25 dBm
Fcc
2.4 GHz 19.60 dBm; 5 GHz 14.38–16.25 dBm
Rcm
2.4 GHz 17.50 dBm; 5 GHz 14.38–17.01 dBm
Ukca
2.4 GHz 17.50 dBm; 5 GHz 16.12–17.01 dBm
Global Safe Mode
2.4 GHz 14 dBm

Performance

Vlans
Up to 64
Ipsec VPN
20 Mbps
Stateful Firewall
95 Mbps
Concurrent Sessions
32,000
Typical Iot Clients
Typical IoT Client Count: 25
Concurrent VPN Tunnels
5

Reliability

MTBF Base
MTBF (S400): 1,828,355 h (Telcordia SR332, 25 °C)
MTBF Db9 Module
MTBF with DB9 Module: 1,712,886 h
MTBF Gpio Module
MTBF with GPIO Module: 1,343,279 h
MTBF Ethernet Module
MTBF with Ethernet Module: 1,659,720 h

Environmental

Storage Humidity
5%–95% non-condensing
Ingress Protection
IP30
Operating Humidity
5%–95% non-condensing
Storage Temperature
-20 °C to 70 °C (-4 °F to 158 °F)
Operating Temperature
-20 °C to 60 °C (-4 °F to 140 °F)

Certifications

Safety
UL/cUL, CB Scheme, EN 62368-1
Regulatory
FCC, IC, CE, RCM, UKCA, ANATEL, IFT (Mexico), SUBTEL, MCMC, IMDA
Hazardous Locations
Class I Div 2 (NA), ATEX Zone 2 (EU)
Substance Compliance
WEEE, RoHS, REACH, California Prop 65
Shock Vibration Humidity
MIL-STD-810H 514.8 (Annex C-1, Cat 4); 516.8 Proc. I and V

Cloud Services

Plan
5-Year NetCloud IoT Essentials
Term
5 years
Support
Full term; phone 24h weekdays + weekend emergency, web 24x7, chat 24x5
Warranty
Limited lifetime with active NetCloud subscription
Service Plans
NetCloud Service for IoT
Service Add Ons
NetCloud Exchange, NetCloud Advanced
Software Updates
Via NetCloud Manager (full term)
Device Management
NetCloud Manager (full term)

Questions buyers ask

Which market is this S400 part number for?

TBT5-0400-C6-LA-M is the North America: Mexico regional configuration. U.S. and Canada deployments use the NA-region part number, TBT5-0400-C6-NA-N.

What is included in the package?

The package includes the S400 Cat 6 LTE router with Wi-Fi, an AC power supply, antennas and a 5-year NetCloud IoT Essentials plan. The plan covers NetCloud Manager, 24x7 support and a limited lifetime warranty for the subscription term.

Can the S400 be powered over Ethernet?

Yes. The S400 accepts 802.3af PSE Type 1 PoE (15 W) or a 9–33 VDC input, and its power input has reverse polarity and transient voltage protection.

Does the S400 support 5G?

No. The S400 uses an embedded Cat 6 LTE modem with peak rates of 300 Mbps down and 50 Mbps up. The 5 GHz reference applies to its Wi-Fi radio, not to cellular.

Can I add serial or GPIO connections?

Yes. The expansion module slot supports a DB-9 RS232 serial module, a dual Fast Ethernet module or a 20-pin GPIO module.
