Cradlepoint5G & LTE Routers

Cradlepoint S400 LTE Cat 6 IoT Router with Wi-Fi 5 and 3-Year NetCloud IoT Essentials + Advanced (TAA)

4G LTEMPN TAA-TBV3-0400-C6-NA-N
  • Wi-Fi 5
  • Dual SIM
  • 1 × 1 Gb Ethernet
  • GPS/GNSS
  • PoE powered
  • 3 years included
$645.12$705.00Save $59.88

In stockShips from the US

Included subscription · 3 years
3 years5 years+$153.73
Compliance · TAA compliant
StandardTAA compliant
Region · North America
North AmericaLatin AmericaEMEA+$153.73
Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans
Compare all 15 configurations

Datasheets & documents

Overview

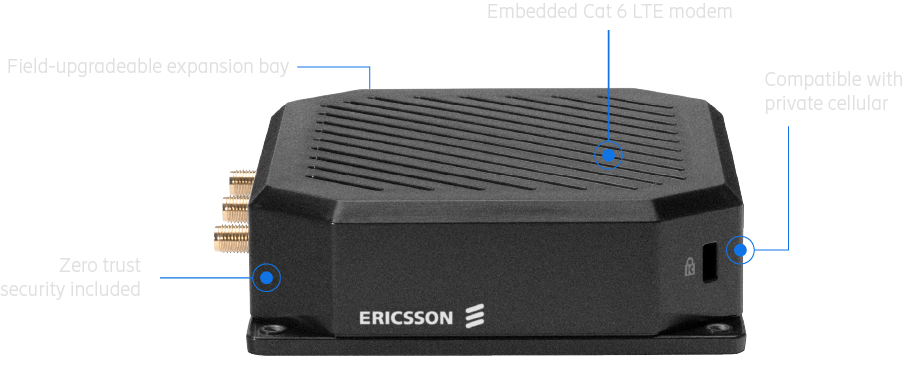

The Cradlepoint S400 is a compact, semi-ruggedized, cloud-managed LTE router for IoT, kiosk, digital signage and light-industrial deployments. This TAA-compliant North America SKU (TAA-TBV3-0400-C6-NA-N) includes the Wi-Fi-equipped S400, 3-year NetCloud IoT Essentials and Advanced plans, an AC power supply and antennas. It has an embedded Cat 6 LTE modem with dual SIM slots, 802.11ac Wi-Fi 5, Gigabit Ethernet, USB 2.0, an expansion slot and passive GNSS.

  • Embedded Cat 6 LTE modem: 300 Mbps peak download, 50 Mbps upload, 2x2 MIMO, dual 4FF SIM slots
  • Single-radio dual-band 1x1 802.11ac Wi-Fi 5 (2.4 GHz or 5 GHz) with WPA3
  • 1 x Gigabit Ethernet (LAN/WAN), 1 x USB 2.0 and an expansion slot for serial, dual Fast Ethernet or GPIO modules
  • North America LTE bands including B12/B13/B14/B71 plus CBRS Band 48 for private LTE
  • Semi-ruggedized: -20 °C to 60 °C operation, MIL-STD-810H shock/vibration, Class I Div 2
  • Power from 9–33 VDC or 802.3af PoE; AC power supply and antennas included
  • 3-year NetCloud IoT Essentials + Advanced plans with NetCloud Manager and 24x7 support
  • Meet federal sourcing requirements with a TAA-compliant SKU that bundles hardware and three years of management

The Ericsson Cradlepoint S400 is a cloud-managed, semi-ruggedized router and secure appliance for IoT networks. It combines LTE with wired and Wi-Fi connectivity for light-industrial sites, digital signage and kiosks. This package is the TAA-compliant U.S. Federal Government ordering option. It includes the Wi-Fi model of the router, both the NetCloud IoT Essentials and Advanced plans for three years, an AC power supply and antennas.

The embedded Cat 6 LTE modem (3GPP Rel. 11) delivers 300 Mbps peak download and 50 Mbps upload. It supports 2x2 MIMO, downlink carrier aggregation and dual 4FF SIM slots with SIM-based auto-carrier selection. The North America modem covers bands including B2, B4, B5, B12, B13, B14, B66 and B71, plus CBRS Band 48 for private LTE. The manufacturer lists AT&T, T-Mobile and Verizon operator certifications.

The built-in Wi-Fi is a single-radio, dual-band 1x1 802.11ac (Wi-Fi 5) radio. It operates on 2.4 GHz (150 Mbps) or 5 GHz (433 Mbps), non-concurrently, and supports WPA3 Personal and Enterprise, 802.11k and 802.11v. Wired connectivity includes one Gigabit Ethernet port (LAN/WAN selectable) and a USB 2.0 port. An expansion slot accepts serial DB-9, dual Fast Ethernet or GPIO modules. Passive GNSS supports GPS, Galileo, GLONASS and BDS.

The S400 runs from 9–33 VDC or 802.3af PoE and operates from -20 °C to 60 °C. It meets MIL-STD-810H shock and vibration methods and Class I Div 2 hazardous-location certification. NetCloud Manager provides fleet management, group policies, software updates and zero-trust connect-and-go security. Support runs for the full three-year term, and the limited lifetime hardware warranty applies while the subscription is active.

Ideal for

  • Kiosks and digital signage needing LTE plus local Wi-Fi
  • Light-industrial equipment connectivity with serial or GPIO integration
  • TAA-compliant IoT deployments for federal and public-sector agencies
  • GNSS-enabled asset tracking and portable IoT installations
  • Private LTE over CBRS Band 48

Specifications

GNSS

Accuracy
2 m (CEP-50), autonomous at open sky
Protocols
NMEA 0183, TAIP
Frequencies
L1
Update Rate
1 Hz (once per second)
Antenna Power
Passive (no power provided)
Constellations
GPS, Galileo, GLONASS, BDS
Time TO First Fix
30 seconds (cold start)
Sensitivity Tracking
-159 dBm
Sensitivity Acquisition
-147 dBm
Sensitivity Reacquisition
-159 dBm

Power

PoE
PoE 802.3af PSE Type 1 (15 W)
Fusing
3 A fuse (9–12 VDC), 2 A fuse (>12 VDC)
DC Input
9–33 VDC input
Protection
Reverse polarity and transient protection (ISO 7637-2)
Included Supply
AC power supply included
Consumption Idle
S400 DC idle: 3.3 W
Consumption Heavy
S400 DC heavy: 5.8 W
Consumption Sleep
not supported
Consumption Typical
S400 DC typical: 4.1 W

General

MPN
TAA-TBV3-0400-C6-NA-N
Brand
Cradlepoint (Ericsson Enterprise Wireless)
Model
Cradlepoint S400
Market
TAA-compliant U.S. Federal Government ordering option, North America modem
Package Plan
3-Year NetCloud IoT Essentials + Advanced Plans
Product Status
Active
Subscription Term
3 years
Hardware Configuration
Cat 6 LTE with Wi-Fi, AC power supply and antennas included

Cellular

3g
No 3G
SIM
Dual SIM slots, 4FF (Nano) form factor
SMS
SMS supported
MIMO
2x2 MIMO
Antennas
2 x external 600 MHz–6 GHz paddle antennas, SMA female
Modulation
Up to 16 QAM
Regulatory
FCC (U.S.), IC (Canada)
Technology
LTE Cat 6 (3GPP Release 11)
Peak Upload
50 Mbps LTE upload
LTE Fdd Bands
B2 (1900), B4 (1700), B5 (850), B7 (2600), B12 (700), B13 (700), B14 (700), B25 (1900), B26 (850), B29 (700), B30 (2300), B66 (1700), B71 (600)
LTE Tdd Bands
B41 (2500), B48 (3500)
Peak Download
300 Mbps LTE download
Transmit Power
LTE 23 dBm ± 2 (typical conducted)
Carrier Selection
SIM-based auto-carrier selection
Carrier Aggregation
Downlink up to 2CA, uplink up to 1CA
GNSS Constellations
GPS, GLONASS, BeiDou, Galileo
Private Cellular Network
Private LTE: FCC Part 96 CBRS Band 48
Network Operator Standards
PTCRB (U.S., Canada)
Network Operator Certifications
AT&T, T-Mobile, Verizon

Physical

Weight
221 g (7.8 oz)

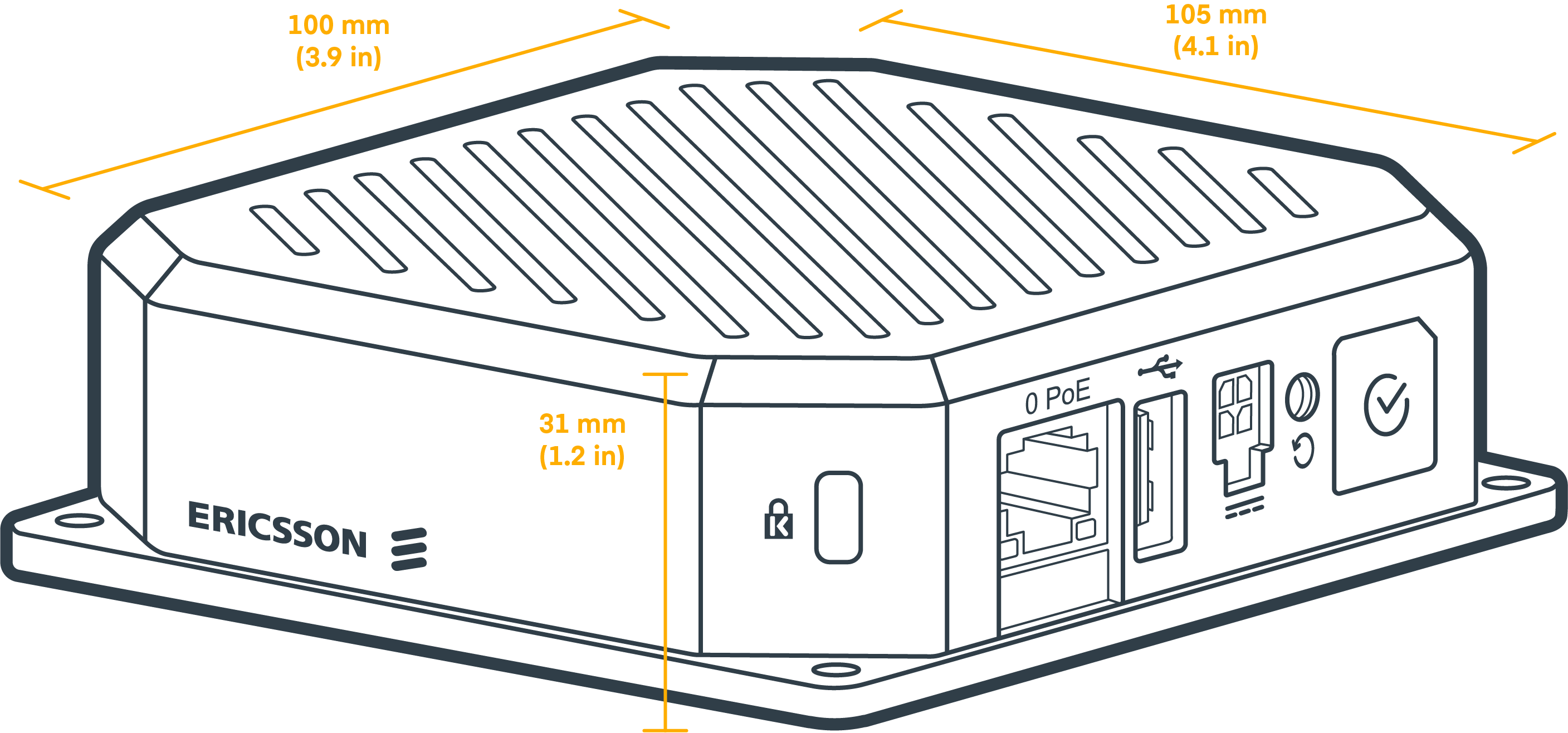

Dimensions
100 x 105 x 31 mm (3.9 x 4.1 x 1.2 in)
Construction
Plastic housing
Shipping Weight
1.23 lb shipping weight

Interfaces

USB
1 x USB 2.0 Type-A, 5 V / 500 mA / 2.5 W output
GNSS
Passive GNSS, multiplexed with cellular antenna
Modem
Embedded Cat 6 LTE modem, 2 x SMA cellular connectors
Ethernet
1 x Gigabit Ethernet RJ45 (LAN/WAN selectable)
Wi-Fi Radio
Single-radio dual-band 1x1 802.11ac Wi-Fi 5, non-concurrent
Wi-Fi Speed
150 Mbps (2.4 GHz), 433 Mbps (5 GHz)
Gpio Module
20-pin Molex Micro-Fit 3.0
Serial Module
Optional module: DB-9 RS232 with hardware flow control
Wi-Fi Features
Global Optimized Wi-Fi and International SDR, 802.11k/v, Wi-Fi Alliance Certified
Wi-Fi Security
WPA/WPA2/WPA3 Personal, WPA2/WPA3 Enterprise, Open
Expansion Slot
1 x expansion module slot
Ethernet Module
Optional module: 2 x Fast Ethernet RJ45 (LAN/WAN selectable)
Wi-Fi Antenna Connector
1 x RP-SMA Wi-Fi antenna connector

Wi-Fi Power

CE
17.50 dBm (2.4 GHz); 16.64 / 16.64 / 17.01 / 11.50 dBm (5 GHz sub-bands)
IC
19.60 dBm (2.4 GHz); 16.25 / 15.89 / 15.93 / 14.38 dBm (5 GHz sub-bands)
Fcc
19.60 dBm (2.4 GHz); 16.25 / 15.89 / 15.93 / 14.38 dBm (5 GHz sub-bands)
Rcm
17.50 dBm (2.4 GHz); 16.64 / 16.64 / 17.01 / 14.38 dBm (5 GHz sub-bands)
Ukca
17.50 dBm (2.4 GHz); 16.64 / 16.64 / 17.01 / 16.12 dBm (5 GHz sub-bands)
Global Safe Mode
14 dBm (2.4 GHz)

Performance

Vlans
Up to 64 Layer 2 / Layer 3 VLANs
Ipsec VPN
20 Mbps point-to-point IPsec VPN
Stateful Firewall
95 Mbps stateful firewall
Concurrent Sessions
32,000 concurrent sessions
Typical Iot Clients
25 typical IoT clients
Concurrent VPN Tunnels
5 concurrent VPN tunnels

Reliability

MTBF Base
1,828,355 hours (Telcordia SR332 at 25 °C)
MTBF Db9 Module
With DB9 module: 1,712,886 hours
MTBF Gpio Module
With GPIO module: 1,343,279 hours
MTBF Ethernet Module
With Ethernet module: 1,659,720 hours

Environmental

Storage Humidity
5% to 95% non-condensing
Ingress Protection
IP30
Operating Humidity
5% to 95% non-condensing
Storage Temperature
-20 °C to 70 °C (-4 °F to 158 °F)
Operating Temperature
-20 °C to 60 °C (-4 °F to 140 °F)

Certifications

TAA
TAA-compliant SKU
Safety
UL/cUL, CB Scheme, EN 62368-1
Regulatory
FCC (U.S.), IC (Canada), CE (EU), RCM (AU/NZ), UKCA (UK), ANATEL (Brazil), IFT (Mexico), SUBTEL (Chile), MCMC (Malaysia), IMDA (Singapore)
Hazardous Locations
Class I Div 2 (North America), ATEX 2 (Europe)
Substance Compliance
WEEE, RoHS, REACH, California Prop 65
Shock Vibration Humidity
MIL-STD-810H 514.8 (Annex C-1, Cat. 4), 516.8 Proc. I and Proc. V

Cloud Services

Support
24x7 support for the full subscription term
Warranty
Limited lifetime warranty with active NetCloud subscription
Included Plan
NetCloud IoT Essentials + Advanced Plans, 3 years
Service Plans
NetCloud Service for IoT
Service Add Ons
NetCloud Exchange, NetCloud Advanced
Software Updates
Software updates via NetCloud Manager for the full term
Device Management
NetCloud Manager for the full term

Questions buyers ask

What kind of Wi-Fi does the S400 have?

It has a single-radio, dual-band 1x1 802.11ac (Wi-Fi 5) radio. The radio runs on either 2.4 GHz (150 Mbps) or 5 GHz (433 Mbps), not both at once, and supports WPA3 Personal and Enterprise.

What NetCloud plans are included?

This package includes both the NetCloud IoT Essentials and NetCloud IoT Advanced plans for three years. Coverage includes NetCloud Manager, software updates and 24x7 support for the full term.

Is this SKU suitable for federal purchases?

Yes. It is the TAA-compliant U.S. Federal Government ordering option for the S400, with a North America Cat 6 modem.

How many devices can connect?

Cradlepoint rates the S400 at 25 typical IoT clients, 32,000 concurrent sessions and up to 64 VLANs.

What ports are available for wired equipment?

The router has one Gigabit Ethernet port (LAN/WAN selectable) and one USB 2.0 port. Its expansion slot accepts a DB-9 RS232 serial, dual Fast Ethernet or 20-pin GPIO module.
