Cradlepoint S400 LTE Cat 6 IoT Router with Wi-Fi and 3-Year NetCloud IoT Essentials Plan (Mexico)

4G LTEMPN TBT3-0400-C6-LA-M
  • Wi-Fi 5
  • Dual SIM
  • 1 × 1 Gb Ethernet
  • GPS/GNSS
  • PoE powered
  • 3 years included
$447.46$489.00Save $41.54

In stock · only 2 leftShips from the US

Included subscription · 3 years
3 years5 years+$153.73
Compliance · Standard
StandardTAA compliant
Region · Latin America
North AmericaLatin AmericaEMEA+$257.54
Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans
Compare all 15 configurations

Datasheets & documents

Overview

The Cradlepoint S400 (TBT3-0400-C6-LA-M) is a cloud-managed, semi-ruggedized LTE Cat 6 router for IoT deployments in Mexico. It pairs an embedded dual-SIM modem rated to 300 Mbps download with Wi-Fi 5, Gigabit Ethernet, GNSS and an expansion slot for serial, GPIO or extra Ethernet. The bundle includes a 3-year NetCloud IoT Essentials plan, an AC power supply and antennas. It is built for light industrial, digital signage and kiosk use.

  • Embedded Cat 6 LTE modem, 300 Mbps down / 50 Mbps up, 2x2 MIMO, dual 4FF SIM slots
  • Single-radio dual-band 802.11ac Wi-Fi 5 (2.4 GHz or 5 GHz) with WPA3
  • 1 x Gigabit Ethernet (LAN/WAN), USB 2.0 and an expansion slot for serial, dual FE or GPIO modules
  • GNSS with GPS, Galileo, GLONASS and BeiDou, NMEA 0183 and TAIP output
  • Semi-ruggedized: -20 °C to 60 °C, IP30, MIL-STD-810H, Class I Div 2 and ATEX Zone 2
  • 9–33 VDC or 802.3af PoE power; AC power supply and antennas included
  • 3-year NetCloud IoT Essentials plan with NetCloud Manager, zero trust security and 24x7 support
  • Keeps kiosks, signage and sensors online over LTE, with a second SIM for carrier redundancy

The Ericsson Cradlepoint S400 is a compact, semi-ruggedized secure router for IoT networks. This part number, TBT3-0400-C6-LA-M, is the Mexico configuration. For U.S. and Canada deployments, use the North America SKU. Cradlepoint designed the S400 for light industrial sites, digital signage and kiosks. These are places where a small, reliable cellular connection has to run for years with little attention on site.

Connectivity comes from an embedded Cat 6 LTE modem with dual 4FF SIM slots and SIM-based auto-carrier selection. It offers peak rates of 300 Mbps down and 50 Mbps up with 2x2 MIMO through two SMA connectors. Locally, the S400 has one Gigabit Ethernet port (LAN/WAN selectable) and single-radio, dual-band 802.11ac Wi-Fi 5 with WPA3 support. It also has a USB 2.0 port and an expansion module slot for RS232 serial (DB-9), dual Fast Ethernet or a 20-pin GPIO module. Built-in GNSS supports GPS, Galileo, GLONASS and BeiDou for asset tracking.

The hardware is rated from -20 °C to 60 °C and IP30. It meets MIL-STD-810H shock and vibration methods and is certified for Class I Div 2 and ATEX Zone 2 hazardous locations. It runs on 9–33 VDC with reverse-polarity and transient protection, or on 802.3af PoE. An AC power supply is included.

The 3-year NetCloud IoT Essentials plan provides NetCloud Manager for cloud management, group policies, configuration, troubleshooting and software updates. It also includes zero trust connect-and-go security and 24x7 support. Hardware carries a limited lifetime warranty while an active NetCloud subscription is in place.

Ideal for

  • Cellular connectivity for kiosks and digital signage in Mexico
  • Light industrial monitoring with serial or GPIO equipment
  • Asset tracking for portable IoT installations using GNSS
  • Wireless primary or backup WAN for small unattended sites

Specifications

Power

PoE
PoE 802.3af PSE Type 1 (15 W)
DC Input
9–33 VDC (3 A fuse for 9–12 VDC; 2 A fuse above 12 VDC)
Protection
Reverse polarity and transient voltage protection (ISO 7637-2)
Consumption
S400 DC: Idle 3.3 W; Typical 4.1 W; Heavy 5.8 W; Sleep not supported
AC Power Supply
AC power supply included

General

MPN
TBT3-0400-C6-LA-M
Brand
Ericsson Cradlepoint
Model
Cradlepoint S400
Region
Mexico market configuration
Product Type
Cloud-managed, semi-ruggedized LTE IoT router
Product Status
Active

Package

Contents
S400 router, 3-year NetCloud IoT Essentials plan, AC power supply, antennas
Documentation
Cradlepoint S400 Datasheet

Cellular

SIM
Dual SIM slots, 4FF; SIM-based auto-carrier selection
SMS
SMS supported
MIMO
2x2 MIMO
Antennas
SMA female; external 600 MHz–6 GHz cellular paddle antennas (qty 2)
Technology
Cat 6 LTE (3GPP Release 11)
Peak Upload
50 Mbps LTE upload
Peak Download
300 Mbps LTE download
Transmit Power
LTE 23 dBm ± 2 (typical conducted)
GNSS Constellations
GPS, GLONASS, BeiDou, Galileo

GNSS GPS

Power
Passive (no power provided)
Accuracy
Autonomous at open sky 2 m (CEP-50)
Protocols
NMEA 0183, TAIP
Frequencies
L1
Sensitivity
Acquisition -147 dBm; Tracking -159 dBm; Reacquisition -159 dBm
Update Rate
1 Hz (once per second)
Constellations
GPS, Galileo, GLONASS, BDS
Time TO First Fix
30 seconds (cold start)

Physical

Weight
221 g (7.8 oz)

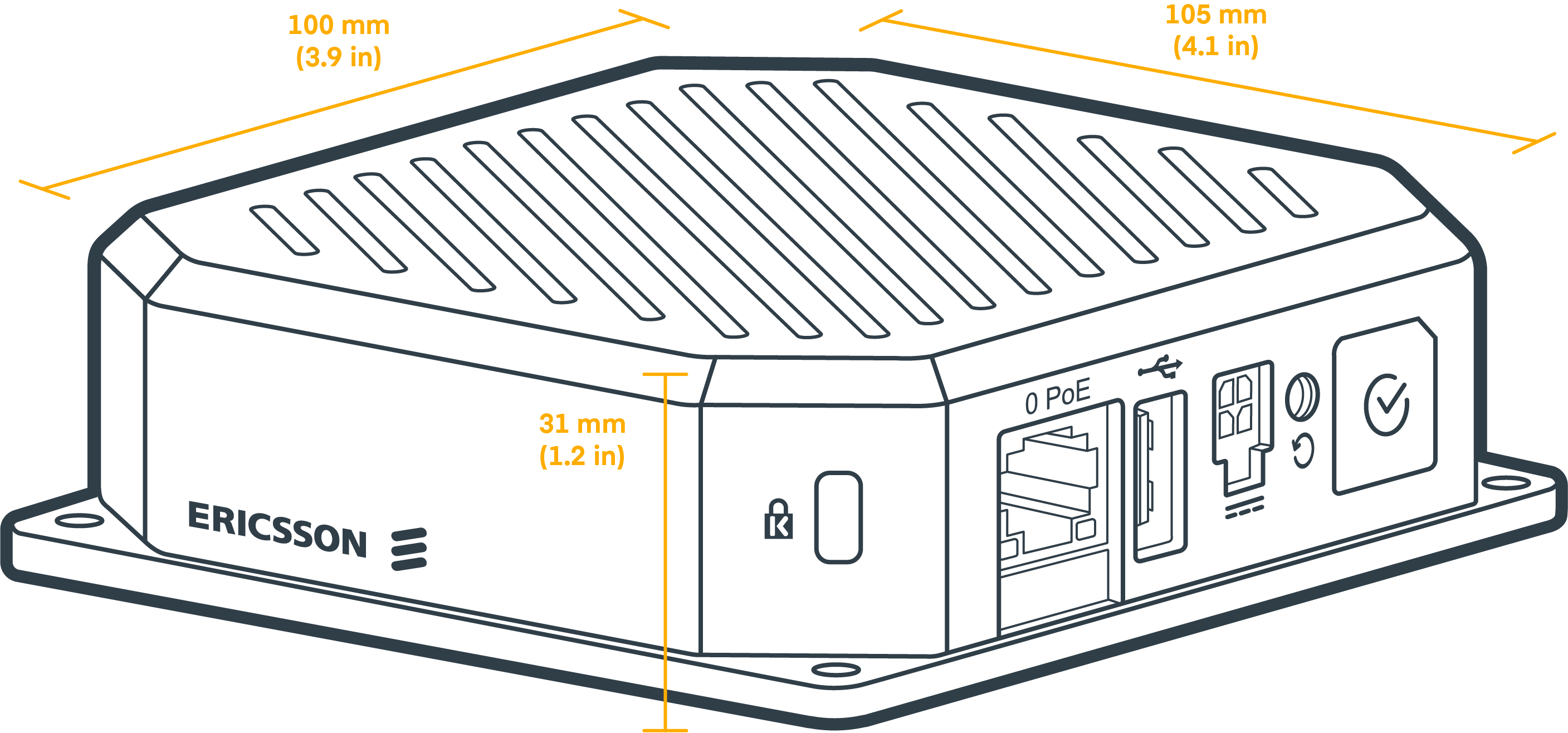

Dimensions
100 x 105 x 31 mm (3.9 x 4.1 x 1.2 in)
Construction
Plastic housing
Shipping Weight
1.23 lb

Interfaces

USB
1 x USB 2.0 Type A (5 V, 500 mA, 2.5 W output)
GNSS
Passive GNSS (multiplexed with cellular antenna)
Wi-Fi
Single-radio, dual-band, non-concurrent (2.4 GHz or 5 GHz); 1x1 802.11ac Wi-Fi 5; 150 Mbps (2.4 GHz) / 433 Mbps (5 GHz)
Modem
Embedded Cat 6 LTE modem; 2 x SMA cellular antenna connectors
Ethernet
1 x GbE RJ45 (LAN/WAN selectable)
Wi-Fi Antenna
1 x RP-SMA Wi-Fi antenna connector
Wi-Fi Security
WPA/WPA2/WPA3 Personal, WPA2/WPA3 Enterprise, Open; 802.11k, 802.11v; Wi-Fi Alliance Certified
Expansion Slot
1 x expansion module slot
Expansion Modules
Serial DB-9 RS232 with hardware flow control; Dual Fast Ethernet (2 x FE RJ45, LAN/WAN); GPIO 20-pin Molex Micro-Fit 3.0

Wi-Fi Power

CE
2.4 GHz 17.50; 5150–5250 16.64; 5250–5350 16.64; 5470–5725 17.01; 5725–5875 MHz 11.50 dBm conducted
IC
2.4 GHz 19.60; 5150–5250 16.25; 5250–5350 15.89; 5470–5725 15.93; 5725–5850 MHz 14.38 dBm conducted
Fcc
2.4 GHz 19.60; 5150–5250 16.25; 5250–5350 15.89; 5470–5725 15.93; 5725–5850 MHz 14.38 dBm conducted
Rcm
2.4 GHz 17.50; 5150–5250 16.64; 5250–5350 16.64; 5470–5725 17.01; 5725–5850 MHz 14.38 dBm conducted
Ukca
2.4 GHz 17.50; 5150–5250 16.64; 5250–5350 16.64; 5470–5725 17.01; 5725–5875 MHz 16.12 dBm conducted
Global Safe Mode
2.4 GHz: 14 dBm conducted

Performance

Vlans
Up to 64 Layer 2 / Layer 3 VLANs
Ipsec VPN
20 Mbps
Stateful Firewall
95 Mbps
Concurrent Sessions
32,000
Typical Iot Clients
25
Concurrent VPN Tunnels
5

Reliability

MTBF
1,828,355 hours (Telcordia SR332 at 25 °C)
MTBF Db9 Module
With DB9 module: 1,712,886 hours
MTBF Gpio Module
With GPIO module: 1,343,279 hours
MTBF Ethernet Module
With Ethernet module: 1,659,720 hours

Subscription

Plan
NetCloud IoT Essentials Plan
Term
3-year subscription
Support
Phone 24-hour weekdays with weekend emergency response, web 24x7, chat 24x5, for the full term
Warranty
Limited lifetime warranty while an active NetCloud Service Plan is in place
Service Plans
NetCloud Service for IoT
Service Add Ons
NetCloud Exchange, NetCloud Advanced
Software Updates
Software updates via NetCloud Manager for the full subscription term
Device Management
NetCloud Manager for the full subscription term

Environmental

Humidity
5% to 95% non-condensing (operating and storage)
Ingress Protection
IP30
Storage Temperature
-20 °C to 70 °C (-4 °F to 158 °F)
Operating Temperature
-20 °C to 60 °C (-4 °F to 140 °F)

Certifications

Safety
UL/cUL, CB Scheme, EN 62368-1
Regulatory
FCC, IC, CE, RCM, UKCA, ANATEL, IFT (Mexico), SUBTEL, MCMC, IMDA
Hazardous Locations
Class I Div 2 (North America); ATEX Zone 2 (Europe)
Substance Compliance
WEEE, RoHS, REACH, California Prop 65
Shock Vibration Humidity
MIL-STD-810H Method 514.8 Annex C-1 Cat 4; Method 516.8 Procedures I and V

Questions buyers ask

Is this S400 intended for use in the United States?

No. TBT3-0400-C6-LA-M is the Mexico market configuration. For U.S. and Canada deployments, Cradlepoint offers the North America part, TBT3-0400-C6-NA-N.

What is included in the 3-year NetCloud IoT Essentials plan?

NetCloud Manager for cloud management and software updates, zero trust connect-and-go security, and 24x7 support for the full term. It also keeps the limited lifetime hardware warranty active while the plan runs.

How can the S400 be powered?

It accepts 9–33 VDC with reverse-polarity and transient protection, or 802.3af PoE. An AC power supply is included.

Can I connect serial or GPIO devices?

Yes. The expansion module slot supports a DB-9 RS232 serial module, a dual Fast Ethernet module or a 20-pin GPIO module.

Does it support two SIM cards?

Yes. The Cat 6 LTE modem has dual 4FF SIM slots with SIM-based auto-carrier selection.
