Cradlepoint S400 LTE Cat 6 IoT Router with Wi-Fi 5 and 5-Year NetCloud IoT Essentials Plan (US & Canada)

4G LTEMPN TBT5-0400-C6-NA-N
  • Wi-Fi 5
  • Dual SIM
  • 1 × 1 Gb Ethernet
  • GPS/GNSS
  • PoE powered
  • 5 years included
$601.19$657.00Save $55.81

In stockShips from the US

Included subscription · 5 years
3 years−$153.735 years
Compliance · Standard
StandardTAA compliant
Region · North America
North AmericaLatin AmericaEMEA
Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans
Compare all 15 configurations

Datasheets & documents

Overview

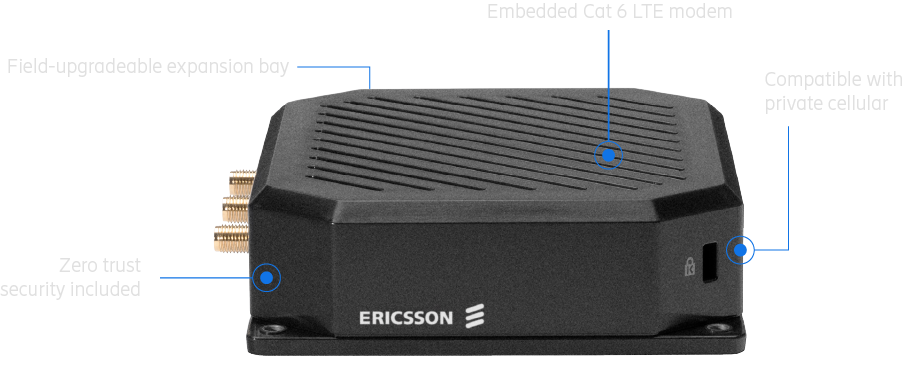

The Cradlepoint S400 (TBT5-0400-C6-NA-N) is a compact, semi-ruggedized, cloud-managed LTE router for IoT, digital signage, kiosks and light industrial sites in the U.S. and Canada. It pairs an embedded Cat 6 LTE modem with dual SIM slots and AT&T, T-Mobile and Verizon certification. It adds CBRS Band 48 support, Wi-Fi 5, Gigabit Ethernet, passive GNSS and PoE power. The router ships with an AC power supply and antennas, and the bundled 5-year NetCloud IoT Essentials plan includes NetCloud Manager, 24x7 support and a limited lifetime warranty for the term.

  • Embedded Cat 6 LTE modem with 300 Mbps peak download, 50 Mbps upload, 2x2 MIMO and 2CA downlink
  • Dual 4FF SIM slots with SIM-based auto-carrier selection; AT&T, T-Mobile and Verizon certified
  • Private cellular support including FCC Part 96 CBRS Band 48
  • Single-radio, dual-band 802.11ac Wi-Fi 5 with WPA3 and 802.11k/v

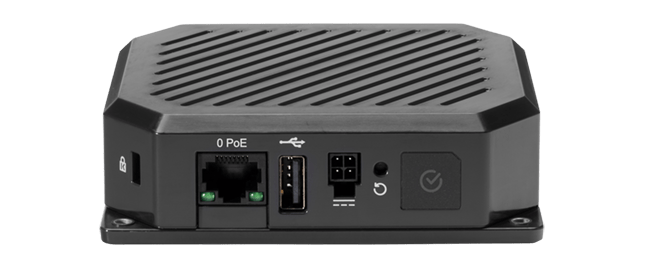

  • 1 x GbE RJ45 (LAN/WAN), 1 x USB 2.0 and an expansion slot for serial, dual Fast Ethernet or GPIO modules
  • 9–33 VDC or 802.3af PoE power, -20 °C to 60 °C operation, MIL-STD-810H and Class I Div 2 rated
  • 5-year NetCloud IoT Essentials plan with NetCloud Manager, zero trust security and 24x7 support
  • Connect IoT sites on AT&T, T-Mobile or Verizon, with dual SIMs for carrier choice or backup

The Ericsson Cradlepoint S400 is a cloud-managed, semi-ruggedized router and secure appliance built for IoT networks. It suits light industrial equipment, digital signage and kiosks. Part number TBT5-0400-C6-NA-N is the U.S. & Canada configuration. It bundles the S400 hardware with a 5-year NetCloud IoT Essentials plan, an AC power supply and antennas.

The embedded Cat 6 LTE modem (3GPP Rel. 11) reaches peak rates of 300 Mbps down and 50 Mbps up. It uses 2x2 MIMO and two-carrier downlink aggregation, with dual 4FF SIM slots and SIM-based auto-carrier selection. The modem covers North American LTE bands from B71 (600 MHz) to B41 and B48. It is certified on AT&T, T-Mobile and Verizon and supports private CBRS networks under FCC Part 96. The router also has one Gigabit Ethernet port (LAN/WAN selectable) and a USB 2.0 port. Single-radio, dual-band Wi-Fi 5 supports WPA3. An expansion slot accepts serial, dual Fast Ethernet or GPIO modules, and passive GNSS supports asset tracking.

The S400 is built for demanding sites. It operates from -20 °C to 60 °C and runs on 9–33 VDC or 802.3af PoE. It meets MIL-STD-810H shock and vibration methods and is rated for Class I Div 2 hazardous locations. It measures 100 x 105 x 31 mm and weighs 221 g.

The Essentials plan runs for the full 5-year term. It includes NetCloud Manager for policies, configuration, troubleshooting and software updates, plus connect-and-go zero trust security. It also provides 24x7 support and a limited lifetime hardware warranty while the subscription is active. A NetCloud IoT Advanced plan can be added at any time.

Ideal for

  • Primary LTE connectivity for kiosks, ATMs and self-service terminals
  • Digital signage fleets managed centrally from NetCloud Manager
  • Private LTE (CBRS Band 48) endpoints in warehouses and campuses
  • Light industrial and utility monitoring via serial or GPIO modules, including Class I Div 2 sites
  • Asset tracking and portable IoT deployments using built-in GNSS

Specifications

GNSS

Power
Passive (none provided)
Accuracy
2 m autonomous, open sky (CEP-50)
Protocols
NMEA 0183, TAIP
Frequencies
L1
Update Rate
1 Hz
Constellations
GPS, Galileo, GLONASS, BDS
Time TO First Fix
30 s (cold start)
Sensitivity Tracking
Tracking Sensitivity: -159 dBm
Sensitivity Acquisition
Acquisition Sensitivity: -147 dBm
Sensitivity Reacquisition
Reacquisition Sensitivity: -159 dBm

Wi-Fi

MIMO
1x1
Radio
Single-radio dual-band, non-concurrent
Roaming
802.11k, 802.11v
Security
WPA/WPA2/WPA3 Personal, WPA2/WPA3 Enterprise, Open
Standard
802.11ac (Wi-Fi 5)
Rate 5ghz
5 GHz Rate: 433 Mbps
Rate 2 4ghz
2.4 GHz Rate: 150 Mbps
Certification
Wi-Fi Alliance Certified
Regulatory Mode
Global Optimized Wi-Fi & International SDR
Antenna Connector
1 x RP-SMA

Power

PoE
802.3af Type 1 (15 W)
Fusing
3 A (9–12 VDC), 2 A (>12 VDC)
DC Input
9–33 VDC
Protection
Reverse polarity & transient voltage (ISO 7637-2)
Consumption Idle
3.3 W
Consumption Heavy
5.8 W
Consumption Sleep
Sleep Mode: Not supported
Consumption Typical
4.1 W

General

MPN
Manufacturer Part Number: TBT5-0400-C6-NA-N
Brand
Cradlepoint (Ericsson Enterprise Wireless)
Model
Cradlepoint S400
Region
U.S. & Canada
Device Type
Cloud-managed, semi-ruggedized LTE IoT router
Product Status
Manufacturer Status: Active

Package

Contents
Includes: S400 router with Wi-Fi, AC power supply, antennas and 5-year NetCloud IoT Essentials plan
Shipping Weight
1.23 lb

Cellular

SIM

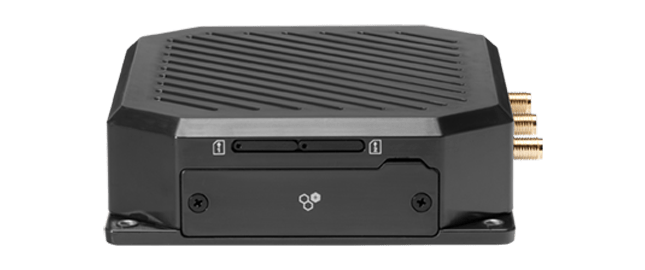

Dual 4FF (Nano) SIM slots
SMS
Yes
MIMO
2x2
Antennas
2 x external 600 MHz–6 GHz paddle antennas, SMA female
Modulation
Up to 16 QAM
Regulatory
FCC, IC
Technology
4G LTE Cat 6 (3GPP Rel. 11)
Peak Upload
Peak LTE Upload: 50 Mbps
LTE Fdd Bands
B2, B4, B5, B7, B12, B13, B14, B25, B26, B29, B30, B66, B71
LTE Tdd Bands
B41, B48
Peak Download
Peak LTE Download: 300 Mbps
Transmit Power
LTE 23 dBm ± 2 (conducted)
Carrier Selection
SIM-based automatic
Carrier Aggregation
DL up to 2CA, UL 1CA
Private Cellular Network
Yes, FCC Part 96 CBRS Band 48
Network Operator Standards
PTCRB (U.S., Canada)
Public Safety Certifications
Public Safety Network Certifications: N/A
Network Operator Certifications
Carrier Certifications: AT&T, T-Mobile, Verizon

Physical

Weight
221 g (7.8 oz)
Dimensions

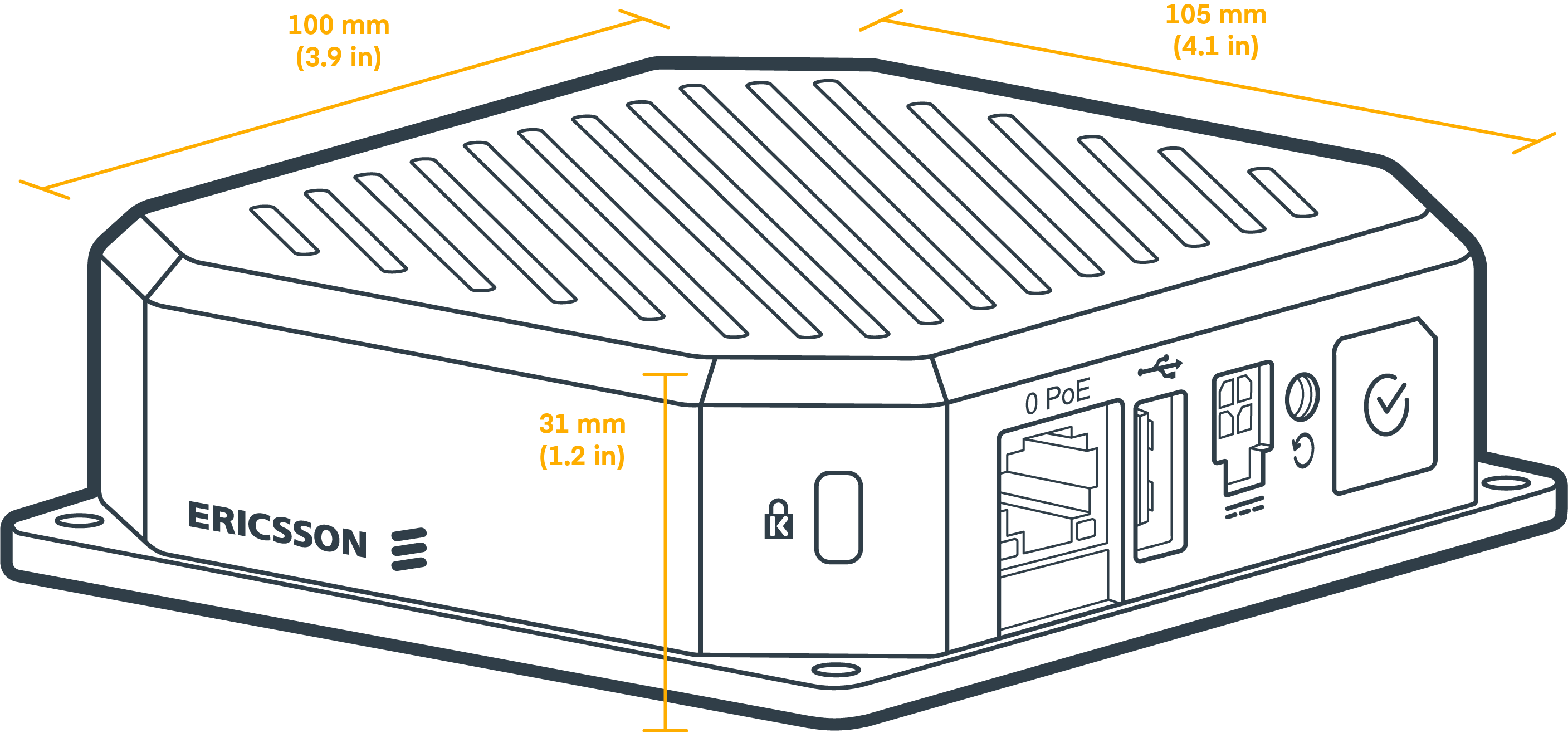

Size: 100 x 105 x 31 mm (3.9 x 4.1 x 1.2 in)
Construction
Plastic housing

Interfaces

USB
1 x USB 2.0 Type-A (5 V, 500 mA, 2.5 W)
GNSS
Passive, multiplexed with cellular antenna
Modem
Embedded Cat 6 LTE, 2 x SMA cellular connectors
Ethernet
1 x Gigabit RJ45 (LAN/WAN selectable)
Expansion Slot
1 x module slot
Expansion Gpio Module
20-pin (2 x 10) Molex Micro-Fit 3.0
Expansion Serial Module
DB-9 RS232 with hardware flow control
Expansion Ethernet Module
2 x Fast Ethernet RJ45 (LAN/WAN)

Wi-Fi Power

CE
2.4 GHz 17.50 dBm; 5 GHz 11.50–17.01 dBm
IC
2.4 GHz 19.60 dBm; 5 GHz 14.38–16.25 dBm
Fcc
2.4 GHz 19.60 dBm; 5 GHz 14.38–16.25 dBm
Rcm
2.4 GHz 17.50 dBm; 5 GHz 14.38–17.01 dBm
Ukca
2.4 GHz 17.50 dBm; 5 GHz 16.12–17.01 dBm
Global Safe Mode
2.4 GHz 14 dBm

Performance

Vlans
Up to 64
Ipsec VPN
20 Mbps
Stateful Firewall
95 Mbps
Concurrent Sessions
32,000
Typical Iot Clients
Typical IoT Client Count: 25
Concurrent VPN Tunnels
5

Reliability

MTBF Base
MTBF (S400): 1,828,355 h (Telcordia SR332, 25 °C)
MTBF Db9 Module
MTBF with DB9 Module: 1,712,886 h
MTBF Gpio Module
MTBF with GPIO Module: 1,343,279 h
MTBF Ethernet Module
MTBF with Ethernet Module: 1,659,720 h

Environmental

Storage Humidity
5%–95% non-condensing
Ingress Protection
IP30
Operating Humidity
5%–95% non-condensing
Storage Temperature
-20 °C to 70 °C (-4 °F to 158 °F)
Operating Temperature
-20 °C to 60 °C (-4 °F to 140 °F)

Certifications

Safety
UL/cUL, CB Scheme, EN 62368-1
Regulatory
FCC, IC, CE, RCM, UKCA, ANATEL, IFT, SUBTEL, MCMC, IMDA
Hazardous Locations
Class I Div 2 (NA), ATEX Zone 2 (EU)
Substance Compliance
WEEE, RoHS, REACH, California Prop 65
Shock Vibration Humidity
MIL-STD-810H 514.8 (Annex C-1, Cat 4); 516.8 Proc. I and V

Cloud Services

Plan
5-Year NetCloud IoT Essentials
Term
5 years
Support
Full term; phone 24h weekdays + weekend emergency, web 24x7, chat 24x5
Warranty
Limited lifetime with active NetCloud subscription
Service Plans
NetCloud Service for IoT
Service Add Ons
NetCloud Exchange, NetCloud Advanced
Software Updates
Via NetCloud Manager (full term)
Device Management
NetCloud Manager (full term)

Questions buyers ask

Which carriers is the S400 certified on?

The S400's North American modem is certified on AT&T, T-Mobile and Verizon and meets PTCRB for the U.S. and Canada. Dual SIM slots with SIM-based auto-carrier selection let you run two carriers.

Does it support private LTE networks?

Yes. The modem supports private cellular networks, including FCC Part 96 CBRS on Band 48.

What does the 5-year NetCloud IoT Essentials plan include?

The plan includes NetCloud Manager for device management and software updates and connect-and-go zero trust security for the full term. It also covers 24x7 support and a limited lifetime hardware warranty while the subscription is active. A NetCloud IoT Advanced plan can be added at any time.

How can the S400 be powered?

The package includes an AC power supply. The router also accepts a 9–33 VDC input or 802.3af PoE (15 W), with reverse polarity and transient voltage protection.

Is the S400 a 5G router?

No. It uses an embedded Cat 6 LTE modem with peak rates of 300 Mbps down and 50 Mbps up. Its 5 GHz band refers to the Wi-Fi radio.
