Cradlepoint5G & LTE Routers

Cradlepoint S400 LTE Cat 6 IoT Router with Wi-Fi and 3-Year NetCloud IoT Essentials Plan (US & Canada)

4G LTEMPN TBT3-0400-C6-NA-N
  • Wi-Fi 5
  • Dual SIM
  • 1 × 1 Gb Ethernet
  • GPS/GNSS
  • PoE powered
  • 3 years included
$447.46$489.00Save $41.54

In stockShips from the US

Included subscription · 3 years
3 years5 years+$153.73
Compliance · Standard
StandardTAA compliant
Region · North America
North AmericaLatin AmericaEMEA+$257.54
Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans
Compare all 15 configurations

Datasheets & documents

Overview

The Cradlepoint S400 (TBT3-0400-C6-NA-N) is a cloud-managed, semi-ruggedized LTE Cat 6 router for IoT networks in the U.S. and Canada. It combines a dual-SIM modem rated to 300 Mbps download with Wi-Fi 5, Gigabit Ethernet and GNSS. The modem covers a North American band set that includes B71 and CBRS Band 48. The bundle includes a 3-year NetCloud IoT Essentials plan, an AC power supply and antennas.

  • Cat 6 LTE modem: 300 Mbps down / 50 Mbps up, 2x2 MIMO, downlink carrier aggregation, dual 4FF SIM
  • North American LTE bands including B12, B13, B14, B66, B71 and CBRS Band 48
  • Network operator certifications for AT&T, T-Mobile and Verizon; PTCRB
  • Dual-band 802.11ac Wi-Fi 5, Gigabit Ethernet, USB 2.0 and an expansion module slot
  • GNSS with GPS, Galileo, GLONASS and BeiDou
  • Semi-ruggedized: -20 °C to 60 °C, IP30, MIL-STD-810H, Class I Div 2
  • 3-year NetCloud IoT Essentials plan, AC power supply and antennas included
  • Deploy on AT&T, T-Mobile or Verizon, with a second SIM for carrier redundancy

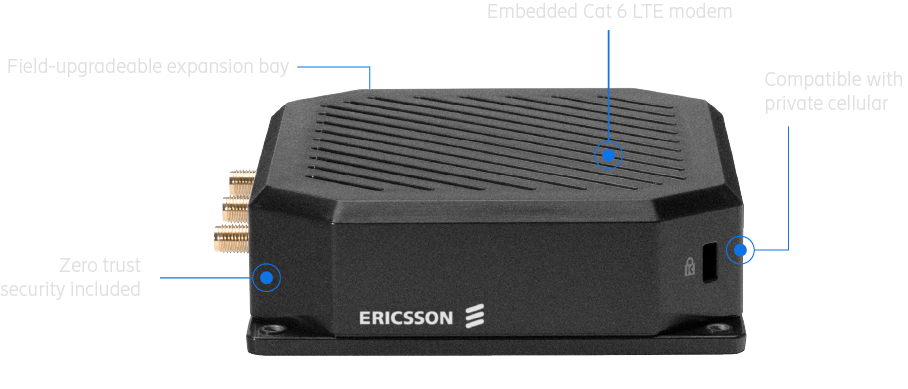

The Ericsson Cradlepoint S400 is a compact, semi-ruggedized secure router for light industrial, digital signage and kiosk deployments. This part number, TBT3-0400-C6-NA-N, is the North America configuration for the U.S. and Canada. It ships with a 3-year NetCloud IoT Essentials plan, an AC power supply and antennas.

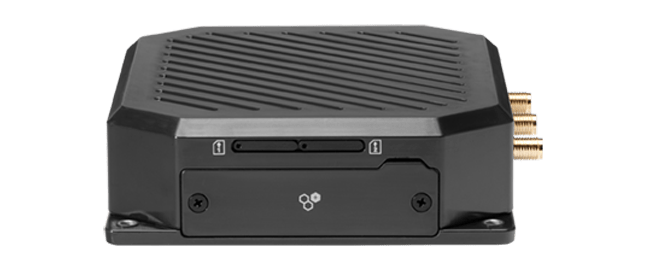

The embedded Cat 6 LTE modem has dual 4FF SIM slots with SIM-based auto-carrier selection. It uses 2x2 MIMO and downlink carrier aggregation for peak rates of 300 Mbps down and 50 Mbps up. It covers LTE bands 2, 4, 5, 7, 12, 13, 14, 25, 26, 29, 30, 66 and 71, plus TDD bands 41 and 48. Band 48 support includes FCC Part 96 CBRS for private LTE networks. The modem is PTCRB certified, with network operator certifications for AT&T, T-Mobile and Verizon.

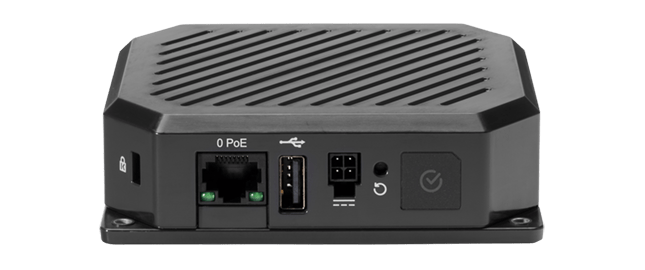

Local connections include one Gigabit Ethernet port (LAN/WAN), single-radio dual-band 802.11ac Wi-Fi 5 with WPA3, and USB 2.0. An expansion slot accepts RS232 serial, dual Fast Ethernet or GPIO modules. GNSS covers GPS, Galileo, GLONASS and BeiDou. The unit is rated from -20 °C to 60 °C and IP30, meets MIL-STD-810H shock and vibration methods, and holds Class I Div 2 and ATEX Zone 2 certifications. It runs on 9–33 VDC or 802.3af PoE.

NetCloud IoT Essentials provides NetCloud Manager for fleet management, policies, troubleshooting and software updates. It also includes zero trust connect-and-go security and 24x7 support. The hardware carries a limited lifetime warranty while the subscription is active.

Ideal for

  • LTE connectivity for retail kiosks and digital signage
  • Private LTE (CBRS) endpoints in industrial facilities
  • Light industrial monitoring with serial or GPIO devices
  • Portable IoT and asset-tracking deployments using GNSS
  • Cellular WAN for small unattended sites across the U.S. and Canada

Specifications

Power

PoE
PoE 802.3af PSE Type 1 (15 W)
DC Input
9–33 VDC (3 A fuse for 9–12 VDC; 2 A fuse above 12 VDC)
Protection
Reverse polarity and transient voltage protection (ISO 7637-2)
Consumption
S400 DC: Idle 3.3 W; Typical 4.1 W; Heavy 5.8 W; Sleep not supported
AC Power Supply
AC power supply included

General

MPN
TBT3-0400-C6-NA-N
Brand
Ericsson Cradlepoint
Model
Cradlepoint S400
Region
U.S. and Canada configuration
Product Type
Cloud-managed, semi-ruggedized LTE IoT router
Product Status
Active

Package

Contents
S400 router, 3-year NetCloud IoT Essentials plan, AC power supply, antennas
Documentation
Cradlepoint S400 Datasheet

Cellular

3g
No 3G
SIM
Dual SIM slots, 4FF; SIM-based auto-carrier selection
SMS
SMS supported
MIMO
2x2 MIMO
Antennas
SMA female; external 600 MHz–6 GHz cellular paddle antennas (qty 2)
Modulation
Up to 16 QAM
Regulatory
FCC (U.S.), IC (Canada)
Technology
Cat 6 LTE (3GPP Release 11)
Peak Upload
50 Mbps LTE upload
LTE Bands Fdd
B2 (1900), B4 (1700), B5 (850), B7 (2600), B12 (700), B13 (700), B14 (700), B25 (1900), B26 (850), B29 (700), B30 (2300), B66 (1700), B71 (600)
LTE Bands Tdd
B41 (2500), B48 (3500)
Peak Download
300 Mbps LTE download
Transmit Power
LTE 23 dBm ± 2 (typical conducted)
Private Cellular
Yes, includes FCC Part 96 (CBRS Band 48)
Operator Standards
PTCRB (U.S., Canada)
Carrier Aggregation
Downlink up to 2 CA; uplink up to 1 CA
GNSS Constellations
GPS, GLONASS, BeiDou, Galileo
Operator Certifications
AT&T, T-Mobile, Verizon

GNSS GPS

Power
Passive (no power provided)
Accuracy
Autonomous at open sky 2 m (CEP-50)
Protocols
NMEA 0183, TAIP
Frequencies
L1
Sensitivity
Acquisition -147 dBm; Tracking -159 dBm; Reacquisition -159 dBm
Update Rate
1 Hz (once per second)
Constellations
GPS, Galileo, GLONASS, BDS
Time TO First Fix
30 seconds (cold start)

Physical

Weight
221 g (7.8 oz)

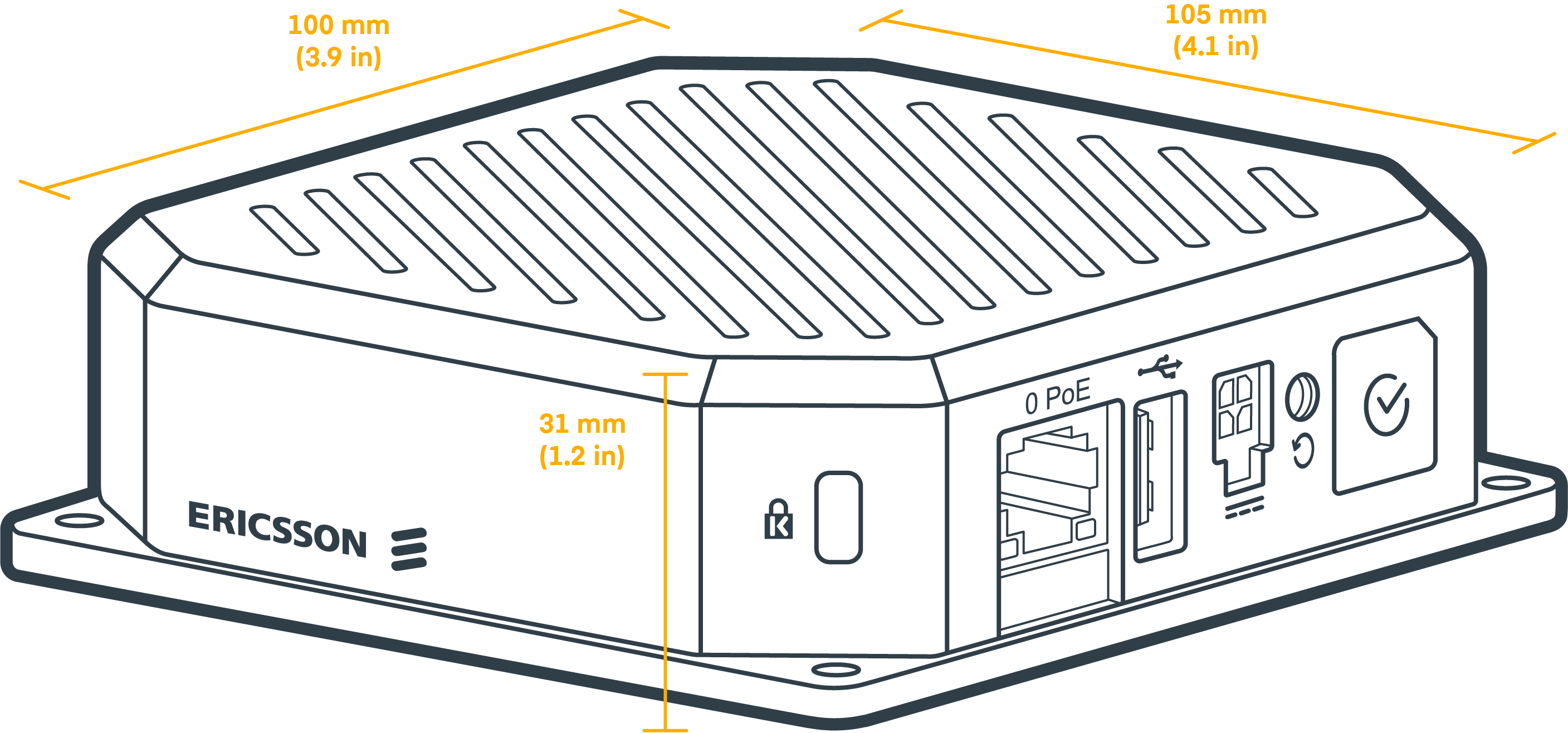

Dimensions
100 x 105 x 31 mm (3.9 x 4.1 x 1.2 in)
Construction
Plastic housing
Shipping Weight
1.23 lb

Interfaces

USB
1 x USB 2.0 Type A (5 V, 500 mA, 2.5 W output)
GNSS
Passive GNSS (multiplexed with cellular antenna)
Wi-Fi
Single-radio, dual-band, non-concurrent (2.4 GHz or 5 GHz); 1x1 802.11ac Wi-Fi 5; 150 Mbps (2.4 GHz) / 433 Mbps (5 GHz)
Modem
Embedded Cat 6 LTE modem; 2 x SMA cellular antenna connectors
Ethernet
1 x GbE RJ45 (LAN/WAN selectable)
Wi-Fi Antenna
1 x RP-SMA Wi-Fi antenna connector
Wi-Fi Security
WPA/WPA2/WPA3 Personal, WPA2/WPA3 Enterprise, Open; 802.11k, 802.11v; Wi-Fi Alliance Certified
Expansion Slot
1 x expansion module slot
Expansion Modules
Serial DB-9 RS232 with hardware flow control; Dual Fast Ethernet (2 x FE RJ45, LAN/WAN); GPIO 20-pin Molex Micro-Fit 3.0

Wi-Fi Power

CE
2.4 GHz 17.50; 5150–5250 16.64; 5250–5350 16.64; 5470–5725 17.01; 5725–5875 MHz 11.50 dBm conducted
IC
2.4 GHz 19.60; 5150–5250 16.25; 5250–5350 15.89; 5470–5725 15.93; 5725–5850 MHz 14.38 dBm conducted
Fcc
2.4 GHz 19.60; 5150–5250 16.25; 5250–5350 15.89; 5470–5725 15.93; 5725–5850 MHz 14.38 dBm conducted
Rcm
2.4 GHz 17.50; 5150–5250 16.64; 5250–5350 16.64; 5470–5725 17.01; 5725–5850 MHz 14.38 dBm conducted
Ukca
2.4 GHz 17.50; 5150–5250 16.64; 5250–5350 16.64; 5470–5725 17.01; 5725–5875 MHz 16.12 dBm conducted
Global Safe Mode
2.4 GHz: 14 dBm conducted

Performance

Vlans
Up to 64 Layer 2 / Layer 3 VLANs
Ipsec VPN
20 Mbps
Stateful Firewall
95 Mbps
Concurrent Sessions
32,000
Typical Iot Clients
25
Concurrent VPN Tunnels
5

Reliability

MTBF
1,828,355 hours (Telcordia SR332 at 25 °C)
MTBF Db9 Module
With DB9 module: 1,712,886 hours
MTBF Gpio Module
With GPIO module: 1,343,279 hours
MTBF Ethernet Module
With Ethernet module: 1,659,720 hours

Subscription

Plan
NetCloud IoT Essentials Plan
Term
3-year subscription
Support
Phone 24-hour weekdays with weekend emergency response, web 24x7, chat 24x5, for the full term
Warranty
Limited lifetime warranty while an active NetCloud Service Plan is in place
Service Plans
NetCloud Service for IoT
Service Add Ons
NetCloud Exchange, NetCloud Advanced
Software Updates
Software updates via NetCloud Manager for the full subscription term
Device Management
NetCloud Manager for the full subscription term

Environmental

Humidity
5% to 95% non-condensing (operating and storage)
Ingress Protection
IP30
Storage Temperature
-20 °C to 70 °C (-4 °F to 158 °F)
Operating Temperature
-20 °C to 60 °C (-4 °F to 140 °F)

Certifications

Safety
UL/cUL, CB Scheme, EN 62368-1
Regulatory
FCC, IC, CE, RCM, UKCA, ANATEL, IFT, SUBTEL, MCMC, IMDA
Hazardous Locations
Class I Div 2 (North America); ATEX Zone 2 (Europe)
Substance Compliance
WEEE, RoHS, REACH, California Prop 65
Shock Vibration Humidity
MIL-STD-810H Method 514.8 Annex C-1 Cat 4; Method 516.8 Procedures I and V

Questions buyers ask

Which carriers is the S400 certified for?

The North America modem lists network operator certifications for AT&T, T-Mobile and Verizon. It is also PTCRB certified.

Does the S400 support private LTE?

Yes. It supports Band 48, including FCC Part 96 CBRS, for private cellular networks.

What does NetCloud IoT Essentials include?

NetCloud Manager for management and software updates, zero trust connect-and-go security, and 24x7 support for the 3-year term. It also includes the limited lifetime hardware warranty while the plan is active. A NetCloud IoT Advanced plan can be added at any time.

Can it run on PoE?

Yes. It accepts 802.3af PoE or 9–33 VDC. An AC power supply is included.

How many devices can it support?

Cradlepoint rates a typical IoT client count of 25, with up to 32,000 concurrent sessions and up to 64 VLANs.
