Cradlepoint5G & LTE Routers

Cradlepoint S400 LTE Cat 6 IoT Router with Wi-Fi 5 and 5-Year NetCloud IoT Essentials + Advanced (TAA)

4G LTEMPN TAA-TBV5-0400-C6-NA-N
  • Wi-Fi 5
  • Dual SIM
  • 1 × 1 Gb Ethernet
  • GPS/GNSS
  • PoE powered
  • 5 years included
$932.44$1,019.00Save $86.56

In stockShips from the US

Included subscription · 5 years
3 years−$153.735 years
Compliance · TAA compliant
StandardTAA compliant
Region · North America
North AmericaLatin America−$153.73EMEA
Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans
Compare all 15 configurations

Datasheets & documents

Overview

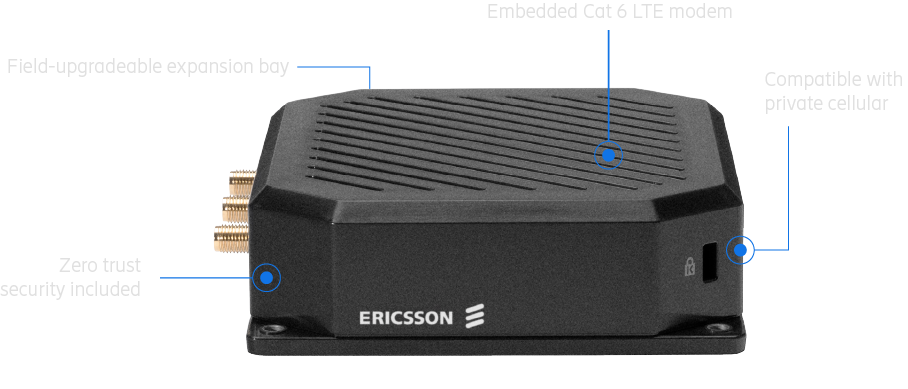

The Cradlepoint S400 is a cloud-managed, semi-ruggedized LTE router for IoT networks in light industrial, digital signage and kiosk deployments. This TAA-compliant U.S. Federal Government SKU bundles the router with a 5-year NetCloud IoT Essentials + Advanced subscription. Per the ordering guide, it also includes an AC power supply and antennas. The router has an embedded Cat 6 LTE modem with dual SIM slots, a Gigabit Ethernet port, single-radio dual-band Wi-Fi 5, GNSS and an expansion slot for serial, GPIO or dual Fast Ethernet modules.

  • Embedded Cat 6 LTE modem, 300 Mbps down / 50 Mbps up peak, dual 4FF SIM slots
  • North American LTE band set including B71 (600 MHz), B14 and CBRS Band 48; AT&T, T-Mobile and Verizon certified
  • 1x1 802.11ac Wi-Fi 5, dual-band non-concurrent (2.4 GHz or 5 GHz), WPA3 support
  • 1 x GbE RJ45 (LAN/WAN), USB 2.0 Type-A and an expansion slot for serial DB-9, GPIO or dual Fast Ethernet modules
  • GNSS with GPS, Galileo, GLONASS and BDS; NMEA 0183 and TAIP protocols
  • 9–33 VDC or 802.3af PoE power; -20 °C to 60 °C operation; Class I Div 2 and MIL-STD-810H shock/vibration
  • 5-year NetCloud IoT Essentials + Advanced Plans with NetCloud Manager and zero trust security; TAA-compliant SKU
  • Five years of NetCloud IoT Essentials and Advanced are included, so cloud management, software updates and support are covered for the full term

The Ericsson Cradlepoint S400 is a compact, semi-ruggedized router and secure appliance for IoT networks. It connects over LTE, wired Ethernet and Wi-Fi, and Cradlepoint designs it for light industrial equipment, digital signage and kiosks. This part number, TAA-TBV5-0400-C6-NA-N, is the TAA-compliant configuration for U.S. Federal Government ordering. It pairs the S400 with 5 years of NetCloud IoT Essentials plus the NetCloud IoT Advanced Plan. Per the ordering guide, the hardware ships with an AC power supply and antennas.

The embedded Cat 6 LTE modem (3GPP Rel. 11) reaches peak rates of 300 Mbps down and 50 Mbps up with 2x2 MIMO and downlink carrier aggregation. It has dual 4FF SIM slots with SIM-based auto-carrier selection. The North American modem covers LTE bands including B2, B4, B5, B12, B13, B14, B66 and B71, plus B41 and CBRS Band 48 for private cellular networks. It holds AT&T, T-Mobile and Verizon network operator certifications.

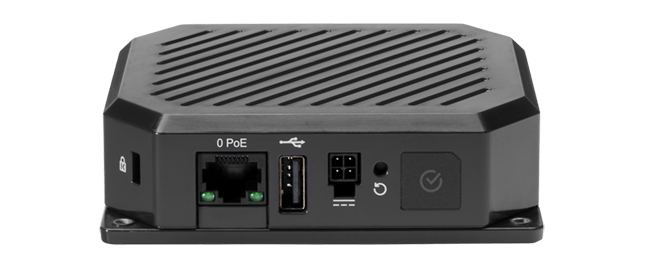

On the local side, the S400 provides: • One LAN/WAN-selectable GbE port • A USB 2.0 Type-A port • 1x1 802.11ac Wi-Fi 5 on 2.4 GHz or 5 GHz, with WPA3 • One expansion slot that accepts an RS232 serial module, a 20-pin GPIO module or a dual Fast Ethernet module

Multi-constellation GNSS supports asset tracking and portable IoT use cases. Power comes from a 9–33 VDC input or 802.3af PoE. The unit operates from -20 °C to 60 °C and is tested to MIL-STD-810H shock and vibration methods. It is also rated for Class I Div 2 hazardous locations.

The NetCloud subscription covers the full term. It provides centralized cloud management through NetCloud Manager, group policies, software updates, zero trust connect-and-go security and 24x7 support. Cradlepoint hardware carries a limited lifetime warranty while an active NetCloud Service Plan is in place.

Ideal for

  • Cellular connectivity for digital signage and interactive kiosks
  • Light industrial machine and sensor connectivity with serial or GPIO expansion
  • Federal agency IoT deployments that require TAA-compliant hardware
  • Private LTE (CBRS Band 48) IoT networks
  • Portable and mobile IoT assets that need GNSS location

Specifications

Power

Features
Reverse polarity and transient voltage protection (ISO 7637-2)
Required
One of: DC input 9–33 VDC (use 3 A fuse for 9–12 VDC, 2 A fuse for >12 VDC); PoE 802.3af PSE Type 1 (15 W)
Consumption
S400 DC — Sleep: not supported; Idle: 3.3 W; Typical: 4.1 W; Heavy: 5.8 W

General

MPN
TAA-TBV5-0400-C6-NA-N
Brand
Cradlepoint (Ericsson Cradlepoint)
Model
Cradlepoint S400
Manufacturer
Ericsson Enterprise Wireless
Product Status
Active

Package

Region
United States Federal Government (TAA-compliant)
Support
Phone: 24-hour weekdays with emergency response on weekends; Web: 24x7; Chat: 24x5
Subscription
NetCloud IoT Essentials + Advanced Plans
TAA Compliant
TAA-compliant SKU
Shipping Weight
1.23 lb
Subscription Term
5 years
Hardware Configuration
Cat 6 (150 Mbps) with Wi-Fi, with AC power supply and antennas

Cellular

SMS
Yes
MIMO
2x2 MIMO
Power
LTE 23 dBm ± 2 (typical conducted)
Antennas
SMA female connectors; 2 x external 600 MHz–6 GHz cellular paddle antennas
GNSS GPS
Active GNSS; GPS; GLONASS; BeiDou; Galileo
LTE Bands
FDD: B2 (1900), B4 (1700), B5 (850), B7 (2600), B12 (700), B13 (700), B14 (700), B25 (1900), B26 (850), B29 (700), B30 (2300), B66 (1700), B71 (600); TDD: B41 (2500), B48 (3500)
Modulation
Up to 16 QAM
Regulatory
FCC (U.S.); IC (Canada)
Technology
Cat 6 LTE (3GPP Rel. 11); dual 4FF SIM slots; SIM-based auto-carrier selection
Peak Upload
LTE upload: 50 Mbps
Peak Download
LTE download: 300 Mbps
Carrier Aggregation
Downlink: up to 2 CA; Uplink: up to 1 CA
Private Cellular Network
Yes, includes FCC Part 96 (CBRS Band 48)
Network Operator Standards
PTCRB (U.S., Canada)
Network Operator Certifications
AT&T; T-Mobile; Verizon

GNSS GPS

Power
Passive (no power provided)
Accuracy
Autonomous @ open sky 2 meter (CEP-50)
Protocols
NMEA 0183; TAIP
Frequencies
L1
Sensitivity
Acquisition: -147 dBm; Tracking: -159 dBm; Reacquisition: -159 dBm
Update Rate
1 Hz (once per second)
Constellations
GPS; Galileo; GLONASS; BDS
Time TO First Fix
30 seconds (cold start)

Physical

Size

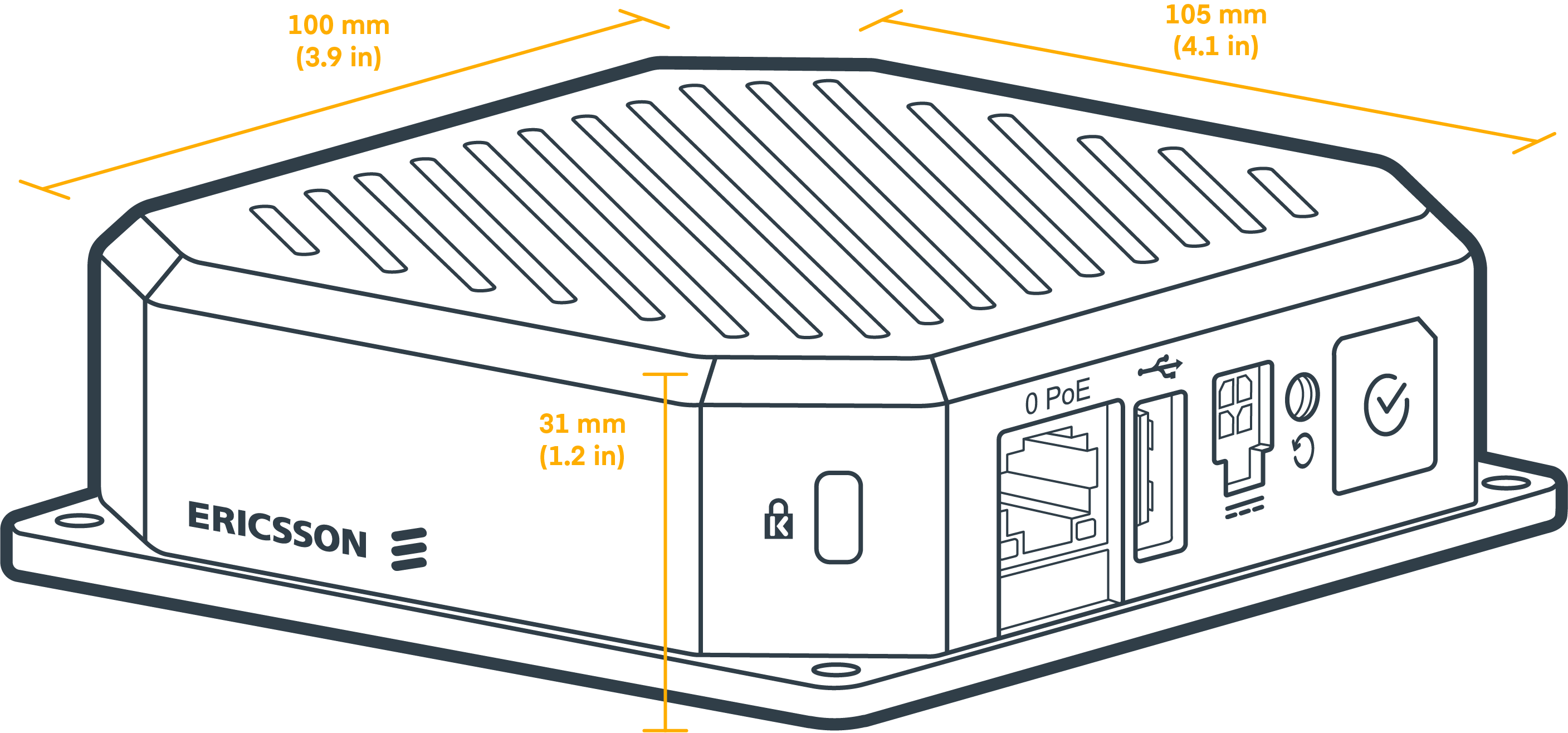

100 x 105 x 31 mm (3.9 x 4.1 x 1.2 in)
Weight
221 g (7.8 oz)
Construction
Plastic housing

Interfaces

Wi-Fi
Single-radio dual-band non-concurrent 1x1 802.11ac Wi-Fi 5; 150 Mbps (2.4 GHz) / 433 Mbps (5 GHz); 1 x RP-SMA; Global Optimized Wi-Fi & International SDR; WPA/WPA2/WPA3 Personal, WPA2/WPA3 Enterprise, Open; 802.11k/v; Wi-Fi Alliance Certified
Modem
Embedded Cat 6 LTE modem; 2 x SMA cellular antenna connectors
Ethernet
1 x GbE RJ45 (LAN/WAN selectable)
GNSS GPS
Passive GNSS (multiplex with cellular antenna)
Expansion
1 x USB 2.0 Type A (output 5 V, 500 mA, 2.5 W); 1 x expansion module slot: Serial DB-9 RS232 with hardware flow control, Dual Fast Ethernet (2 x FE RJ45, LAN/WAN selectable), or GPIO module (20-pin 2 x 10 Molex Micro-Fit 3.0)

Wi-Fi Power

CE
2400–2484.2 MHz: 17.50 dBm; 5150–5250 MHz: 16.64 dBm; 5250–5350 MHz: 16.64 dBm; 5470–5725 MHz: 17.01 dBm; 5725–5875 MHz: 11.50 dBm (conducted)
IC
2400–2484.2 MHz: 19.60 dBm; 5150–5250 MHz: 16.25 dBm; 5250–5350 MHz: 15.89 dBm; 5470–5725 MHz: 15.93 dBm; 5725–5850 MHz: 14.38 dBm (conducted)
Fcc
2400–2484.2 MHz: 19.60 dBm; 5150–5250 MHz: 16.25 dBm; 5250–5350 MHz: 15.89 dBm; 5470–5725 MHz: 15.93 dBm; 5725–5850 MHz: 14.38 dBm (conducted)
Rcm
2400–2484.2 MHz: 17.50 dBm; 5150–5250 MHz: 16.64 dBm; 5250–5350 MHz: 16.64 dBm; 5470–5725 MHz: 17.01 dBm; 5725–5850 MHz: 14.38 dBm (conducted)
Ukca
2400–2484.2 MHz: 17.50 dBm; 5150–5250 MHz: 16.64 dBm; 5250–5350 MHz: 16.64 dBm; 5470–5725 MHz: 17.01 dBm; 5725–5875 MHz: 16.12 dBm (conducted)
Global Safe Mode
2.4 GHz: 14 dBm conducted

Performance

Vlans
Up to 64 Layer 2 / Layer 3 VLANs
Stateful Firewall
95 Mbps
Concurrent Sessions
32,000
Concurrent VPN Tunnels
5
Point TO Point Ipsec VPN
20 Mbps
Typical Iot Client Count
25

Reliability

MTBF
1,828,355 hours (Telcordia SR332 at 25 °C)
MTBF Db9 Module
With DB9 module: 1,712,886 hours (Telcordia SR332 at 25 °C)
MTBF Gpio Module
With GPIO module: 1,343,279 hours (Telcordia SR332 at 25 °C)
MTBF Ethernet Module
With Ethernet module: 1,659,720 hours (Telcordia SR332 at 25 °C)

Environmental

Humidity
Operating and storage: 5% to 95% non-condensing
Ingress Protection
IP30
Storage Temperature
-20 °C to 70 °C (-4 °F to 158 °F)
Operating Temperature
-20 °C to 60 °C (-4 °F to 140 °F)

Certifications

Safety
UL/cUL; CB Scheme; EN 62368-1
Regulatory
FCC (U.S.); IC (Canada); CE (EU); RCM (AU/NZ); UKCA (UK); ANATEL (Brazil); IFT (Mexico); SUBTEL (Chile); MCMC (Malaysia); IMDA (Singapore)
Hazardous Locations
Class I Div 2 (North America); ATEX 2 (Europe)
Substance Compliance
WEEE; RoHS; REACH; California Prop 65
Shock Vibration Humidity
MIL-STD-810H Method 514.8 Annex C-1 Cat. 4; Method 516.8 Procedure I; Method 516.8 Procedure V

Cloud Services

Support
Support for the full subscription term
Warranty
Limited lifetime warranty for as long as the device has an active NetCloud Service Plan subscription
Service Plans
NetCloud Service for IoT
Service Add Ons
NetCloud Exchange, NetCloud Advanced
Software Updates
NetCloud Manager for the full subscription term
Device Management
NetCloud Manager for the full subscription term

Product Summary

PoE
Yes
Wi-Fi
802.11ac 1x1 SISO
GPS GNSS
Passive
5G Status
None
USB Ports
1
Throughput
95 Mbps (Firewall)
Form Factor
Plastic
VPN Tunnels
5
Serial Ports
1 (Expansion module)
Ethernet Ports
1 GbE (LAN/WAN switchable); 2 FE ports
Cloud Management
Yes
Special Features
Extension modules for serial port, GPIO, and 2 Ethernet ports
Dual Modem Support
No
Subscription Terms
3 or 5 years
Operating Temperature
-20 °C to 60 °C (-4 °F to 140 °F)
Wireless Connectivity
LTE
Private Cellular Network
Yes — 4G LTE (CBRS)
Network Operator Standards
PTCRB (U.S.), GCF (global)

Questions buyers ask

What subscription is included with TAA-TBV5-0400-C6-NA-N?

A 5-year NetCloud IoT Essentials package plus the NetCloud IoT Advanced Plan. It covers NetCloud Manager cloud management, software updates and support for the full term.

Is this SKU TAA compliant?

Yes. It is the TAA-compliant ordering option for the United States Federal Government market.

Which carriers is the S400 certified on?

The North American Cat 6 modem lists AT&T, T-Mobile and Verizon network operator certifications. It also supports CBRS Band 48 for private LTE networks.

How can the S400 be powered?

It accepts a 9–33 VDC input or 802.3af PoE (PSE Type 1, 15 W). Per the ordering guide, this package includes an AC power supply.

Can I add serial or GPIO connections?

Yes. The expansion slot accepts an RS232 DB-9 serial module, a 20-pin GPIO module or a dual Fast Ethernet module.
