Fortinet FortiGate Rugged 70G-5G Industrial 5G Firewall with 5-Year FortiCare Premium and Enterprise Protection

5GMPN FGR-70G-5G-BDL-809-60
  • Dual SIM
  • 5+ × 1 Gb Ethernet
  • GPS/GNSS
  • Rugged
  • 5 years included
$18,862.98$25,697.38Save $6,834.40

Backordered · ships as soon as it arrives

Included subscription · 5 years
Hardware only−$11,770.561 year−$9,001.023 years−$4,292.795 years
Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans
Compare all 7 configurations

Datasheets & documents

Overview

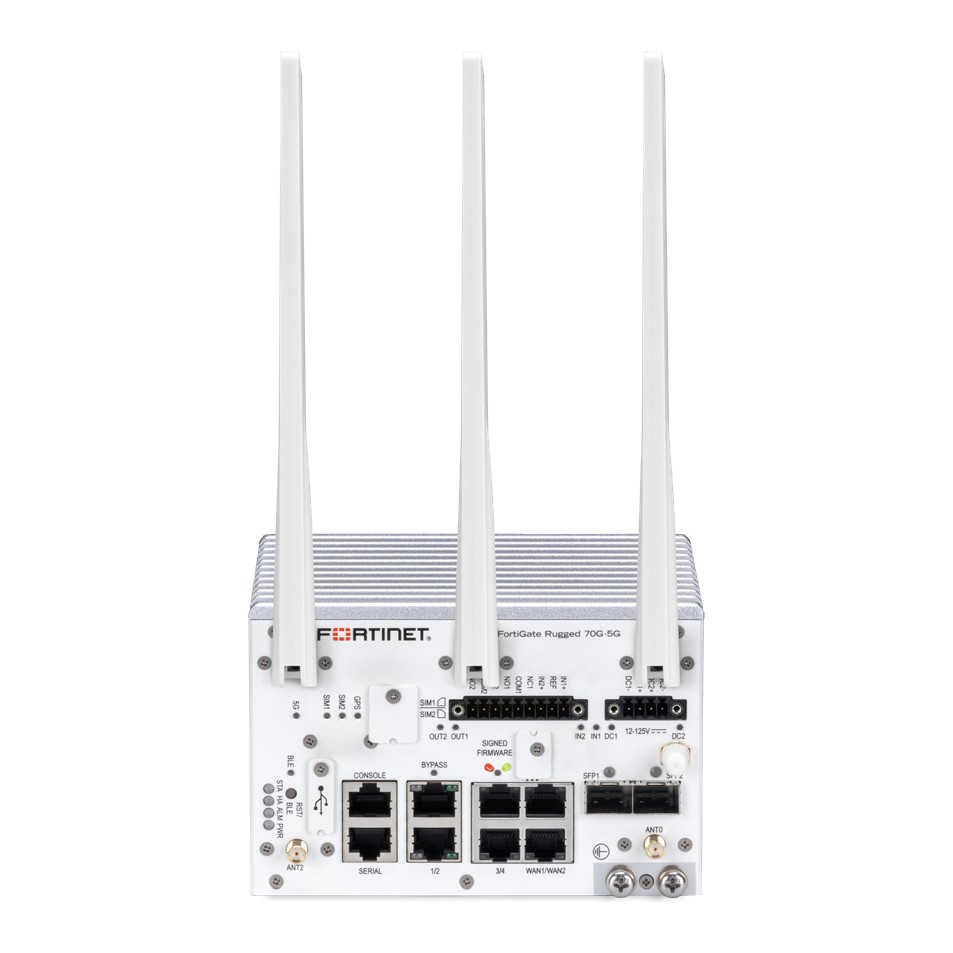

The FortiGate Rugged 70G-5G is a fanless, DIN-rail next-generation firewall for industrial and OT networks. It has an embedded 5G modem with two SIM slots, passive GPS, six GE RJ45 ports, two SFP slots and a bypass port pair. It runs from -40°C to 75°C on redundant 12V-125V DC inputs. This SKU, FGR-70G-5G-BDL-809-60, bundles the hardware with a 5-year (60-month) term of FortiCare Premium and FortiGuard Enterprise Protection for long-life infrastructure deployments.

  • Fanless, ruggedized DIN-rail NGFW rated IP40 for indoor industrial enclosures, operating from -40°C to 75°C
  • Embedded Telit Cinterion FN990A28-HP 5G modem with 2 SIM slots (active/passive), 4 external SMA WWAN antennas and passive GPS
  • 6 GE RJ45 ports (4 LAN, 2 WAN), GE bypass pair on PORT1-2, 2 SFP slots, RJ45 serial and console, USB-A 2.0 and microSD
  • FortiSP5 processor: up to 8 Gbps firewall, 7.1 Gbps IPsec VPN, 2.5 Gbps IPS and 1.5 Gbps NGFW throughput
  • Built-in Secure SD-WAN, digital I/O module, Bluetooth Low Energy and Trusted Platform Module
  • Redundant 12V-125V DC dual inputs; certified to IEC 61850-3, IEEE 1613, EN 50155 and IEC 60945 with DNV Type Approval
  • Includes 5 years of FortiCare Premium and FortiGuard Enterprise Protection (bundle code 809, 60-month term)
  • Cover five years of security services and FortiCare Premium support in a single purchase

The FortiGate Rugged 70G-5G is a next-generation firewall built for industrial networks and operational technology, where heat, cold, vibration and electrical noise rule out office-grade equipment. It is fanless, mounts on DIN rail and carries power, rail and maritime certifications. SKU FGR-70G-5G-BDL-809-60 pairs the hardware with a 5-year (60-month) FortiCare Premium and FortiGuard Enterprise Protection subscription. That term suits sites planned on long refresh cycles.

For connectivity, the unit uses an embedded Telit Cinterion FN990A28-HP 5G modem. It has two SIM slots (active/passive), four external SMA WWAN antennas and passive GPS with its own external SMA antenna. The modem covers 5G NR bands n2, n5, n41, n66, n71 and n77, among many others, with broad LTE fallback. It is PTCRB, AT&T, T-Mobile and Verizon certified and FirstNet Capable (5G). Wired interfaces are 4x GE RJ45 LAN, 2x GE RJ45 WAN, a GE bypass pair between PORT1 and PORT2, and 2x SFP slots. Management and field I/O come from RJ45 serial and console ports, USB-A 2.0, a microSD slot, a digital I/O module, Bluetooth Low Energy and a TPM.

The FortiSP5 secure processor and FortiOS deliver the following up-to figures: - 8 Gbps firewall throughput - 7.1 Gbps IPsec VPN - 2.5 Gbps IPS - 1.5 Gbps NGFW - 1.3 Gbps threat protection - 1.4 million concurrent sessions

Secure SD-WAN is built in.

The unit operates from -40°C to 75°C, at 5% to 95% non-condensing humidity and up to 3048 m. It is IP40-rated for indoor enclosures and draws 16 W on average. Certifications include IEC 61850-3, IEEE 1613, EN 50155 and IEC 60945 with DNV Type Approval. The Enterprise Protection bundle adds IPS, anti-malware with FortiGate Cloud Sandbox, URL/DNS/video filtering, DLP, application control, inline CASB, IoT device detection with virtual patching, and anti-spam.

Ideal for

  • Electric utility substations needing IEC 61850-3 / IEEE 1613 certified firewalls with 5G backhaul
  • Rail and rolling-stock networks requiring EN 50155 certified security appliances
  • Maritime and offshore OT networks covered by IEC 60945 and DNV Type Approval
  • Remote oil, gas, water and pipeline sites with 5G primary or failover WAN and GPS location
  • Long-life critical-infrastructure deployments that budget security services over a 5-year term

Specifications

General

MPN
FGR-70G-5G-BDL-809-60
UPC
195875598162
Brand
Fortinet
Model
FGR-70G-5G
Bundle
FortiCare Premium + FortiGuard Enterprise Protection
Product Name
FortiGate Rugged 70G-5G
Subscription Term
5 years (60 months)
Ordering Description
Ruggedized indoor IP40 appliance with embedded 5G module, 2 SIM slots, 4 SMA WWAN antennas, passive GPS antenna, dual power inputs

Package

DC Cables
DC power cables not included
Documents
Data sheet and QuickStart Guide
GPS Antenna
1x external SMA GPS antenna
Wwan Antennas
4x external SMA WWAN antennas
Enterprise Protection Services
FortiGuard Enterprise Protection services plus FortiCare Premium

Overview

Atp
1.3 Gbps
Ips
2.5 Gbps
Ngfw
1.5 Gbps

Cellular Wireless

MIMO
Yes
Wcdma
B1, B2, B4, B5 (B6, B19), B8 (EU and APAC regions only)
Regions
All Regions
5G Bands
n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29 (SDL), n30, n38, n40, n41, n48, n66, n71, n75 (SDL), n76 (SDL), n77, n78, n79 (PC1.5 on n41, n77, n78, n79)
Diversity
Yes
GNSS Bias
Yes
LTE Bands
B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29 (SDL), B30, B32 (SDL), B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71
Modem Model
Telit Cinterion FN990A28-HP, 2 SIM slots (active/passive)
Gsm Gprs Edge
—
Umts Hspa Plus
B1, B2, B4, B5, B6, B8, B19
Maximum TX Power
Max Tx Power: 23 dBm (PC3), 26 dBm (PC2 in B41/n41)
Cdma 1xrtt Evdo Rev A
—

Dimensions And Power

Weight
3.97 lbs (1.8 kg)
IP Rating
IP40
Form Factor
DIN-rail
Power Supply
12V-125V DC redundant dual inputs, 2-pin terminal blocks, negative or positive ground (DC cables not included)
Dimensions IN
H x W x L: 5.47 x 3.52 x 4.8 in
Dimensions MM
H x W x L: 139 x 89.5 x 122 mm
Maximum Current
12V DC / 2A
Heat Dissipation
82 BTU/h
Antenna Height X Width
Antenna (H x W): 205 mm x 25 mm
Power Consumption Average Maximum
Power Consumption (Avg/Max): 16 W / 24 W

Modem Certifications

Module Certifications
FCC, IC, RED, NCC, JATE/TELEC, KC, NCC+, RCM, GCF, PTCRB, AT&T, FirstNet, KDDI, KT, Telstra, T-Mobile US, Frontline

Operating Environment

Humidity
5% to 95% non-condensing
Operating Altitude
up to 10,000 ft (3048 m)
Storage Temperature
-40°F to 185°F (-40°C to 85°C)
Operating Temperature
-40°F to 167°F (-40°C to 75°C)

Carrier Certifications

Att
Yes
Ptcrb
Yes
Verizon
Yes
T Mobile
Yes

Interfaces And Modules

Processor
FortiSP5
Console Port
1 RJ45
Cellular Modem
5G, GPS
Serial Interface
1 RJ45
Digital I/O Module
Yes
Microsd Card Slot
Yes
USB Client Server
1 USB-A 2.0
Bypass GE Port Pair
PORT1-2 RJ45
Bluetooth Low Energy
Yes
GE LAN WAN Interfaces
6 RJ45
Transceivers Included
—
Dedicated GE SFP Slots
2
Trusted Platform Module
Yes

Public Safety Networks

Att Firstnet
FirstNet Capable (5G)
Verizon Frontline
In Progress
T Mobile T Priority
In Progress

System Performance And Capacity

Max Fortitokens
Maximum Number of FortiTokens: 500
Performance Note
All values are up to; IPsec tested with AES256-SHA256; provisional metrics
Firewall Policies
5,000
Max Fortiswitches
Maximum Number of FortiSwitches: 24
Ssl Inspection Cps
715
Ssl VPN Throughput
—
Concurrent Sessions Tcp
1.4 M
Firewall Throughput Pps
Firewall Throughput (Packets Per Second): 12 Mpps
Concurrent Ssl VPN Users
Concurrent SSL-VPN Users (Recommended Maximum): —
Max Fortiaps Total Tunnel
Maximum Number of FortiAPs (Total/Tunnel): 96 / 48
Ssl Inspection Throughput
SSL Inspection Throughput (IPS, avg. HTTPS): 1.4 Gbps
New Sessions Per Second Tcp
New Sessions/Second (TCP): 85,000
Firewall Latency 64 Byte Udp
5.82 μs
Ipsec VPN Throughput 512 Byte
7.1 Gbps
Virtual Domains Default Maximum
10 / 10
High Availability Configurations
Active-Active, Active-Active, Clustering
Ssl Inspection Concurrent Sessions
SSL Inspection Concurrent Session (IPS, avg. HTTPS): 1.4 M
Client TO Gateway Ipsec VPN Tunnels
500
Gateway TO Gateway Ipsec VPN Tunnels
200
Application Control Throughput Http 64k
Application Control Throughput (HTTP 64K): 3.6 Gbps
Ipv4 Firewall Throughput 1518 512 64 Byte Udp
IPv4 Firewall Throughput (1518/512/64 byte UDP): 8/8/8 Gbps

Industry Compliance And Certifications

RF
EN 301 908 series, EN 300 328, EN 303 413, EN 18031-1, EN IEC 62311, EN 50665, FCC 15.247, FCC 2.1091, ISED RSS-247, RSS-102
Emc
EN 55032 Class A, EN 55035, ETSI EN 301 489-1/-17/-19/-52
Rohs
EN IEC 63000:2018, EN 50581:2012
Health And Safety
IEC/EN 62368-1 (2nd and 3rd Ed.)
Maritime Industry
IEC 60945 4th Ed., IACS UR E10 Ed. 10, DNV Type Approval
Regulatory Compliance
FCC Part 15 Class A, RCM, VCCI Class A, CE, UL/cUL, CB, USGv6/IPv6
Rolling Stock Industry
EN 50155:2021, EN 50121-1/-3-2/-4; EMC, environmental, shock and vibration certified
Electric Power Industry
IEC 61850-3 and IEEE 1613 Certified

System Performance Enterprise Traffic Mix

Ips Throughput
2.5 Gbps
Ngfw Throughput
1.5 Gbps
Threat Protection Throughput
1.3 Gbps

Questions buyers ask

What does the -BDL-809-60 suffix mean?

It identifies the FortiGate Rugged 70G-5G hardware bundled with FortiCare Premium and FortiGuard Enterprise Protection (bundle code 809) for a 60-month, or 5-year, term.

How does the 5G connection work?

An embedded Telit Cinterion FN990A28-HP 5G modem provides the cellular WAN. It has two SIM slots in active/passive mode and four external SMA WWAN antennas. Passive GPS with a separate SMA antenna is included. The modem is PTCRB, AT&T, T-Mobile and Verizon certified and FirstNet Capable (5G).

What power does it need?

It accepts 12V to 125V DC on redundant dual inputs, using 2-pin terminal blocks with negative or positive ground. DC cables are not included. Average consumption is 16 W, with a 24 W maximum.

Does it support SSL VPN?

No. Fortinet does not list SSL-VPN throughput for this model, and SSL VPN is not supported starting with FortiOS 7.6.0. For remote access, use IPsec, which supports up to 500 client-to-gateway and 200 gateway-to-gateway tunnels at up to 7.1 Gbps.

What environments is it rated for?

It operates from -40°C to 75°C, at 5% to 95% non-condensing humidity and up to 3048 m (10,000 ft). It has an IP40 indoor rating. It is certified to IEC 61850-3, IEEE 1613, EN 50155 and IEC 60945, with DNV Type Approval.
