Fortinet FortiGate 50G-5G Firewall with Embedded 5G Modem and 1-Year Enterprise Protection Bundle

5GMPN FG-50G-5G-BDL-809-12
  • 5+ × 1 Gb Ethernet
  • 1 year included
$2,725.35$3,712.80Save $987.45

In stock · only 2 leftFree 2-day shipping

Included subscription · 1 year
1 year3 years+$1,369.675 years+$2,618.48
Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans
Compare all 7 configurations

Datasheets & documents

Overview

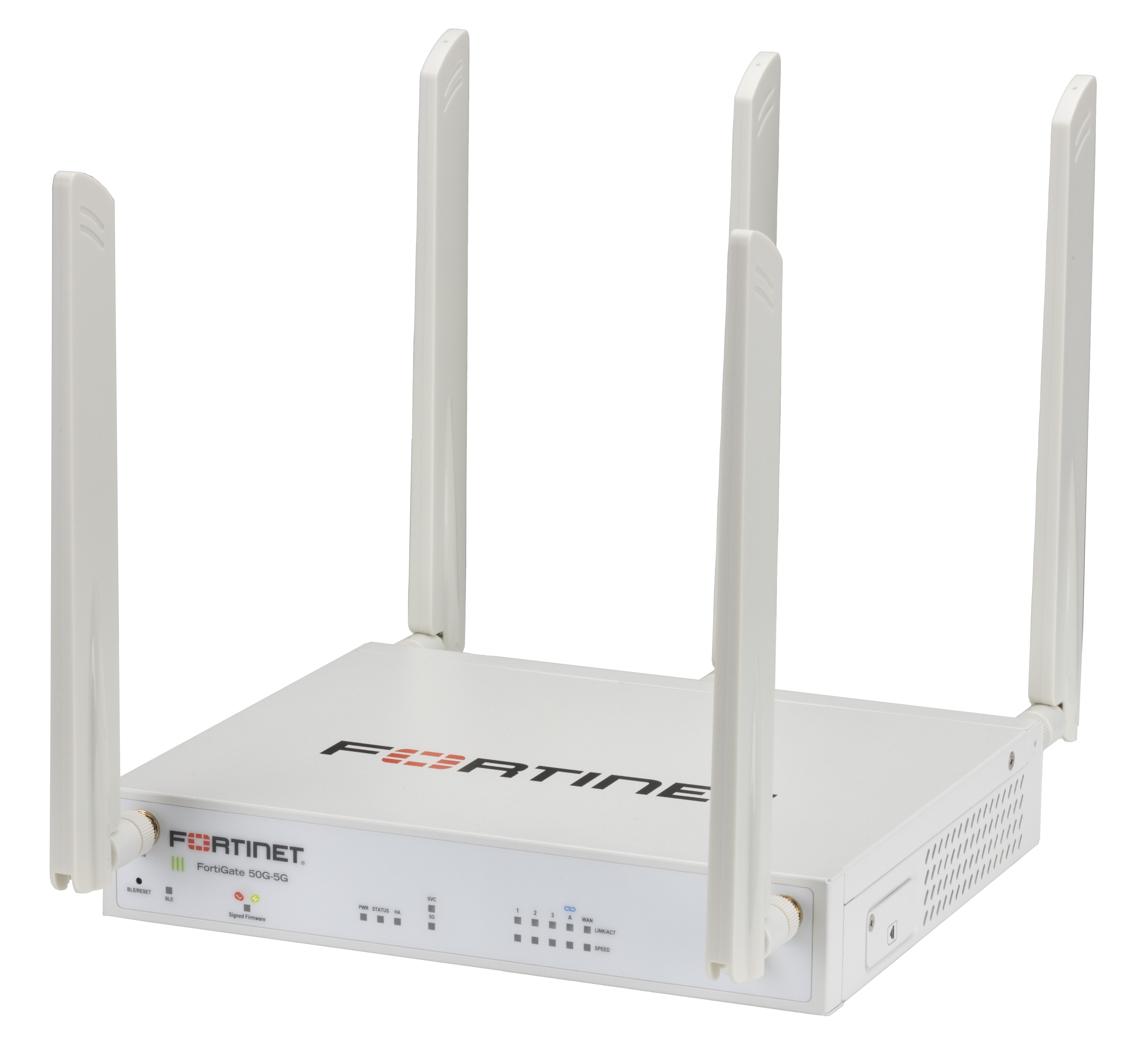

The Fortinet FortiGate 50G-5G (FG-50G-5G-BDL-809-12) is a fanless desktop next-generation firewall with an embedded Telit Cinterion FN990A28-HP 5G modem and two nano SIM slots. It combines firewalling, SD-WAN, network controller and security in one appliance. This bundle pairs the hardware with a 12-month FortiCare Premium and FortiGuard Enterprise Protection term. It is built for branch offices, retail sites and distributed locations that need 5G or LTE WAN connectivity with enterprise-grade threat protection.

  • Embedded Telit Cinterion FN990A28-HP 5G modem with two nano SIM slots (active/passive) and five SMA antenna ports
  • Integrated firewall, SD-WAN and network controller running FortiOS on Fortinet's SD-WAN ASIC
  • Up to 5 Gbps firewall, 4.5 Gbps IPsec VPN, 2.25 Gbps IPS and 1.25 Gbps NGFW throughput
  • 1x GE WAN, 3x GE RJ45 and 1x GE FortiLink port, plus USB and RJ45 console
  • Carrier certifications listed for PTCRB, AT&T and Verizon; FirstNet capable
  • 12-month FortiCare Premium and FortiGuard Enterprise Protection term included
  • Fanless desktop design with TPM and signed-firmware hardware switch
  • Bring a branch online over 5G or LTE with no separate cellular gateway to install

The FortiGate 50G-5G is a compact branch firewall for distributed enterprise sites that need cellular WAN built in. It runs FortiOS, Fortinet's converged networking and security operating system. Firewalling, SD-WAN and a network controller come in every unit, and Fortinet's SD-WAN ASIC accelerates traffic. Rated performance reaches 5 Gbps firewall throughput, 4.5 Gbps IPsec VPN, 2.25 Gbps IPS, 1.25 Gbps NGFW and 1.1 Gbps threat protection. The appliance supports 720,000 concurrent sessions and 85,000 new sessions per second.

The embedded Telit Cinterion FN990A28-HP modem covers 5G NR bands n1 through n79, including n41, n71 and n77, plus a broad LTE band set. It has two nano SIM slots (active/passive) and five SMA antenna ports. Fortinet lists PTCRB, AT&T and Verizon certification, FirstNet capability and T-Mobile certification targeted for Q4 2026. The modem can serve as a primary 5G WAN or as a failover link alongside the Gigabit Ethernet WAN port.

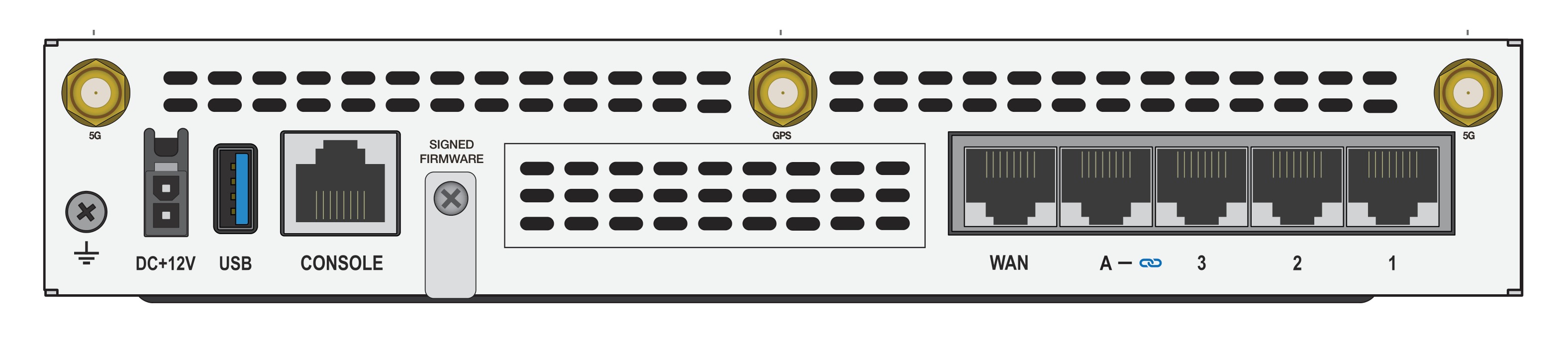

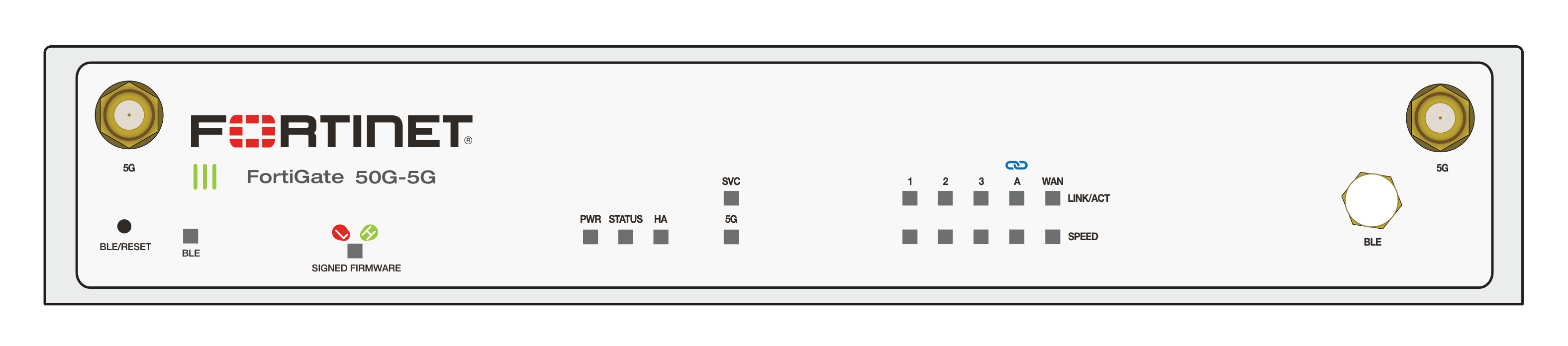

On the LAN side, the 50G-5G has three hardware-accelerated GE RJ45 ports, one GE FortiLink port, USB, and an RJ45 console port. It manages up to 8 FortiSwitches and 16 FortiAPs (8 in tunnel mode). A TPM, a signed-firmware hardware switch and Bluetooth Low Energy are built in. The fanless 0 dBA chassis draws 8.3 W on average and measures 1.6 x 8.5 x 6.3 inches.

This SKU includes 12 months of FortiCare Premium and FortiGuard Enterprise Protection. The term covers IPS, anti-malware with FortiGate Cloud Sandbox, URL, DNS and video filtering, anti-spam, AI-based inline malware prevention, data loss prevention, attack surface security and one-time FortiConverter configuration conversion. The FortiGate/FortiWiFi 50G Series Data Sheet and the 50G-5G QuickStart Guide are available as documentation.

Ideal for

  • Branch offices needing 5G primary or failover WAN with next-generation firewall protection
  • Retail stores and pop-up sites where wired broadband is slow to provision
  • Distributed enterprise networks standardizing on FortiGate SD-WAN
  • Public safety and field sites that need FirstNet-capable cellular connectivity
  • Small offices consolidating firewall, switch and access point management

Specifications

General

MPN
FG-50G-5G-BDL-809-12
Brand
Fortinet
Model
FG-50G-5G
Product Name
FortiGate 50G-5G
Ordering Description
5x GE RJ45 (4 internal, 1 WAN), embedded 3G/4G/LTE/5G WWAN module, 5 external SMA WWAN antenna connectors

Package

Documentation
Data Sheet, QuickStart Guide
Shipping Weight
5.70 lbs

Dimensions

Weight
2.2 lbs (1.0 kg)
Form Factor
Desktop
Height Width Length IN
1.6 x 8.5 x 6.3 in
Height Width Length MM
40.5 x 216 x 160 mm

Subscription

Term
12 months (1 year)
Bundle Code
809
Bundle Name
FortiCare Premium + FortiGuard Enterprise Protection (EP)
Included Services
IPS, Anti-Malware Protection with FortiGate Cloud Sandbox, URL/DNS/Video Filtering, Anti-Spam, AI-based Inline Malware Prevention, DLP, Attack Surface Security, FortiConverter, FortiCare Premium

Cellular 5G Modem

MIMO
Yes
Wcdma
B1, B2, B4, B5 (B6, B19), B8 (for EU and APAC regions only)
Regions
All Regions
5G Bands
n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29 (SDL), n30, n38, n40, n41, n48, n66, n71, n75 (SDL), n76 (SDL), n77, n78, n79 (PC1.5 support on n41, n77, n78, n79)
Diversity
Yes
GNSS Bias
Yes
LTE Bands
B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29 (SDL), B30, B32 (SDL), B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71
Modem Model
Telit Cinterion FN990A28-HP (2 SIM Slots, Active/Passive)
Gsm Gprs Edge
—
Umts Hspa Plus
B1, B2, B4, B5, B6, B8, B19
Maximum TX Power
23 dBm (Power Class 3), 26 dBm (Power Class 2 in B41/n41)
Cdma 1xrtt Evdo Rev A
—
Carrier Certifications
PTCRB: Yes; AT&T: Yes; T-Mobile: Target Q4 26; Verizon: Yes; Public Safety Network: Yes (FirstNet Capable)

System Performance

Max Fortiaps
16 / 8 (Total/Tunnel Mode)
Max Fortitokens
500
Virtual Domains
5 / 5 (Default/Maximum)
Capwap Throughput
3.8 Gbps (HTTP 64K)
Firewall Policies
2,000
High Availability
Active-Active, Active-Passive, Clustering
Max Fortiswitches
8
Ssl Inspection Cps
699 (IPS, avg. HTTPS)
Ssl VPN Throughput
—
Concurrent Sessions Tcp
720,000
Firewall Throughput Pps
6 Mpps
Concurrent Ssl VPN Users
—
Ssl Inspection Throughput
1.3 Gbps (IPS, avg. HTTPS)
New Sessions Per Second Tcp
85,000
Firewall Latency 64 Byte Udp
2.42 μs
Ipsec VPN Throughput 512 Byte
4.5 Gbps
Application Control Throughput
2.8 Gbps (HTTP 64K)
Ssl Inspection Concurrent Sessions
74,000 (IPS, avg. HTTPS)
Client TO Gateway Ipsec VPN Tunnels
250
Firewall Throughput 1518 512 64 Udp
5 / 5 / 4 Gbps (1518/512/64 byte UDP)
Gateway TO Gateway Ipsec VPN Tunnels
200

Radio Specifications

MU MIMO
—
Maximum TX Power
—
Maximum Wi-Fi Speeds
—

Operating Environment

Humidity
10% to 90% non-condensing
Compliance
FCC, ISED, CE, UL/cUL, CB
Noise Level
Fanless 0 dBA
Power Rating
12VDC, 3A
Certifications
USGv6/IPv6
Power Required
Powered by External DC Power Adapter, 100–240V AC, 50/60 Hz
Maximum Current
100V/0.4A, 240V/0.2A
Heat Dissipation
30.35 BTU/h
Power Consumption
8.3 W / 8.9 W (Avg./Maximum)
Operating Altitude
Up to 10,000 ft (3048 m)
Storage Temperature
-31°F to 158°F (-35°C to 70°C)
Operating Temperature
32°F to 104°F (0°C to 40°C)

Hardware Specifications

USB Port
1x USB Port
GE WAN Ports
1x Hardware Accelerated GE WAN Port
GE Rj45 Ports
3x Hardware Accelerated GE RJ45 Ports
SIM Slots Nano
2x Nano SIM Slots
Internal Storage
—
Antenna Ports Sma
5x SMA Antenna Ports
Console Port Rj45
1x Console Port (RJ45)
Wireless Interface
—
Bluetooth Low Energy
Yes
GE Rj45 Fortilink Ports
1x Hardware Accelerated GE RJ45 FortiLink Port (Default)
Trusted Platform Module
Yes
Signed Firmware Hardware Switch
Yes

System Performance Enterprise Traffic Mix

Ips Throughput
2.25 Gbps
Ngfw Throughput
1.25 Gbps
Threat Protection Throughput
1.1 Gbps

Questions buyers ask

What does the FG-50G-5G-BDL-809-12 SKU include?

It includes the FortiGate 50G-5G hardware plus a 12-month FortiCare Premium and FortiGuard Enterprise Protection term. That term covers IPS, anti-malware with FortiGate Cloud Sandbox, URL, DNS and video filtering, anti-spam, AI-based inline malware prevention, DLP, attack surface security and one-time FortiConverter configuration conversion.

Which cellular carriers is the 5G modem certified for?

Fortinet lists the Telit Cinterion FN990A28-HP modem as PTCRB, AT&T and Verizon certified and FirstNet capable. T-Mobile certification is targeted for Q4 2026.

Can I use two SIM cards?

Yes. The unit has two nano SIM slots that operate in active/passive mode, so a second carrier can serve as a backup.

Does the FortiGate 50G-5G have built-in Wi-Fi?

No. The 50G-5G has no Wi-Fi radio. It can manage up to 16 FortiAP access points (8 in tunnel mode) and up to 8 FortiSwitches from the firewall.

How is the appliance powered and cooled?

It runs from an external DC power adapter (12VDC, 3A; 100–240V AC input). It draws 8.3 W on average and 8.9 W maximum, and its fanless design runs at 0 dBA.
