Fortinet FortiGate 50G-5G Next-Generation Firewall with Embedded 5G Modem

5GMPN FG-50G-5G
  • 5+ × 1 Gb Ethernet
$1,747.02$2,380.00Save $632.98

Backordered · ships as soon as it arrives

Included subscription
1 year3 years5 years
Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans
Compare all 7 configurations

Datasheets & documents

Overview

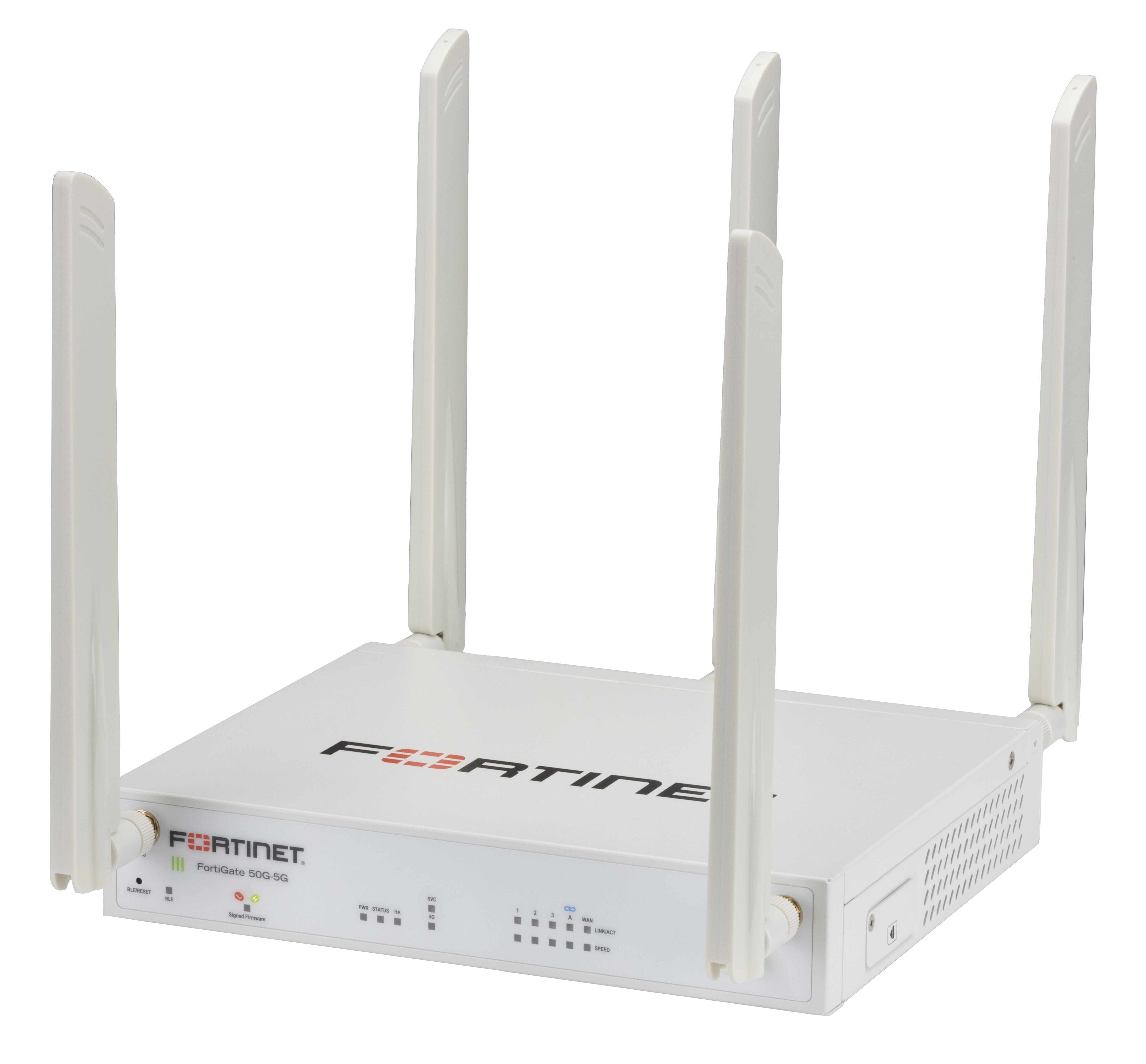

The Fortinet FortiGate 50G-5G (FG-50G-5G) is a fanless next-generation firewall with an embedded Telit Cinterion FN990A28-HP 5G modem, two nano SIM slots and five SMA antenna ports. It combines firewalling, SD-WAN, network controller and FortiGuard security services in a compact desktop appliance, delivering up to 1.25 Gbps NGFW and 1.1 Gbps threat protection throughput. Carrier certified for AT&T and Verizon and FirstNet capable, it is built for branch sites that need secure 5G WAN.

  • Embedded Telit Cinterion FN990A28-HP 5G modem with LTE and UMTS/HSPA+ fallback
  • PTCRB, AT&T and Verizon certified; FirstNet capable
  • Dual nano SIM slots (active/passive) and 5 SMA antenna ports
  • 5 hardware-accelerated GE RJ45 ports: 1 WAN, 3 internal, 1 FortiLink (default)
  • Up to 5 Gbps firewall, 2.25 Gbps IPS, 1.25 Gbps NGFW and 1.1 Gbps threat protection throughput
  • TPM, Bluetooth Low Energy and signed firmware hardware switch
  • Fanless 0 dBA desktop design drawing 8.3 W average
  • Run branch sites on 5G as primary WAN or as failover for wired broadband

The FortiGate 50G-5G brings 5G WAN to Fortinet's 50G branch firewall. It runs FortiOS, Fortinet's converged networking and security platform, with SD-WAN and network controller included at no extra cost. Fortinet's SD-WAN-based ASIC and embedded multi-core processor deliver up to 5 Gbps firewall throughput, 2.25 Gbps IPS, 1.25 Gbps NGFW, 1.1 Gbps threat protection and 1.3 Gbps SSL inspection throughput.

The embedded Telit Cinterion FN990A28-HP modem covers a wide range of 5G bands, including n2, n5, n12, n14, n25, n41, n66, n71, n77 and n78, with Power Class 1.5 support on n41, n77, n78 and n79, plus extensive LTE and UMTS/HSPA+ coverage. It is PTCRB, AT&T and Verizon certified and FirstNet capable, with T-Mobile certification targeted for Q4 2026. Two nano SIM slots run in active/passive mode, and five SMA ports connect external WWAN antennas for strong reception.

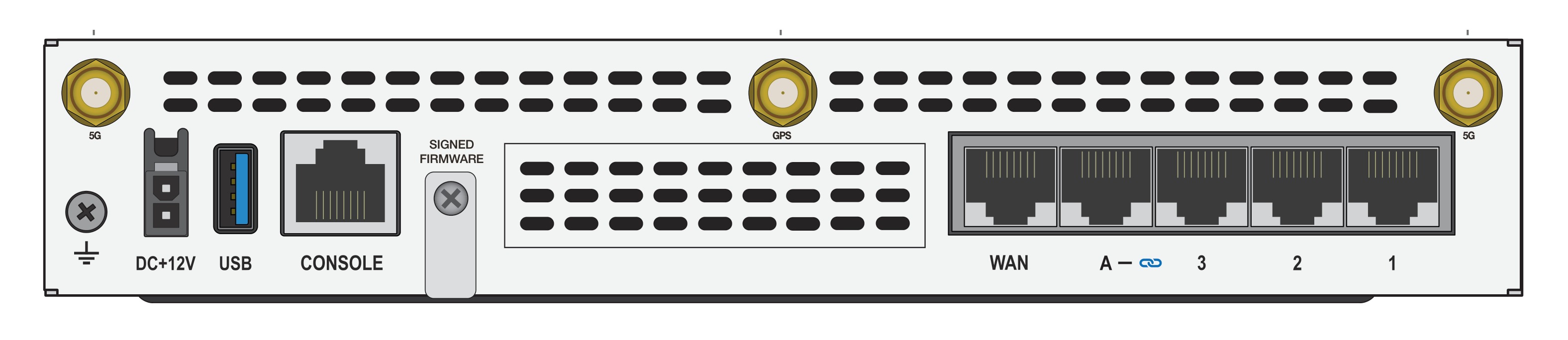

Wired connectivity includes five hardware-accelerated GE RJ45 ports: one WAN, three internal and one FortiLink port by default, plus USB and RJ45 console ports. Hardware security features include a Trusted Platform Module, Bluetooth Low Energy and a signed firmware hardware switch. The unit supports up to 720,000 concurrent TCP sessions, 85,000 new sessions per second, 200 gateway-to-gateway and 250 client-to-gateway IPsec VPN tunnels at up to 4.5 Gbps, and control of up to 8 FortiSwitches and 16 FortiAPs.

The fanless 0 dBA chassis measures 1.6 x 8.5 x 6.3 inches, weighs 2.2 lbs, draws just 8.3 W on average and operates at altitudes up to 10,000 ft. Fortinet's datasheet and QuickStart Guide cover setup and deployment.

Ideal for

  • Branch offices using 5G as primary or failover WAN
  • Public safety and government sites on FirstNet
  • Retail, restaurant and kiosk locations without reliable wired internet
  • Pop-up, temporary and construction sites needing secure connectivity fast
  • Distributed enterprises standardizing on FortiOS SD-WAN with cellular diversity

Specifications

General

MPN
FG-50G-5G
UPC
195875316063
Brand
Fortinet
Product Name
FortiGate 50G-5G
Product Type
Next-Generation Firewall with Embedded 5G
Operating System
FortiOS

Package

Wwan Antennas
5 external SMA WWAN antennas
Shipping Weight
5.60 lbs

Modem 5G

MIMO
Yes
Wcdma
B1, B2, B4, B5 (B6, B19), B8 (for EU and APAC regions only)
Regions
All Regions
5G Bands
n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29 (SDL), n30, n38, n40, n41, n48, n66, n71, n75 (SDL), n76 (SDL), n77, n78, n79 (PC1.5 support on n41, n77, n78, n79)
Diversity
Yes
GNSS Bias
Yes
LTE Bands
B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29 (SDL), B30, B32 (SDL), B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71
Modem Model
Telit Cinterion FN990A28-HP (2 SIM Slots, Active/Passive)
Gsm Gprs Edge
—
Umts Hspa Plus
B1, B2, B4, B5, B6, B8, B19
Maximum TX Power
23 dBm (Power Class 3), 26 dBm (Power Class 2 in B41/n41)
Cdma 1xrtt Evdo Rev A
—
Carrier Certifications
PTCRB: Yes; AT&T: Yes; T-Mobile: Target Q4 2026; Verizon: Yes; Public Safety Network: Yes (FirstNet Capable)

Dimensions

Weight
2.2 lbs (1.0 kg)
Form Factor
Desktop
Dimensions H W L IN
1.6 x 8.5 x 6.3 in
Dimensions H W L MM
40.5 x 216 x 160 mm

System Performance

Max Fortitokens
500
Firewall Policies
2,000
Ssl VPN Throughput
—
Concurrent Sessions Tcp
720,000
Firewall Throughput Pps
6 Mpps
Max Fortiaps Total Tunnel
16 / 8
Capwap Throughput Http 64k
3.8 Gbps
Max Fortiswitches Supported
8
New Sessions Per Second Tcp
85,000
Firewall Latency 64 Byte Udp
2.42 μs
Ipsec VPN Throughput 512 Byte
4.5 Gbps
Virtual Domains Default Maximum
5 / 5
High Availability Configurations
Active-Active, Active-Passive, Clustering
Ssl Inspection Cps Ips Avg Https
699
Client TO Gateway Ipsec VPN Tunnels
250
Concurrent Ssl VPN Users Tunnel Mode
—
Gateway TO Gateway Ipsec VPN Tunnels
200
Application Control Throughput Http 64k
2.8 Gbps
Ssl Inspection Throughput Ips Avg Https
1.3 Gbps
Firewall Throughput 1518 512 64 Byte Udp
5 / 5 / 4 Gbps
Ssl Inspection Concurrent Sessions Ips Avg Https
74,000

Radio Specifications

MU MIMO
—
Maximum TX Power
—
Maximum Wi-Fi Speeds
—

Hardware Specifications

USB Port
1 x USB Port
GE WAN Ports
1 x Hardware Accelerated GE WAN Port
GE Rj45 Ports
3 x Hardware Accelerated GE RJ45 Ports
SIM Slots Nano
2 x Nano SIM Slots
Internal Storage
—
Antenna Ports Sma
5 x SMA Antenna Ports
Console Port Rj45
1 x RJ45 Console Port
Wireless Interface
—
Bluetooth Low Energy
Yes
Trusted Platform Module
Yes
GE Rj45 Fortilink Ports Default
1 x Hardware Accelerated GE RJ45 FortiLink Port (Default)
Signed Firmware Hardware Switch
Yes

Operating Environment And Certifications

Humidity
10% to 90% non-condensing
Compliance
FCC, ISED, CE, UL/cUL, CB
Noise Level
Fanless 0 dBA
Power Rating
12 V DC, 3 A
Certifications
USGv6/IPv6
Power Required
Powered by external DC power adapter, 100–240V AC, 50/60 Hz
Maximum Current
100V/0.4A, 240V/0.2A
Heat Dissipation
30.35 BTU/h
Operating Altitude
Up to 10,000 ft (3,048 m)
Storage Temperature
-31°F to 158°F (-35°C to 70°C)
Operating Temperature
32°F to 104°F (0°C to 40°C)
Power Consumption Avg Max
8.3 W / 8.9 W

System Performance Enterprise Traffic Mix

Ips Throughput
2.25 Gbps
Ngfw Throughput
1.25 Gbps
Threat Protection Throughput
1.1 Gbps

Questions buyers ask

Which carriers is the FortiGate 50G-5G certified on?

Its Telit Cinterion FN990A28-HP modem is PTCRB, AT&T and Verizon certified and FirstNet capable for public safety. T-Mobile certification is targeted for Q4 2026.

Can I use two carriers for redundancy?

Yes. The unit has two nano SIM slots that operate in active/passive mode, so a second SIM can take over if the primary cellular connection drops.

How many Ethernet ports does it have?

Five hardware-accelerated GE RJ45 ports: one WAN, three internal and one FortiLink port by default, plus a USB port and an RJ45 console port.

Does it support SSL VPN?

Fortinet does not list SSL VPN throughput or user capacity for this model. It supports IPsec VPN with up to 200 gateway-to-gateway and 250 client-to-gateway tunnels at up to 4.5 Gbps.

Does it have a fan?

No. The FortiGate 50G-5G is fanless and silent at 0 dBA, drawing 8.3 W on average from an external 12 V DC adapter.
