Fortinet FortiGate 50G-5G Firewall with Embedded 5G Modem and 3-Year FortiCare Premium + FortiGuard UTP

5GMPN FG-50G-5G-BDL-950-36
  • 5+ × 1 Gb Ethernet
  • 3 years included
$3,922.37$5,343.52Save $1,421.15

In stock · only 2 leftFree 2-day shipping

Included subscription · 3 years
1 year−$1,369.673 years5 years+$1,248.81
Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans
Compare all 7 configurations

Datasheets & documents

Overview

The Fortinet FortiGate 50G-5G (FG-50G-5G-BDL-950-36) is a fanless desktop next-generation firewall with an embedded dual-SIM 5G modem, SD-WAN and a network controller. It is built for branch and distributed sites that need a secure cellular WAN link. This bundle pairs the hardware with a 3-year FortiCare Premium and FortiGuard Unified Threat Protection (UTP) term, covering IPS, anti-malware, URL/DNS/video filtering and anti-spam for 36 months.

  • Embedded Telit Cinterion FN990A28-HP 5G modem with 2 nano-SIM slots (active/passive) and 5 SMA antenna ports

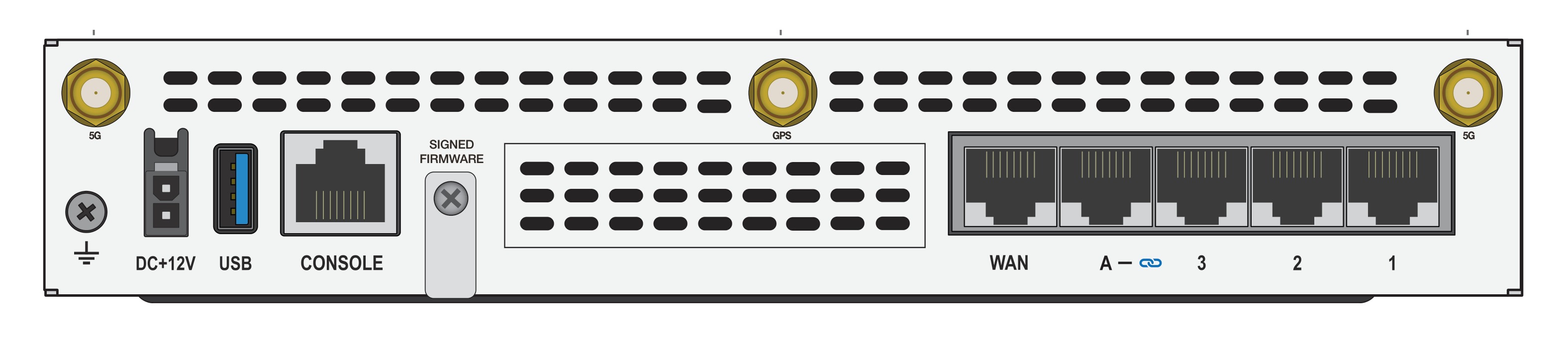

  • 5x GE RJ45 ports: 1 WAN, 3 internal and 1 FortiLink (default), plus USB and RJ45 console
  • Up to 1.1 Gbps threat protection, 1.25 Gbps NGFW and 2.25 Gbps IPS throughput (enterprise traffic mix)
  • Up to 4.5 Gbps IPsec VPN and 1.3 Gbps SSL inspection throughput
  • SD-WAN and network controller included, running FortiOS on Fortinet's patented SD-WAN ASIC
  • 3-year FortiCare Premium and FortiGuard UTP: IPS, anti-malware, URL/DNS/video filtering and anti-spam
  • Fanless 0 dBA desktop design drawing 8.3 W on average
  • Lock in three years of security services and support with a single SKU

The FortiGate 50G-5G brings firewalling, SD-WAN, network control and 5G connectivity together in one desktop appliance for branch offices, retail locations and other distributed sites. It runs FortiOS on Fortinet's patented SD-WAN ASIC, and SD-WAN and network controller functions are included at no extra cost. This SKU, FG-50G-5G-BDL-950-36, includes 36 months of FortiCare Premium and FortiGuard Unified Threat Protection, which puts security services and support on a single multi-year term.

Cellular connectivity comes from an embedded Telit Cinterion FN990A28-HP modem. It covers 5G NR bands including n41, n71, n77 and n78, and LTE bands including B2, B4, B12, B13, B14, B66 and B71. Two nano-SIM slots work in active/passive mode, and five SMA ports connect external WWAN antennas. The modem is PTCRB, AT&T and Verizon certified and FirstNet capable, with T-Mobile certification targeted for Q4 2026. For wired connections there are five GE RJ45 ports (one WAN, three internal and one default FortiLink), along with USB and RJ45 console ports. The unit also includes a TPM, Bluetooth Low Energy and a signed firmware hardware switch.

Fortinet rates the appliance at up to 1.1 Gbps threat protection, 1.25 Gbps NGFW and 2.25 Gbps IPS on an enterprise traffic mix. It also delivers 4.5 Gbps IPsec VPN and 1.3 Gbps SSL inspection, and supports 720,000 concurrent TCP sessions. It can manage up to 8 FortiSwitches and 16 FortiAPs, and it supports active-active, active-passive and clustering high availability.

The chassis is fanless and silent, weighs 2.2 lbs and measures 1.6 x 8.5 x 6.3 inches. It draws 8.3 W on average from an external 12 VDC adapter. Fortinet's data sheet and QuickStart Guide cover the 50G-5G.

Ideal for

  • Multi-year secured 5G WAN for branch offices and retail chains
  • Cellular-first or failover connectivity at sites without reliable wired broadband
  • Dual-carrier resilience using both nano-SIM slots
  • Compact SD-WAN edge that also manages FortiSwitches and FortiAPs
  • Government and public safety locations that require FirstNet-capable connectivity

Specifications

Radio

Multi User MIMO
—
Maximum TX Power
—
Maximum Wi-Fi Speeds
—

General

MPN
FG-50G-5G-BDL-950-36
UPC
195875405811
Brand
Fortinet
Model
FortiGate 50G-5G (FG-50G-5G)
Product Type
Next-Generation Firewall with Embedded 5G Modem
Ordering Description
5x GE RJ45 ports (4x internal, 1x WAN), embedded 3G/4G/LTE/5G WWAN module, 5 external SMA WWAN antennas

Package

Shipping Weight
5.70 lbs

Hardware

USB Port
1
Internal Storage
—
Antenna Ports Sma
5
Console Port Rj45
1
SIM Slots Nano SIM
2
Wireless Interface
—
Bluetooth Low Energy
Yes
Trusted Platform Module
Yes
Signed Firmware Hardware Switch
Yes
Hardware Accelerated GE WAN Ports
1
Hardware Accelerated GE Rj45 Ports
3
Hardware Accelerated GE Rj45 Fortilink Ports Default
1

Modem 5G

MIMO
Yes
Wcdma
B1, B2, B4, B5 (B6, B19), B8 (EU and APAC regions only)
Regions
All Regions
Diversity
Yes
GNSS Bias
Yes
LTE Bands
B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29 (SDL), B30, B32 (SDL), B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71
Modem Model
Telit Cinterion FN990A28-HP (2 SIM slots, active/passive)
NR 5G Bands
n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29 (SDL), n30, n38, n40, n41, n48, n66, n71, n75 (SDL), n76 (SDL), n77, n78, n79 (PC1.5 on n41, n77, n78, n79)
Gsm Gprs Edge
—
Umts Hspa Plus
B1, B2, B4, B5, B6, B8, B19
Maximum TX Power
23 dBm (Power Class 3), 26 dBm (Power Class 2 in B41/n41)
Carrier Certifications
PTCRB: Yes; AT&T: Yes; T-Mobile: Target Q4 2026; Verizon: Yes; Public Safety Network: Yes (FirstNet Capable)
Cdma 1xrtt EV DO Rev A
—

Dimensions

Weight
2.2 lbs (1.0 kg)
Form Factor
Desktop (supports EIA/non-EIA standards)
Height Width Length IN
1.6 x 8.5 x 6.3 in
Height Width Length MM
40.5 x 216 x 160 mm

Subscription

Ips
IPS, Malicious/Botnet URLs
Term
36 months (3 years)
Anti Spam
Included
Bundle Code
950 (Unified Threat Protection)
Forticare Premium
Included
Included Services
FortiCare Premium + FortiGuard Unified Threat Protection (UTP)
Anti Malware Protection
AV, Botnet Domains, Mobile Malware, Virus Outbreak Protection, Content Disarm and Reconstruct, AI-based Heuristic AV, FortiGate Cloud Sandbox
Url Dns Video Filtering
URL, DNS and Video Filtering, Malicious Certificate

System Performance

Firewall Policies
2,000
Ssl VPN Throughput
—
Maximum Fortitokens
500
Concurrent Sessions Tcp
720,000
Capwap Throughput Http 64k
3.8 Gbps
New Sessions Per Second Tcp
85,000
Firewall Latency 64 Byte Udp
2.42 μs
Ipsec VPN Throughput 512 Byte
4.5 Gbps
Maximum Fortiswitches Supported
8
Virtual Domains Default Maximum
5 / 5
High Availability Configurations
Active-Active, Active-Passive, Clustering
Ssl Inspection Cps Ips Avg Https
699
Maximum Fortiaps Total Tunnel Mode
16 / 8
Client TO Gateway Ipsec VPN Tunnels
250
Concurrent Ssl VPN Users Tunnel Mode
—
Gateway TO Gateway Ipsec VPN Tunnels
200
Firewall Throughput Packets Per Second
6 Mpps
Application Control Throughput Http 64k
2.8 Gbps
Ssl Inspection Throughput Ips Avg Https
1.3 Gbps
Firewall Throughput 1518 512 64 Byte Udp
5 / 5 / 4 Gbps
Ssl Inspection Concurrent Sessions Ips Avg Https
74,000

Operating Environment

Humidity
10% to 90% non-condensing
Compliance
FCC, ISED, CE, UL/cUL, CB
Noise Level
Fanless, 0 dBA
Power Rating
12 VDC, 3 A
Certifications
USGv6/IPv6
Power Required
External DC power adapter, 100–240V AC, 50/60 Hz
Maximum Current
100V/0.4A, 240V/0.2A
Heat Dissipation
30.35 BTU/h
Operating Altitude
Up to 10,000 ft (3,048 m)
Storage Temperature
-31°F to 158°F (-35°C to 70°C)
Operating Temperature
32°F to 104°F (0°C to 40°C)
Power Consumption Avg Max
8.3 W / 8.9 W

System Performance Enterprise Traffic Mix

Ips Throughput
2.25 Gbps
Ngfw Throughput
1.25 Gbps
Threat Protection Throughput
1.1 Gbps

Questions buyers ask

How long do the included services last?

This bundle includes a 36-month (3-year) term of FortiCare Premium and FortiGuard Unified Threat Protection.

Which security services are part of UTP?

UTP includes IPS with malicious/botnet URLs and anti-malware protection, including AV, botnet domains, mobile malware, virus outbreak protection, content disarm and reconstruct, AI-based heuristic AV and FortiGate Cloud Sandbox. It also includes URL, DNS and video filtering with malicious certificate detection, anti-spam, and FortiCare Premium.

Is the 5G modem certified on US carriers?

Yes. The Telit Cinterion FN990A28-HP modem is PTCRB, AT&T and Verizon certified and FirstNet capable. T-Mobile certification is targeted for Q4 2026.

How much throughput can it handle?

Fortinet rates it at up to 1.1 Gbps threat protection, 1.25 Gbps NGFW, 2.25 Gbps IPS, 4.5 Gbps IPsec VPN and 5 Gbps firewall throughput. These are up-to values that vary with configuration.

Does it support high availability?

Yes. The FortiGate 50G-5G supports active-active, active-passive and clustering high-availability configurations.
