Fortinet FortiGate 50G-5G Firewall and SD-WAN Appliance with 5-Year FortiCare Premium and FortiGuard UTP

5GMPN FG-50G-5G-BDL-950-60
  • 5+ × 1 Gb Ethernet
  • 5 years included
$5,171.18$7,044.80Save $1,873.62

Backordered · ships as soon as it arrives

Included subscription · 5 years
1 year−$2,618.483 years−$1,248.815 years
Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans
Compare all 7 configurations

Datasheets & documents

Overview

The Fortinet FortiGate 50G-5G (FG-50G-5G-BDL-950-60) is a fanless desktop next-generation firewall with an embedded Telit Cinterion 5G modem, two nano SIM slots and five GE RJ45 ports. This bundle includes 5 years (60 months) of FortiCare Premium and FortiGuard Unified Threat Protection. The appliance combines firewall, SD-WAN, network controller and security for branch and distributed enterprise sites.

  • Embedded Telit Cinterion FN990A28-HP 5G modem with 2 nano SIM slots (active/passive) and 5 external SMA antenna ports
  • 5x GE RJ45 ports: 1 WAN, 3 internal and 1 FortiLink by default
  • Up to 5 Gbps firewall, 2.25 Gbps IPS and 1.1 Gbps Threat Protection throughput
  • Integrated SD-WAN and network controller for up to 8 FortiSwitches and 16 FortiAPs
  • 5-year (60-month) FortiCare Premium and FortiGuard Unified Threat Protection included
  • TPM, Bluetooth Low Energy and a signed firmware hardware switch
  • Fanless 0 dBA desktop design with 8.3 W average power consumption
  • Brings a branch online over 5G, or keeps it online when wired WAN fails, without a separate cellular router

The Fortinet FortiGate 50G-5G combines firewall, SD-WAN, network controller and security functions in one compact desktop appliance. An embedded 5G modem gives it cellular WAN. It is built for distributed enterprise sites, retail branches and remote offices that need a cellular primary or backup link without a separate router. This SKU, FG-50G-5G-BDL-950-60, pairs the hardware with a 5-year (60-month) FortiCare Premium and FortiGuard Unified Threat Protection (UTP) subscription.

The 50G family runs FortiOS on Fortinet's SD-WAN-based ASIC with an embedded multi-core processor. Performance figures are all "up to" values: • Firewall throughput: up to 5 Gbps • IPS throughput: 2.25 Gbps • NGFW throughput: 1.25 Gbps • Threat Protection throughput: 1.1 Gbps • IPsec VPN throughput: 4.5 Gbps • Concurrent TCP sessions: 720,000

SD-WAN and the network controller are included in every FortiGate. The unit manages up to 8 FortiSwitches and 16 FortiAPs.

The cellular side uses a Telit Cinterion FN990A28-HP modem. It has two nano SIM slots (active/passive) and five external SMA antenna ports. The modem covers a wide range of 5G NR and LTE bands and is listed for all regions. Its carrier certifications include PTCRB, AT&T and Verizon, and it is FirstNet capable. T-Mobile certification is targeted for Q4 26.

The UTP bundle includes: • IPS • Anti-Malware Protection with FortiGate Cloud Sandbox • URL, DNS and Video Filtering • Anti-Spam • FortiCare Premium

The fanless chassis draws 8.3 W on average and measures 1.6 x 8.5 x 6.3 in. The FortiGate/FortiWiFi 50G Series Data Sheet and the 50G-5G QuickStart Guide are available.

Ideal for

  • Branch offices and retail sites that use 5G as the primary or failover WAN
  • Distributed enterprise networks standardizing on FortiGate SD-WAN
  • Temporary or pop-up locations without wired broadband
  • Public safety and field sites that need a FirstNet-capable cellular firewall
  • Small sites managing FortiSwitches and FortiAPs from a single appliance

Specifications

Radio

MU MIMO
—
Maximum TX Power
—
Maximum Wi-Fi Speeds
—

General

MPN
FG-50G-5G-BDL-950-60
Brand
Fortinet
Model
FG-50G-5G
Product Name
FortiGate 50G-5G
Product Type
Next-generation firewall and SD-WAN appliance with embedded 5G modem
Ordering Description
5x GE RJ45 ports (4x internal, 1x WAN), embedded 3G/4G/LTE/5G WWAN module, 5 external SMA WWAN antennas

Package

Documentation
FortiGate/FortiWiFi 50G Series Data Sheet; FortiGate 50G-5G Series QuickStart Guide
Shipping Weight
5.70 lbs

Hardware

USB Port
1
Internal Storage
—
Antenna Ports Sma
5
Console Port Rj45
1
SIM Slots Nano SIM
2
Wireless Interface
—
Bluetooth Low Energy
Yes
Trusted Platform Module
Yes
Signed Firmware Hardware Switch
Yes
Hardware Accelerated GE WAN Ports
1
Hardware Accelerated GE Rj45 Ports
3
Hardware Accelerated GE Rj45 Fortilink Ports Default
1

Modem 5G

MIMO
Yes
Wcdma
B1, B2, B4, B5 (B6, B19), B8 (for EU and APAC regions only)
Regions
All Regions
Diversity
Yes
GNSS Bias
Yes
LTE Bands
B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29 (SDL), B30, B32 (SDL), B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71
Modem Model
Telit Cinterion FN990A28-HP (2 SIM Slots, Active/Passive)
NR 5G Bands
n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29 (SDL), n30, n38, n40, n41, n48, n66, n71, n75 (SDL), n76 (SDL), n77, n78, n79 (PC1.5 support on n41, n77, n78, n79)
Gsm Gprs Edge
—
Umts Hspa Plus
B1, B2, B4, B5, B6, B8, B19
Maximum TX Power
23 dBm (Power Class 3), 26 dBm (Power Class 2 in B41/n41)
Cdma 1xrtt Evdo Rev A
—
Carrier Certifications
PTCRB: Yes; AT&T: Yes; T-Mobile: Target Q4 26; Verizon: Yes; Public Safety Network: Yes (FirstNet Capable)

Licensing

Ips
IPS, Malicious/Botnet URLs
Term
5 years (60 months)
Anti Spam
Included
Bundle Code
950
Bundle Name
FortiCare Premium + FortiGuard Unified Threat Protection (UTP)
Forticare Premium
Included
Anti Malware Protection
AV, Botnet Domains, Mobile Malware, Virus Outbreak Protection, Content Disarm and Reconstruct, AI-based Heuristic AV, FortiGate Cloud Sandbox
Url Dns Video Filtering
URL, DNS and Video Filtering, Malicious Certificate

Dimensions

Weight
2.2 lbs (1.0 kg)
Form Factor
Desktop (supports EIA/non-EIA standards)
Height Width Length IN
1.6 x 8.5 x 6.3 in
Height Width Length MM
40.5 x 216 x 160 mm

System Performance

Firewall Policies
2,000
Ssl VPN Throughput
—
Maximum Fortitokens
500
Concurrent Sessions Tcp
720,000
Capwap Throughput Http 64k
3.8 Gbps
New Sessions Per Second Tcp
85,000
Firewall Latency 64 Byte Udp
2.42 μs
Ipsec VPN Throughput 512 Byte
4.5 Gbps
Maximum Fortiswitches Supported
8
Virtual Domains Default Maximum
5 / 5
High Availability Configurations
Active-Active, Active-Passive, Clustering
Ssl Inspection Cps Ips Avg Https
699
Maximum Fortiaps Total Tunnel Mode
16 / 8
Client TO Gateway Ipsec VPN Tunnels
250
Concurrent Ssl VPN Users Tunnel Mode
—
Gateway TO Gateway Ipsec VPN Tunnels
200
Firewall Throughput Packets Per Second
6 Mpps
Application Control Throughput Http 64k
2.8 Gbps
Ssl Inspection Throughput Ips Avg Https
1.3 Gbps
Firewall Throughput 1518 512 64 Byte Udp
5 / 5 / 4 Gbps
Ssl Inspection Concurrent Sessions Ips Avg Https
74,000

Operating Environment

Humidity
10% to 90% non-condensing
Compliance
FCC, ISED, CE, UL/cUL, CB
Noise Level
Fanless 0 dBA
Power Rating
12VDC, 3A
Certifications
USGv6/IPv6
Power Required
Powered by External DC Power Adapter, 100–240V AC, 50/60 Hz
Maximum Current
100V/0.4A, 240V/0.2A
Heat Dissipation
30.35 BTU/h
Operating Altitude
Up to 10,000 ft (3048 m)
Storage Temperature
-31°F to 158°F (-35°C to 70°C)
Operating Temperature
32°F to 104°F (0°C to 40°C)
Power Consumption Avg Max
8.3 W / 8.9 W

Enterprise Traffic Mix

Ips Throughput
2.25 Gbps
Ngfw Throughput
1.25 Gbps
Threat Protection Throughput
1.1 Gbps

Questions buyers ask

What is included in the FG-50G-5G-BDL-950-60 bundle?

The bundle includes the FortiGate 50G-5G hardware with a 5-year (60-month) FortiCare Premium and FortiGuard Unified Threat Protection subscription. The subscription covers IPS, Anti-Malware Protection, URL/DNS/Video Filtering and Anti-Spam.

Does the FortiGate 50G-5G support two SIM cards?

Yes. The embedded Telit Cinterion FN990A28-HP modem has two nano SIM slots that run in active/passive mode.

Which carriers is the 5G modem certified on?

Fortinet lists PTCRB, AT&T and Verizon certification, and the modem is FirstNet capable. T-Mobile certification is targeted for Q4 26.

Does the FortiGate 50G-5G have built-in Wi-Fi?

No Wi-Fi radio is listed for the FortiGate 50G-5G. Wireless access is provided through FortiAPs, and the unit manages up to 16 of them (8 in tunnel mode).

How many Ethernet ports does it have?

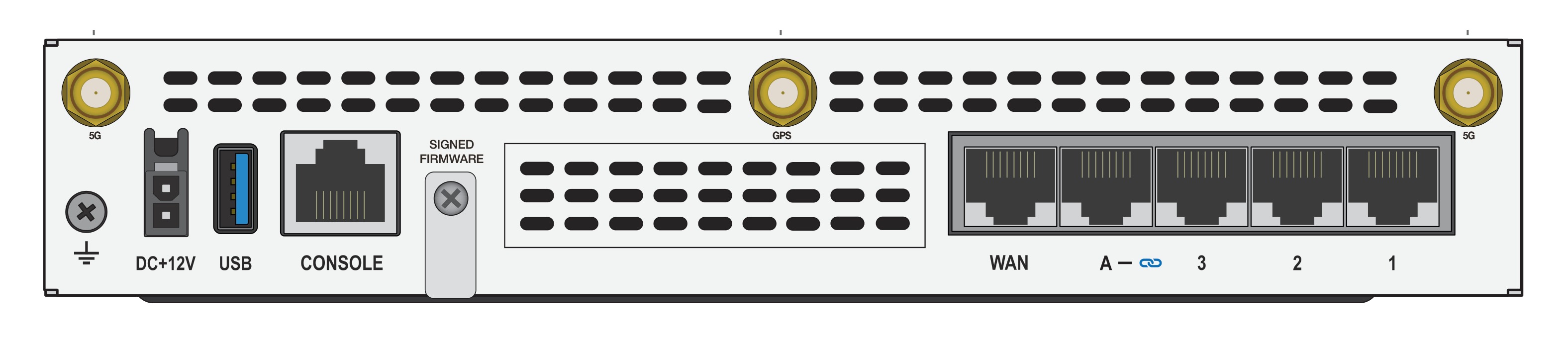

It has five GE RJ45 ports: 1 WAN port, 3 internal ports and 1 FortiLink port by default. It also has a USB port and an RJ45 console port.
