Fortinet5G & LTE Routers

Fortinet FortiGate 50G-5G Firewall with Embedded 5G Modem and 1-Year FortiCare Premium + FortiGuard UTP

5GMPN FG-50G-5G-BDL-950-12
  • 5+ × 1 Gb Ethernet
  • 1 year included
$2,552.70$3,477.60Save $924.90

In stock · only 4 leftFree 2-day shipping

Included subscription · 1 year
1 year3 years+$1,369.675 years+$2,618.48
Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans
Compare all 7 configurations

Datasheets & documents

Overview

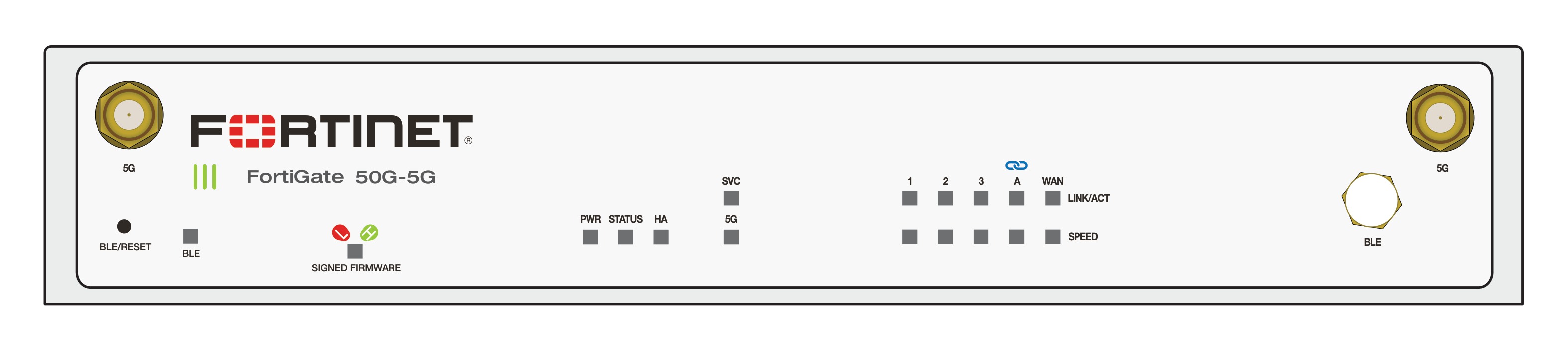

The Fortinet FortiGate 50G-5G (FG-50G-5G-BDL-950-12) is a fanless desktop next-generation firewall for branch and distributed sites. It combines firewalling, SD-WAN, a network controller and an embedded Telit Cinterion 5G modem with dual nano-SIM slots in one appliance. This bundle includes the hardware plus a 1-year FortiCare Premium and FortiGuard Unified Threat Protection (UTP) subscription, covering IPS, anti-malware, URL/DNS/video filtering and anti-spam.

  • Embedded Telit Cinterion FN990A28-HP 5G modem with 2 nano-SIM slots (active/passive) and 5 SMA antenna ports

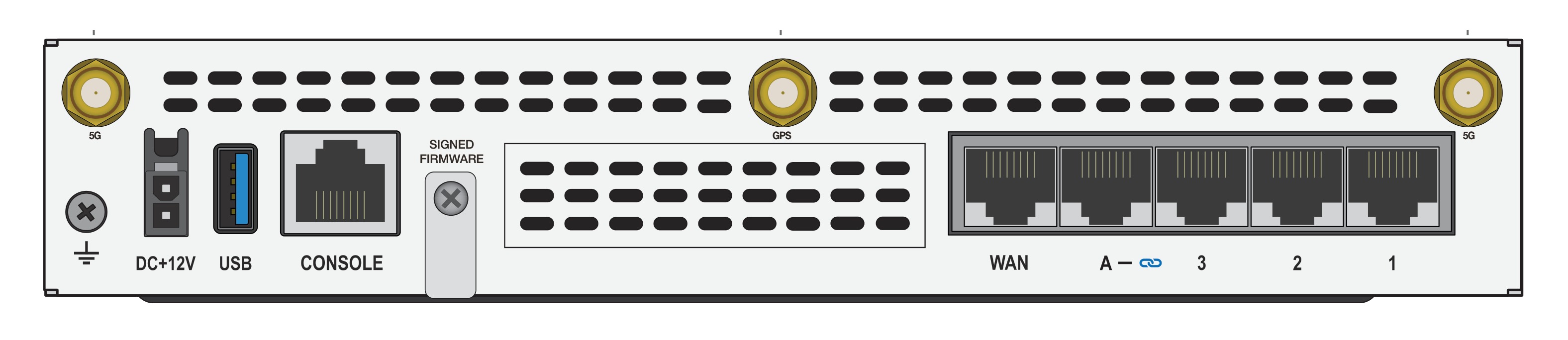

  • 5x GE RJ45 ports: 1 WAN, 3 internal and 1 FortiLink (default), plus USB and RJ45 console
  • Up to 1.1 Gbps threat protection, 1.25 Gbps NGFW and 2.25 Gbps IPS throughput (enterprise traffic mix)
  • Up to 4.5 Gbps IPsec VPN with 200 gateway-to-gateway and 250 client-to-gateway tunnels
  • SD-WAN and network controller included, running FortiOS on Fortinet's patented SD-WAN ASIC
  • 1-year FortiCare Premium and FortiGuard UTP: IPS, anti-malware, URL/DNS/video filtering and anti-spam
  • Fanless 0 dBA desktop design drawing 8.3 W on average
  • Bring a branch online over 5G on day one, with a second SIM for carrier failover

The FortiGate 50G-5G is a compact security appliance for branch offices, retail sites and other distributed locations that need a secure 5G WAN link. It runs FortiOS, Fortinet's converged networking and security operating system, on the company's patented SD-WAN ASIC. SD-WAN and network controller functions are included with the appliance at no extra cost. This SKU, FG-50G-5G-BDL-950-12, pairs the hardware with 12 months of FortiCare Premium and FortiGuard Unified Threat Protection.

The embedded Telit Cinterion FN990A28-HP modem covers a broad set of 5G NR and LTE bands, including n41, n71, n77 and B13/B14. It has two nano-SIM slots in active/passive mode and five SMA ports for external WWAN antennas. The modem is PTCRB, AT&T and Verizon certified and FirstNet capable, with T-Mobile certification targeted for Q4 2026. Wired connectivity consists of five GE RJ45 ports: one WAN, three internal and one FortiLink port by default. The unit also has a USB port, an RJ45 console port, a TPM, Bluetooth Low Energy and a signed firmware hardware switch.

Rated performance, per Fortinet's up-to figures, is 1.1 Gbps threat protection, 1.25 Gbps NGFW and 2.25 Gbps IPS on an enterprise traffic mix. It handles 4.5 Gbps IPsec VPN and 720,000 concurrent TCP sessions. It supports up to 8 FortiSwitches and 16 FortiAPs, and offers active-active, active-passive and clustering high availability.

The design is fanless and silent at 0 dBA, drawing 8.3 W on average from an external 12 VDC adapter. It weighs 2.2 lbs and measures 1.6 x 8.5 x 6.3 inches, so it fits on a desk or a shelf in a network closet. Fortinet publishes a data sheet and a QuickStart Guide for the 50G-5G.

Ideal for

  • Secure 5G primary or backup WAN for branch offices and retail stores
  • Rapid deployment at pop-up, temporary or construction sites without wired broadband
  • Dual-carrier cellular failover using both nano-SIM slots
  • Small-site SD-WAN with FortiSwitch and FortiAP management from one appliance
  • Public safety or government sites that need FirstNet-capable connectivity

Specifications

Radio

Multi User MIMO
—
Maximum TX Power
—
Maximum Wi-Fi Speeds
—

General

MPN
FG-50G-5G-BDL-950-12
Brand
Fortinet
Model
FortiGate 50G-5G (FG-50G-5G)
Product Type
Next-Generation Firewall with Embedded 5G Modem
Ordering Description
5x GE RJ45 ports (4x internal, 1x WAN), embedded 3G/4G/LTE/5G WWAN module, 5 external SMA WWAN antennas

Package

Shipping Weight
5.70 lbs

Hardware

USB Port
1
Internal Storage
—
Antenna Ports Sma
5
Console Port Rj45
1
SIM Slots Nano SIM
2
Wireless Interface
—
Bluetooth Low Energy
Yes
Trusted Platform Module
Yes
Signed Firmware Hardware Switch
Yes
Hardware Accelerated GE WAN Ports
1
Hardware Accelerated GE Rj45 Ports
3
Hardware Accelerated GE Rj45 Fortilink Ports Default
1

Modem 5G

MIMO
Yes
Wcdma
B1, B2, B4, B5 (B6, B19), B8 (EU and APAC regions only)
Regions
All Regions
Diversity
Yes
GNSS Bias
Yes
LTE Bands
B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29 (SDL), B30, B32 (SDL), B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71
Modem Model
Telit Cinterion FN990A28-HP (2 SIM slots, active/passive)
NR 5G Bands
n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29 (SDL), n30, n38, n40, n41, n48, n66, n71, n75 (SDL), n76 (SDL), n77, n78, n79 (PC1.5 on n41, n77, n78, n79)
Gsm Gprs Edge
—
Umts Hspa Plus
B1, B2, B4, B5, B6, B8, B19
Maximum TX Power
23 dBm (Power Class 3), 26 dBm (Power Class 2 in B41/n41)
Carrier Certifications
PTCRB: Yes; AT&T: Yes; T-Mobile: Target Q4 2026; Verizon: Yes; Public Safety Network: Yes (FirstNet Capable)
Cdma 1xrtt EV DO Rev A
—

Dimensions

Weight
2.2 lbs (1.0 kg)
Form Factor
Desktop (supports EIA/non-EIA standards)
Height Width Length IN
1.6 x 8.5 x 6.3 in
Height Width Length MM
40.5 x 216 x 160 mm

Subscription

Ips
IPS, Malicious/Botnet URLs
Term
12 months (1 year)
Anti Spam
Included
Bundle Code
950 (Unified Threat Protection)
Forticare Premium
Included
Included Services
FortiCare Premium + FortiGuard Unified Threat Protection (UTP)
Anti Malware Protection
AV, Botnet Domains, Mobile Malware, Virus Outbreak Protection, Content Disarm and Reconstruct, AI-based Heuristic AV, FortiGate Cloud Sandbox
Url Dns Video Filtering
URL, DNS and Video Filtering, Malicious Certificate

System Performance

Firewall Policies
2,000
Ssl VPN Throughput
—
Maximum Fortitokens
500
Concurrent Sessions Tcp
720,000
Capwap Throughput Http 64k
3.8 Gbps
New Sessions Per Second Tcp
85,000
Firewall Latency 64 Byte Udp
2.42 μs
Ipsec VPN Throughput 512 Byte
4.5 Gbps
Maximum Fortiswitches Supported
8
Virtual Domains Default Maximum
5 / 5
High Availability Configurations
Active-Active, Active-Passive, Clustering
Ssl Inspection Cps Ips Avg Https
699
Maximum Fortiaps Total Tunnel Mode
16 / 8
Client TO Gateway Ipsec VPN Tunnels
250
Concurrent Ssl VPN Users Tunnel Mode
—
Gateway TO Gateway Ipsec VPN Tunnels
200
Firewall Throughput Packets Per Second
6 Mpps
Application Control Throughput Http 64k
2.8 Gbps
Ssl Inspection Throughput Ips Avg Https
1.3 Gbps
Firewall Throughput 1518 512 64 Byte Udp
5 / 5 / 4 Gbps
Ssl Inspection Concurrent Sessions Ips Avg Https
74,000

Operating Environment

Humidity
10% to 90% non-condensing
Compliance
FCC, ISED, CE, UL/cUL, CB
Noise Level
Fanless, 0 dBA
Power Rating
12 VDC, 3 A
Certifications
USGv6/IPv6
Power Required
External DC power adapter, 100–240V AC, 50/60 Hz
Maximum Current
100V/0.4A, 240V/0.2A
Heat Dissipation
30.35 BTU/h
Operating Altitude
Up to 10,000 ft (3,048 m)
Storage Temperature
-31°F to 158°F (-35°C to 70°C)
Operating Temperature
32°F to 104°F (0°C to 40°C)
Power Consumption Avg Max
8.3 W / 8.9 W

System Performance Enterprise Traffic Mix

Ips Throughput
2.25 Gbps
Ngfw Throughput
1.25 Gbps
Threat Protection Throughput
1.1 Gbps

Questions buyers ask

What does the 1-year UTP bundle include?

It includes 12 months of FortiCare Premium and FortiGuard Unified Threat Protection. UTP covers IPS with malicious/botnet URLs and anti-malware protection, including AV, botnet domains, mobile malware, virus outbreak protection, content disarm and reconstruct, AI-based heuristic AV and FortiGate Cloud Sandbox. It also covers URL, DNS and video filtering with malicious certificate detection, plus anti-spam.

Which carriers is the 5G modem certified for?

The Telit Cinterion FN990A28-HP modem is PTCRB, AT&T and Verizon certified and FirstNet capable. T-Mobile certification is targeted for Q4 2026.

Can it use two cellular carriers?

Yes. It has two nano-SIM slots operating in active/passive mode, so a second SIM can take over if the primary connection fails.

What wired ports does it have?

It has five hardware-accelerated GE RJ45 ports: one WAN, three internal and one FortiLink port by default. It also has one USB port and one RJ45 console port.

Does it need a fan or special power?

No. The unit is fanless at 0 dBA and runs from an external 12 VDC, 3 A adapter on 100–240V AC. It draws 8.3 W on average and 8.9 W maximum.
