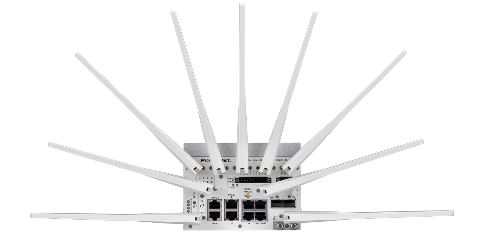

Fortinet FortiGate Rugged 70G-5G-DUAL Firewall with 1-Year FortiCare Premium and Enterprise Protection

5GMPN FGR-70G-5G-DUAL-BDL-80912
  • Dual SIM
  • 5+ × 1 Gb Ethernet
  • GPS/GNSS
  • Rugged
  • 1 year included
$9,497.78$12,939.00Save $3,441.22

Backordered · ships as soon as it arrives

Included subscription · 1 year
Hardware only−$3,052.141 year3 years+$5,188.665 years+$9,919.49
Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans
Compare all 13 configurations

Datasheets & documents

Overview

This bundle (FGR-70G-5G-DUAL-BDL-80912) pairs the Fortinet FortiGate Rugged 70G-5G-DUAL hardware with a 1-year FortiCare Premium and FortiGuard Enterprise Protection subscription. The appliance is a fanless DIN-rail NGFW with two embedded 5G modems, Active/Active dual SIM, passive GPS and up to 8 Gbps firewall throughput. The subscription activates IPS, anti-malware with cloud sandbox, URL/DNS/video filtering, application control, inline CASB, DLP and IoT security services for the first year.

  • FortiGate Rugged 70G-5G-DUAL hardware with a 1-year (12-month) FortiCare Premium and FortiGuard Enterprise Protection term
  • Enterprise Protection includes IPS, anti-malware with FortiGate Cloud Sandbox, URL/DNS/video filtering, application control, inline CASB, DLP and anti-spam
  • Attack Surface Security: IoT device detection, IoT vulnerability correlation and virtual patching, Security Rating and Outbreak Check
  • Two embedded 5G modems with 2 Active/Active SIM slots, 8 external SMA WWAN antennas and passive GPS
  • FortiSP5 processor: up to 8 Gbps firewall, 7.1 Gbps IPsec VPN, 1.5 Gbps NGFW, 1.3 Gbps threat protection
  • Fanless IP40 DIN-rail chassis rated -40°C to 75°C, certified to IEC 61850-3, IEEE 1613, EN 50155 and IEC 60945
  • Deploy with security services active from day one, because hardware, FortiCare Premium and FortiGuard EP arrive under a single SKU
  • Block intrusions, malware and zero-day files at remote OT sites with IPS, AI-based inline malware prevention and cloud sandboxing

The FGR-70G-5G-DUAL-BDL-80912 combines Fortinet's FortiGate Rugged 70G-5G-DUAL with a 12-month FortiCare Premium and FortiGuard Enterprise Protection (EP) term. It is aimed at industrial, utility, transportation and OT teams that want the hardware and a full year of security services under one order.

The appliance is a fanless, IP40, DIN-rail firewall rated from -40°C to 75°C. It is certified to IEC 61850-3 and IEEE 1613 for power substations, EN 50155 for rolling stock, and IEC 60945 with DNV Type Approval for maritime use. Two embedded 5G modems (Telit Cinterion FN990A28-HP) work with 2 Active/Active SIM slots and 8 external SMA WWAN antennas, and the unit carries PTCRB, AT&T, T-Mobile and Verizon carrier certifications. It is FirstNet Capable (5G) and supports T-Priority and Frontline. The FortiSP5 processor delivers up to 8 Gbps firewall, 7.1 Gbps IPsec VPN, 1.5 Gbps NGFW and 1.3 Gbps threat protection throughput.

The Enterprise Protection bundle includes IPS with malicious and botnet URL blocking, and anti-malware protection with AV, virus outbreak protection, content disarm and reconstruction, AI-based heuristic AV and FortiGate Cloud Sandbox. It adds URL, DNS and video filtering, anti-spam, AI-based inline malware prevention, data loss prevention, application control and inline CASB. Attack surface security covers IoT device detection, IoT vulnerability correlation and virtual patching, Security Rating and Outbreak Check. FortiCare Premium and a one-time FortiConverter configuration conversion are also included.

Wired connectivity includes 6 GE RJ45 ports with a PORT1-2 bypass pair, 2 SFP slots, RJ45 serial and console, USB-A 2.0 and MicroSD, plus BLE, TPM and digital I/O. Power comes from redundant 12V to 125V DC inputs; DC cables are not included. Fortinet publishes the FortiGate Rugged Series Data Sheet and a model-specific QuickStart Guide.

Ideal for

  • New industrial or OT site rollouts that need hardware and a full year of threat protection on one order
  • Utility substations requiring IEC 61850-3 / IEEE 1613 certified firewalls with IoT/OT device visibility
  • Rail, transit and maritime networks needing EN 50155 or IEC 60945 compliance with dual-carrier 5G
  • Remote energy, water and pipeline facilities relying on cellular backhaul with IPS and sandboxing
  • Public safety deployments using FirstNet, T-Priority or Frontline

Specifications

General

MPN
FGR-70G-5G-DUAL-BDL-80912
Brand
Fortinet
Design
Ruggedized indoor fanless appliance
Product Name
FortiGate Rugged 70G-5G-DUAL
Hardware Model
FGR-70G-5G-DUAL

Package

Contents
FortiGate Rugged 70G-5G-DUAL hardware plus 1-year FortiCare Premium and FortiGuard Enterprise Protection
Shipping Weight
6.2 lb
Included Antennas
8x external SMA WWAN antennas and 1x external SMA GPS antenna

Overview

Atp
1.3 Gbps
Ips
2.5 Gbps
Ngfw
1.5 Gbps

Subscription

Ips
IPS, Malicious/Botnet URLs
Term
1 year (12 months)
Bundle
FortiCare Premium + FortiGuard Enterprise Protection (EP)
Anti Spam
Anti-Spam
Forticare
FortiCare Premium
Bundle Code
809
Inline Casb
Inline CASB
Base Services
Device/OS Detection, GeoIPs, Trusted CA Certificates, Internet Services and Botnet IPs, DDNS (v4/v6), Local Protection, PSIRT Check, Anti-Phishing
Forticonverter
FortiConverter Service for One Time Configuration Conversion
Application Control
Application Control
Data Loss Prevention
Data Loss Prevention (DLP)
Anti Malware Protection
AV, Botnet Domains, Mobile Malware, Virus Outbreak Protection, CDR, AI-based Heuristic AV, FortiGate Cloud Sandbox
Attack Surface Security
IoT Device Detection, IoT Vulnerability Correlation and Virtual Patching, Security Rating, Outbreak Check
Url Dns Video Filtering
URL, DNS and Video Filtering, Malicious Certificate
AI Inline Malware Prevention
AI-based Inline Malware Prevention

Cellular Wireless

GPS
Passive GPS with 1x external SMA GPS antenna
MIMO
Yes
Wcdma
B1, B2, B4, B5 (B6, B19), B8 (EU and APAC regions only)
Regions
All Regions
5G Bands
n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29 (SDL), n30, n38, n40, n41, n48, n66, n71, n75 (SDL), n76 (SDL), n77, n78, n79 (PC1.5 on n41, n77, n78, n79)
Diversity
Yes
GNSS Bias
Yes
LTE Bands
B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29 (SDL), B30, B32 (SDL), B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71
SIM Slots
2 SIM slots, Active/Active
Modem Model
Telit Cinterion FN990A28-HP (2 SIM slots, Active/Active)
Gsm Gprs Edge
—
Wwan Antennas
8x external SMA WWAN antennas
Umts Hspa Plus
B1, B2, B4, B5, B6, B8, B19
Cdma 1xrtt Evdo
—
Maximum TX Power
23 dBm (PC3), 26 dBm (PC2 in B41/n41)

Dimensions And Power

Weight
4.63 lbs (2.1 kg)
IP Rating
IP40
Form Factor
DIN-rail
Power Supply
12V to 125V DC redundant dual inputs, 2 pins per terminal block, negative or positive ground, DC cables not included
Dimensions IN
5.47 x 4.1 x 4.8 in (H x W x L)
Dimensions MM
139 x 104 x 122 mm (H x W x L)
Maximum Current
12V DC / 3A
Heat Dissipation
89 BTU/h
Antenna Height X Width
205 mm x 25 mm
Power Consumption Avg Max
25 W / 26.2 W

Modem Certifications

Module Certifications
FCC, IC, RED, NCC, JATE/TELEC, KC, NCC+, RCM, GCF, PTCRB, AT&T, FirstNet, KDDI, KT, Telstra, T-Mobile US, Verizon

Operating Environment

Humidity
5% to 95% non-condensing
Operating Altitude
Up to 10,000 ft (3048 m)
Storage Temperature
-40°F to 185°F (-40°C to 85°C)
Operating Temperature
-40°F to 167°F (-40°C to 75°C)

Carrier Certifications

Att
Yes
Ptcrb
Yes
Verizon
Yes
T Mobile
Yes

Interfaces And Modules

Processor
FortiSP5
Console Port
1x RJ45 console
Cellular Modem
Dual 5G modems with GPS
Serial Interface
1x RJ45 serial (data)
Digital I/O Module
Yes
Microsd Card Slot
Yes
USB Client Server
1x USB-A 2.0
Bypass GE Port Pair
PORT1-2 RJ45
Bluetooth Low Energy
Yes
GE LAN WAN Interfaces
6x GE RJ45 LAN/WAN
Transceivers Included
—
Dedicated GE SFP Slots
2x GE SFP slots
Trusted Platform Module
TPM: Yes

Public Safety Networks

Att Firstnet
FirstNet Capable (5G)
Verizon Frontline
Yes
T Mobile T Priority
Yes

System Performance And Capacity

Max Fortitokens
500
Firewall Policies
5,000
High Availability
Active-Active, Active-Passive, Clustering
Max Fortiswitches
24
Ssl Inspection Cps
715 CPS (IPS, avg. HTTPS)
Ssl VPN Throughput
—
Concurrent Sessions Tcp
1.4 million
Firewall Throughput Pps
12 Mpps
Concurrent Ssl VPN Users
—
Max Fortiaps Total Tunnel
96 / 48
Ssl Inspection Throughput
1.4 Gbps (IPS, avg. HTTPS)
New Sessions Per Second Tcp
85,000
Virtual Domains Default Max
10 / 10
Firewall Latency 64 Byte Udp
5.82 μs
Ipsec VPN Throughput 512 Byte
7.1 Gbps (AES256-SHA256)
Application Control Throughput
3.6 Gbps (HTTP 64K)
Client TO Gateway Ipsec Tunnels
500
Gateway TO Gateway Ipsec Tunnels
200
Ssl Inspection Concurrent Sessions
1.4 million (IPS, avg. HTTPS)
Ipv4 Firewall Throughput 1518 512 64
8/8/8 Gbps (1518/512/64 byte UDP)

Industry Compliance And Certifications

RF
EN 301 908-1/-2/-13/-25, EN 300 328, EN 303 413, EN 18031-1, EN IEC 62311, EN 50665, FCC 15.247, FCC 2.1091, RSS-247, RSS-102
Emc
EN 55032 Class A; EN 55035; ETSI EN 301 489-1/-17/-19/-52
Rohs
EN IEC 63000:2018; EN 50581:2012
Health And Safety
IEC/EN 62368-1 (2nd and 3rd Ed.)
Maritime Industry
IEC 60945 4th Ed.; IACS UR E10 Ed. 10; DNV Type Approval
Regulatory Compliance
FCC Part 15 Class A, RCM, VCCI Class A, CE, UL/cUL, CB; USGv6/IPv6
Rolling Stock Industry
EN 50155:2021; EN 50121-1/-3-2/-4; EMC, environmental, shock and vibration certified
Electric Power Industry
IEC 61850-3 and IEEE 1613 Certified

System Performance Enterprise Traffic Mix

Ips Throughput
2.5 Gbps
Ngfw Throughput
1.5 Gbps
Threat Protection Throughput
1.3 Gbps

Questions buyers ask

What does the BDL-80912 suffix mean?

It identifies the bundle: code 809 is FortiCare Premium plus FortiGuard Enterprise Protection, and 12 is the term in months. The SKU therefore includes the FortiGate Rugged 70G-5G-DUAL hardware with a 1-year subscription.

Which security services are included in Enterprise Protection?

IPS; anti-malware with AV, CDR, AI-based heuristic AV and FortiGate Cloud Sandbox; URL, DNS and video filtering; anti-spam; and AI-based inline malware prevention. It also includes DLP, application control, inline CASB, IoT device detection and virtual patching, Security Rating, Outbreak Check, FortiCare Premium and one-time FortiConverter conversion.

Is the hardware the same as the standalone FGR-70G-5G-DUAL?

Yes. It is the same FortiGate Rugged 70G-5G-DUAL, with two embedded 5G modems, 2 Active/Active SIM slots, 8 SMA WWAN antennas, passive GPS, 6 GE RJ45 ports and 2 SFP slots.

Is it certified on US carrier networks?

Fortinet lists PTCRB, AT&T, T-Mobile and Verizon carrier certifications. It is FirstNet Capable (5G) and supports T-Mobile T-Priority and Verizon Frontline.

Are power cables included?

No. The unit uses redundant 12V to 125V DC inputs on 2-pin terminal blocks, and DC cables are not included.
