Cradlepoint5G & LTE Routers

Cradlepoint R1900 5G Rugged Vehicle Router with 6-Year NetCloud Mobile Performance Essentials + Advanced Plan

5GMPN 590GBL001672
  • Wi-Fi 6
  • Dual SIM
  • 2–4 × 1 Gb Ethernet
  • GPS/GNSS
  • Rugged
  • FirstNet Ready
$3,841.23$3,999.00Save $157.77

In stockShips from the US

Included subscription · 6 years
1 year−$890.433 years−$429.255 years+$28.286 years
Compliance · Standard
StandardTAA compliant−$881.68
Region
North AmericaGlobal
Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans
Compare all 20 configurations

Datasheets & documents

Overview

This Trade Up package pairs the Ericsson Cradlepoint R1900 ruggedized 5G router with a 6-year NetCloud Mobile Performance Essentials + Advanced plan. The R1900 is built for vehicles. It has an embedded 5G NR and Cat 20 LTE modem, dual SIM slots, dual-band Wi-Fi 6, four GbE ports and discrete GNSS with dead reckoning. The unit carries an IP64 rating and E-Mark, rail and Class I Div 2 certifications. The plan covers cloud management, software updates and support for the full term. The hardware ships without an AC power supply or antennas.

  • Embedded 5G FR1 NSA/SA modem with LTE Advanced Pro Cat 20 fallback, 4x4 MIMO and dual 4FF SIM slots
  • Dual-band, dual-concurrent 2x2 MU-MIMO Wi-Fi 6 and four LAN/WAN-switchable GbE ports
  • Discrete active GNSS with dead reckoning (GPS, Galileo, GLONASS, BeiDou) for AVL integration
  • Expandable with RX30 accessories: four 802.3bt PoE ports, or four GbE ports and a second modem
  • 940 Mbps stateful firewall and IPS throughput, 20 VPN tunnels, Docker container support
  • IP64, E-Mark, SAE J1455, EN 50155, NFPA 130 and Class I Div 2 certified, 9–36 VDC with ignition sensing
  • 6-year NetCloud Mobile Performance Essentials + Advanced plan with support and cloud management for the full term
  • Stays connected on the move: the router drops to Cat 20 LTE when a vehicle leaves 5G coverage.

The Ericsson Cradlepoint R1900 is a ruggedized 5G networking platform that keeps vehicles connected. It suits public safety fleets, transit, utilities and field-operations teams. This SKU (Cradlepoint TU-MBA6-19005GB-GA, Getac 590GBL001672) is a Cradlepoint Trade Up package. It combines the R1900 hardware with 6 years of NetCloud Mobile Performance Essentials and Advanced service for all regions. The hardware is the 5G-with-Wi-Fi configuration and ships without an AC power supply or antennas.

The embedded 5G FR1 modem supports NSA and SA networks. It falls back to LTE Advanced Pro Category 20 outside 5G coverage and is rated for peak rates of up to 4.14 Gbps down and 660 Mbps up. It has 4x4 MIMO, dual 4FF SIM slots and CBRS Band 48 for private cellular. Carrier certifications include AT&T, T-Mobile and Verizon. Public safety certifications include FirstNet Trusted, T-Mobile Connecting Heroes and Verizon Frontline Verified. On the LAN side, you get four LAN/WAN-switchable GbE ports, 2x2 MU-MIMO Wi-Fi 6, Bluetooth LE 5.2, USB, RS-232 serial and GPIO. The optional RX30 managed accessories add four PoE ports or four GbE ports plus a second modem.

The R1900 includes discrete GNSS with dead reckoning, which feeds Automatic Vehicle Location systems. Security throughput is rated at 940 Mbps for the stateful firewall and IPS, with 20 concurrent VPN tunnels. A quad-core ARMv8 CPU runs Docker containers at the edge. The router runs on 9–36 VDC with ignition sensing. It is rated IP64 and meets E-Mark, SAE J1455, EN 50155, NFPA 130, MIL-STD-810G shock and vibration, and Class I Div 2 requirements.

The Essentials package includes NetCloud Manager, software updates and 24x7 support for the full term. The hardware carries a limited lifetime warranty while the subscription is active. The Advanced plan adds threat management, web filtering, application visibility, analytics, location tracking and cellular coverage maps. A Cradlepoint R1900 datasheet is available.

Ideal for

  • Police, fire and EMS vehicles that need FirstNet or Frontline-certified 5G connectivity
  • Transit buses and light rail requiring EN 50155, NFPA 130 and fire-smoke-toxicity compliance
  • Utility and field-service fleets integrating vehicle location into AVL and dispatch systems
  • Mobile command units that need PoE cameras or a second carrier via RX30 accessories
  • Vehicles operating in Class I Div 2 hazardous locations

Specifications

Power

Fuse
3 A fuse for 9–24 VDC; 2.5 A fuse for > 24 VDC
Features
ISO 7637-2 reverse polarity and transient protection; ignition sensing (auto ON, time-delay OFF)
Connector
4-pin 2x2 Molex micro-fit
Light Rail
24 VDC nominal for light rail applications
Consumption
Sleep 15 mW; Idle 11 W; Typical 19 W; Heavy 22 W
Input Voltage
9–36 VDC steady state (requires in-line fuse for vehicle installations)

General

MPN
590GBL001672 (Getac part number)
Brand
Cradlepoint (Ericsson Cradlepoint)
Model
Cradlepoint R1900
Region
All Regions
Package Plan
6-Year NetCloud Mobile Performance Essentials + Advanced Plans
Package Type
Cradlepoint Trade Up package
Product Status
Active
Subscription Term
6 years
Hardware Configuration
5G with Wi-Fi, no AC power supply or antennas
Manufacturer Part Number
TU-MBA6-19005GB-GA

Cellular

3g
WCDMA/UMTS/HSPA+
SMS
Yes
MIMO
4x4 MIMO
3g Bands
1, 2, 3, 4, 5, 6, 8, 9, 19
GNSS GPS
Discrete active GPS with dead reckoning
LTE Bands
FDD: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71; TDD: B34, B38, B39, B40, B41, B42, B43, B46, B48
Modulation
5G FR1: up to 256 QAM downlink and uplink (enabled on particular carrier equipment only)
Peak Rates
Up to 4.14 Gbps down; up to 660 Mbps up
Regulatory
FCC (U.S.); IC (Canada); CE (EU); RCM (AU/NZ)
Technology
5G FR1 NSA/SA and 4G LTE; LTE Advanced Pro Cat 20; dual 4FF SIM slots; 3GPP Release 15
5G NR Bands
NSA and SA: n1 (2100), n2 (1900), n3 (1800), n5 (850), n7 (2600), n8 (900), n12 (700), n20 (800), n25 (1900), n28 (700), n38 (2600), n40 (2300), n41 (2500), n48 (3500), n66 (1700/2100), n71 (600), n77 (3700), n78 (3500), n79 (4900)
Transmit Power
5G NR 23 dBm ± 1.5; ENDC 20 dBm ± 1; LTE 23 dBm ± 1; LTE HPUE 25 dBm ± 1 (B41 standalone only), typical conducted
Carrier Aggregation
LTE: DL up to 7 CA / UL up to 2 CA; LTE + 5G NR ENDC: DL 1 CA / UL 1 CA
Private Cellular Network
Yes, includes FCC Part 96 (CBRS Band 48)
Network Operator Standards
PTCRB (U.S., Canada); GCF (Worldwide)
Public Safety Certifications
ESN (4G); FirstNet Trusted™; T-Mobile Connecting Heroes; Verizon Frontline Verified
Network Operator Certifications
AT&T, EE, Telstra, T-Mobile, Verizon

GNSS GPS

Power
3.1–3.8 V supply; 30 mA max current
Accuracy
Autonomous 1 meter
Protocols
NMEA 0183; TAIP
Frequencies
L1 (1559–1606 MHz)
Sensitivity
Acquisition -147 dBm; Tracking -165 dBm; Reacquisition -159 dBm
Update Rate
1 Hz (once per second)
Constellations
GPS, Galileo, GLONASS, BeiDou (concurrent reception)
Time TO First Fix
30 seconds (cold start)

Physical

Weight
0.98 kg (2.15 lb)

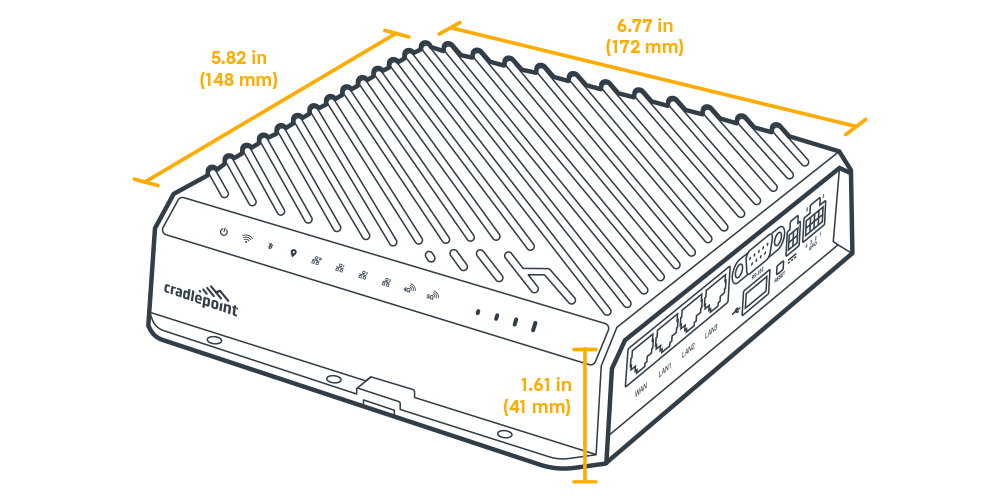

Dimensions
172 x 148 x 41 mm (6.77 x 5.82 x 1.61 in)

Interfaces

PoE
4 x 802.3bt Type 3 (up to 60 W per port); 60 W total budget
Wi-Fi
Dual-radio, dual-band concurrent 2x2 MU-MIMO Wi-Fi 6 with DFS; 574 Mbps (2.4 GHz) & 1,200 Mbps (5 GHz); 2 x RP-SMA; WPA/WPA2/WPA3 Personal, WPA2/WPA3 Enterprise, Open; 802.11k/v; Wi-Fi Alliance Certified
Modem

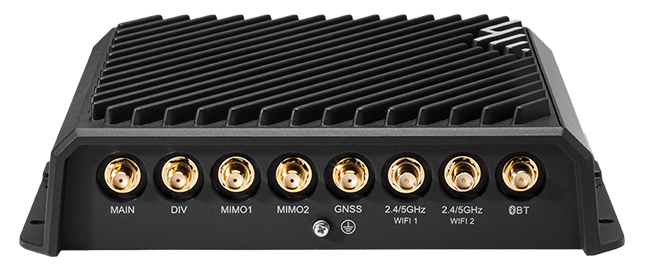

Embedded 5G NR FR1 low-/mid-band and 4G LTE Cat 20 modem; 4 x SMA cellular antenna connectors
Ethernet

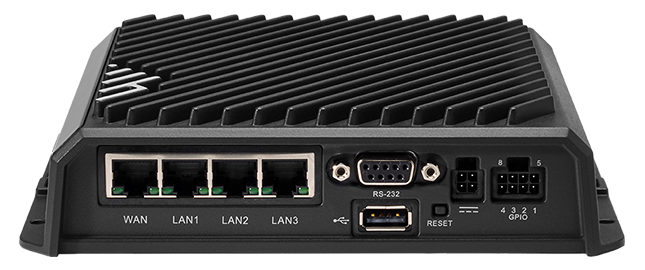

4 x GbE (LAN/WAN switchable)
Bluetooth
Bluetooth LE 5.2; 10 dBm max TX; 1 x RP-SMA connector
GNSS Connector
1 x SMA GNSS antenna connector
Expansion Console
1 x USB 2.0 Type A (5 V, 500 mA, 2.5 W); 1 x DB9 RS-232; 1 x 8-pin GPIO (2x4 Molex micro-fit, 3 mm locking); optional RX30-POE and RX30-MC accessories

Wi-Fi Power

EU
2.4 GHz: 14.00 dBm conducted; 5500–5700 MHz: 18.00 dBm conducted
Fcc
2.4 GHz: 23 dBm conducted; 5260–5825 MHz: 21.90 dBm conducted
Japan
2.4 GHz: 16.92 dBm; 5500–5720 MHz: 21.00 dBm (conducted)
Canada
2.4 GHz: 23.00 dBm; 5500–5580 MHz: 22.00 dBm; 5660–5825 MHz: 21.89 dBm (conducted)
Global Safe Mode
2.4 GHz: 14 dBm conducted

Performance

Vlans
Up to 64 Layer 2 / Layer 3 VLANs
Stateful Firewall
940 Mbps
Typical Client Count
100
Concurrent VPN Tunnels
20
Concurrent Tcp Sessions
32,000
Point TO Point Ipsec VPN
400 Mbps
Sase Secure Connect SD WAN
IPsec 400 Mbps; Microtunnel 600 Mbps
Ips Application Aware Client Analytics
940 Mbps

Reliability

Calculated MTBF
340,644 hours (Telcordia SR332 at 25 °C)

Environmental

Storage Humidity
5% to 95%
Ingress Protection
IP64 (dust tight and splashing water)
Operating Humidity
5% to 95%
Storage Temperature
-40 °C to 85 °C (-40 °F to 185 °F)
Operating Temperature
-30 °C to 75 °C (-22 °F to 167 °F)

Certifications

Rail
EN 45545-2:2020 HL3; EN 50121-3-2; EN 50155 Class S1
Safety
UL/cUL; CB Scheme; EN 60950-1; EN 62368-1
Vehicle
E-Mark; SAE J1455
Security
FIPS 140-3 Level 1 module in process (FIPS models only; this SKU is not a FIPS model)
Shock Vibration
MIL-STD-810G, Section 2.2.2, Procedure 1 (Shock, Vibration)
Hazardous Locations
Class I Div 2
Flame Smoke Toxicity
BSS 7239
Substance Compliance
WEEE; RoHS; REACH; California Prop 65
North American Fire Safety
NFPA 130

Cloud Services

Support
Support for the full subscription term (phone 24-hour weekdays with weekend emergency response; web 24x7; chat 24x5)
Warranty
Limited lifetime warranty while an active NetCloud Service plan is licensed
Service Plans
Ericsson NetCloud Service for Mobile Performance
Service Add Ons
NetCloud Exchange, Ericsson NetCloud Advanced
Software Updates
NetCloud Manager for the full subscription term
Device Management
NetCloud Manager for the full subscription term

Edge Computing

CPU
Quad-core ARMv8 64-bit
Memory
Up to 1.8 GB
Applications
Docker containerized applications
Flash Storage
Up to 6 GB

Product Summary

PoE
Yes, with RX30-PoE
Wi-Fi
Dual-band, dual-concurrent; 802.11ax (Wi-Fi 6)
Category
Mobile
GPS GNSS
Discrete active GNSS with dead reckoning
5G Status
5G Embedded
Bluetooth
Yes, embedded Bluetooth version 5.2
USB Ports
1
Throughput
940 Mbps (Firewall)
Form Factor
Ruggedized Metal
VPN Tunnels
20
Serial Ports
1
Ethernet Ports
4 GbE (LAN/WAN switchable)
Cloud Management
Yes
Special Features
Add 4 GbE PoE ports or 4 GbE and second modem
Dual Modem Support
Yes, with RX30-MC
Operating Temperature
-30 °C to 75 °C (-22 °F to 167 °F)
Wireless Connectivity
5G/4G Dual Connectivity
Private Cellular Network
Yes — CBRS, 4G LTE, 5G
Network Operator Standards
PTCRB (U.S.), GCF (global)
Standard Subscription Terms
1, 3 & 5 years (standard catalog; this SKU is a 6-year term)

Questions buyers ask

What does this SKU include?

It is a Cradlepoint Trade Up package: R1900 router hardware in the 5G-with-Wi-Fi configuration plus 6 years of NetCloud Mobile Performance Essentials and Advanced plans. It does not include an AC power supply or antennas.

What does the Advanced plan add over Essentials?

Advanced adds threat management, web filtering, application visibility, analytics, and advanced GNSS/GPS functions such as location tracking and cellular coverage maps.

How is the R1900 powered in a vehicle?

It accepts 9–36 VDC through a 4-pin Molex micro-fit connector and requires an in-line fuse: 3 A for 9–24 VDC or 2.5 A above 24 VDC. Ignition sensing turns it on automatically and powers it off after a delay.

Can I add a second cellular modem?

Yes. The optional RX30-MC managed accessory adds a modular modem slot and four GbE ports for simultaneous dual-carrier connectivity. The RX30-POE instead adds four 802.3bt PoE ports.

What warranty and support come with the plan?

NetCloud Essentials includes 24x7 support and NetCloud Manager updates for the full term. The hardware carries a limited lifetime warranty for as long as the subscription is active.
