Cradlepoint5G & LTE Routers

Cradlepoint R1900 5G Rugged In-Vehicle Router with Wi-Fi 6 and 6-Year NetCloud Mobile Performance Essentials Plan

5GMPN 590GBL001676
  • Wi-Fi 6
  • Dual SIM
  • 2–4 × 1 Gb Ethernet
  • GPS/GNSS
  • Rugged
  • FirstNet Ready
$2,880.68$2,999.00Save $118.32

In stockShips from the US

Included subscription · 6 years
1 year−$890.433 years−$429.255 years+$28.286 years
Compliance · Standard
StandardTAA compliant−$881.68
Region
North AmericaGlobal
Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans
Compare all 20 configurations

Datasheets & documents

Overview

This package pairs the Ericsson Cradlepoint R1900 ruggedized 5G router with a 6-year NetCloud Mobile Performance Essentials plan (Trade Up package TU-MB06-19005GB-GA). The R1900 is built for police, fire, EMS, transit and field fleets. It combines a 5G NR FR1 and Cat 20 LTE modem with dual SIM slots, 2x2 Wi-Fi 6, four GbE ports, Bluetooth 5.2 and discrete GNSS with dead reckoning, all in an IP64 metal enclosure. The hardware is the 5G with Wi-Fi configuration and ships without an AC power supply or antennas.

  • Embedded 5G NR FR1 (NSA/SA) and LTE Advanced Pro Cat 20 modem with 4x4 MIMO, dual 4FF SIM slots and peak rates up to 4.14 Gbps down / 660 Mbps up
  • Dual-band concurrent 2x2 MU-MIMO Wi-Fi 6 (574 Mbps at 2.4 GHz, 1,200 Mbps at 5 GHz) with WPA3 and Bluetooth Low Energy 5.2

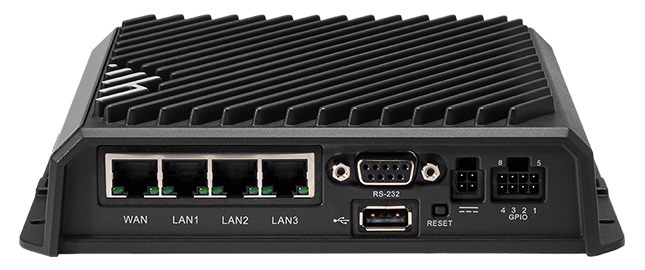

  • 4 x GbE LAN/WAN-switchable ports, USB 2.0 Type A, DB9 RS-232 and 8-pin GPIO, expandable with RX30-POE or RX30-MC accessories
  • Discrete active GNSS (GPS, Galileo, GLONASS, BeiDou) with dead reckoning, 1 m autonomous accuracy and NMEA 0183/TAIP output
  • Ruggedized IP64 metal enclosure, -30 °C to 75 °C operation, 9–36 VDC input with ignition sensing and transient protection
  • Edge computing on a quad-core ARMv8 64-bit CPU with Docker container support
  • 6-year NetCloud Mobile Performance Essentials plan with NetCloud Manager, 24x7 support and a limited lifetime warranty while subscribed
  • Keep vehicles connected on 5G, with automatic fallback to Cat 20 LTE when the route leaves 5G coverage

The Ericsson Cradlepoint R1900 is a ruggedized 5G networking platform designed for persistent in-vehicle connectivity. This SKU (Getac part number 590GBL001676, Cradlepoint part number TU-MB06-19005GB-GA) is the Cradlepoint Trade Up version of the package. It bundles the R1900 in its 5G with Wi-Fi hardware configuration with a 6-year NetCloud Mobile Performance Essentials plan, and it is offered for all regions. The router ships without an AC power supply or antennas. It runs on 9–36 VDC vehicle power, with ISO 7637-2 transient protection and ignition sensing.

The embedded modem supports 5G NR FR1 in NSA and SA modes, falls back to LTE Advanced Pro Category 20, and offers 4x4 MIMO, dual 4FF SIM slots and peak rates up to 4.14 Gbps down and 660 Mbps up. It also supports CBRS Band 48 private networks. Inside the vehicle, dual-band concurrent 2x2 Wi-Fi 6 delivers up to 1,200 Mbps on 5 GHz. The router adds four LAN/WAN-switchable GbE ports, USB 2.0, RS-232 serial and GPIO. Discrete GNSS across GPS, Galileo, GLONASS and BeiDou, with dead reckoning, feeds AVL systems.

The R1900 is rated IP64, operates from -30 °C to 75 °C and carries E-Mark, SAE J1455, EN 50155, NFPA 130, MIL-STD-810G and Class I Div 2 credentials. It also holds FirstNet Trusted and Verizon Frontline Verified public-safety certifications. The optional RX30-POE accessory adds four 802.3bt PoE ports, and the RX30-MC adds four GbE ports plus a second modem slot.

The Essentials plan covers NetCloud Manager device management and software updates for the full term. It also includes 24x7 support and a limited lifetime warranty while the subscription is active. An Advanced plan can be added at any time for threat management, web filtering, application visibility, location tracking and coverage maps.

Ideal for

  • Police, fire and EMS vehicles connecting laptops, cameras and radios over FirstNet or other public-safety networks
  • Transit buses and light rail requiring EN 50155, EN 45545-2 and NFPA 130 compliant onboard connectivity and passenger Wi-Fi
  • Utility, field service and construction fleets feeding AVL systems with dead-reckoning GNSS
  • Mobile command posts and response units needing dual-carrier failover through the RX30-MC second modem
  • In-vehicle edge applications running in Docker containers alongside centrally managed routing and security

Specifications

Power

Fuse
3 A Fuse (9–24 VDC); 2.5 A Fuse (>24 VDC)
Features
ISO 7637-2 Reverse Polarity/Transient Protection; Ignition Sensing
Connector
4-Pin 2x2 Molex Micro-Fit
Light Rail
24 VDC Nominal for Light Rail
Consumption
Sleep 15 mW / Idle 11 W / Typical 19 W / Heavy 22 W
Input Voltage
9–36 VDC Steady State (In-Line Fuse Required for Vehicle Installations)

General

MPN
Getac Part Number 590GBL001676
Brand
Cradlepoint (Ericsson Cradlepoint)
Model
Cradlepoint R1900
Manufacturer
Ericsson Enterprise Wireless (Ericsson Cradlepoint)
Product Status
Active
Cradlepoint Part Number
TU-MB06-19005GB-GA
Ordering Guide Part Pattern
MB0x-19005GB-GA (Essentials)

Package

TAA
Not TAA
Plan
6-Year NetCloud Mobile Performance Essentials Plan
Tier
Essentials
Region
All Regions
Support
24x7 Support (Phone 24-hour Weekdays + Weekend Emergency, Web 24x7, Chat 24x5)
Warranty
Limited Lifetime Warranty (While Subscription Is Active)
FIPS Model
Non-FIPS Model
Plan Family
NetCloud Mobile Performance
Package Type
Cradlepoint Trade Up Package (TU- prefix)
Upgrade Option
Advanced Plan Add-On Available Anytime
Subscription Term
6 Years
Hardware Configuration
5G with Wi-Fi; No AC Power Supply or Antennas

Cellular

3g
WCDMA/UMTS/HSPA+
SMS
Yes
MIMO
4x4 MIMO
3g Bands
Bands 1, 2, 3, 4, 5, 6, 8, 9, 19
TX Power
5G NR 23 dBm ±1.5; EN-DC 20 dBm ±1; LTE 23 dBm ±1; HPUE 25 dBm ±1 (B41 SA) (Typical Conducted)
LTE Bands
FDD: B1 (2100), B2 (1900), B3 (1800), B4 (1700), B5 (850), B7 (2600), B8 (900), B12 (700), B13 (700), B14 (700), B17 (700), B18 (850), B19 (850), B20 (800), B25 (1900), B26 (850), B28 (700), B29 (700), B30 (2300), B32 (1500), B66 (1700), B71 (600); TDD: B34 (2000), B38 (2600), B39 (1900), B40 (2300), B41 (2500), B42 (3500), B43 (3700), B46 (5200), B48 (3500)
Modulation
Up to 256 QAM DL/UL (Carrier Dependent)
Peak Rates
Up to 4.14 Gbps Down / 660 Mbps Up
Regulatory
FCC, IC, CE, RCM
Technology
5G FR1 NSA/SA + LTE Advanced Pro Cat 20; Dual 4FF SIM; 3GPP Release 15
5G NR Bands
NSA/SA: n1 (2100), n2 (1900), n3 (1800), n5 (850), n7 (2600), n8 (900), n12 (700), n20 (800), n25 (1900), n28 (700), n38 (2600), n40 (2300), n41 (2500), n48 (3500), n66 (1700/2100), n71 (600), n77 (3700), n78 (3500), n79 (4900)
Carrier Aggregation
LTE: 7CA DL / 2CA UL; EN-DC: 1CA DL / 1CA UL
Private Cellular Network
Yes: CBRS Band 48 (FCC Part 96), 4G LTE, 5G
Network Operator Standards
PTCRB (U.S., Canada), GCF (Worldwide)
Public Safety Certifications
ESN (4G), FirstNet Trusted, T-Mobile Connecting Heroes, Verizon Frontline Verified
Network Operator Certifications
AT&T, EE, Telstra, T-Mobile, Verizon

GNSS GPS

Power
3.1–3.8 V; 30 mA Max
Accuracy
Autonomous 1 Meter
Protocols
NMEA 0183, TAIP
Frequencies
L1 (1559–1606 MHz)
Sensitivity
Acquisition -147 dBm / Tracking -165 dBm / Reacquisition -159 dBm
Update Rate
1 Hz (Once per Second)
Constellations
GPS, Galileo, GLONASS, BeiDou (Concurrent)
Dead Reckoning
Discrete Active GNSS with Dead Reckoning
Time TO First Fix
30 Seconds (Cold Start)

Physical

Weight
0.98 kg (2.15 lb)
Dimensions

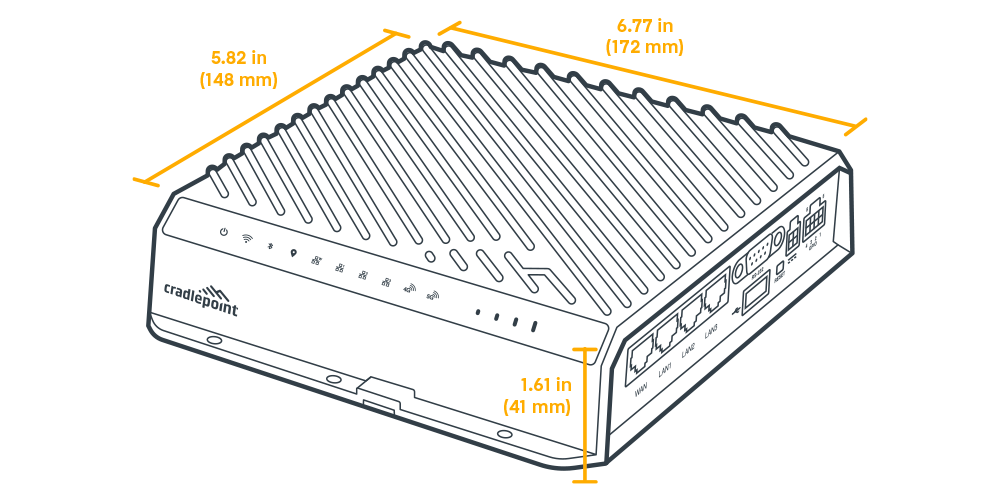

172 x 148 x 41 mm (6.77 x 5.82 x 1.61 in)
Form Factor
Ruggedized Metal

Interfaces

PoE
4 x 802.3bt Type 3 PoE (Up to 60 W per Port), 60 W Total Budget
Wi-Fi
Dual-Band Concurrent 2x2 MU-MIMO Wi-Fi 6 with DFS; 574 Mbps (2.4 GHz) / 1,200 Mbps (5 GHz); 2 x RP-SMA; WPA3; 802.11k/v; Wi-Fi Alliance Certified
Modem
Embedded 5G NR FR1 + LTE Cat 20 Modem; 4 x SMA Cellular Antenna Connectors
Ethernet
4 x GbE (LAN/WAN Switchable)
Bluetooth
Bluetooth LE 5.2; 10 dBm Max TX; 1 x RP-SMA
GNSS Connector
1 x SMA GNSS Antenna Connector
Expansion Console
USB 2.0 Type A (5 V, 500 mA); DB9 RS-232; 8-pin GPIO; Optional RX30-POE or RX30-MC

Wi-Fi Power

EU
2.4 GHz 14.00 dBm; 5500–5700 MHz 18.00 dBm (Conducted)
Fcc
2.4 GHz 23 dBm; 5260–5825 MHz 21.90 dBm (Conducted)
Japan
2.4 GHz 16.92 dBm; 5500–5720 MHz 21.00 dBm (Conducted)
Canada
2.4 GHz 23.00 dBm; 5500–5580 MHz 22.00 dBm; 5660–5825 MHz 21.89 dBm (Conducted)
Global Safe Mode
2.4 GHz 14 dBm (Conducted)

Performance

L2 L3 Vlans
Up to 64
Stateful Firewall
940 Mbps
Typical Client Count
100
Concurrent VPN Tunnels
20
Concurrent Tcp Sessions
32,000
Point TO Point Ipsec VPN
400 Mbps
Sase Secure Connect SD WAN
IPsec 400 Mbps / Microtunnel 600 Mbps
Ips Application Aware Client Analytics
940 Mbps

Reliability

MTBF
340,644 Hours (Telcordia SR332 at 25 °C)

Environmental

Humidity
5%–95% Operating and Storage
Ingress Protection
IP64 (Dust Tight and Splashing Water)
Storage Temperature
-40 °C to 85 °C (-40 °F to 185 °F)
Operating Temperature
-30 °C to 75 °C (-22 °F to 167 °F)

Certifications

Rail
EN 45545-2:2020 HL3, EN 50121-3-2, EN 50155 Class S1
Safety
UL/cUL, CB Scheme, EN 60950-1, EN 62368-1
Vehicle
E-Mark, SAE J1455
Security
FIPS 140-3 Level 1 in Process (FIPS Models Only)
Fire Safety
NFPA 130
Shock Vibration
MIL-STD-810G (Shock, Vibration)
Hazardous Locations
Class I Div 2
Flame Smoke Toxicity
BSS 7239
Substance Compliance
WEEE, RoHS, REACH, California Prop 65

Cloud Services

Support
Support for Full Subscription Term
Warranty
Limited Lifetime Warranty with Active NetCloud Subscription
Service Plans
Ericsson NetCloud Service for Mobile Performance
Service Add Ons
NetCloud Exchange, NetCloud Advanced
Software Updates
Via NetCloud Manager (Full Term)
Device Management
NetCloud Manager (Full Term)

Edge Computing

CPU
Quad-Core ARMv8 64-bit
Memory
Up to 1.8 GB
Applications
Docker Containerized Applications
Flash Storage
Up to 6 GB

Product Summary

Category
Mobile
5G Status
5G Embedded
USB Ports
1
PoE Support
Yes, with RX30-PoE
Serial Ports
1
Cloud Management
Yes
Special Features
Add 4 GbE PoE Ports or 4 GbE + Second Modem
Dual Modem Support
Yes, with RX30-MC
Wireless Connectivity
5G/4G Dual Connectivity
Standard Subscription Terms
Standard Catalog Terms: 1, 3 & 5 Years (This Package: 6 Years)

Questions buyers ask

What is included in this Cradlepoint R1900 package?

The package includes the R1900 router in its 5G with Wi-Fi hardware configuration and a 6-year NetCloud Mobile Performance Essentials plan. The plan covers NetCloud Manager, software updates, 24x7 support and a limited lifetime warranty while the subscription is active. The package does not include an AC power supply or antennas.

What does the TU prefix in TU-MB06-19005GB-GA mean?

TU identifies a Cradlepoint Trade Up package. It uses the same R1900 hardware and Essentials plan tier as the standard MB06-19005GB-GA package, with a 6-year term.

What antennas and power does the R1900 use?

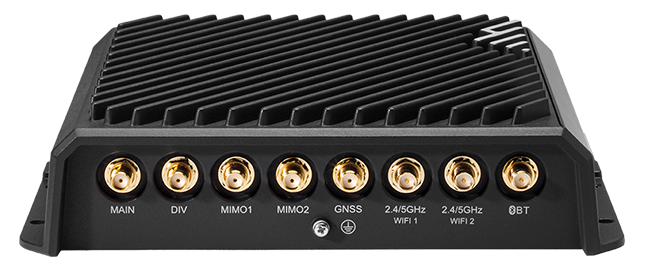

The R1900 has 4 SMA cellular, 2 RP-SMA Wi-Fi, 1 RP-SMA Bluetooth and 1 SMA GNSS antenna connectors. It runs on 9–36 VDC through a 4-pin Molex micro-fit connector. Vehicle installations require an in-line fuse: 3 A for 9–24 VDC or 2.5 A above 24 VDC.

Can I add a second cellular modem or PoE ports?

Yes. The optional RX30-MC managed accessory adds a modular modem slot and four GbE ports for dual-carrier connectivity. The RX30-POE adds four 802.3bt Type 3 PoE ports with a 60 W total budget.

Can I upgrade from Essentials to Advanced later?

Yes. A NetCloud Mobile Performance Advanced Plan can be added to the Essentials package at any time. It adds threat management, web filtering, application visibility, analytics and advanced GNSS functions such as location tracking and cellular coverage maps.
