Cradlepoint5G & LTE Routers

Cradlepoint R1900 5G Rugged Vehicle Router with Wi-Fi 6 and 3-Year NetCloud Essentials + Advanced Plans (TAA)

5GMPN TAA-MBA3-19005GB-GA
  • Wi-Fi 6
  • Dual SIM
  • 2–4 × 1 Gb Ethernet
  • GPS/GNSS
  • Rugged
  • FirstNet Ready
$3,099.00$3,275.00Save $176

In stockShips from the US

Included subscription · 3 years
1 year−$5003 years5 years+$5006 years+$381.68
Compliance · TAA compliant
Standard−$47.57TAA compliant
Region · Global
North America+$879Global
Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans
Compare all 20 configurations

Datasheets & documents

Overview

The Cradlepoint R1900 is a ruggedized 5G router built for persistent in-vehicle connectivity. This TAA-compliant U.S. Federal Government SKU (TAA-MBA3-19005GB-GA) bundles the R1900 with 3-year NetCloud Mobile Performance Essentials and Advanced plans. It pairs an embedded 5G NR / Cat 20 LTE modem with dual 4FF SIM slots, dual-band Wi-Fi 6, four switchable Gigabit Ethernet ports, discrete GNSS with dead reckoning, and IP64, MIL-STD-810G and rail certifications. The AC power supply and antennas are not included.

  • Embedded 5G NR FR1 (NSA/SA) and LTE Advanced Pro Cat 20 modem, 4x4 MIMO, dual 4FF SIM slots
  • Dual-band, dual-concurrent 2x2 MU-MIMO Wi-Fi 6 plus embedded Bluetooth 5.2

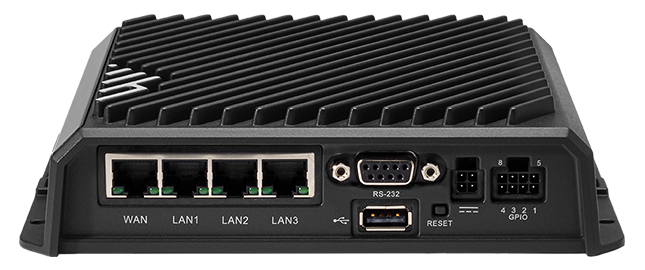

  • 4 x GbE LAN/WAN switchable ports, USB 2.0, RS-232 serial and 8-pin GPIO
  • Discrete active GNSS with dead reckoning (GPS, Galileo, GLONASS, BeiDou)
  • Optional RX30 accessories for 4 x PoE ports or a second modem with 4 GbE ports
  • IP64, MIL-STD-810G, E-Mark, EN 50155, NFPA 130 and Class I Div 2 certifications
  • 3-year NetCloud Mobile Performance Essentials + Advanced plans, TAA-compliant SKU
  • Keep vehicles connected: 5G NR with automatic Cat 20 LTE fallback when the vehicle leaves 5G coverage

The Cradlepoint R1900 is Ericsson's ruggedized 5G platform for in-vehicle networks. It suits public safety fleets, transit agencies and field-operations teams that need a single device to connect everything in the vehicle. Part number TAA-MBA3-19005GB-GA is the TAA-compliant ordering option for the U.S. Federal Government. It pairs the router with a 3-year NetCloud Mobile Performance Essentials package and the Advanced plan.

The embedded modem supports 5G NR FR1 in NSA and SA modes, with LTE Advanced Pro Category 20 fallback, 4x4 MIMO and peak rates up to 4.14 Gbps down and 660 Mbps up. Dual 4FF SIM slots, CBRS Band 48 support and carrier certifications for AT&T, T-Mobile and Verizon cover commercial and private networks. The modem also carries FirstNet Trusted, T-Mobile Connecting Heroes and Verizon Frontline Verified public safety certifications. Inside the vehicle, the router provides 2x2 MU-MIMO Wi-Fi 6, four GbE LAN/WAN ports, Bluetooth 5.2, USB, RS-232 serial and GPIO. The optional RX30 accessories add four PoE ports, or four GbE ports and a second modem for dual-carrier connectivity.

The R1900 runs on 9–36 VDC with ignition sensing and ISO 7637-2 transient protection. It carries an IP64 rating and MIL-STD-810G shock and vibration testing, plus E-Mark, EN 50155 and NFPA 130 certifications and Class I Div 2 approval for hazardous locations. A quad-core ARMv8 processor runs Docker containers at the edge. Firewall throughput is rated at 940 Mbps, with 20 concurrent VPN tunnels.

The Essentials package includes NetCloud Manager, software updates, 24x7 support and a limited lifetime warranty for the subscription term. The Advanced plan adds threat management, web filtering, application visibility, analytics, location tracking and cellular coverage maps. Antennas and AC power supply are sold separately. The Cradlepoint R1900 datasheet is available.

Ideal for

  • Police, fire and EMS vehicle networks on FirstNet or other public safety networks
  • Transit buses and light rail requiring EN 50155 and NFPA 130 certified connectivity
  • Federal agency fleets procured under TAA requirements
  • Utility and field-service trucks feeding AVL systems with GNSS and dead reckoning
  • Mobile command units running containerized edge applications

Specifications

Power

DC Input
9–36 VDC steady state (in-line fuse required for vehicle installations)
Connector
4-pin 2x2 Molex micro-fit
Protection
ISO 7637-2 reverse polarity and transient voltage protection
Consumption Idle
11 W (idle)
Fuse 9 TO 24 Vdc
3 A fuse for 9–24 VDC installations
Ignition Sensing
Ignition sensing (automatic ON, time-delay OFF)
Consumption Heavy
22 W (heavy)
Consumption Sleep
15 mW (sleep)
Fuse Above 24 Vdc
2.5 A fuse for >24 VDC installations
Light Rail Nominal
24 VDC nominal for light rail applications
Consumption Typical
19 W (typical)

General

MPN
TAA-MBA3-19005GB-GA
UPC
810007809472
Brand
Cradlepoint (Ericsson)
Model
Cradlepoint R1900
Manufacturer
Ericsson Enterprise Wireless
Product Status
Active
Shipping Weight
6.32 lb

Package

Plan
NetCloud Mobile Performance Essentials + Advanced
Region
United States Federal Government
TAA Compliant
TAA compliant
Subscription Term
3 years
Essentials Support
24x7 support (phone 24h weekdays + weekend emergency, web 24x7, chat 24x5)
Hardware Configuration
5G with Wi-Fi and 4FF SIM; AC power supply and antennas not included

Cellular

SMS
Yes
GNSS
Discrete active GPS with dead reckoning
MIMO
4x4 MIMO
Three G
WCDMA/UMTS/HSPA+
TX Power
5G NR 23 dBm ±1.5; EN-DC 20 dBm ±1; LTE 23 dBm ±1; HPUE 25 dBm ±1 (B41 SA only), typical conducted
Modulation
Up to 256 QAM DL/UL (carrier-equipment dependent)
Regulatory
FCC, IC, CE, RCM
Technology
5G FR1 NSA/SA + LTE Advanced Pro Cat 20, dual 4FF SIM, 3GPP Rel. 15
Peak Uplink
Up to 660 Mbps
LTE Fdd Bands
B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71
LTE Tdd Bands
B34, B38, B39, B40, B41, B42, B43, B46, B48
Peak Downlink
Up to 4.14 Gbps
Three G Bands
1, 2, 3, 4, 5, 6, 8, 9, 19
Five G NR Bands
NSA & SA: n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41, n48, n66, n71, n77, n78, n79
Carrier Aggregation
LTE: 7CA DL / 2CA UL; EN-DC: 1CA DL / 1CA UL
Gcf Global Operators
GCF members directory
Private Cellular Network
Yes, FCC Part 96 CBRS Band 48
Network Operator Standards
PTCRB (U.S., Canada), GCF (worldwide)
Public Safety Certifications
ESN (4G), FirstNet Trusted, T-Mobile Connecting Heroes, Verizon Frontline Verified
Ptcrb North America Operators
PTCRB operators
Network Operator Certifications
AT&T, EE, Telstra, T-Mobile, Verizon

GNSS GPS

Power
3.1–3.8 V supply, 30 mA max
Accuracy
Autonomous 1 meter
Protocols
NMEA 0183, TAIP
Frequencies
L1 (1559–1606 MHz)
Sensitivity
Acquisition -147 dBm, tracking -165 dBm, reacquisition -159 dBm
Update Rate
1 Hz (once per second)
Constellations
GPS, Galileo, GLONASS, BeiDou (concurrent reception)
Time TO First Fix
30 seconds (cold start)

Physical

Weight
0.98 kg (2.15 lb)

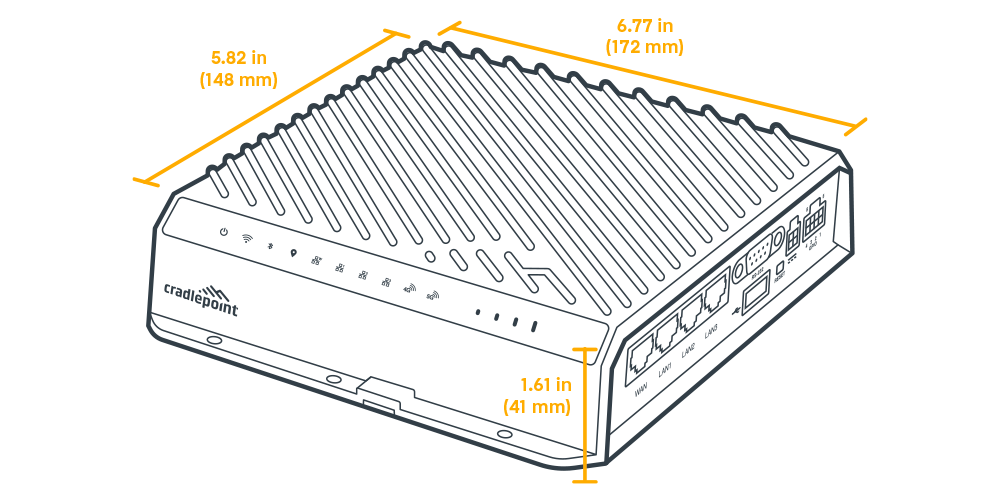

Dimensions
172 x 148 x 41 mm (6.77 x 5.82 x 1.61 in)

Interfaces

PoE
4 x 802.3bt Type 3, up to 60 W per port, 60 W total budget
Wi-Fi
2x2 MU-MIMO Wi-Fi 6 with DFS, 574 Mbps (2.4 GHz) / 1,200 Mbps (5 GHz), 2 x RP-SMA, WPA3, 802.11k/v, Wi-Fi Alliance Certified
Modem
Embedded 5G NR FR1 / LTE Cat 20 modem, 4 x SMA cellular connectors
Ethernet
4 x GbE (LAN/WAN switchable)
Bluetooth
Bluetooth LE 5.2, 10 dBm max TX, 1 x RP-SMA
GNSS Connector
1 x SMA GNSS antenna connector
Expansion Console
USB 2.0 Type A, DB9 RS-232, 8-pin GPIO, optional RX30-POE / RX30-MC

Wi-Fi Power

EU
2.4 GHz 14.00 dBm; 5500–5700 MHz 18.00 dBm (conducted)
Fcc
2.4 GHz 23 dBm; 5260–5825 MHz 21.90 dBm (conducted)
Japan
2.4 GHz 16.92 dBm; 5500–5720 MHz 21.00 dBm (conducted)
Canada
2.4 GHz 23.00 dBm; 5500–5580 MHz 22.00 dBm; 5660–5825 MHz 21.89 dBm (conducted)
Global Safe Mode
2.4 GHz 14 dBm (conducted)

Performance

L2 L3 Vlans
Up to 64
Stateful Firewall
940 Mbps
Typical Client Count
100
Concurrent VPN Tunnels
20
Concurrent Tcp Sessions
32,000
Point TO Point Ipsec VPN
400 Mbps
Sase Secure Connect SD-WAN
IPsec 400 Mbps; Microtunnel 600 Mbps
Ips App Aware Client Analytics
940 Mbps

Reliability

Calculated MTBF
340,644 hours (Telcordia SR332 at 25 °C)

Environmental

Storage Humidity
5% to 95%
Ingress Protection
IP64 (dust tight and splashing water)
Operating Humidity
5% to 95%
Storage Temperature
-40 °C to 85 °C (-40 °F to 185 °F)
Operating Temperature
-30 °C to 75 °C (-22 °F to 167 °F)

Certifications

Rail
EN 45545-2:2020 HL3, EN 50121-3-2, EN 50155 Class S1
Safety
UL/cUL, CB Scheme, EN 60950-1, EN 62368-1
Vehicle
E-Mark, SAE J1455
Security
FIPS 140-3 Level 1 in process on R1900 FIPS models only (this SKU is not a FIPS model)
Shock Vibration
MIL-STD-810G, Section 2.2.2, Procedure 1
Hazardous Locations
Class I Div 2
Flame Smoke Toxicity
BSS 7239
Substance Compliance
WEEE, RoHS, REACH, California Prop 65
North American Fire Safety
NFPA 130

Cloud Services

Support
Support for the full subscription term
Warranty
Limited lifetime warranty with active NetCloud subscription
Service Plans
NetCloud Service for Mobile Performance
Service Add Ons
NetCloud Exchange, NetCloud Advanced
Software Updates
Via NetCloud Manager (full term)
Device Management
NetCloud Manager (full term)

Edge Computing

CPU
Quad-core ARMv8 64-bit
Memory
Up to 1.8 GB (for NetCloud Container Orchestrator)
Applications
Docker containerized applications
Flash Storage
Up to 6 GB (for NetCloud Container Orchestrator)

Product Summary

PoE
Yes, with RX30-PoE
Wi-Fi
Dual-band, dual-concurrent 802.11ax (Wi-Fi 6)
Category
Mobile
GPS GNSS
Discrete active GNSS with dead reckoning
Bluetooth
Yes, embedded Bluetooth 5.2
USB Ports
1
Throughput
940 Mbps (firewall)
Form Factor
Ruggedized metal
VPN Tunnels
20
Serial Ports
1
Five G Status
5G Embedded
Ethernet Ports
4 GbE (LAN/WAN switchable)
Cloud Management
Yes
Special Features
Add 4 GbE PoE ports or 4 GbE and a second modem
Dual Modem Support
Yes, with RX30-MC
Subscription Terms
1, 3 & 5 years
Operating Temperature
-30 °C to 75 °C (-22 °F to 167 °F)
Wireless Connectivity
5G/4G Dual Connectivity
Private Cellular Network
Yes: CBRS, 4G LTE, 5G
Network Operator Standards
PTCRB (U.S.), GCF (global)

Questions buyers ask

Are antennas and a power supply included?

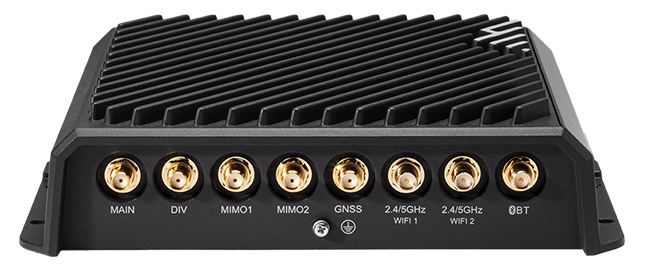

No. This configuration ships without an AC power supply or antennas. The R1900 has 4 SMA cellular connectors, 2 RP-SMA Wi-Fi connectors, 1 RP-SMA Bluetooth connector and 1 SMA GNSS connector. It runs on 9–36 VDC through a 4-pin Molex micro-fit connector.

What does the Advanced plan add to Essentials?

The Advanced Mobile Performance plan adds threat management, web filtering, application visibility and analytics. It also adds advanced GNSS functions, including location tracking and cellular coverage maps.

What support and warranty come with the 3-year term?

Essentials includes 24x7 support: phone support 24 hours on weekdays with weekend emergency response, web 24x7 and chat 24x5. It also includes NetCloud Manager, software updates and a limited lifetime warranty while the NetCloud subscription is active.

Can the R1900 use two carriers at once?

The embedded modem has dual 4FF SIM slots. For simultaneous dual-carrier connectivity, add the optional RX30-MC accessory, which provides a second modular modem slot and four GbE ports.

Is this SKU FIPS certified?

No. This is the TAA-compliant federal SKU. FIPS 140-3 Level 1 (in process) applies only to the R1900 FIPS models.
